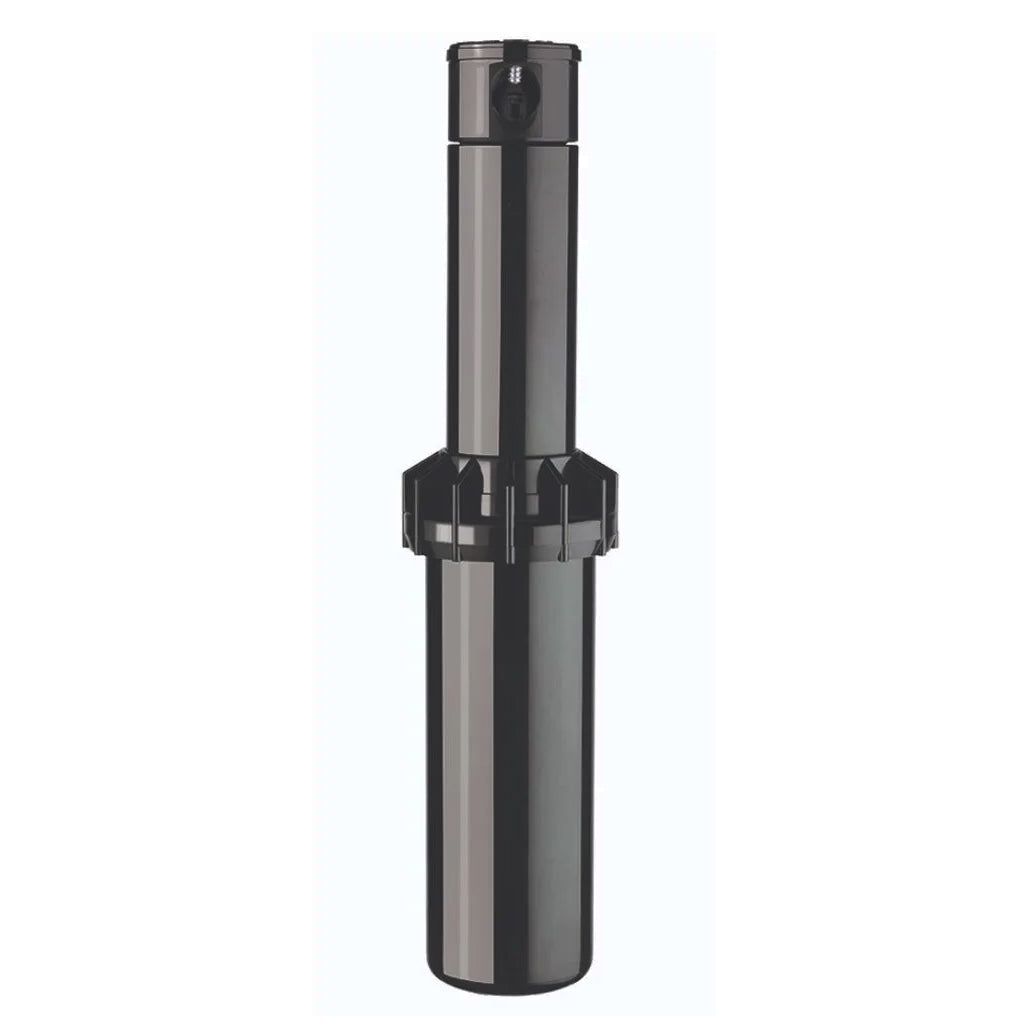

K-Rain 60003 - 4" RPS Select Pop-up Rotor Sprinkler - 40 to 360 Degree Pattern

The K-Rain RPS Select rotary sprinkler is the first gear-driven sprinkler that makes matched precipitation fast and easy, without the need for cumbersome changing of nozzles or sprinkler heads in the field.

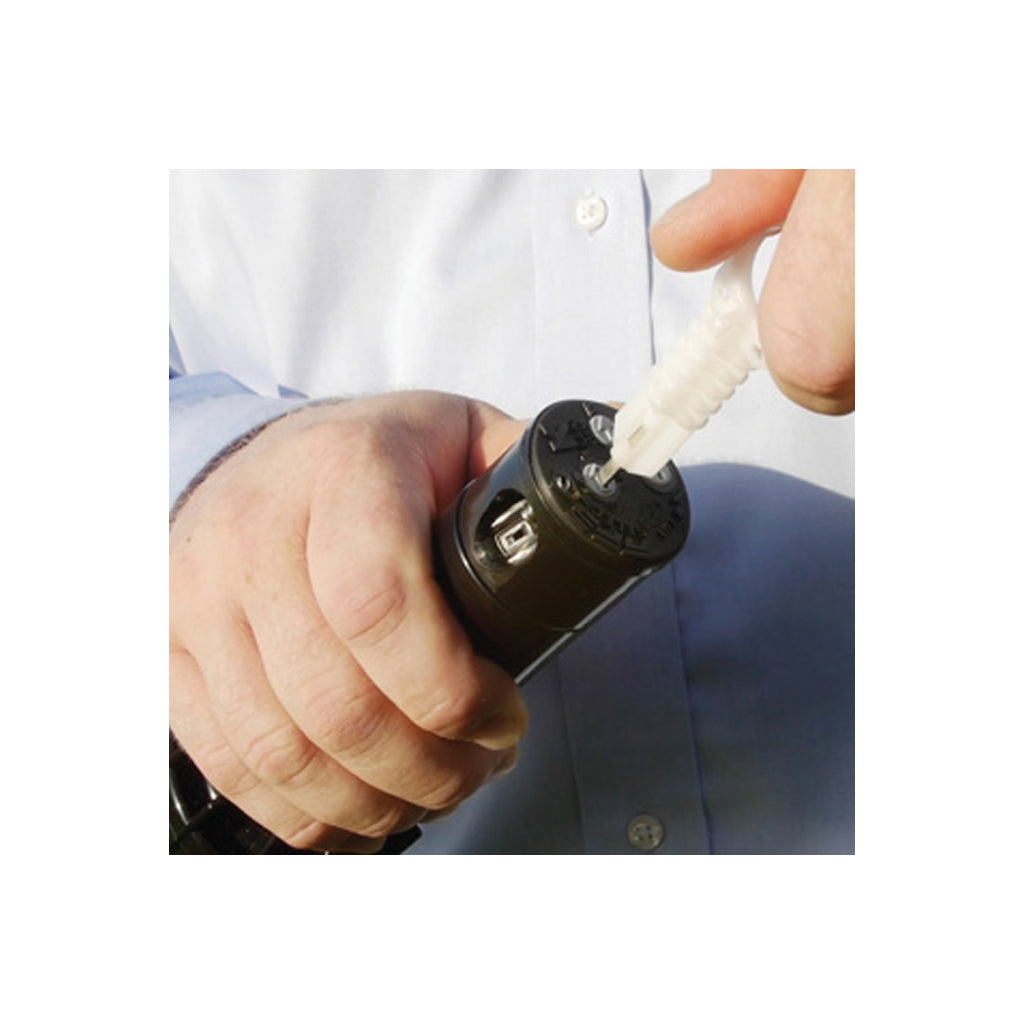

The RPS Select offers a choice of 4 selectable built-in nozzles. With a twist of a screwdriver, quickly select the correct nozzle flow to match the arc setting of the sprinkler, wet or dry. No nozzle trees to carry or lose. Fewer chances for errors. Using a combination of the four nozzles, it’s easy to achieve matched precipitation across all arc settings.

Independent research reveals that most contractors don’t change out factory-installed nozzles to match the sprinkler’s area of coverage. When the same 3.0-gallon nozzle is used for all arcs, the result is areas that are dramatically over-watered or under-watered. The RPS Select offers factory-nozzle convenience with greater water efficiency. The four on-board nozzles also make the RPS Select a convenient universal replacement sprinkler for other brands.

Features

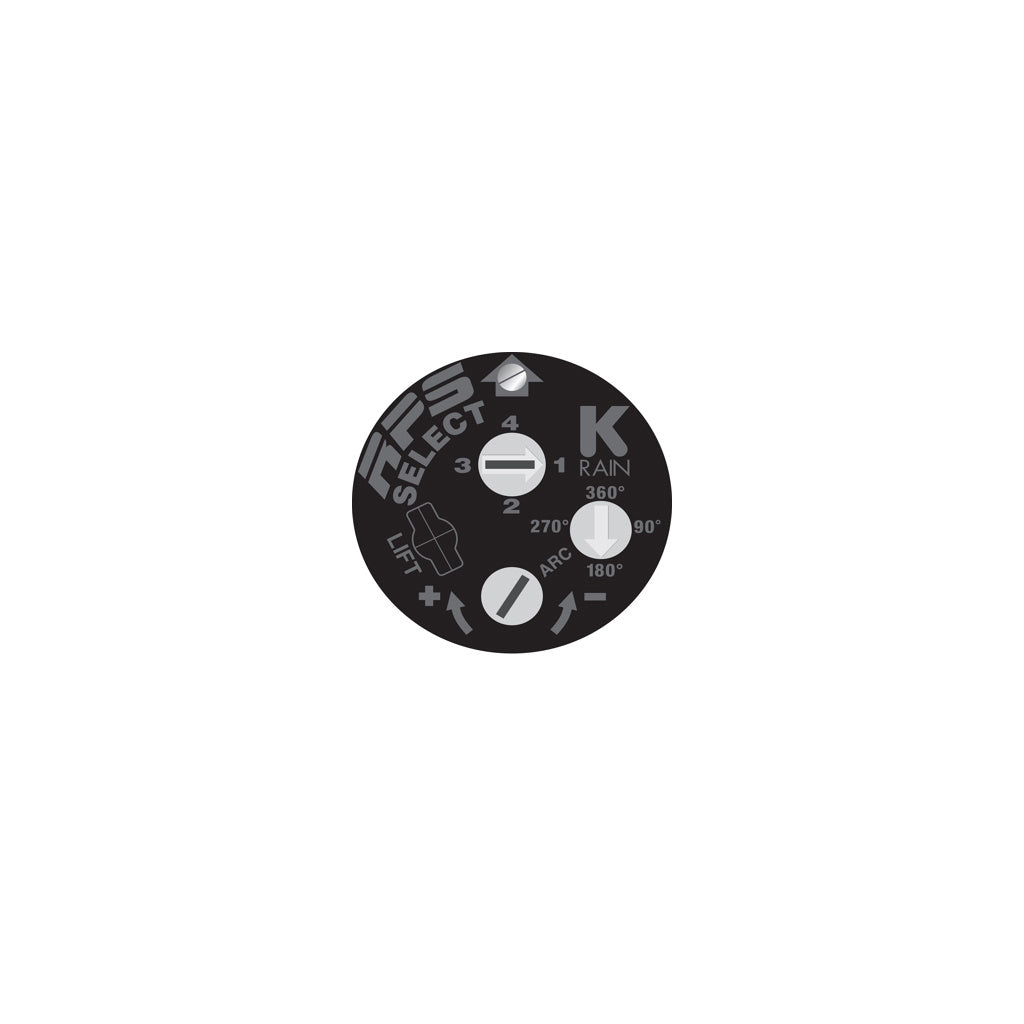

• All adjustments made from the top – wet or dry – including flow shutoff. No special tools needed
• Four Built-in Selectable Nozzles – Nozzles #1 through #4 match arc settings 90 through 360 degrees
• Matched Precipitation Rates – When nozzle setting matched to arc
• Precision-Engineered Nozzles – Ensures water-saving efficiency
• Standard Rubber Cover
• Proven Water-lubricated Gear-drive Design – Common to the popular RPS™ 75 Series
• Low-pressure Operation
• Universal Riser Assembly – Fits into existing Hunter PGP and PGP Ultra cans

Specifications

• Inlet: 3/4" (1,9 cm ) Threaded NPT
• Arc Adjustment Range: 40 – 360 degrees
• Flow Range: 1.3 – 6.8 GPM (4,9 – 25,8 LPM)
• Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bar)
• PrecipitatioRate: .23 – .71 in/hr (6 – 20 mm/hr) (Depending oSpacing and Nozzle Used)
• Retracted Height: 4 in: 7 3/8" (18,7 cm), 6 in: 9 1/2" (24,1 cm)
• Riser Height: 4 in: 4 3/8" (11,1 cm), 6 in: 6 3/8" (16,2 cm)
• Shrub Height: 7 5/8" (16,8 cm)
• Recommended Spacing: 31' – 44' (9,1 – 13,4 m)
• Radius: 33' – 46' (10 – 14 m)
