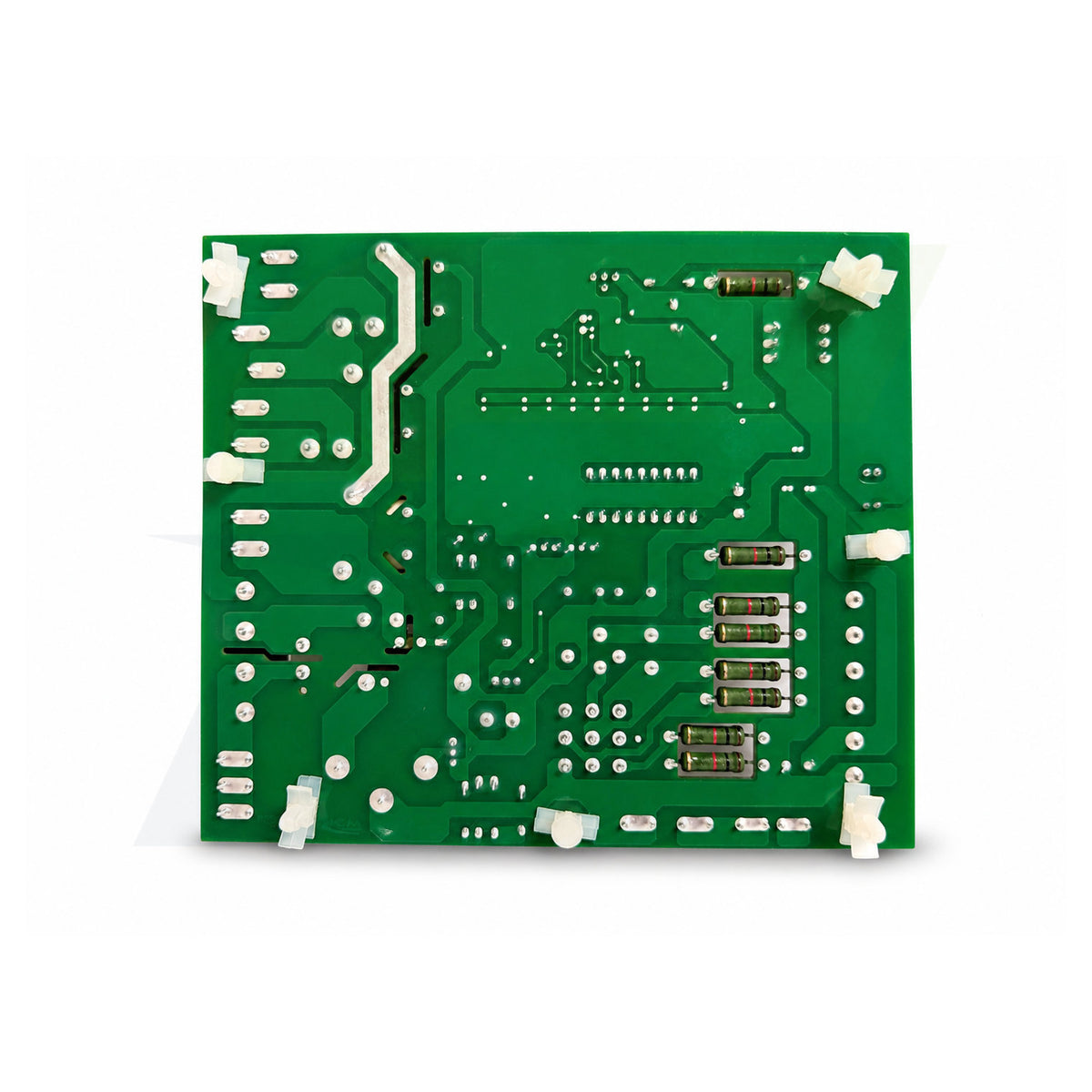

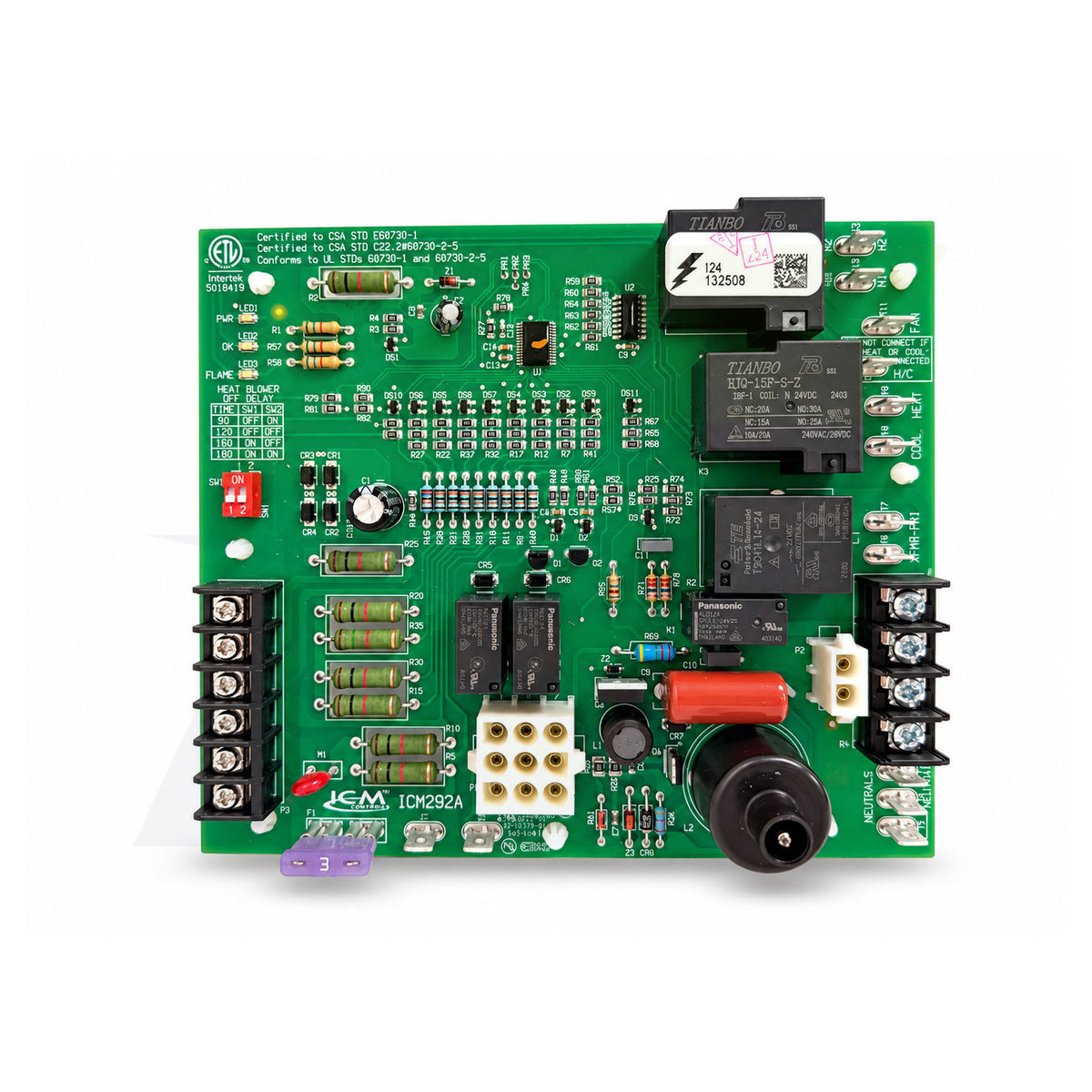

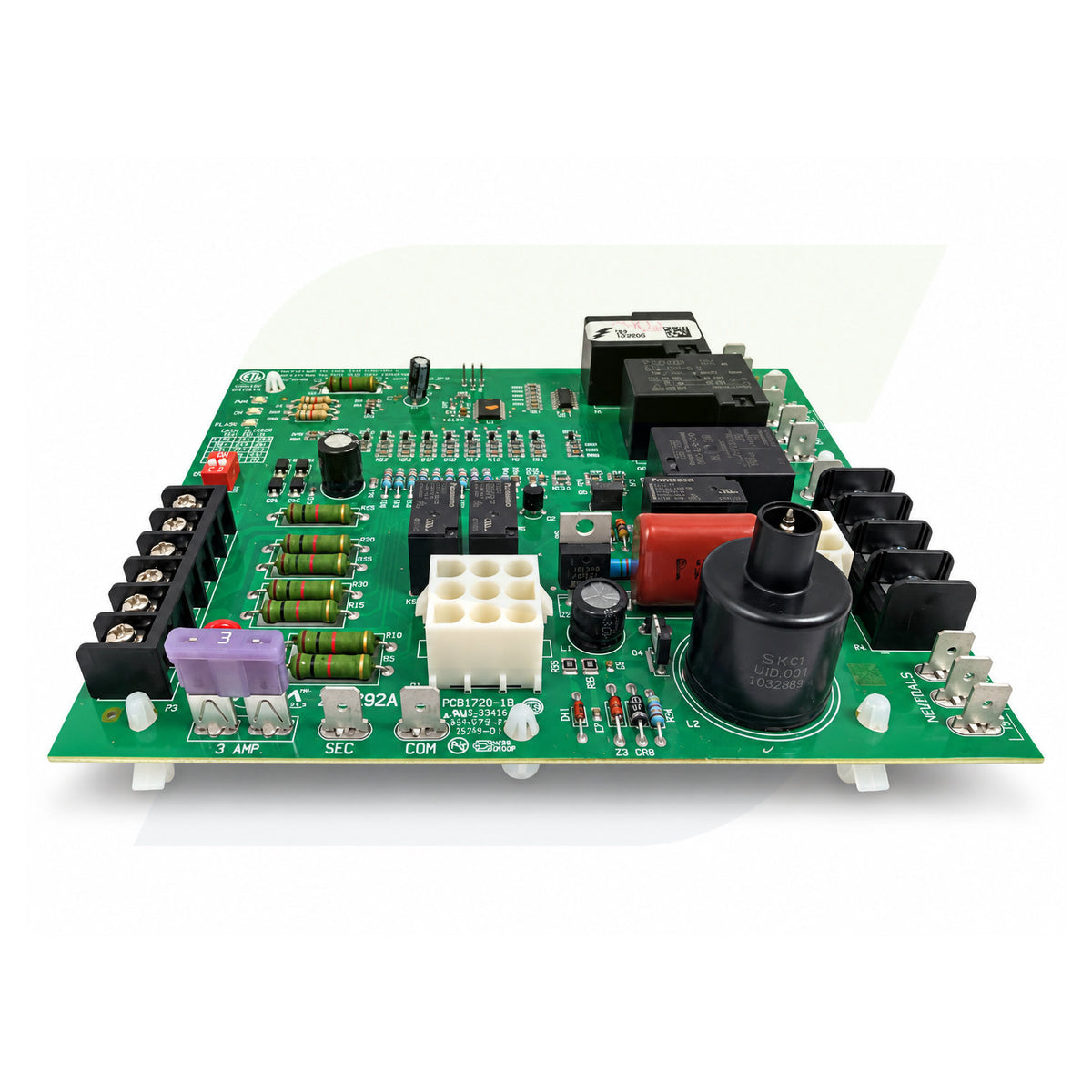

ICM Controls ICM292A - Rheem Replacement Gas Ignition Control Board

The ICM Controls ICM292A is a microprocessor-based direct spark ignition control board designed to replace Rheem 62-24140-04 and ICM Controls ICM292. Compatible with natural gas and LP systems, it manages furnace ignition, inducer and indoor blower operation while monitoring flame sensing and safety switches. Built-in LED diagnostics help identify faults and simplify troubleshooting.

Features

• Direct spark ignition (DSI) control board
• Replaces Rheem 62-24140-04 and ICM Controls ICM292
• Compatible with natural gas and LP systems
• Microprocessor-based control of ignition and furnace operation
• Controls inducer motor, indoor blower, spark ignitor and gas valve
• Supports humidifier and electronic air cleaner outputs
• Monitors flame sensing, safety switches and ignition timing
• 100% lockout safety feature with 1-hour lockout period
• LED indicators for power, operating status and flame status
• 24 VAC control voltage and 115 VAC line voltage, 60 Hz
• 30-second pre-purge and 7-second trial for ignition
• Operating temperature range: -40°F to 176°F
