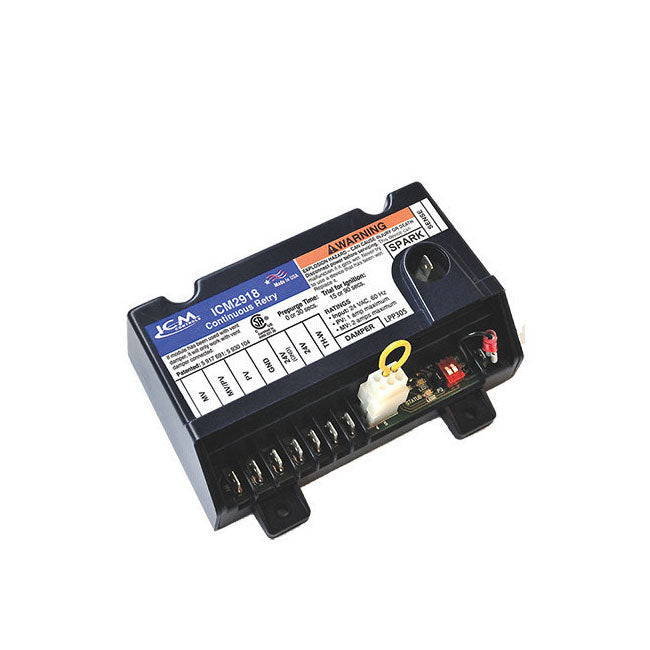

ICM Controls ICM2918 - Universal Intermittent Pilot Ignition Control

The ICM Controls ICM2918 is a universal replacement ignition control module for compatible gas-fired furnaces, boilers and other heating appliances. It manages the ignition sequence, monitors the pilot flame and provides safety shutoff for single- or dual-rod intermittent pilot systems. Compatible with natural gas and LP gas, it features selectable ignition timing and LED diagnostics to simplify setup and troubleshooting.

Features

• Universal intermittent pilot ignition control module
• For compatible gas-fired furnaces, boilers and heating appliances
• Supports single- and dual-rod flame sensing applications
• Compatible with natural gas and LP gas systems
• Provides ignition sequencing, flame monitoring and safety shutoff
• Selectable pre-purge timing: 0 or 30 seconds
• Selectable trial for ignition: 15 or 90 seconds
• Timing settings feature a permanent lock function
• Operates with or without a connected vent damper
• Green LED displays system status and error codes
• Yellow LED indicates flame presence and strength
• 18-30 VAC control voltage, 50/60 Hz
• Replaces Honeywell S8610U3009 and other listed compatible controls
• Operating temperature range: -40°F to 165°F
