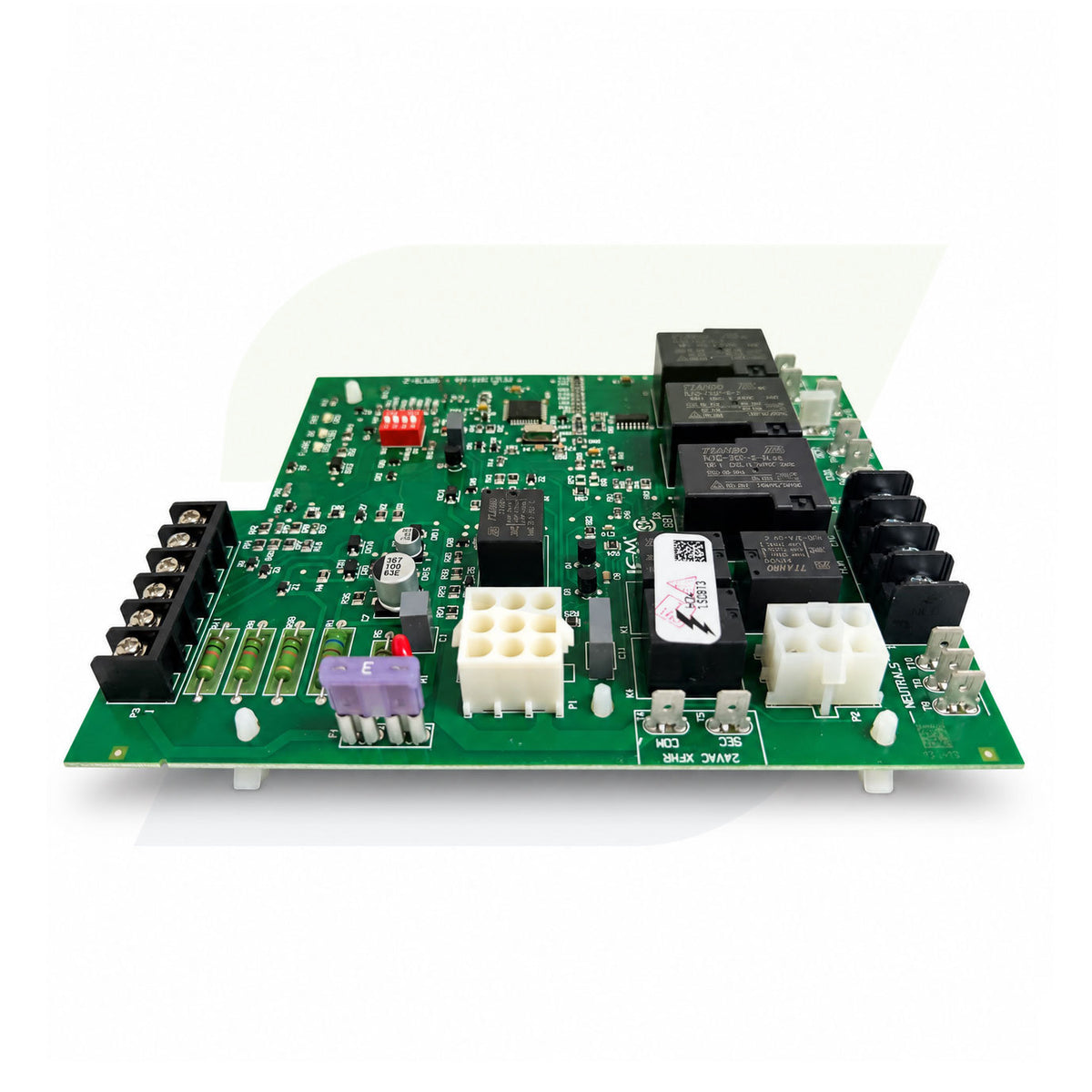

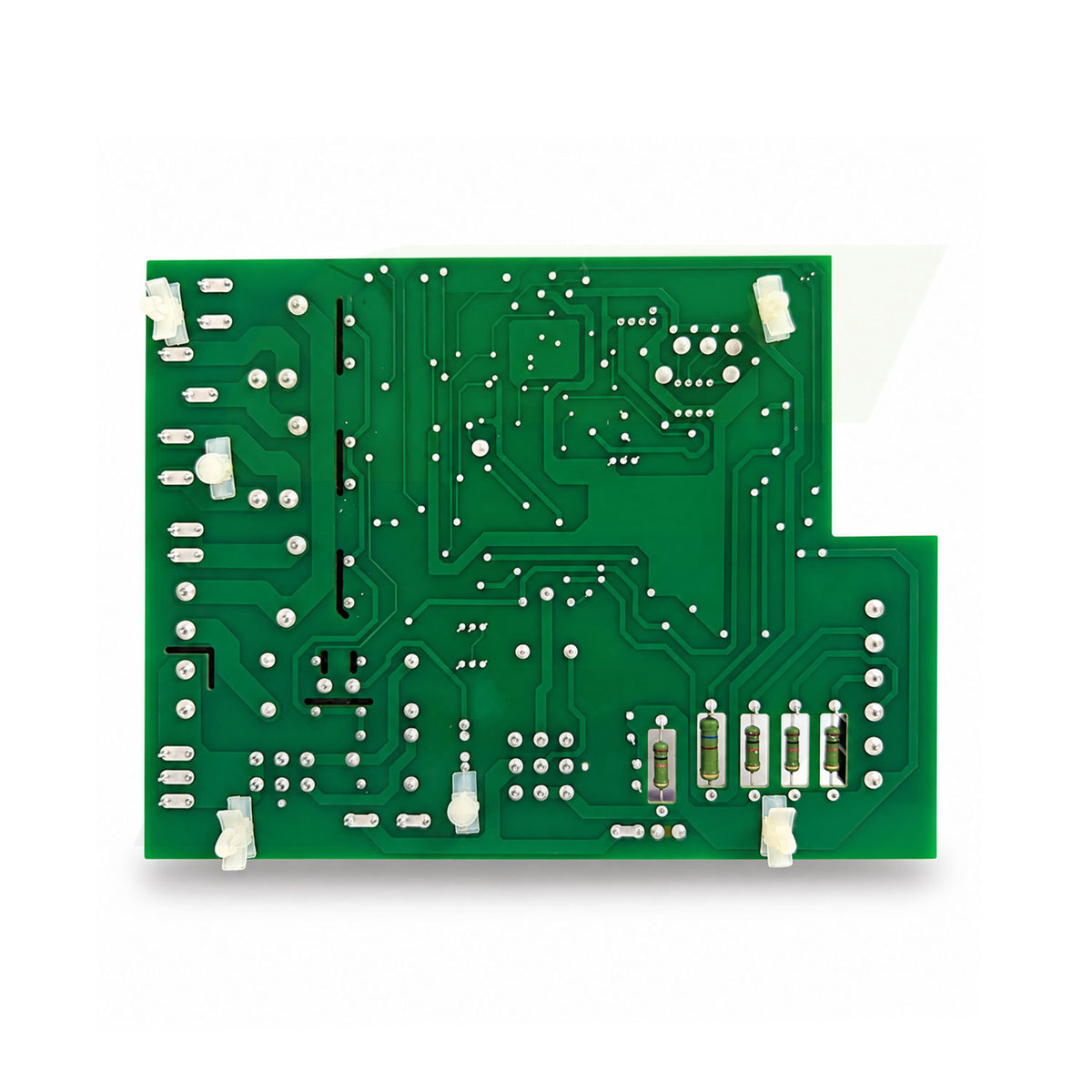

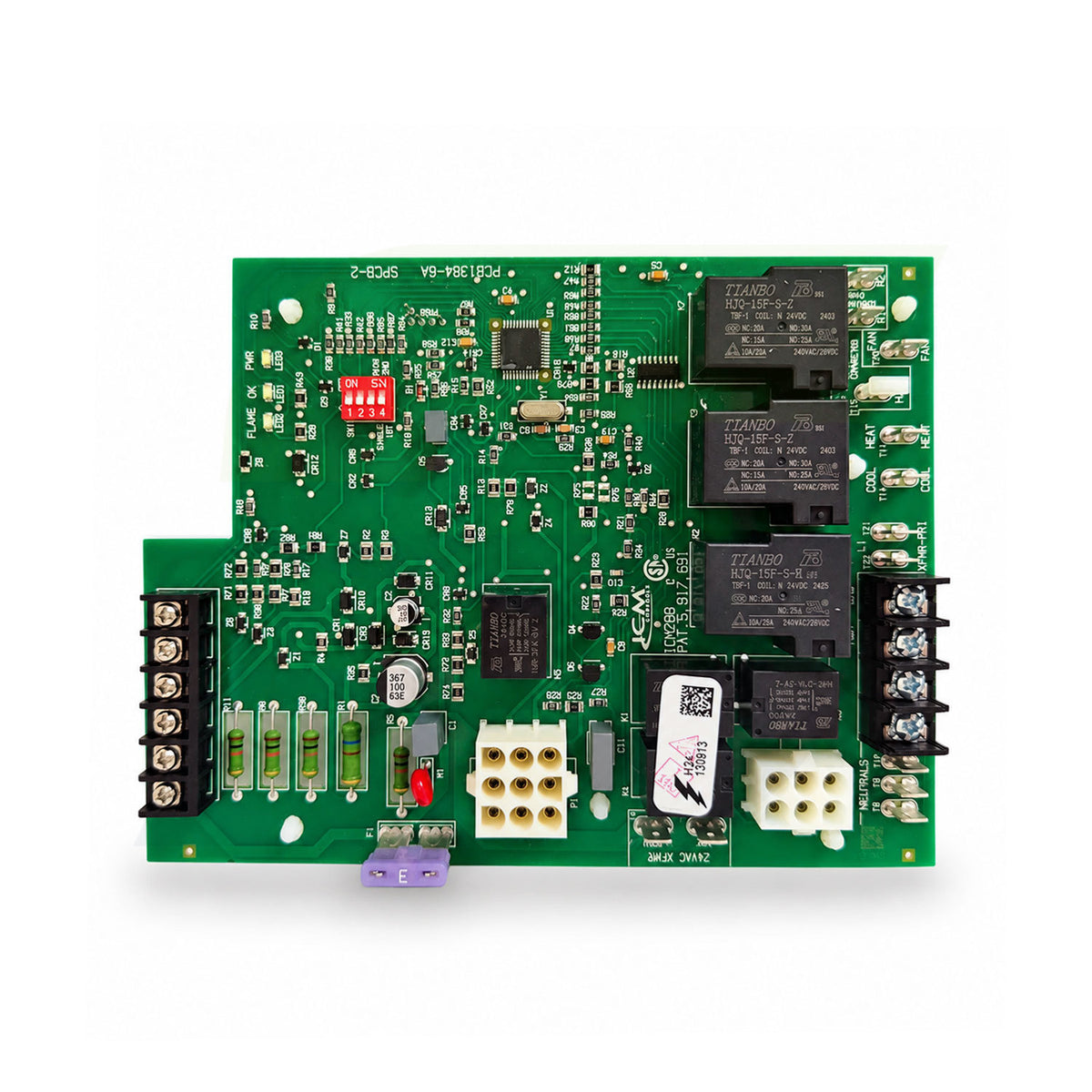

ICM Controls ICM288 - Rheem Replacement Furnace Control Board

The ICM Controls ICM288 is a microprocessor-based furnace control board designed as a form, fit and functional replacement for Rheem 62-24084-82. It controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor while monitoring pressure, rollout and limit switches. Reverse polarity detection and diagnostic LEDs help simplify troubleshooting, while twinning compatibility supports operation with another ICM288 board. ICM

Features

• Replaces Rheem furnace control board 62-24084-82
• Form, fit and functional replacement design
• Microprocessor-based furnace control
• Controls gas valve, inducer draft motor and circulating blower
• Supports hot surface ignition
• Monitors pressure, rollout and limit switches
• Reverse polarity detection
• Twinning compatible with another ICM288 board
• Diagnostic LEDs assist with testing and troubleshooting
• Supports humidifier and electronic air cleaner outputs
• Line voltage range: 98-132 VAC, 60 Hz
• Dimensions: 7.5" L x 5.75" W x 1.5" H ICM
