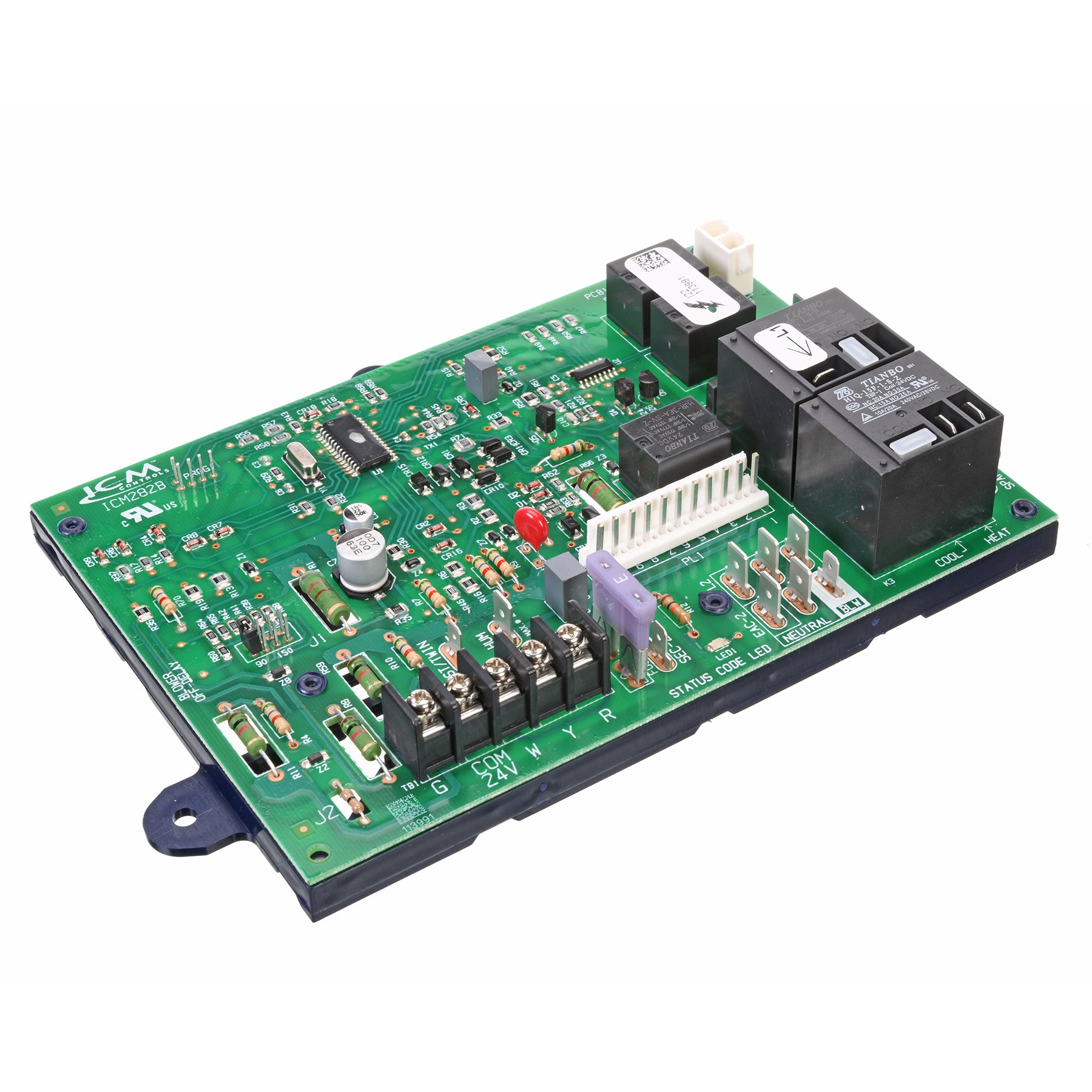

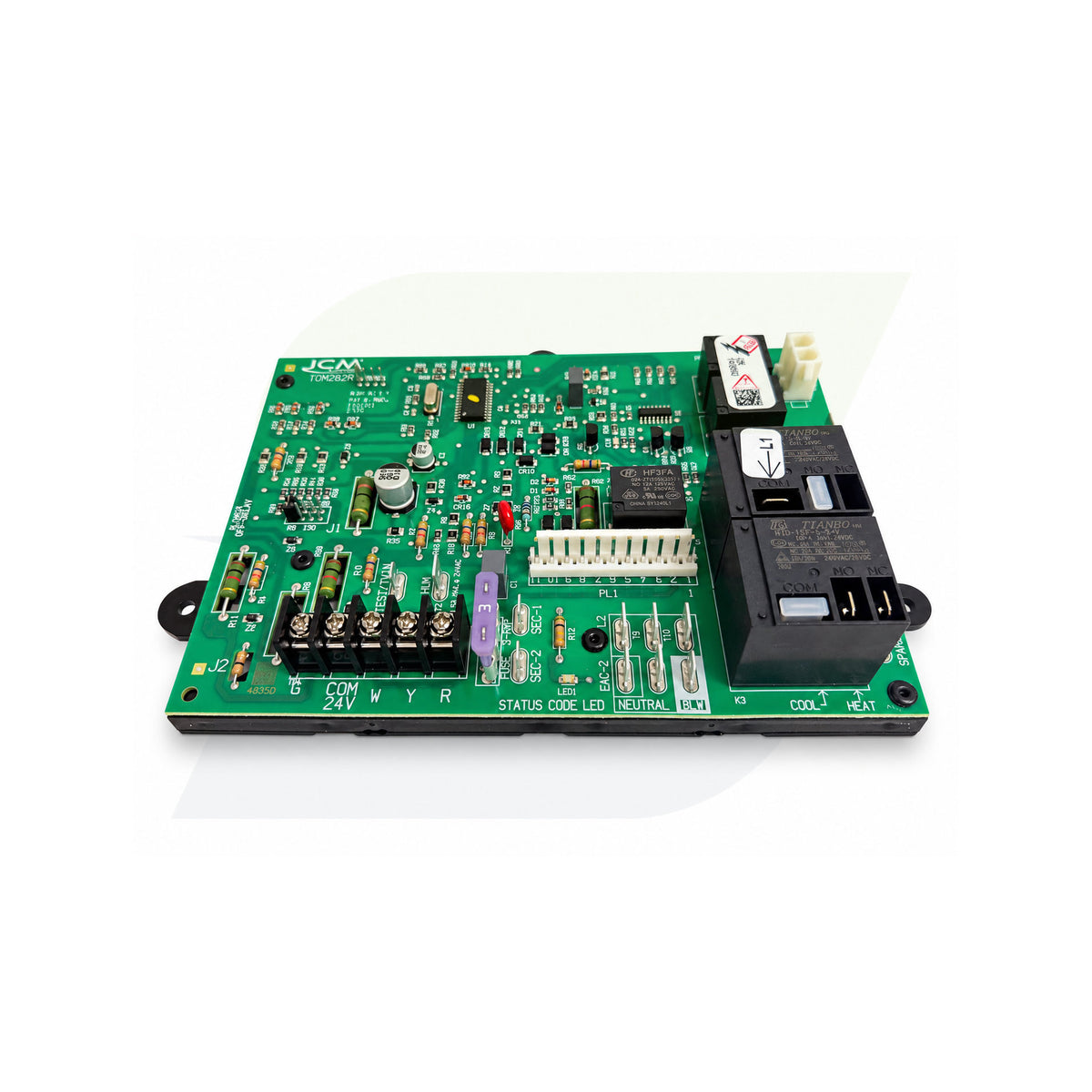

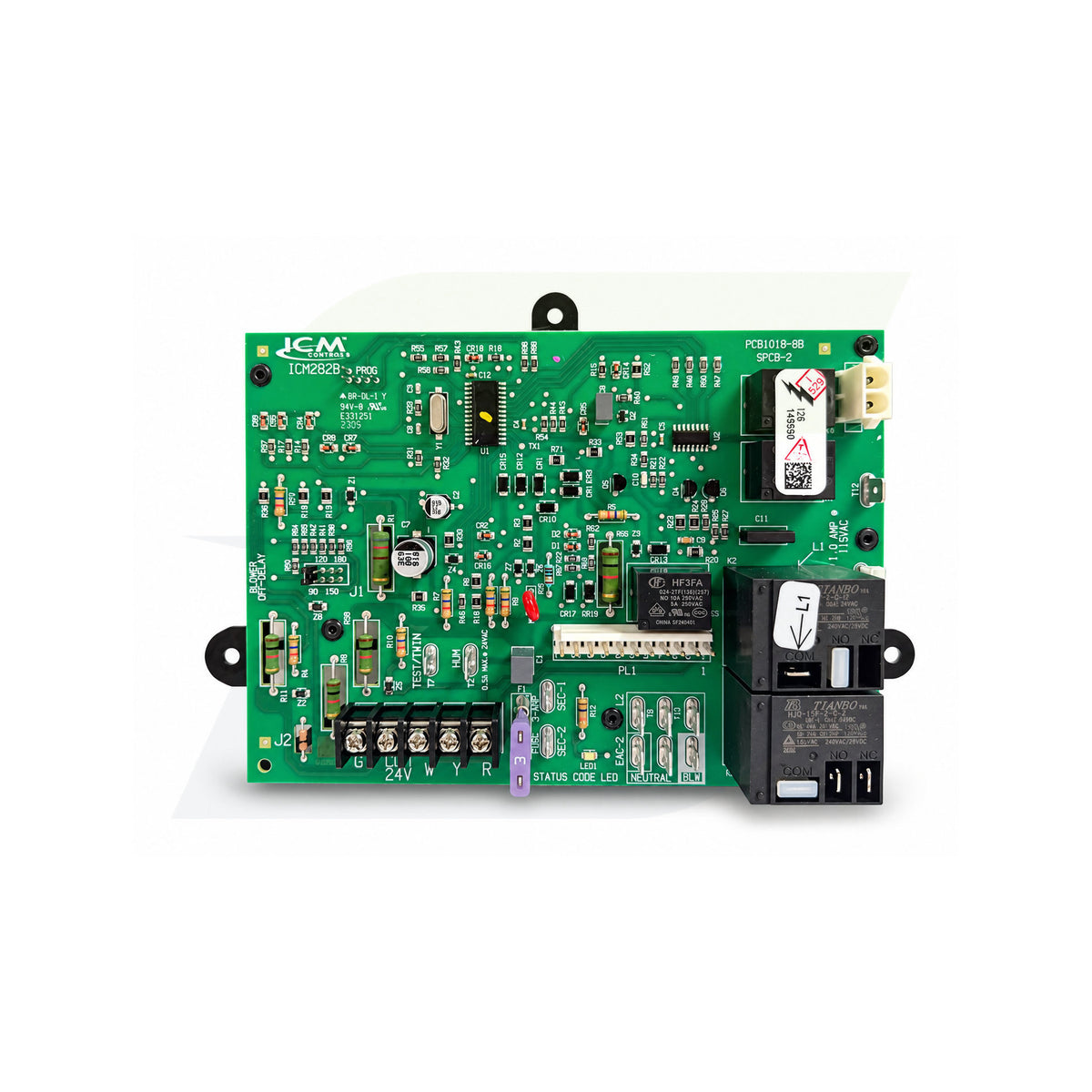

ICM Controls ICM282B - Fixed Speed Furnace Control Board

The ICM Controls ICM282B is a replacement control board for compatible Carrier fixed speed furnaces. Its microprocessor manages the gas valve, ignitor, blower motor, inducer, humidifier and electronic air cleaner. A diagnostic LED helps simplify troubleshooting, while ignition failure shutoff, reverse polarity protection and secondary brownout protection support reliable operation.

Features

• Replacement control board for compatible Carrier fixed speed furnaces
• Microprocessor-based furnace operation
• Controls the gas valve, ignitor, blower motor and inducer
• Supports humidifier and electronic air cleaner operation
• Shuts off gas completely if ignition fails
• Diagnostic LED assists with troubleshooting
• Reverse polarity and secondary brownout voltage protection
• Compatible with standard 24 VAC thermostats
• Supports furnace twinning with another ICM282B board
• 120 VAC, 60 Hz operation
• Dimensions: 8" wide x 5" long x 1.5" high
• Replaces Carrier CEBD431012-01A, CEPL131012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 and 325878-751
