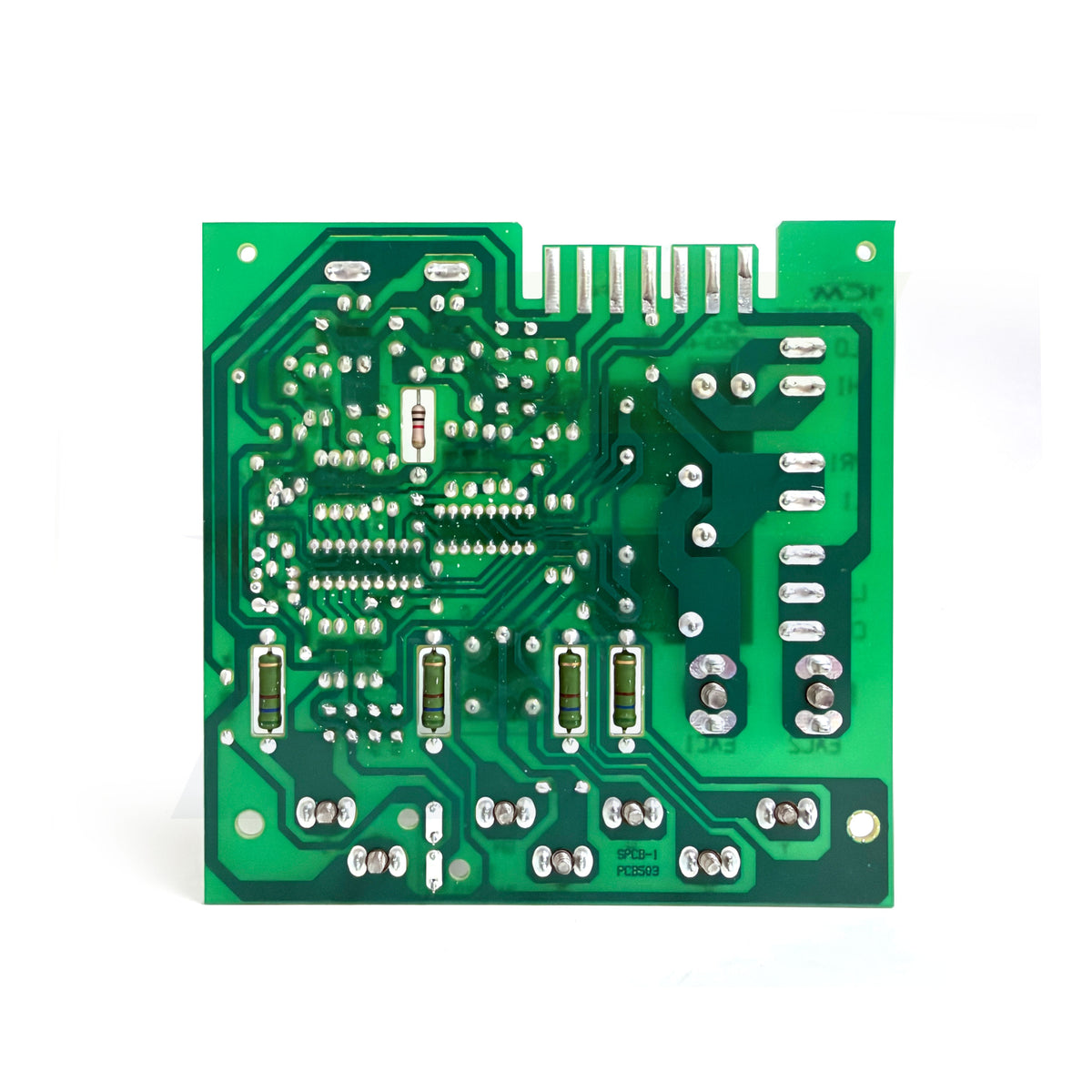

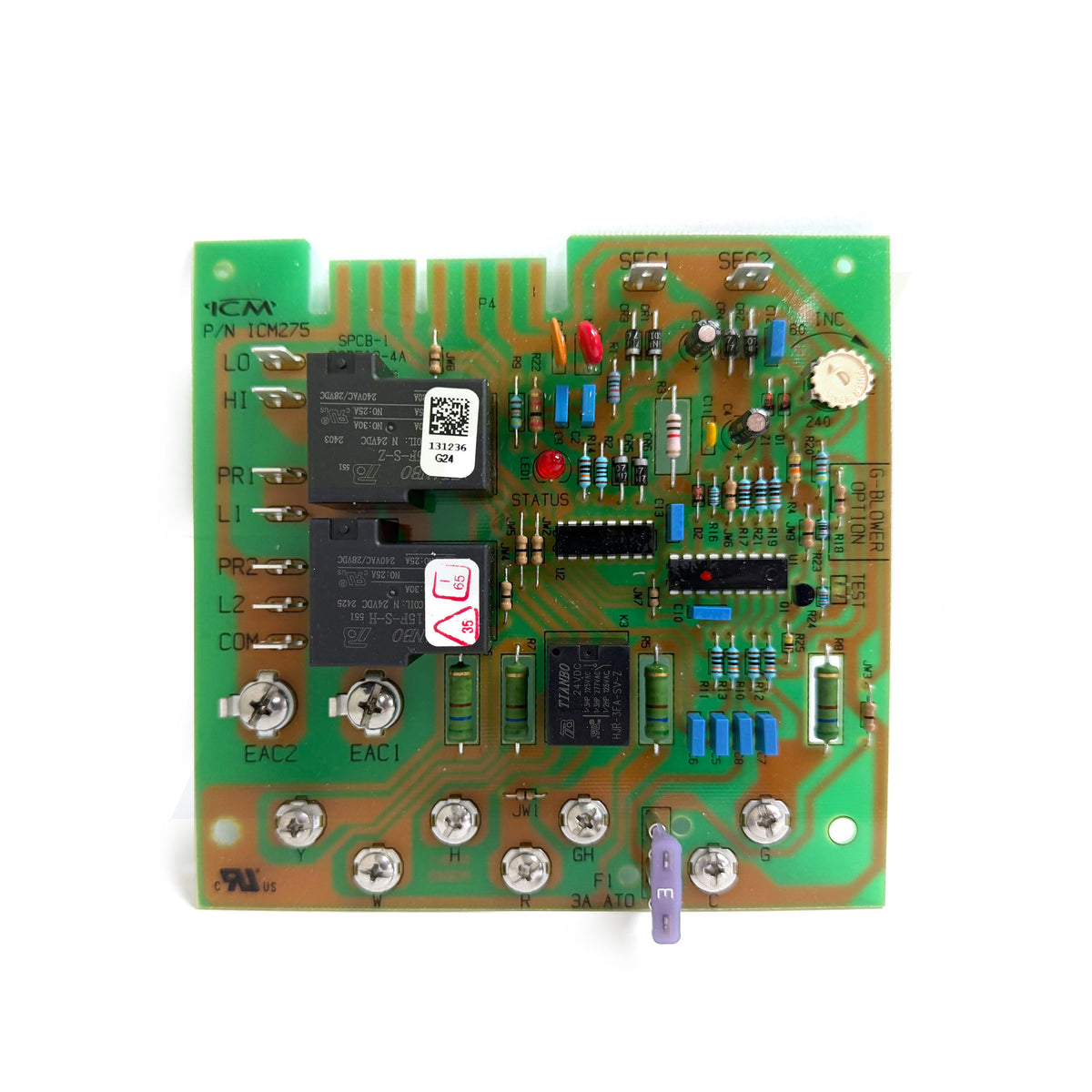

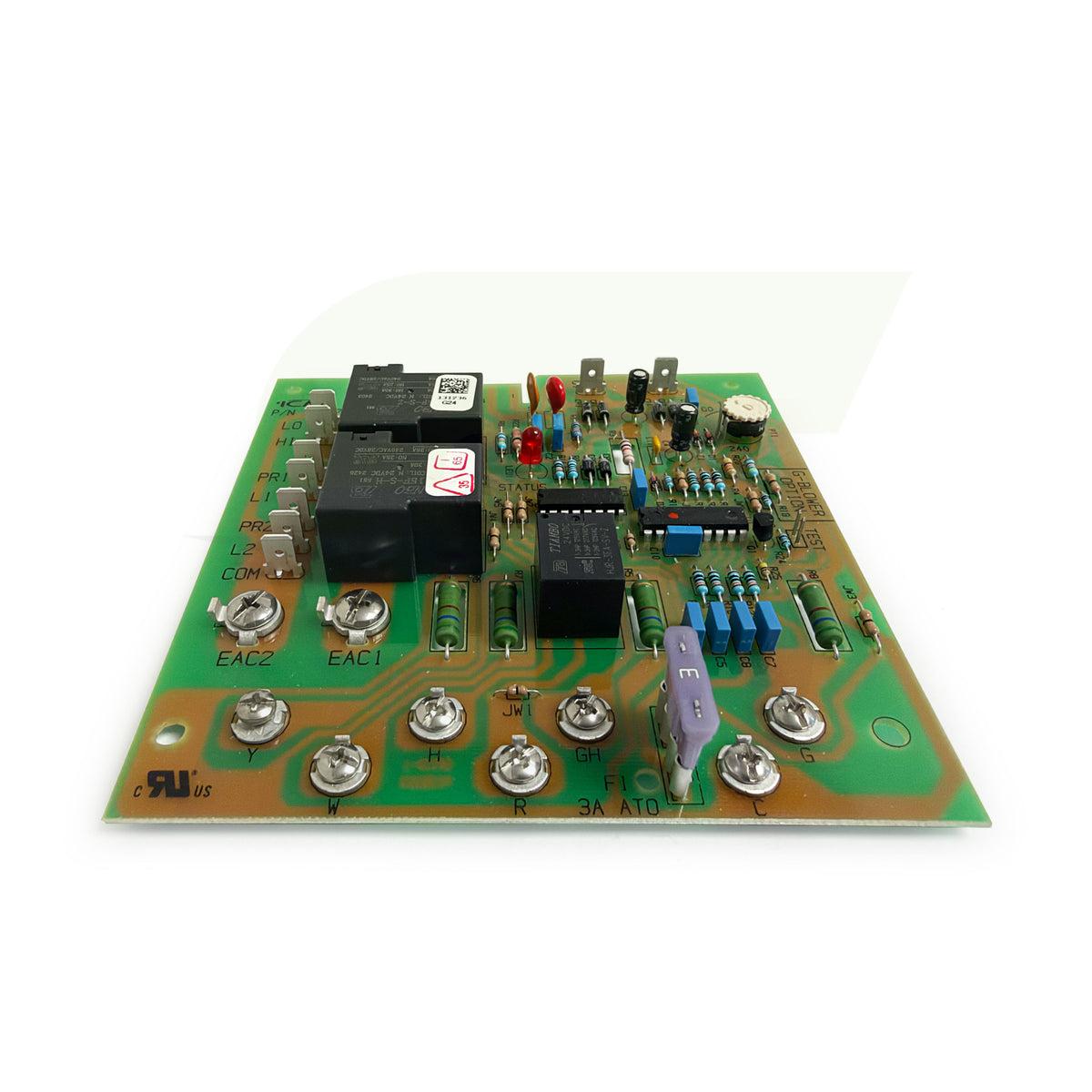

ICM Controls ICM275 - OEM Replacement Fan Blower Control Board

The ICM Controls ICM275 is a replacement fan blower control board designed for compatible Carrier gas furnaces. It provides a form, fit and functional replacement for select OEM controls, managing blower operation during heating and cooling cycles. A heavy-duty heat relay, adjustable heating fan-off delay and built-in short cycle protection help support reliable operation while allowing the blower to clear residual air from the ducts after a cycle. ICM

Features

• Form, fit and functional replacement for select Carrier OEM controls
• Controls blower operation during heating and cooling cycles
• Heavy-duty heat relay
• Built-in short cycle protection
• 18-30 VAC input voltage
• Fixed 60-second heating fan-on delay
• Adjustable 60-240 second heating fan-off delay
• Fixed 90-second cooling fan-off delay
• High-speed contact rating: 20 amps at 240 VAC
• Low-speed contact rating: 10 amps at 240 VAC
• Replaces Carrier CES0110019, HH84AA001, HH84AA003, HH84AA005, HH84AA009, HH84AA014, HH84AA015 and HH84AA021
• Replaces Robertshaw 695-101
• Dimensions: 5.5" L x 5.5" W x 0.875" H
