I-25-04 - I-25 4" Pop-up Rotor Sprinkler with 5 Standard Nozzles

In stock
SKU: I2504
Regular price $34.87

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

I-25 Brochure

I-25 Specification Sheet

I-25 Advantages

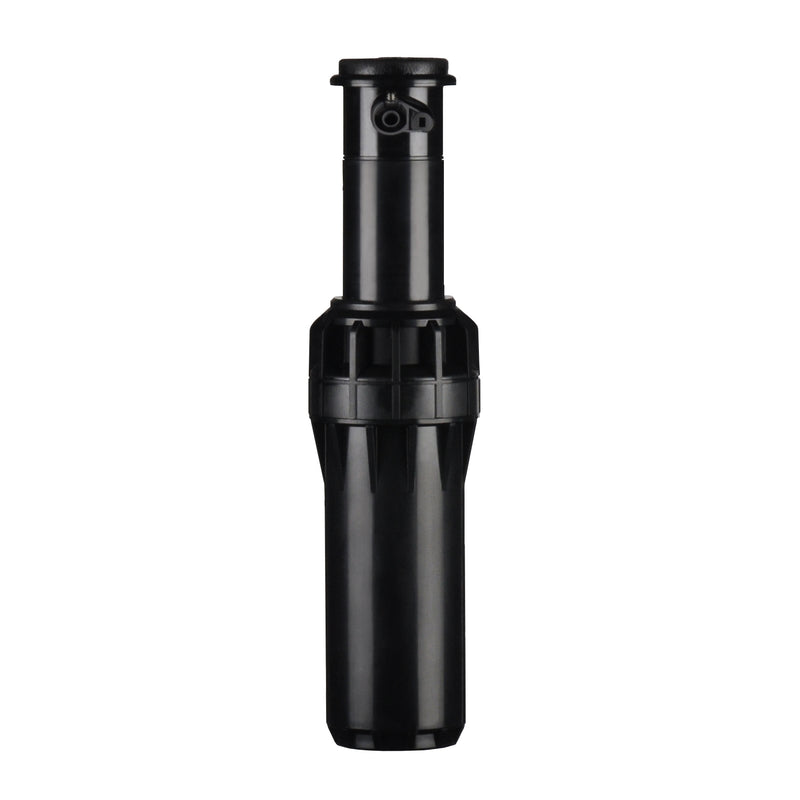

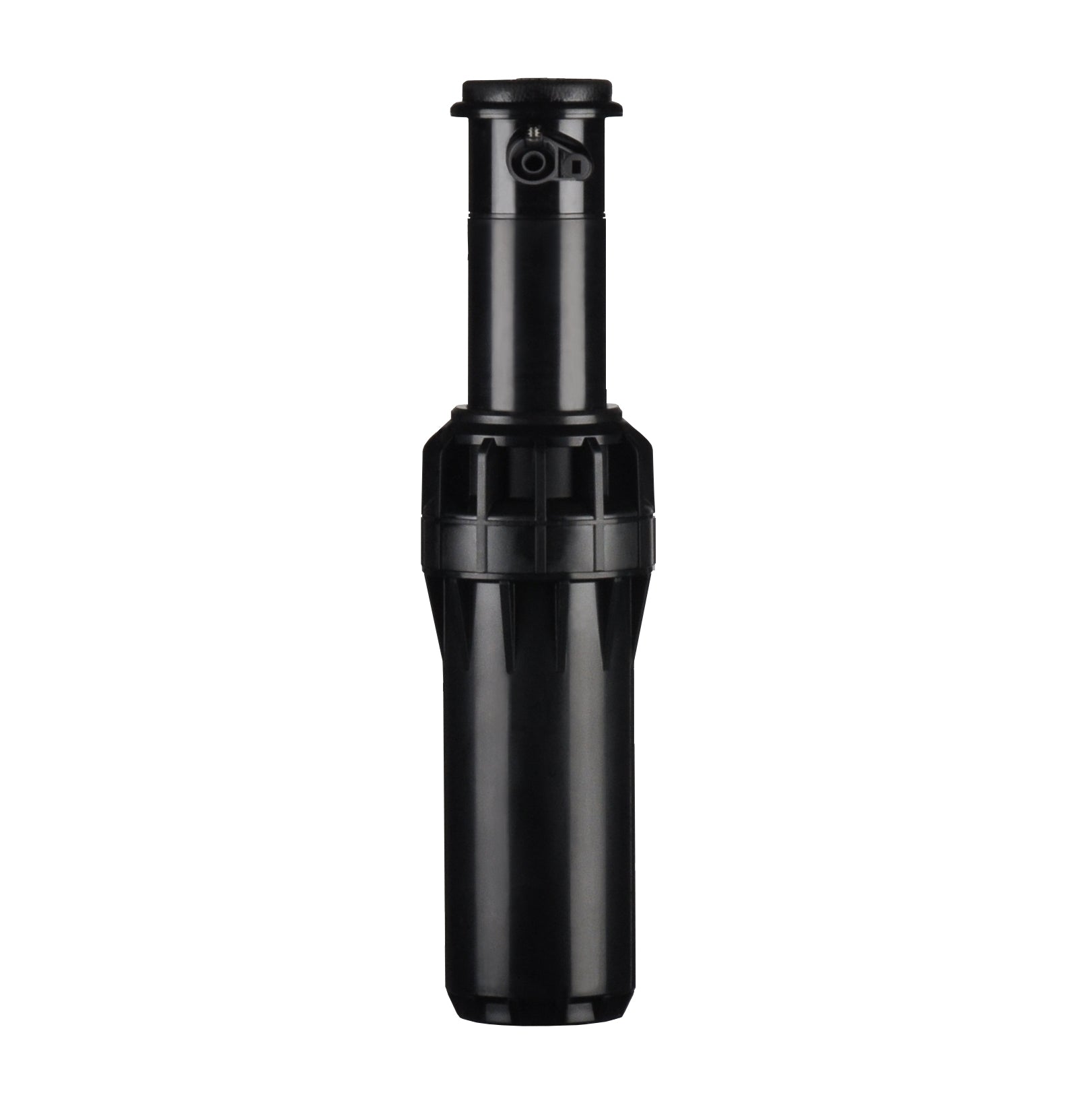

Hunter I-25-04 - I-25 4" Pop-up Rotor Sprinkler with 5 Standard Nozzles

The I-25 gets the job done with power, efficiency, and commercial-grade reliability. With a robust watering radius of 40’ to 71’, this rotor can be used in a variety of applications and environments. Its compact, highly durable design comes with an optional stainless steel riser for tough-as-nails strength. With a 5-year warranty, the I-25 also has options for reclaimed water ID and high-speed. A standard check valve is built in, and a wide selection of high performance nozzles are available. Efficient, tough, and built-to-last, Hunter’s I-25 rotors work hard day in and day out so you don't have to.

Features

  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50 to 360 degrees
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
  • Part- and full-circle in one model for installation flexibility and reduced inventory
  • Color-coded nozzles make identification easy
  • QuickCheck Arc Mechanism for fast arc adjustment
  • Drain Check Valve prevents low-head drainage (up to 10' of elevation)

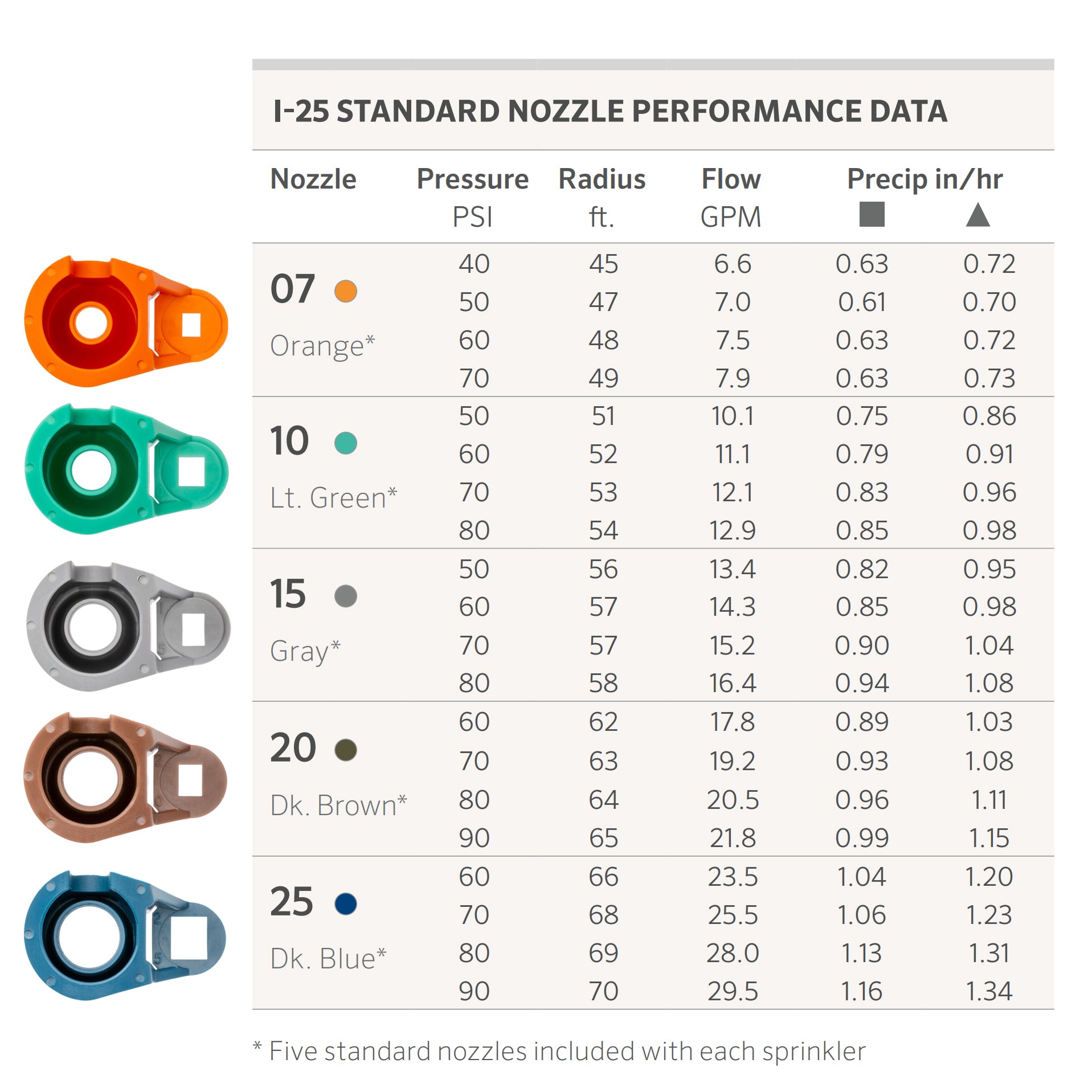

  • Includes 5 nozzles
    • 07 - Orange
    • 10 - Light Green
    • 15 - Gray
    • 20 - Dark Brown
    • 25 - Dark Blue

Specifications

  • Overall Height: 7-7/8"
  • Pop-up Height: 4"
  • Exposed Diameter: 1-7/8"
  • Inlet Size: 1" female NPT
  • Nozzle choices: 11
  • Radius: 37' to 71'
  • Flow: 3.8 to 31.5 GPM
  • Recommended pressure range: 40 to 100 PSI
  • Operating pressure range: 40 to 100 PSI
  • Precipitation rates: 0.4 in/hr approximately
  • Nozzle trajectory: standard = 25 degrees
  • Warranty period: 5 years

 Related Video: Adjusting a Hunter Rotor
