Overview:

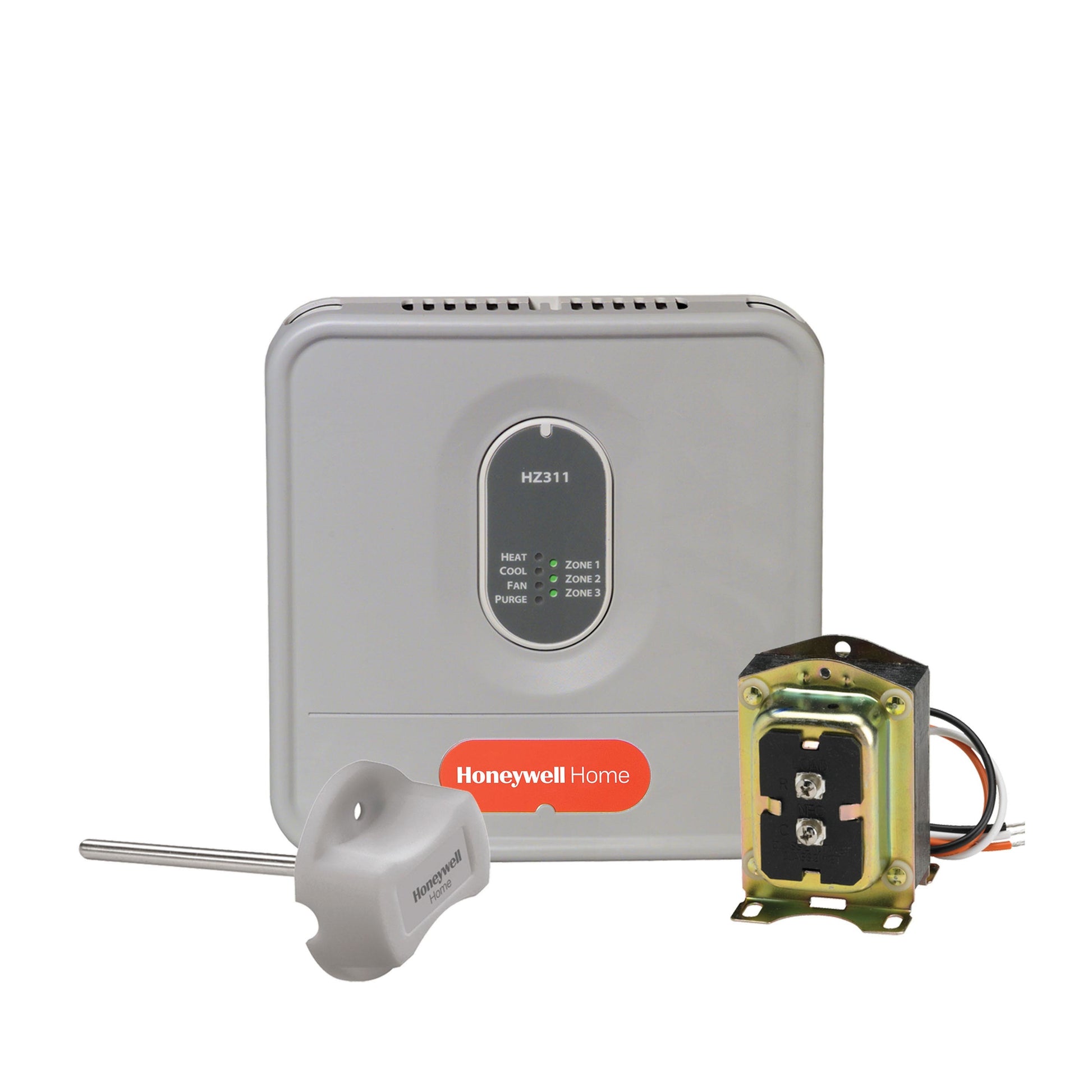

Zoning Simplicity. Zoning Efficiency. The TrueZONE HZ311 Panel is for conventional, single stage applications up to three zones. Simple push button connections and intuitive LEDs make this panel easy to install and test. The Honeywell Home TrueZONE HZ311 3 zone Panel Kit includes: HZ311 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor.

Features:

• 1 stage heat and 1 stage cool conventional applications
• Robust push terminals
• Common-sense LEDs
• Clean, professional installation
• Smaller footprint than standard
• Variable-speed fan control

Specifications:

• Includes: HZ311 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
• Application: Zoning
• Stages: 1 Heat/1 Cool in
• Number of Original Zones: 3
• Product Height: 8"
• Product Length: 8"
• Product Width: 1.86"
• Color: Gray
• Auto Changeover: Yes
• Checkout Procedure: Yes
• Compatible Sensor: Discharge Air Temperature Sensor
• LED Functions: Heat, Cool, Fan, Purge, Zone 1, 2, 3, 4
• Warranty: 5 Years

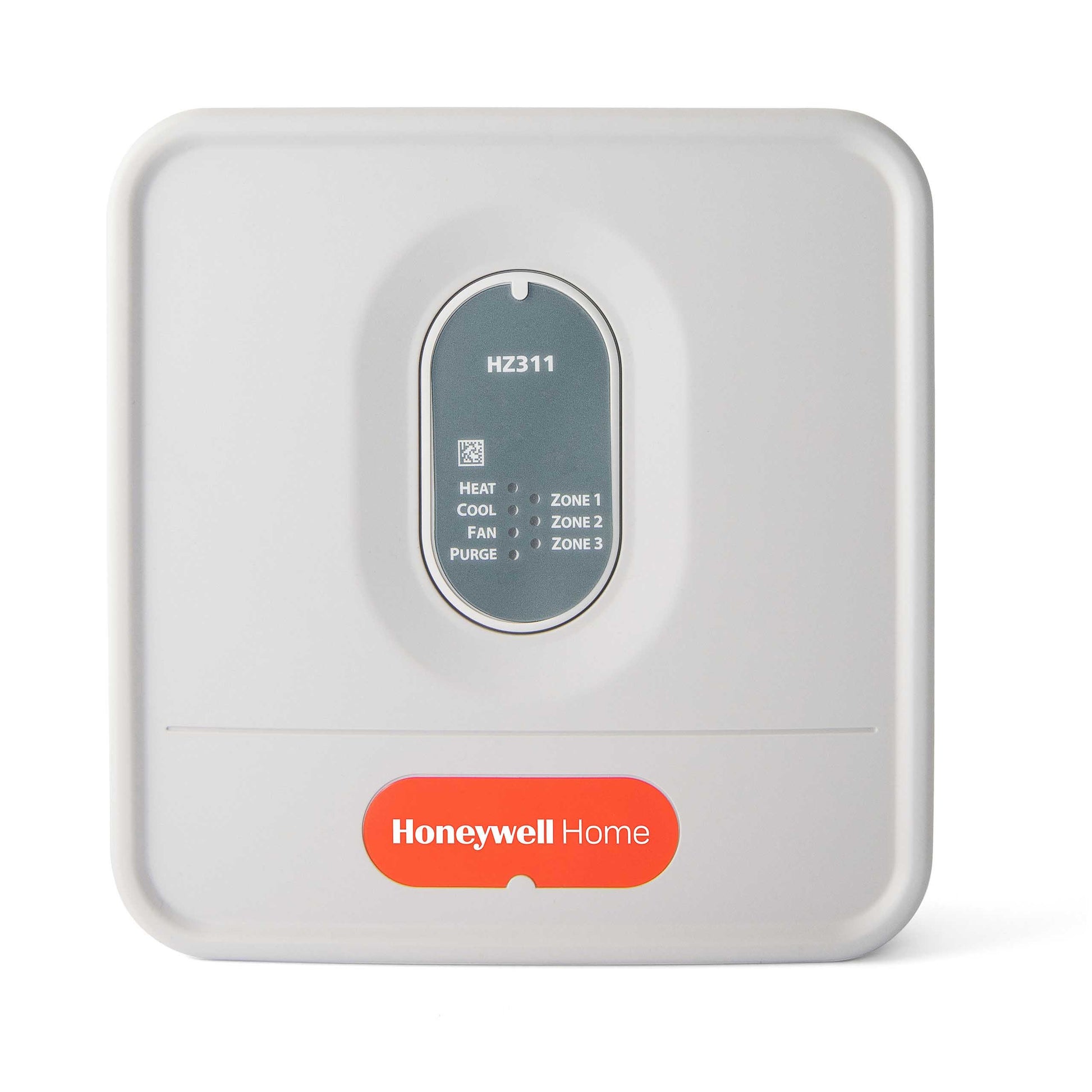

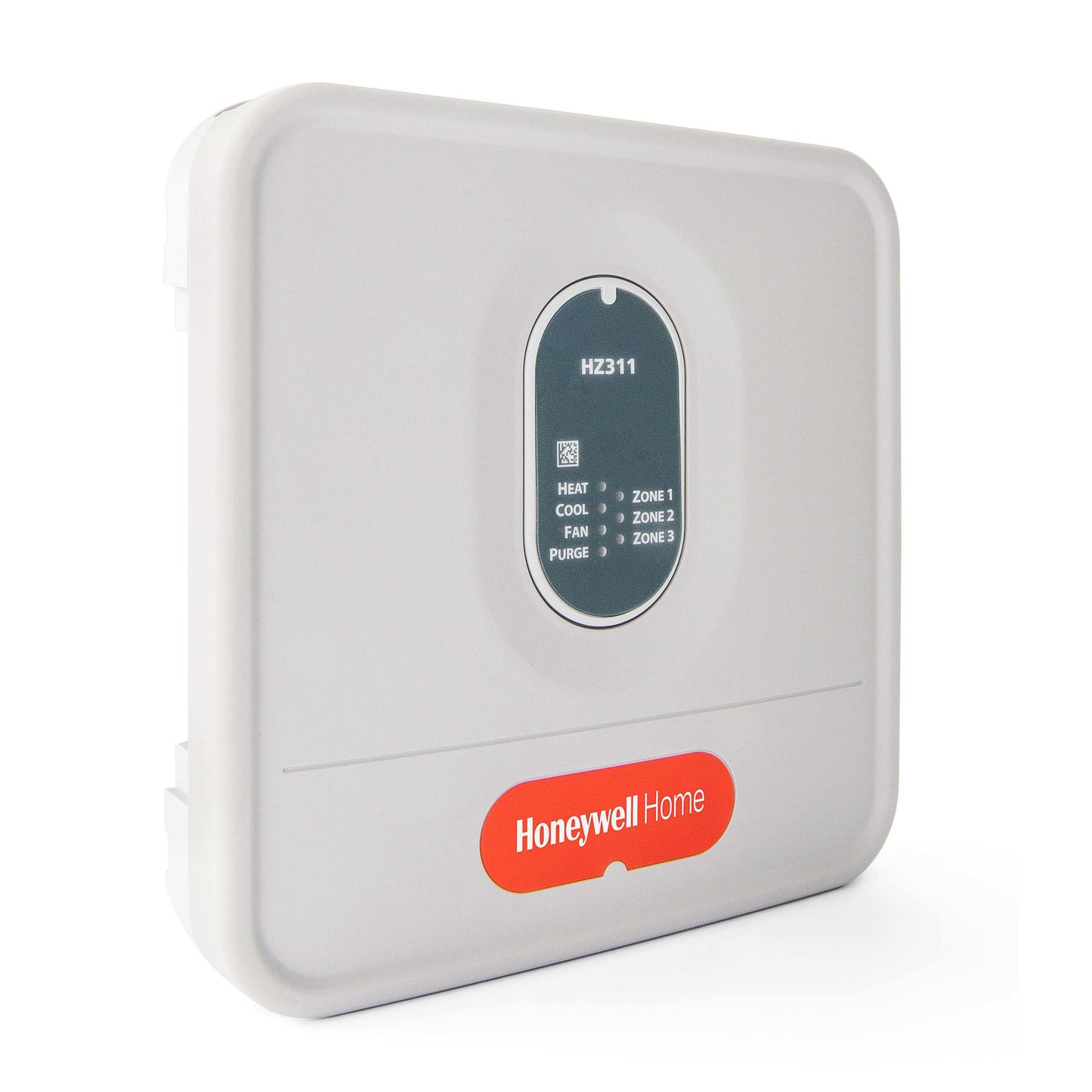

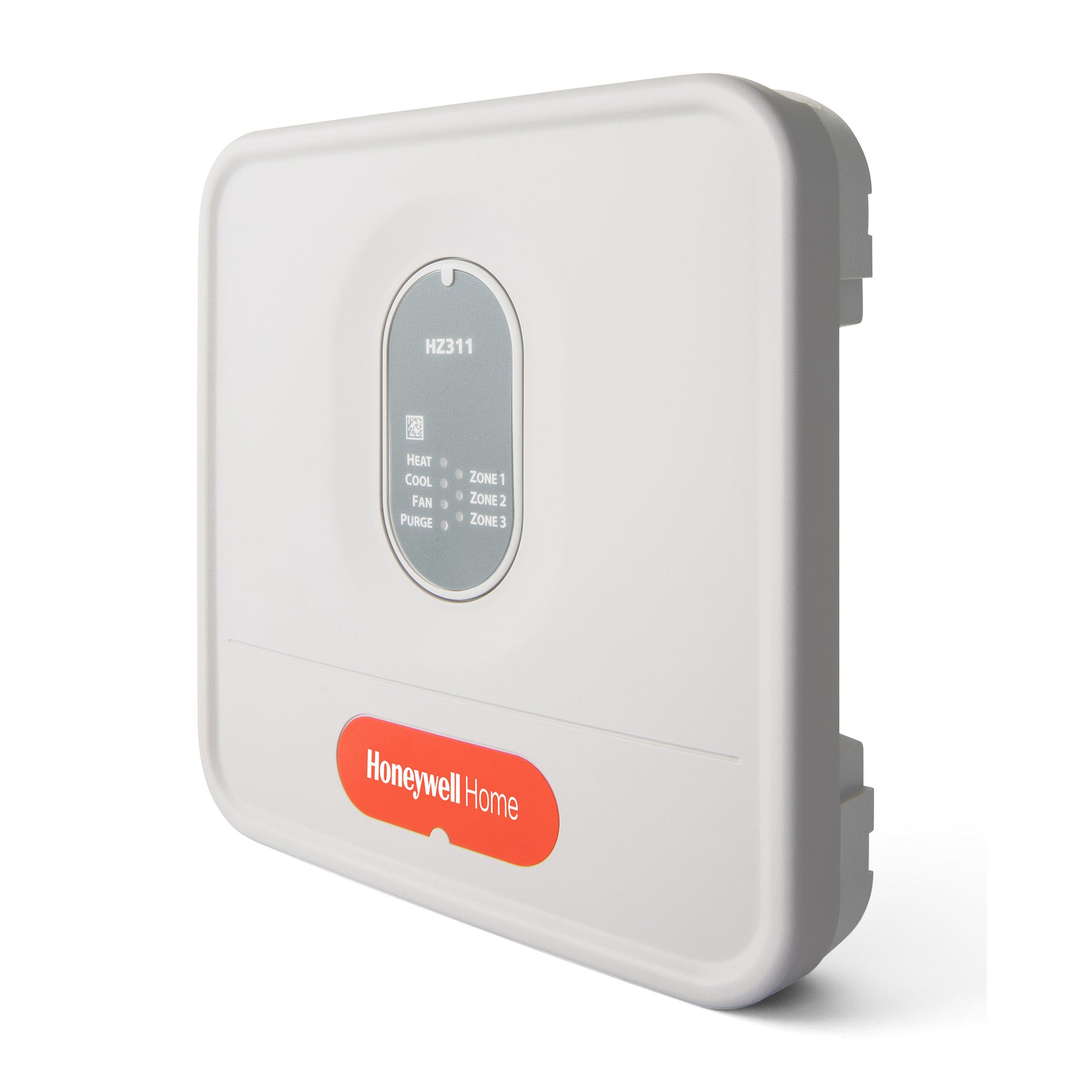

TrueZONE HZ311 Panel

For conventional, single stage applications up to 3 zones (1H/1C)

• Robust Push Terminals
• Common-Sense LEDs
• Clean, Professional Installation
• Smaller Footprint
• Variable-Speed Fan Control

HKZ1301585
