ICZ-101-40 - 1" Commercial Drip Control Zone Kit

Out of stock
SKU: ICZ-101-40
Regular price $218.90

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Hunter ICZ Brochure

Hunter ICZ Specification Sheet

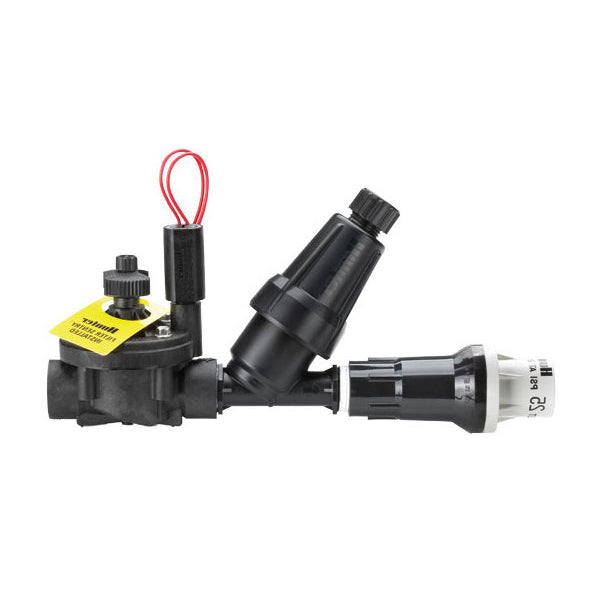

Hunter ICZ-101-40 - 1" ICV Filter Sentry Globe Valve with 1" HY100 Filter and Regulator, 40 PSI Regulator

These top-of-the line control zone kits are designed for rugged commercial use and feature the Hunter ICV valve. It comes standard with Filter Sentry and a longer stainless steel filter screen. For smaller commercial projects, we also offer a low flow kit which has a regulating-filter body featuring a stainless steel screen, but without the Filter Sentry in the valve. Both kits are available with either 25 or 40 PSI regulation.

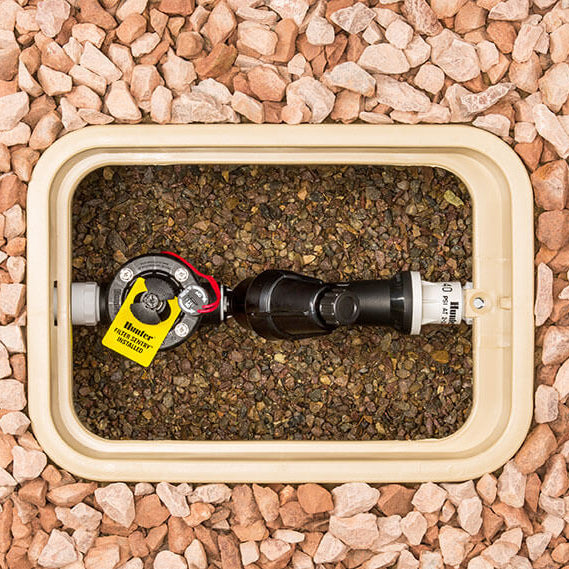

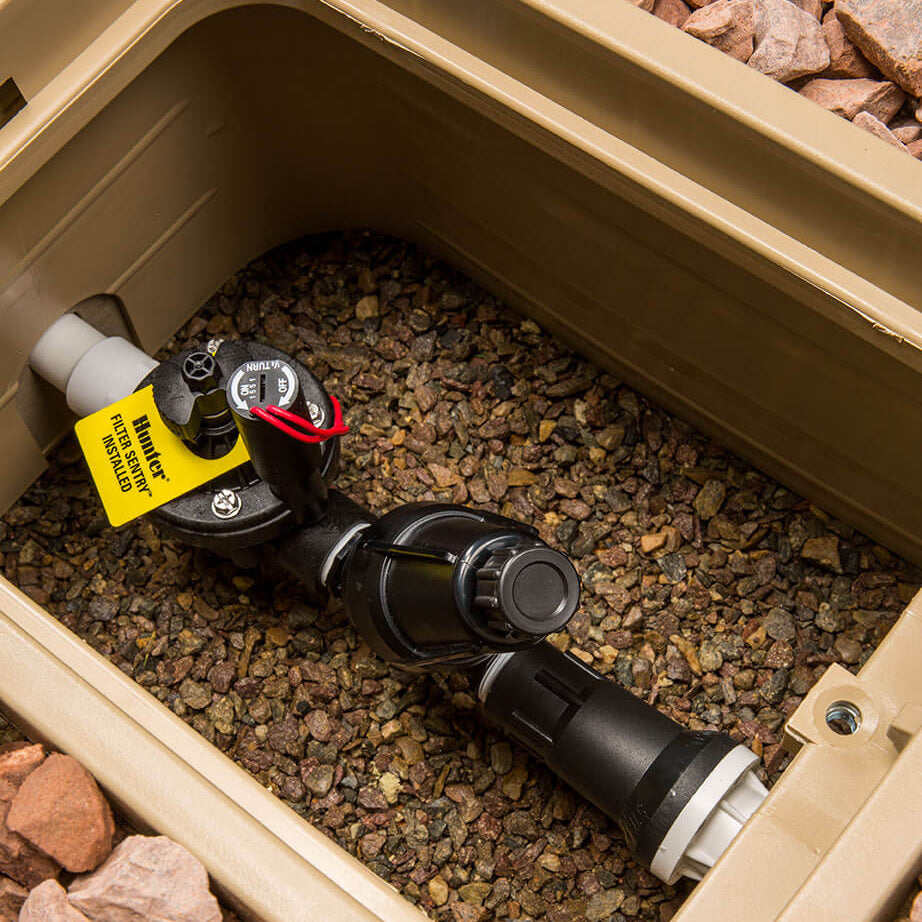

For the demanding requirements of commercial job sites, Hunter’s ICZ Drip Control Zone Kits are here. The convenient all-in-one kits, offer the superior performance of the Hunter ICV valves along with a stainless steel filter and pressure regulator. Because these kits include pressure regulation that ensures a consistent 25 or 40 PSI, the ICZ makes it possible to accommodate drip needs in an environment where it would normally be difficult to do so. With everything pre-assembled and water tested, the ICZ provides a hassle-free way to install drip zones on commercial jobs.

Features

  • Highest-quality components
  • Factory-assembled to save installation time
  • Filter Sentry diaphragm screen cleaning
  • system (on all models except ICZ-101-LF)
  • Wide flow range to cover most
  • micro irrigation applications
  • Warranty period: 5 years

Specifications

  • Height: 6-3/4"
  • Width: 4"
  • Length: 14"
  • 1" inlet x 1" outlet
  • Factory-installed Filter Sentry
  • Pressure regulation: 40 PSI
  • Flow: 2 to 20 GPM (120 to 1,200 GPH)
  • Operating pressure: 20 to 120 PSI
  • Operating temperature: up to 120°F
  • 150 mesh; 100 microns stainless steel screen
  • 1" inlet and 1" outlet
