TH2320U4006/U - FocusPRO P200 Programmable Thermostat 3H/2C Heat Pump + 2H/2C Conventional

The Honeywell Home TH2320U4006/U FocusPRO P200 Programmable Thermostat is designed for enhanced comfort and dependable performance in multi-stage residential HVAC systems. Compatible with up to 3 Heat/2 Cool heat pump systems and 2 Heat/2 Cool conventional systems, it offers flexible scheduling, a large backlit display, and an intuitive interface that's easy to program and operate. The included UWP universal wall plate streamlines installation and future thermostat upgrades, while support for dual fuel systems and optional wired outdoor sensors makes it an excellent choice for a wide range of applications. Whether powered by batteries or a C-wire, the FocusPRO P200 provides reliable temperature control and long-term performance.

Features

• Compatible with up to 3 Heat/2 Cool heat pump systems and 2 Heat/2 Cool conventional systems
• Flexible scheduling with 7-day, 5-2 day, 5-1-1 day, 1-week, or non-programmable operation
• Large backlit LCD display with oversized, easy-to-read text
• UWP universal wall plate simplifies installation and future thermostat upgrades
• Supports dual fuel heating systems
• Compatible with Honeywell wired outdoor temperature sensor (sold separately)
• Automatic or manual heat/cool changeover
• Filter change reminder and heat pump alerts
• Hardwired (24V C-wire) or battery-powered operation
• Decorative cover plate with junction box adapter included
• Five-year limited manufacturer warranty

Specifications

• Manufacturer: Honeywell Home (Resideo)
• Part Number: TH2320U4006/U
• Series: FocusPRO P200
• Thermostat Type: Digital Programmable
• System Compatibility: Up to 3H/2C Heat Pump; Up to 2H/2C Conventional
• Program Options: 7-Day, 5-2 Day, 5-1-1 Day, 1-Week, or Non-Programmable
• Operating Modes: Heat, Cool, Auto, Off
• Display: Backlit LCD
• Power Source: 24 VAC Hardwired or 2 AA Batteries
• Dual Fuel Compatible: Yes
• Outdoor Sensor Compatible: Yes (wired sensor)
• Color: White

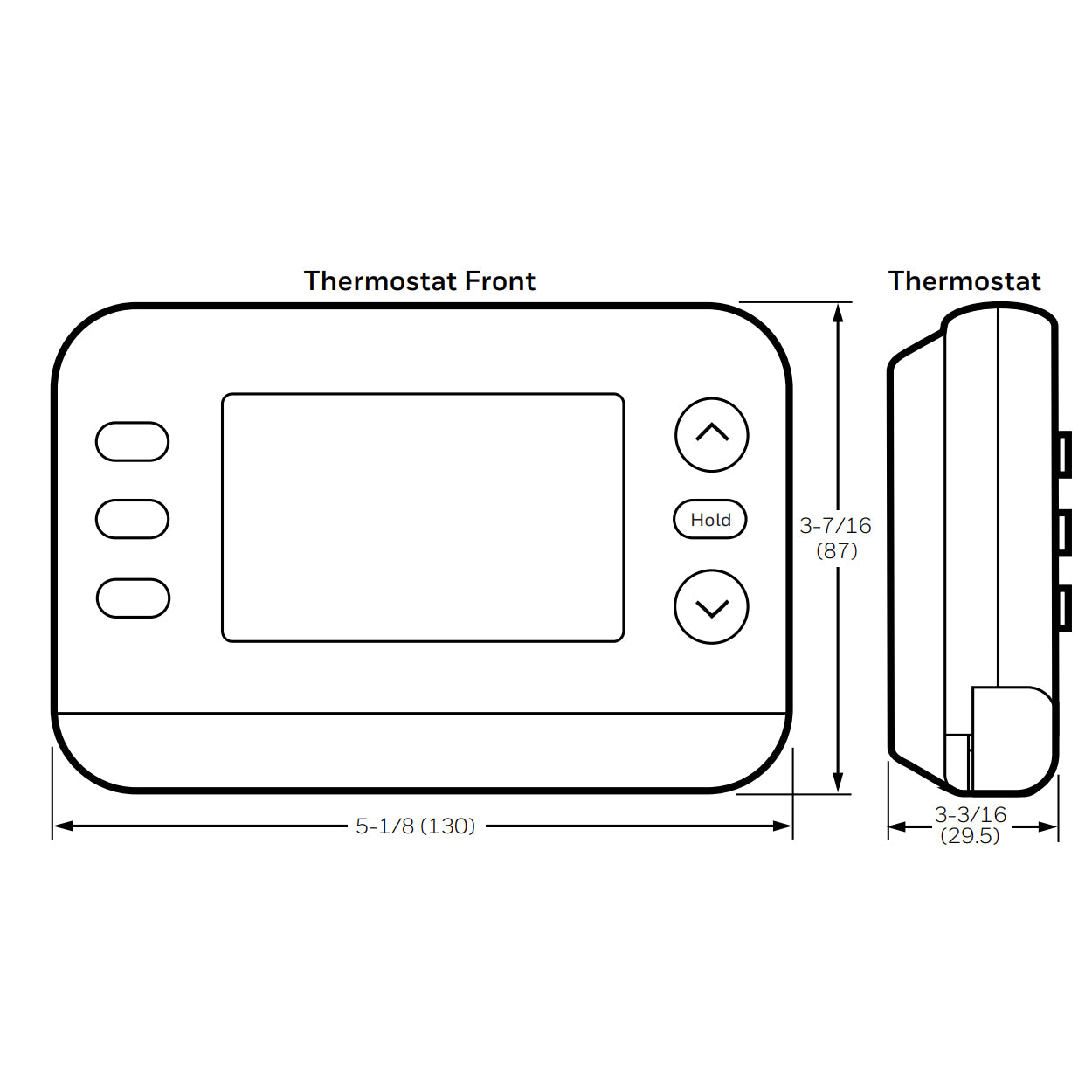

• Dimensions: 5.13" W × 3.44" H × 1.19" D
• Warranty: 5 Years
