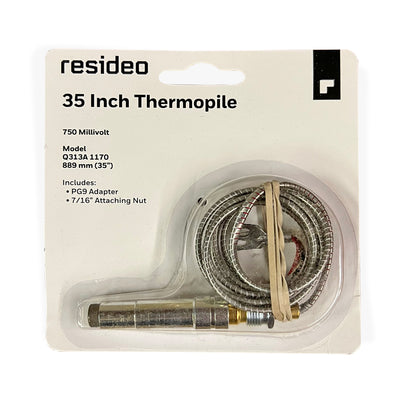

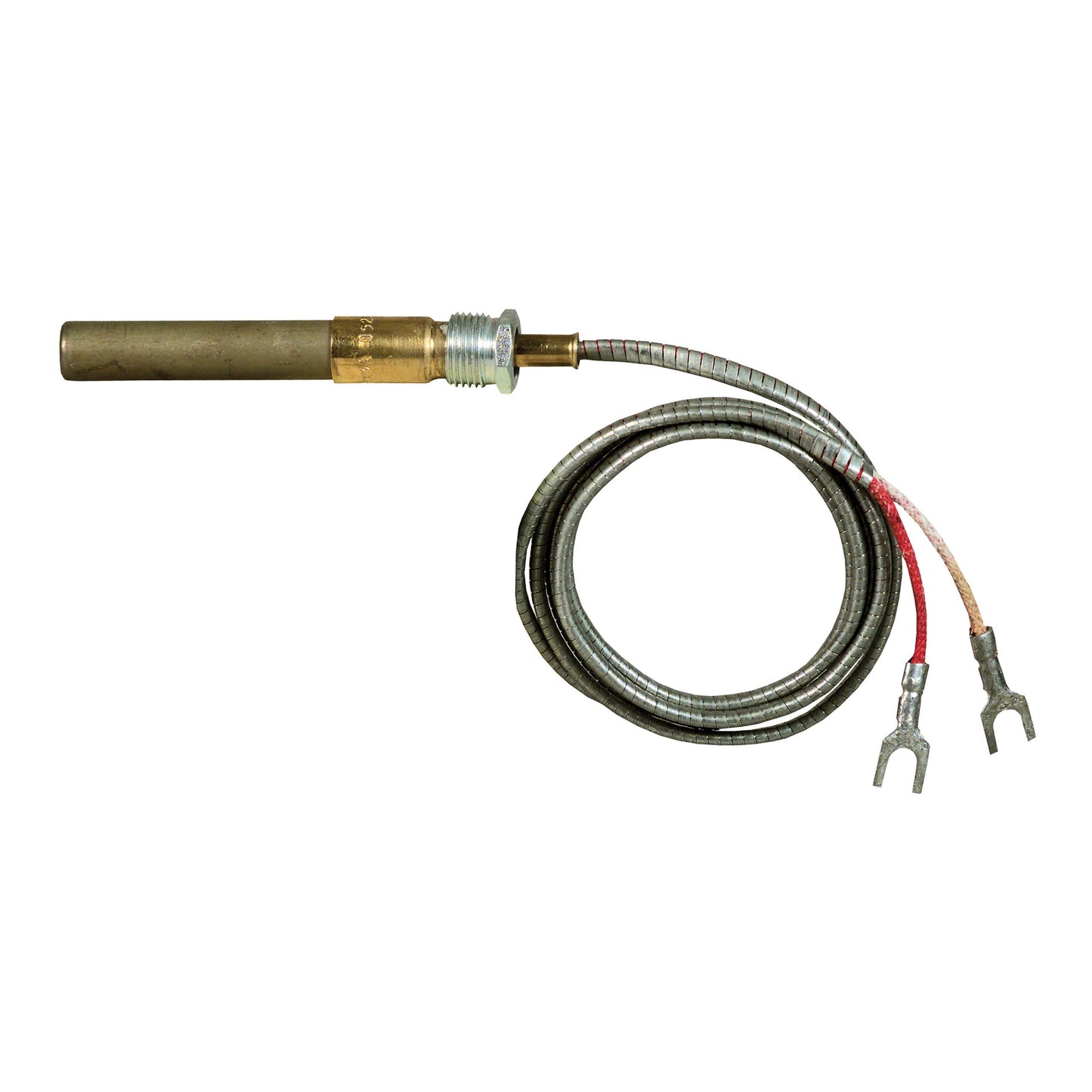

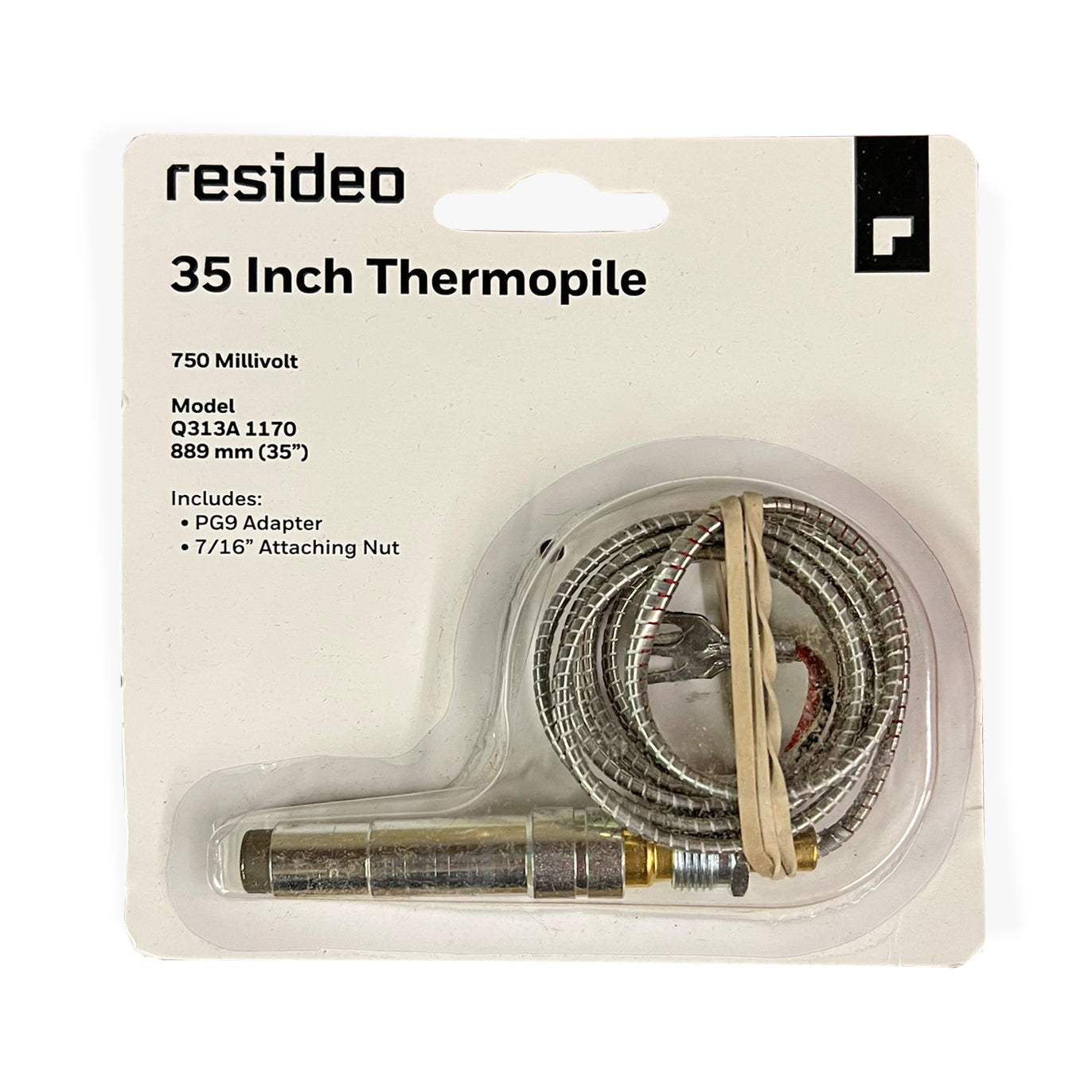

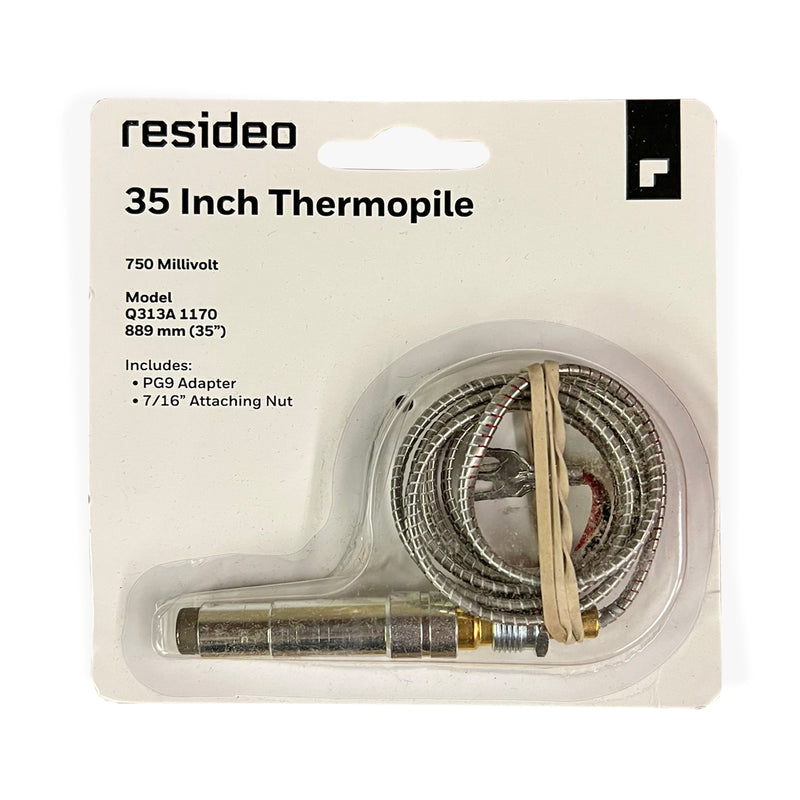

Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Thermopile Generators

Easy installation is just the beginning. Resideo thermopile generators are built to work, day in and day out, to help you spend more time working productively and less time handling callbacks.

Installation Versatility

When you’re working on a pilot burner system or a millivolt system, Resideo has you covered. For easy pilot burner installation, the Q313A comes iwth a push-in clip, split nut and an adapter assembly. For millivolt gas control connections, spade or quick-connect terminals are available. And the Q313A also comes in a variety of lead lengths.

Application Friendly

Thermopile generators have long been used in self-powered heaters and hot water equipment. The Resideo Q313 has been proven in millions of appliances as the contractor’s preferred thermopile and are found in many of today’s self powered gas fireplaces. Compatible with the majority of millivolt gas valves,
the Q313 is the one to stock, to carry and install for your customers.

Features
