Honeywell M847D-ZONE - Replacement Motor for ARD and ZD Zone Dampers

Only 2 left
SKU: M847D-ZONE
Regular price $123.41

Free Shipping on all orders over $79.99!

Most orders ship same day. Delivery in 2-3 business days!

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Honeywell M847D-Zone Installation Instructions

Overview

This two-position, 24 Vac spring return actuator is the direct replacement for M847D1004. Simplified, adjustable range stops allow you to tailor the HVAC damper to suit the needs of each customer. This motor is equipped with anti-rotation and drive shaft extensions.

The M847D-ZONE (used with ARD and ZD dampers) and M847D-VENT (used with EARD dampers) actuators have a 24 Vac, 50/60 cycle, .32A motor. The ARD and ZD are wired to terminals M1 and M6 for power closed/spring return open, with an option for M4 wire to power LED light only. The ARD and ZD are a spring-open damper that requires

  • Replacement motor for ARD and ZD zone dampers
  • Direct replacement for M847D1004
  • Low voltage, spring-return damper actuator
  • Power closed, spring open motor
  • 30 seconds power open/10 seconds spring return

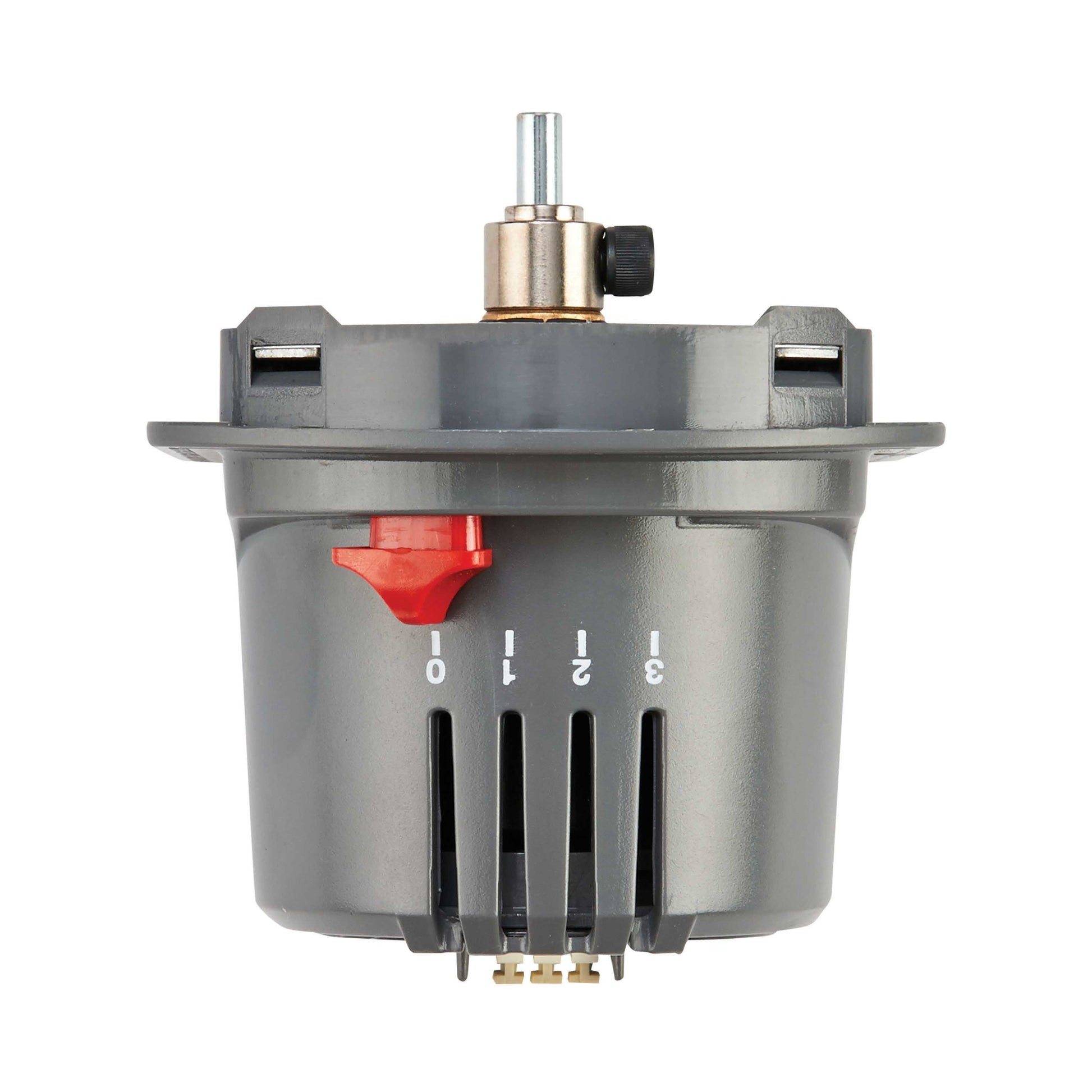

  • Simplified, adjustable range stops

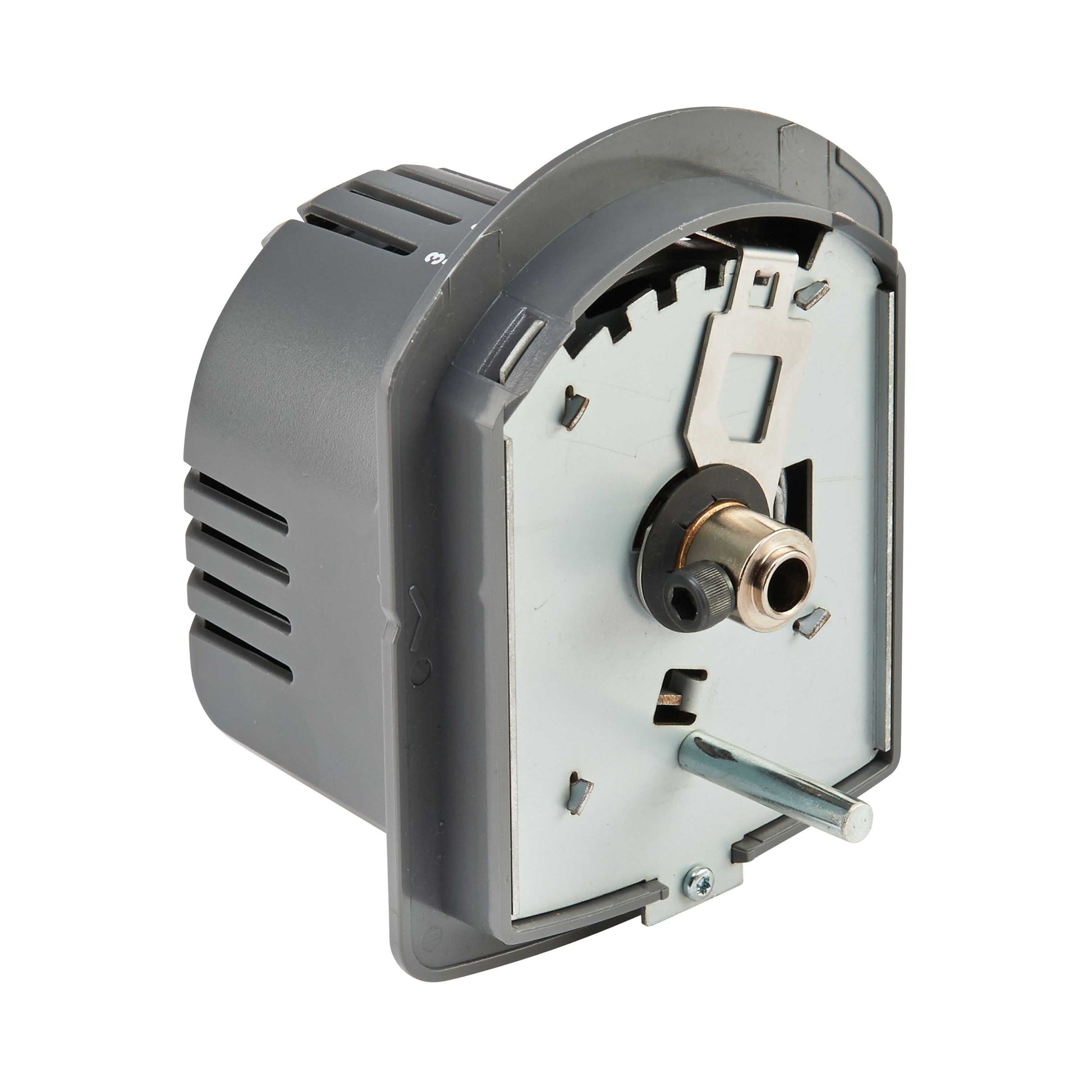

  • Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers

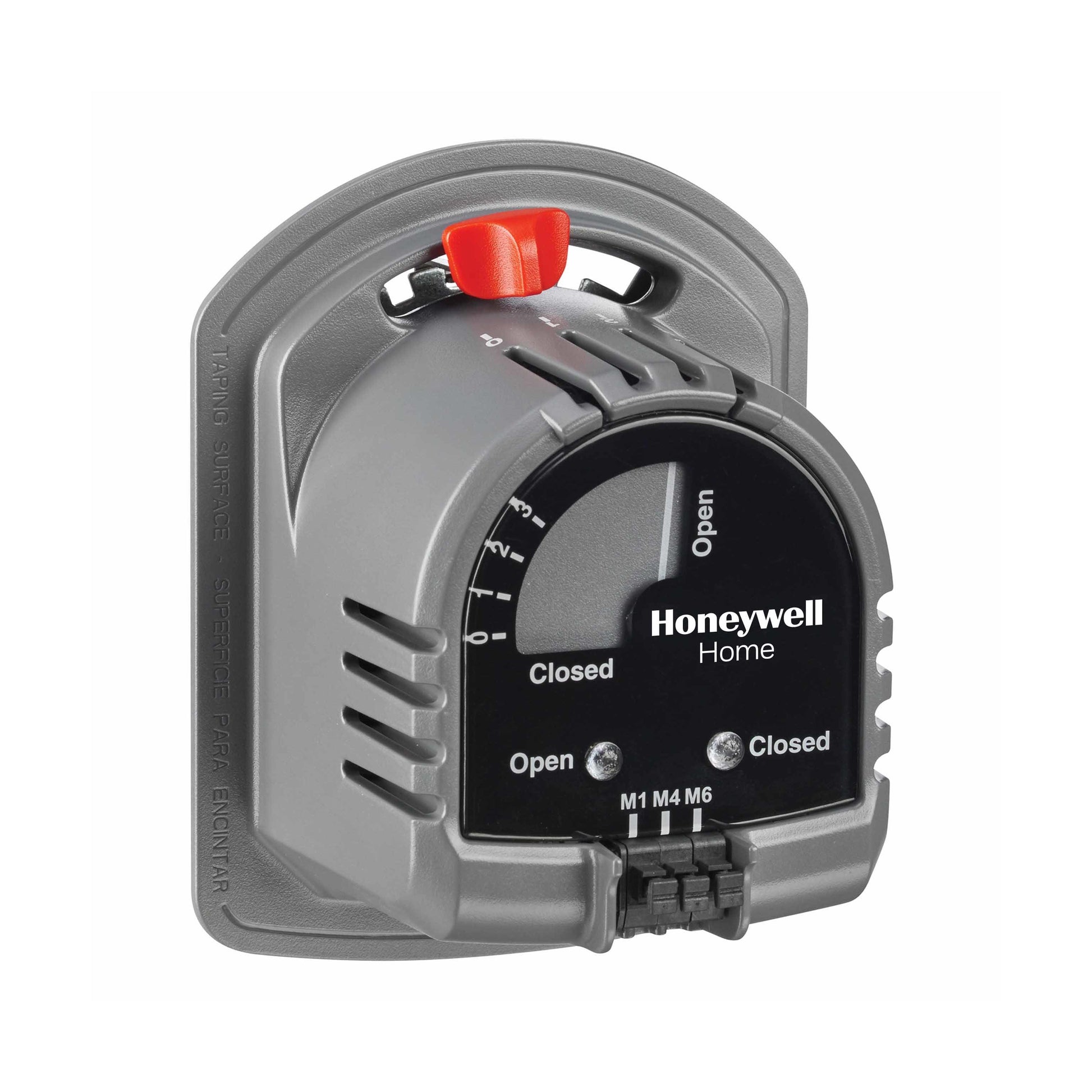

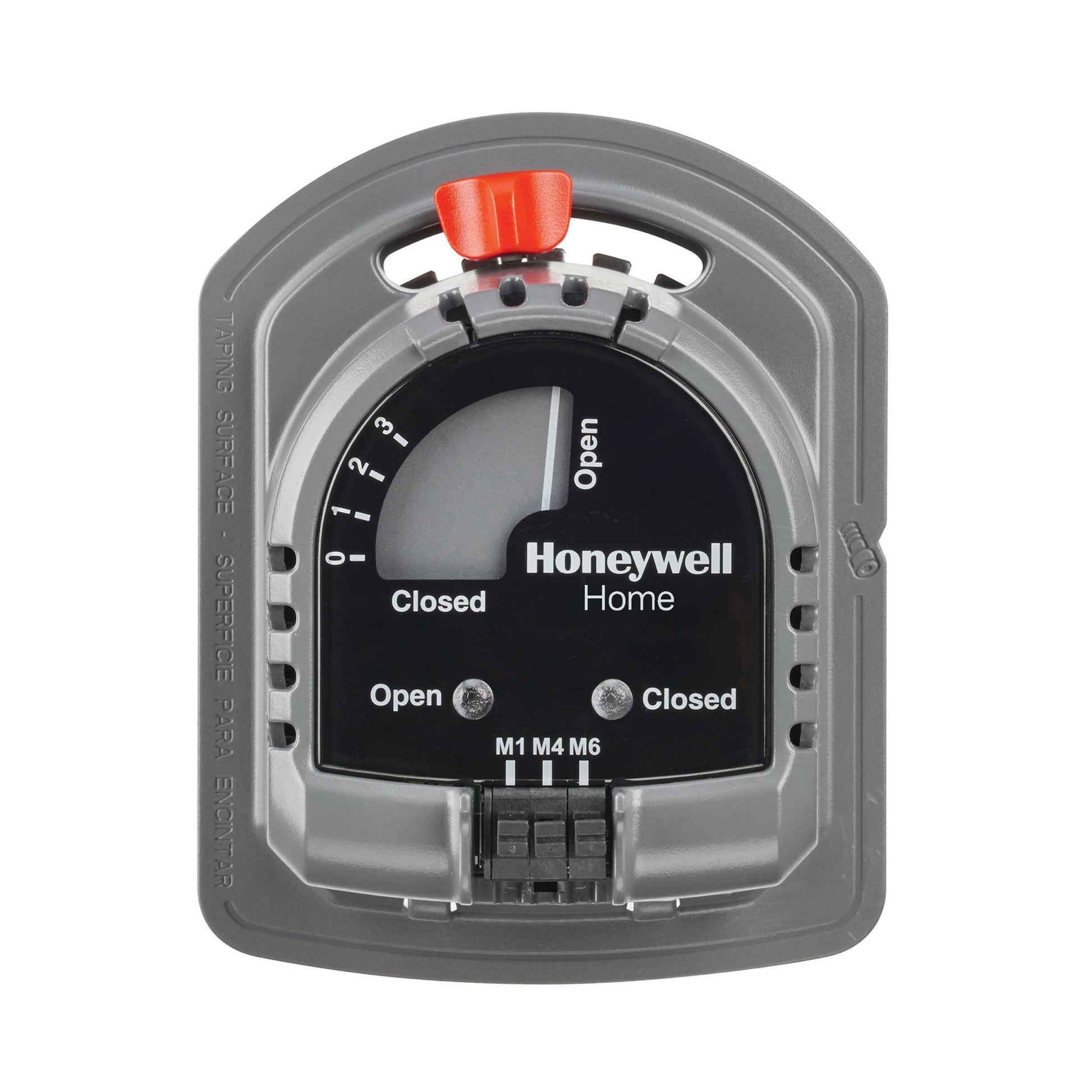

  • Wire terminals: M1-Power; M6 Common; M4 (optional)-LED indication
