Home » View All HVAC » View All HVAC » Resideo » Aquastats & Wells » L4006E1067 - Manual Reset Aquastat Controller, 130 to 270F
Resideo

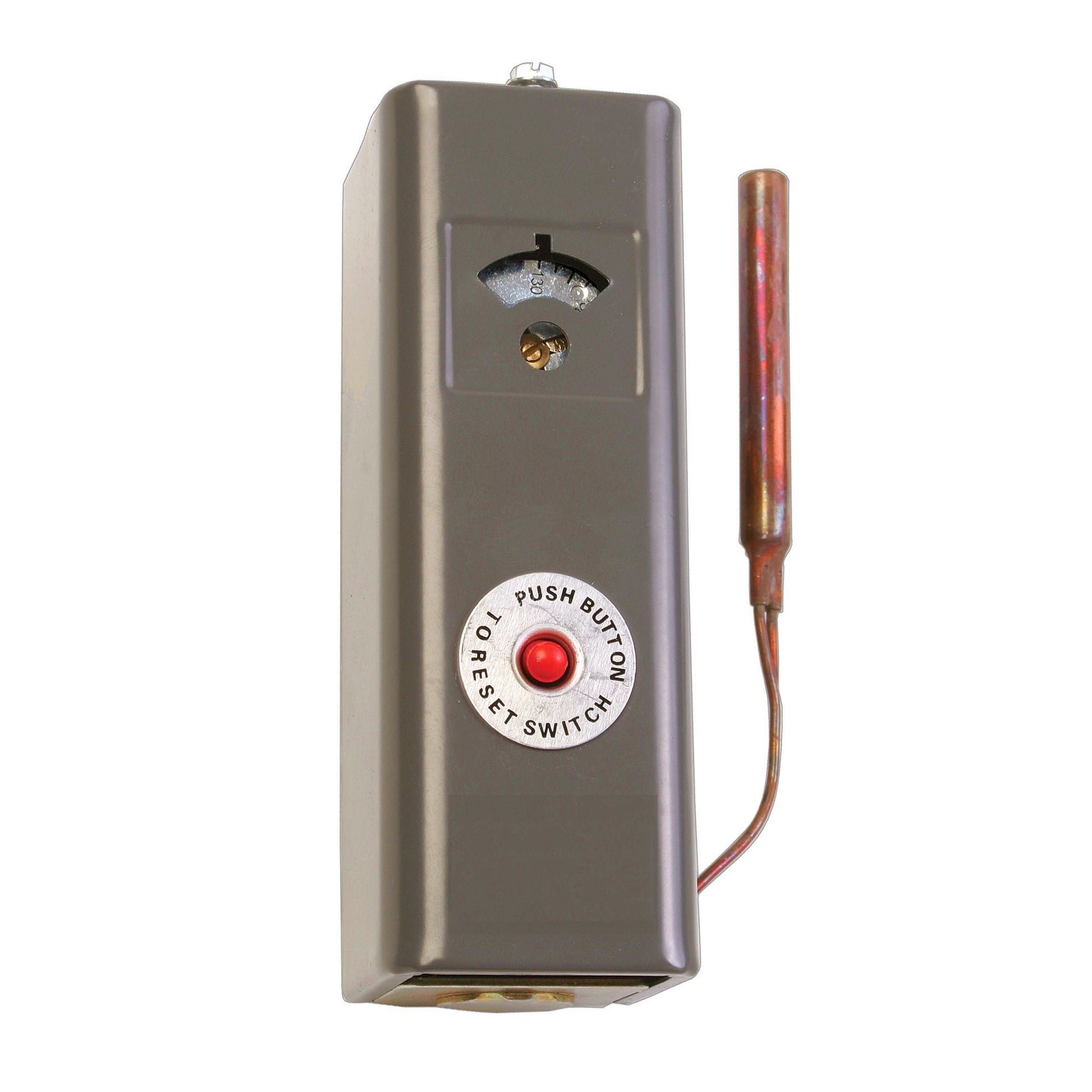

L4006E1067 - Manual Reset Aquastat Controller, 130 to 270F

In stock
SKU: L4006E1067
$260.36

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Resideo L4006 Installation Instructions

Resideo L4006 Specifications

HONE L4006E1067 AQUASTAT breaks on rise, 130-270F range, 250F factory stop, less well

Overview:

Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells

Features:

  • Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint.
  • Visible control point scale and external adjustment screw permit easy setting.
  • Horizontal or vertical insertion of the sensing element.
  • Direct or well immersion of the sensing element.
  • Models available for strap-on mounting.
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
  • TRADELINE models include heat-conductive compound.
  • Select models have wells.
  • UL limit rated device.





HKZ1208450
