Overview:

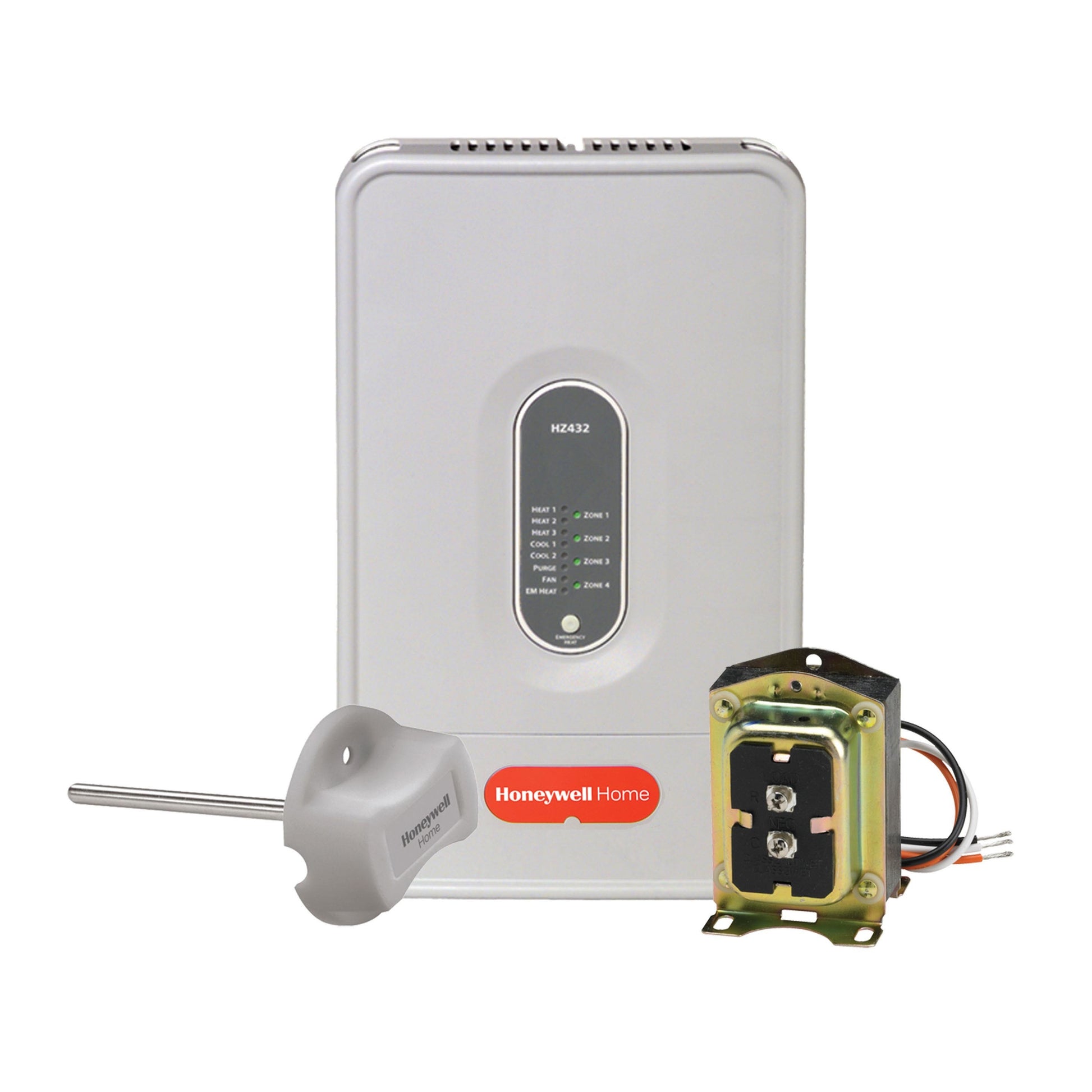

The kit comes complete with the HZ432 Zone Control Panel, AT140 Transformer and C7735A Discharge Air Temperature Sensor. A fit for any smart home, this control panel works with conventional, heat pump or dual fuel applications. With intuitive, easy-to-follow steps, The TrueZONE HZ432 Panel offers easy professional installation with a digital display will guide you through the install process. You'll get confirmation that the panel is operating properly before you ever leave the job site. Common-sense LEDs indicate which zones are calling and what stage they're calling for. At only 8 inches wide, the panels can be mounted on the return duct, studs or the wall next to the system.

• Get through installation quickly with four easy steps and a digital display that uses plain language to guide the installer
• Variable-speed fan
• Controls dual fuel
• Compatible with heat pump
• Includes resettable fuse
• Thermal fuse with auto-reset protection on each zone

Specifications:

• Includes: HZ432 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
• Application: Zoning
• Stages: 3 Heat/2 Cool in
• Number of Original Zones: 4
• Product Height: 13.42"
• Product Length: 8"
• Product Width: 1.86"
• Color: Gray
• Auto Changeover: Yes
• Checkout Procedure: Yes
• Compatible Sensor: Discharge Air Temperature Sensor, Outdoor Temperature Sensor
• LED Functions: Stage of heat and damper state
• Power per Zone: 28.8 VA at 100 °F, 16.8 VA at 160 °F, 28.8 VA at 38 °C, 16.8 VA at 71 °C
• RedLink Specifications: THM4000 Wireless Adapter Module required
• Warranty: 5 Years

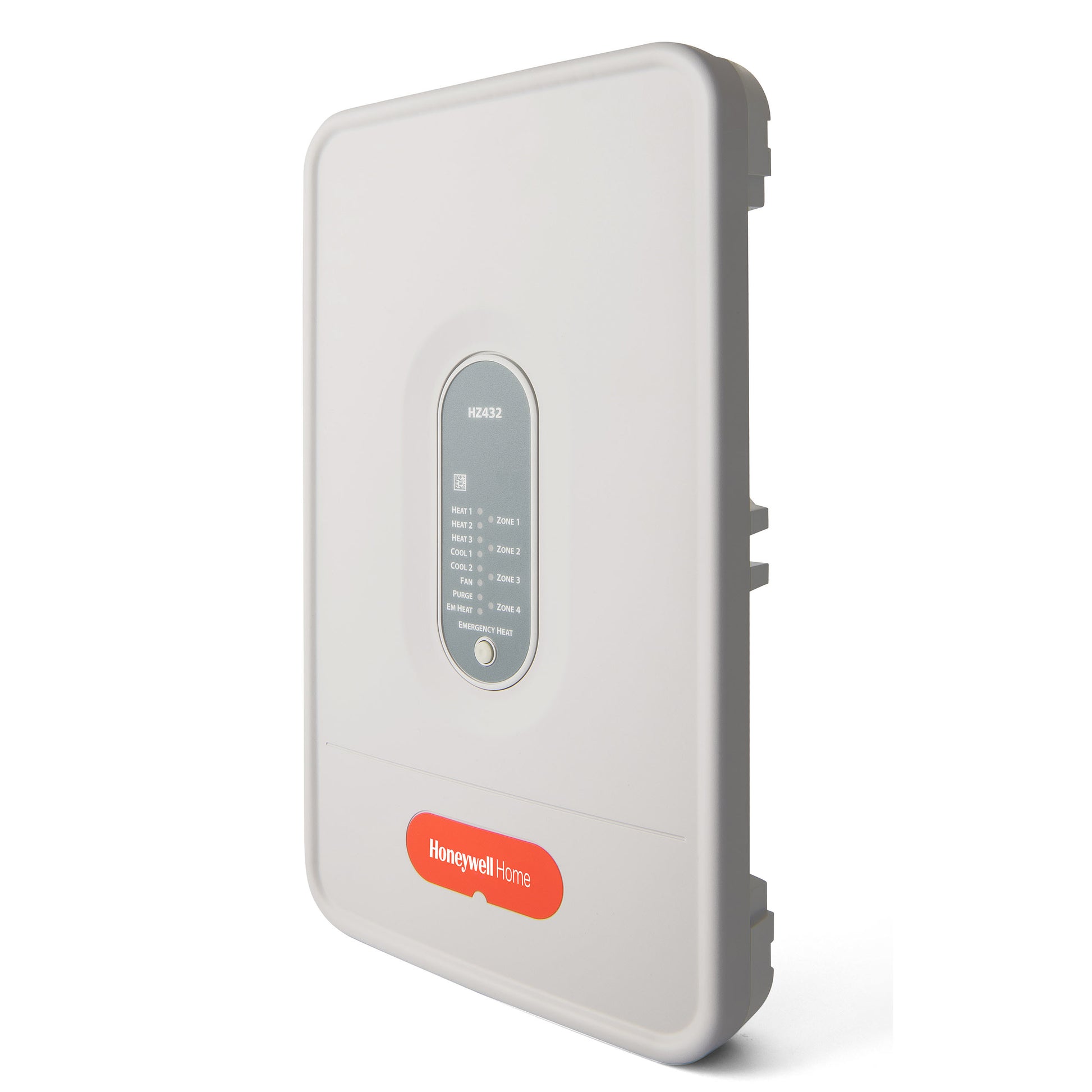

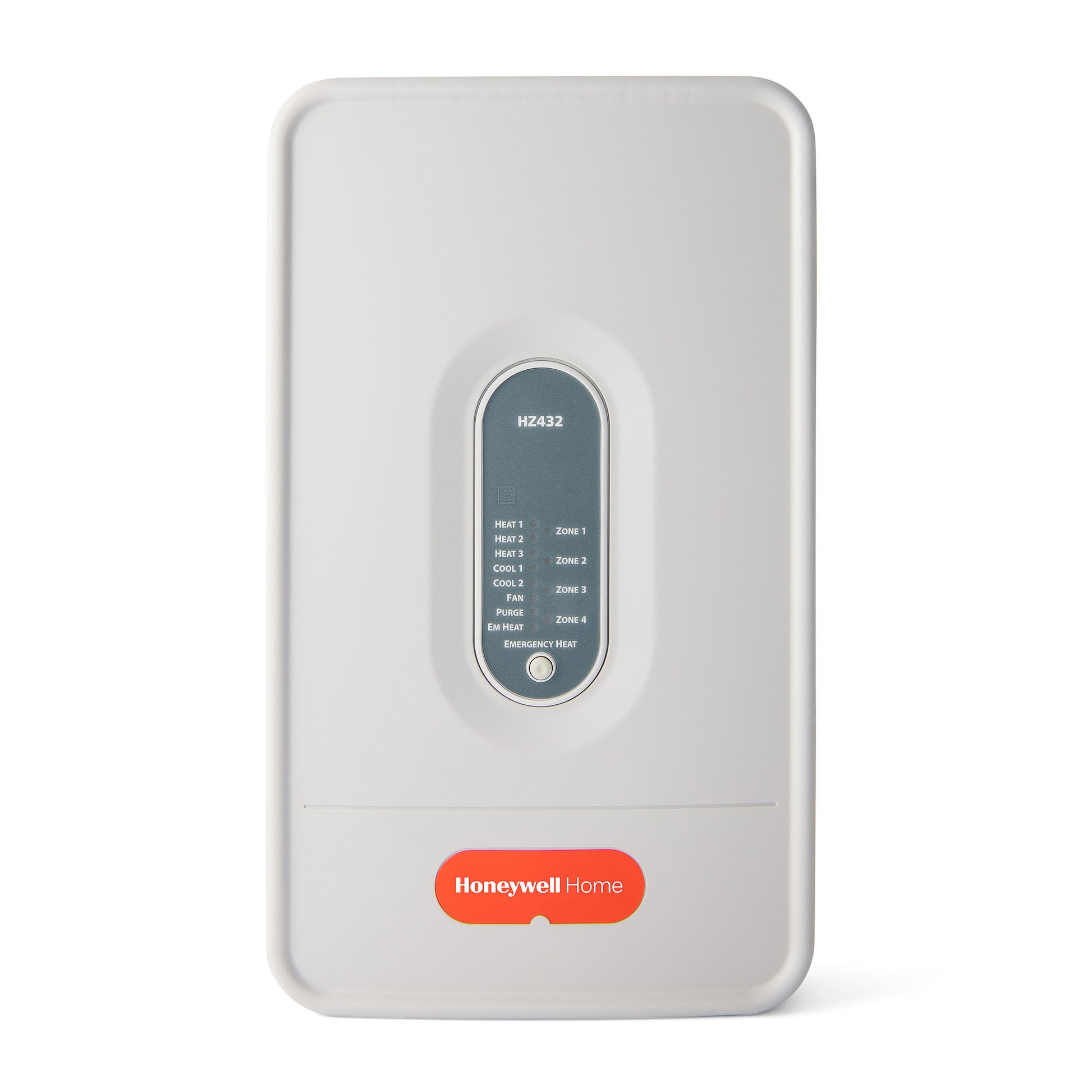

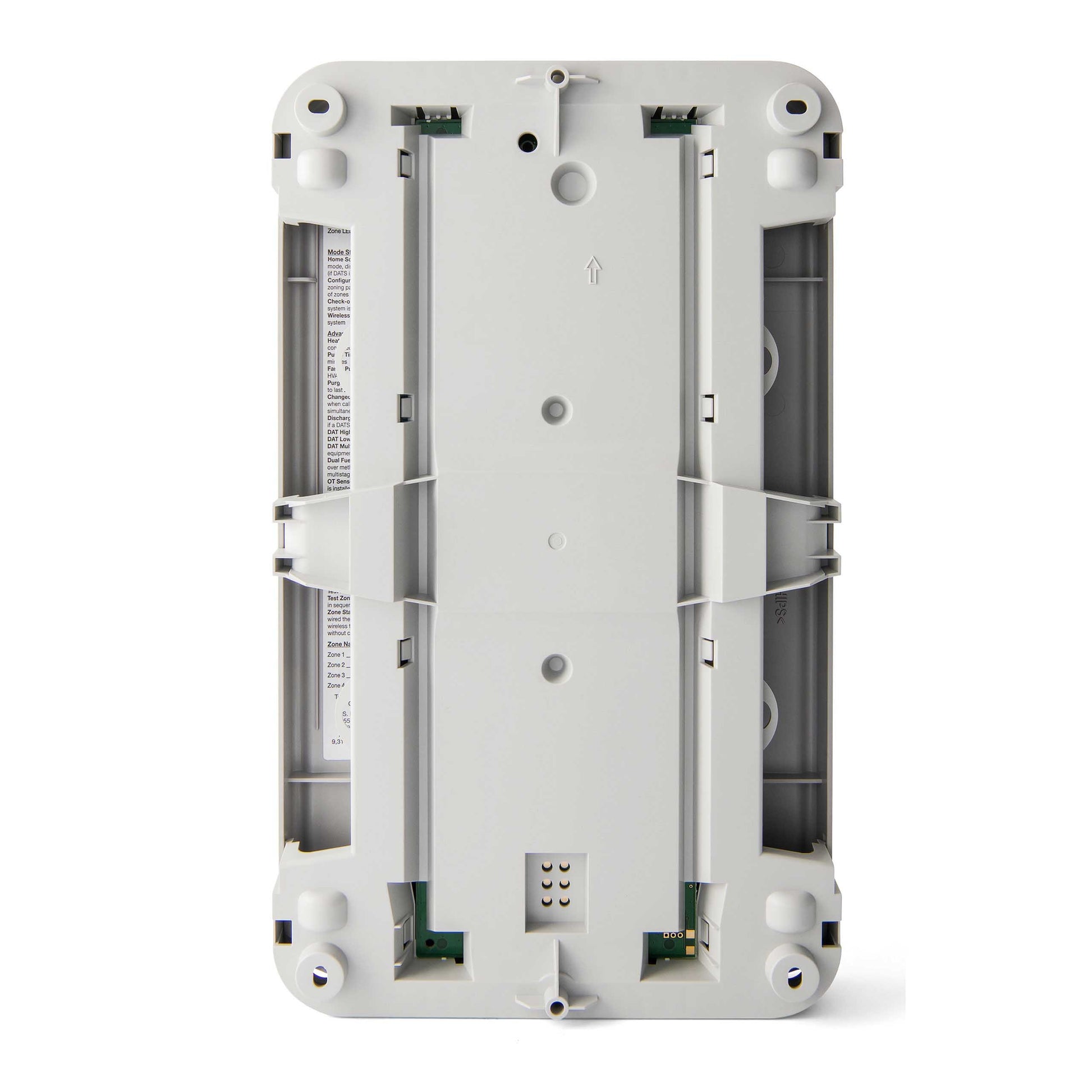

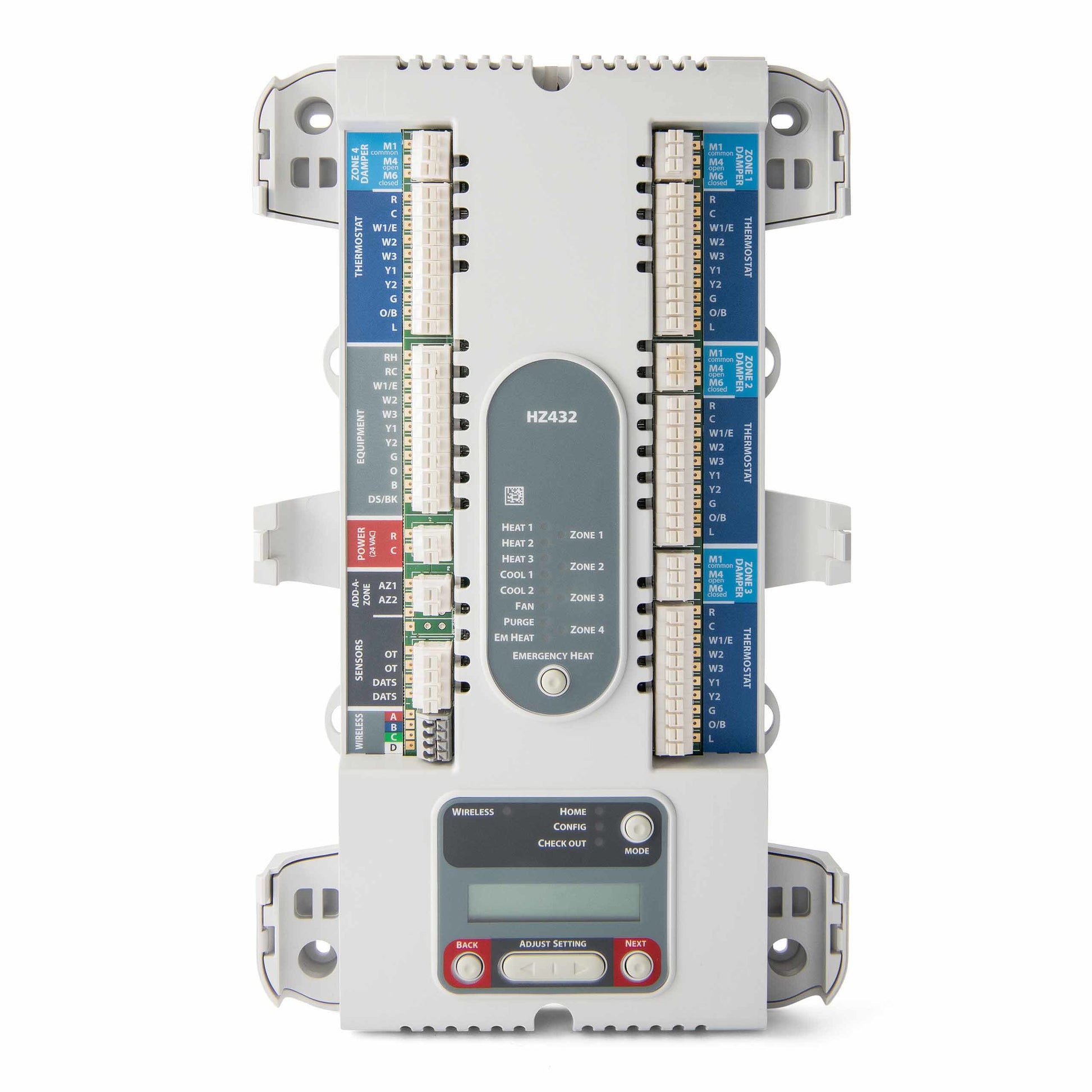

TrueZONE HZ432 Panel

For conventional, heat pump or dual fuel applications up to 4 zones (3H/2C)

• Intuitive Installer Setup RedLINK-Enabled with Wireless Adapter
• Universal Application
• Standardized Checkout Procedure
• Robust Push Terminals
• Common-Sense LEDs
• Variable-Speed Fan Control
• Discharge Air Temperature Staging
• Advanced Dual-Fuel Operation
• Expandable up to 32 zones with TAZ-4 Add-a-Zone Panel

HKZ1301575
