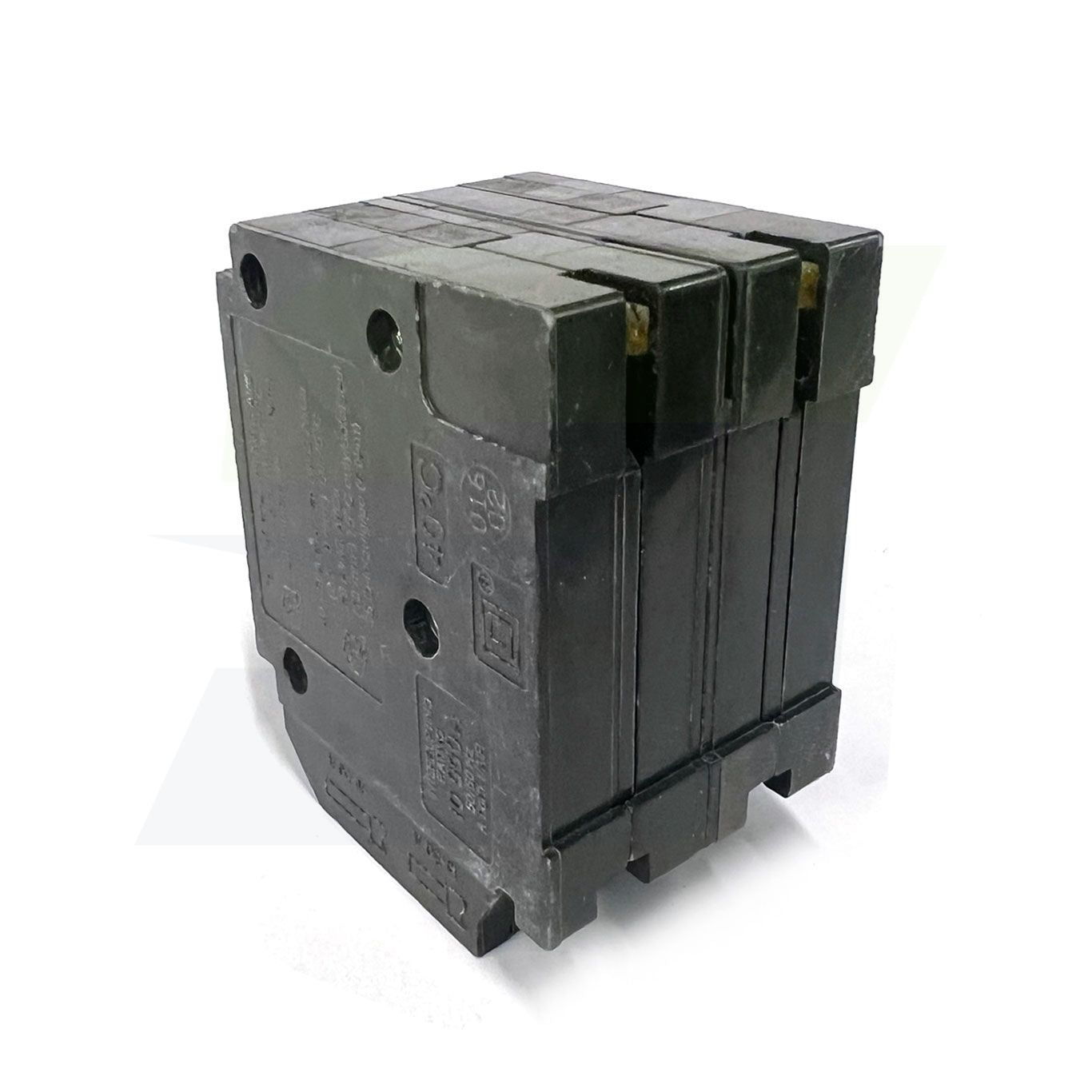

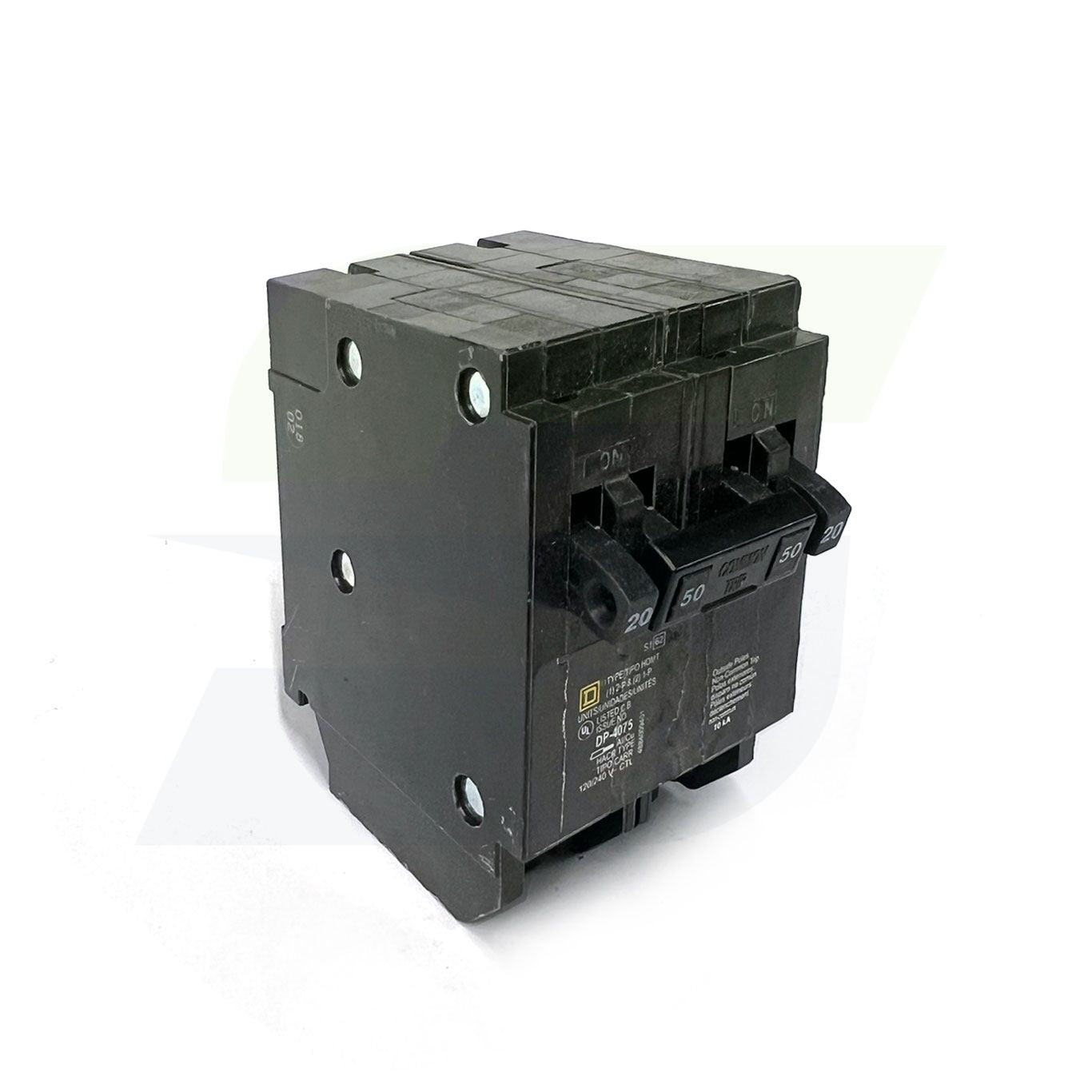

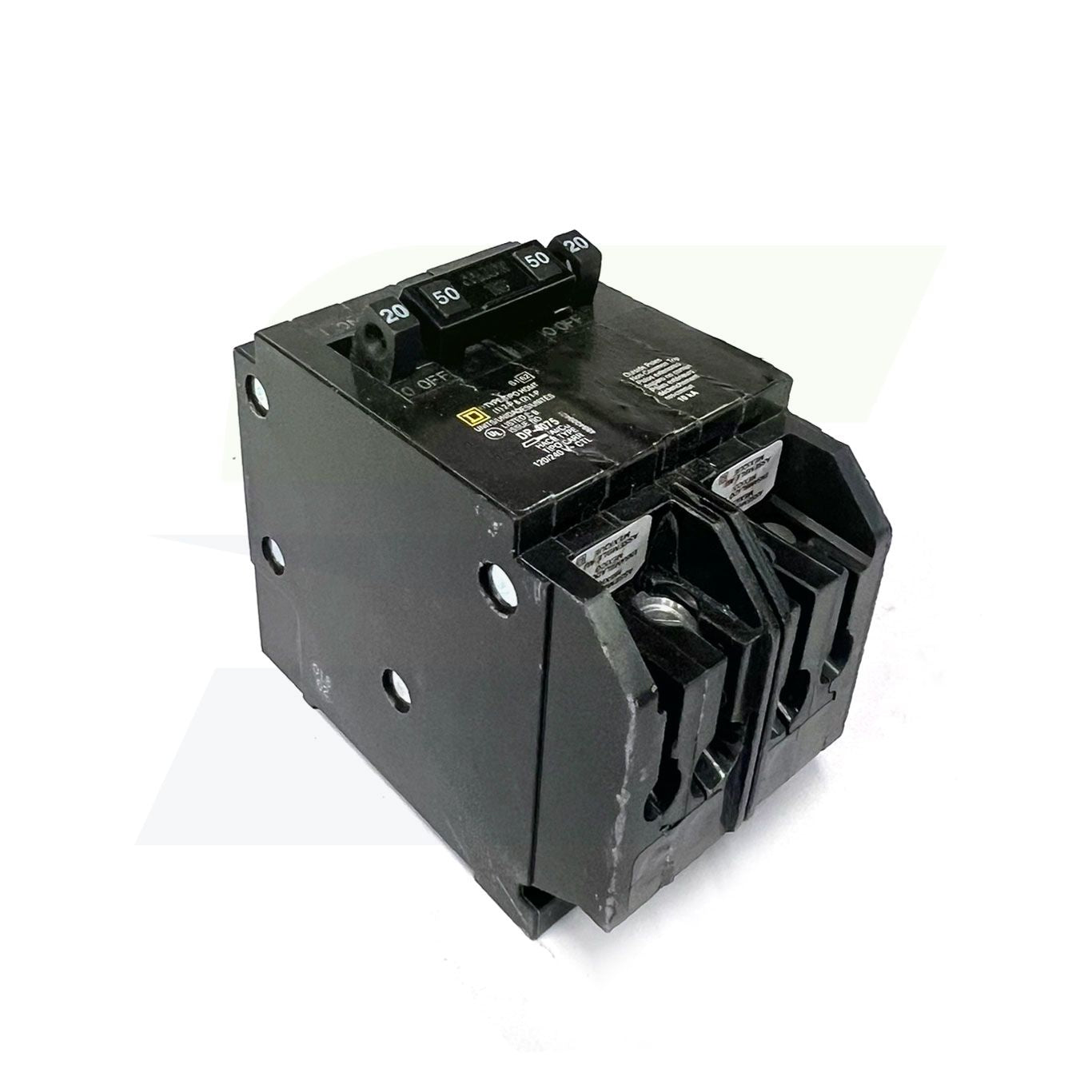

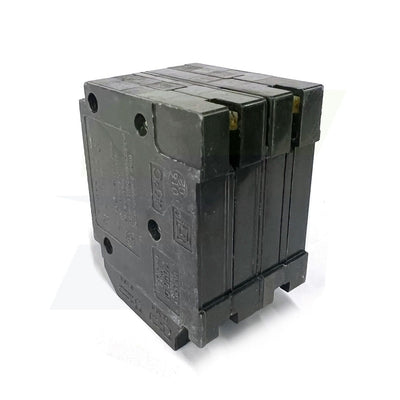

Square HOMT2020250 - Homeline Quad Tandem Circuit Breaker, 2x20A Single-Pole & 1x50A Double-Pole, 120/240V, Plug-In, 10kA
The Square D HOMT2020250 is a quad tandem circuit breaker from the Homeline® series, designed to maximize circuit capacity within limited panel space. It combines two single-pole 20A breakers and one double-pole 50A breaker into a compact unit that occupies only two slots in a Homeline load center. This configuration is ideal for residential applications requiring both 120V and 240V circuits, such as lighting, outlets, and appliances. The breaker features thermal-magnetic protection, a 10 kA interrupting rating, and accepts a range of conductor sizes. Its plug-on design ensures easy installation and reliable performance.
Features
- Quad tandem design: two 20A single-pole and one 50A double-pole breakers
- Occupies two spaces in Homeline load centers
- Rated for 120/240V AC applications
- 10 kA interrupting capacity
- Thermal-magnetic trip mechanism for overload and short-circuit protection
- Accepts 14–6 AWG copper or 12–6 AWG aluminum conductors for the double-pole breaker
- Accepts 14–8 AWG copper or aluminum conductors for the single-pole breakers
- Plug-in mounting for quick installation
