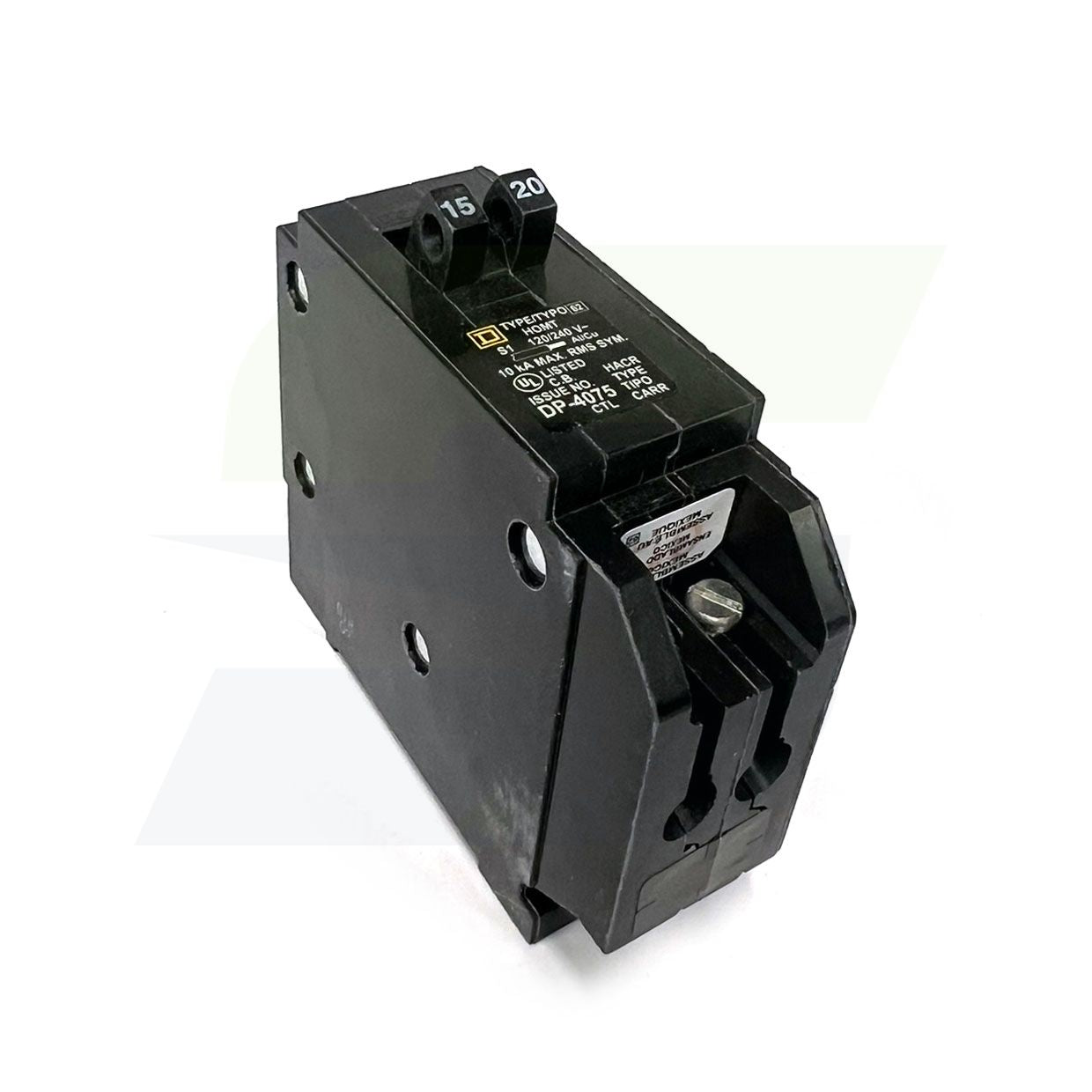

Square HOMT1520 - Homeline Tandem Circuit Breaker, 15A & 20A Single-Pole, 120/240V, Plug-In, 10kA
The Square D HOMT1520 is a tandem circuit breaker from the Homeline series, designed to maximize circuit capacity within limited panel space. It combines two single-pole breakers—one rated at 15A and the other at 20A—into a compact unit that occupies only one slot in a Homeline load center. This configuration is ideal for residential applications requiring multiple 120V circuits, such as lighting and receptacles. The breaker features thermal-magnetic protection, a 10 kA interrupting rating, and accepts 14–8 AWG copper or aluminum conductors. Its plug-on design ensures easy installation and reliable performance.
Features
- Tandem design: one 15A and one 20A single-pole breakers
- Occupies one space in Homeline load centers
- Rated for 120/240V AC applications
- 10 kA interrupting capacity
- Thermal-magnetic trip mechanism for overload and short-circuit protection
- Accepts 14–8 AWG copper or aluminum conductors
- Plug-in mounting for quick installation
- UL Listed and CSA certified
ELEC125587
