Taco HLS-2 Hot-Link Recirculation System – Pump, Valve, Supply Lines

The Taco HLS-2 Hot-Link System is a domestic hot water recirculation solution designed to deliver instant hot water without the need for a dedicated return line. Using a circulator pump at the water heater and a thermal bypass valve under the sink furthest from the heater, it creates a recirculation loop through the cold water line, eliminating wasted water and reducing wait time. The system can save the average household up to 12,000 gallons of water annually.

Specifications

• Pump motor: 1/40 HP, permanent split capacitor
• Voltage: 115V, 60 Hz, single phase
• Amperage: 0.52A
• Maximum RPM: 3250
• Maximum operating pressure: 125 psi
• Maximum fluid temperature: 220°F
• Pump connections: 3/4 inch NPT with half unions
• Bypass valve connections: 1/2 inch NPT
• Power cord: 6-foot cord included
• Timer: built-in analog clock timer for scheduled operation
• Installation: retrofit using existing plumbing, no electrician required

Features

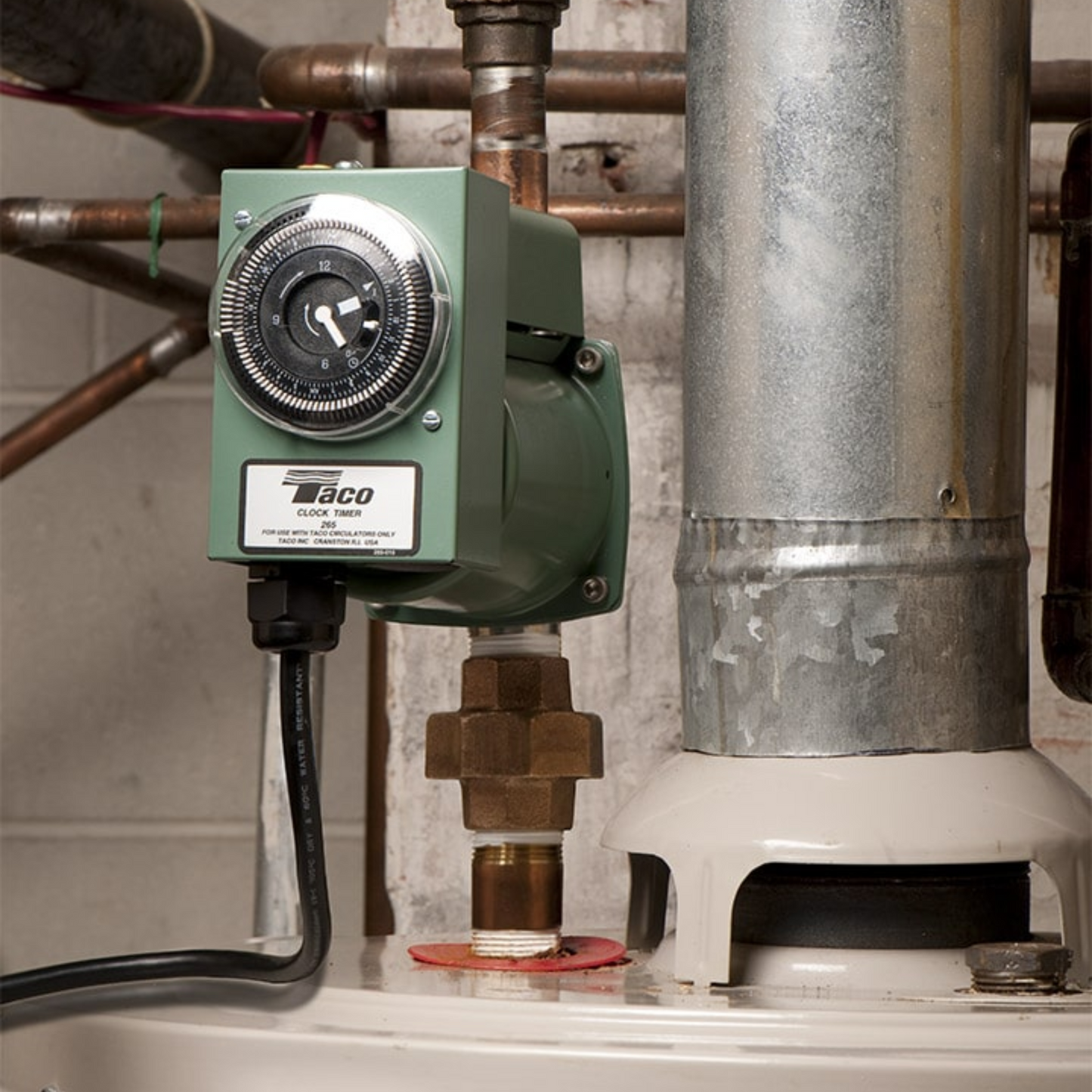

• Hot-Link circulator: efficient pump installed at the water heater to keep hot water lines charged

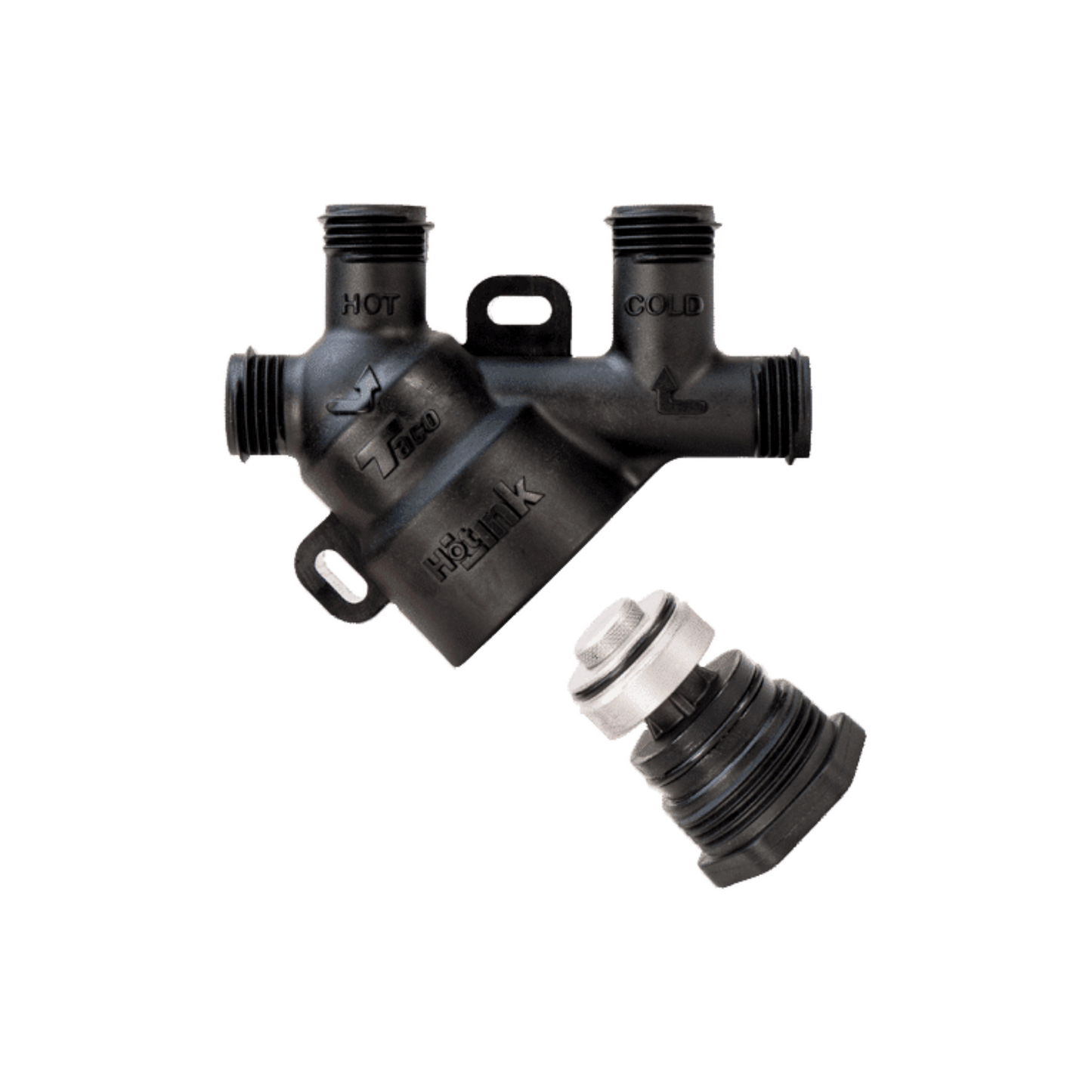

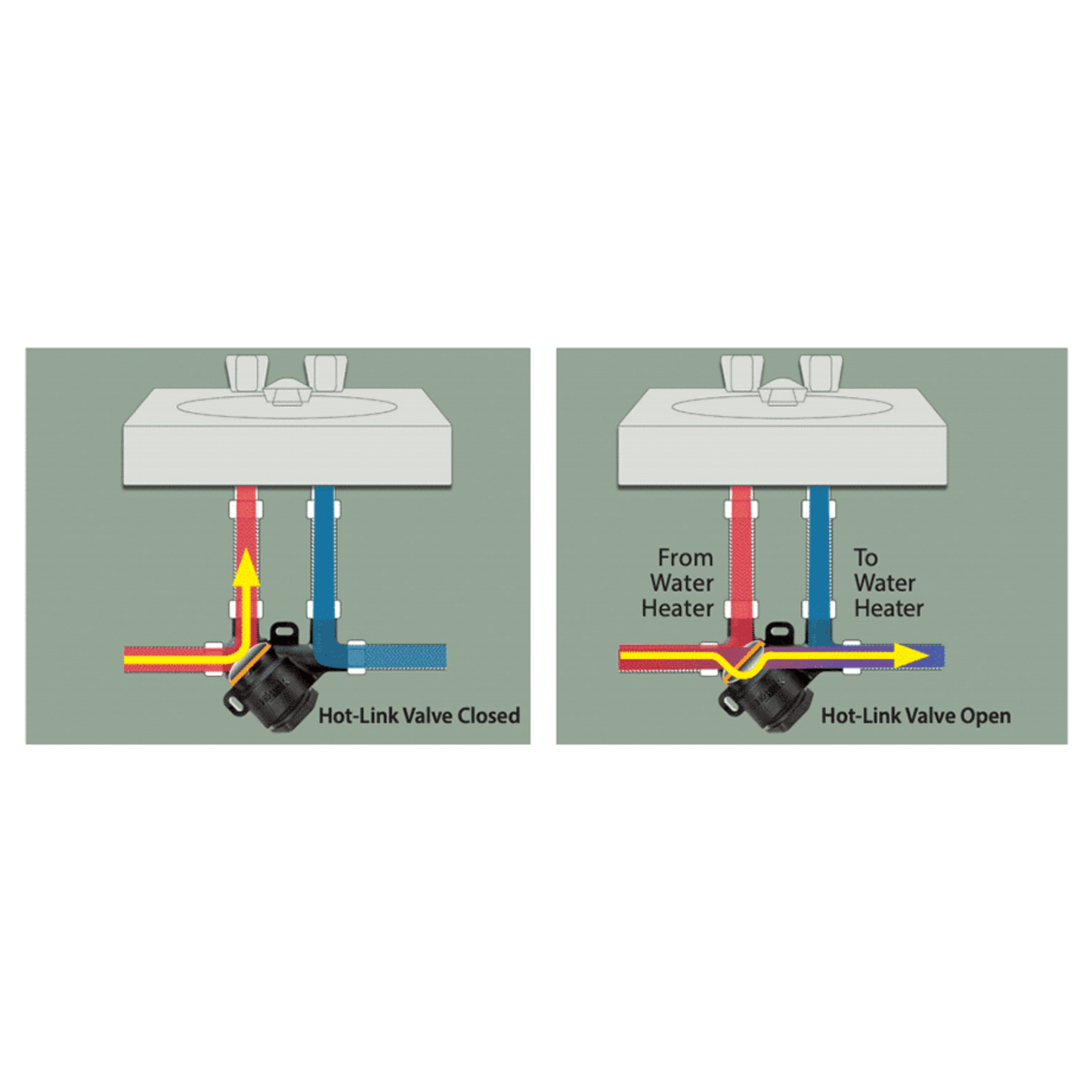

• Thermal bypass valve: clean-in-place valve mounts under the sink, opens when water cools, closes when hot water arrives
• Timer control: set the system to run continuously or during high-demand hours for energy savings

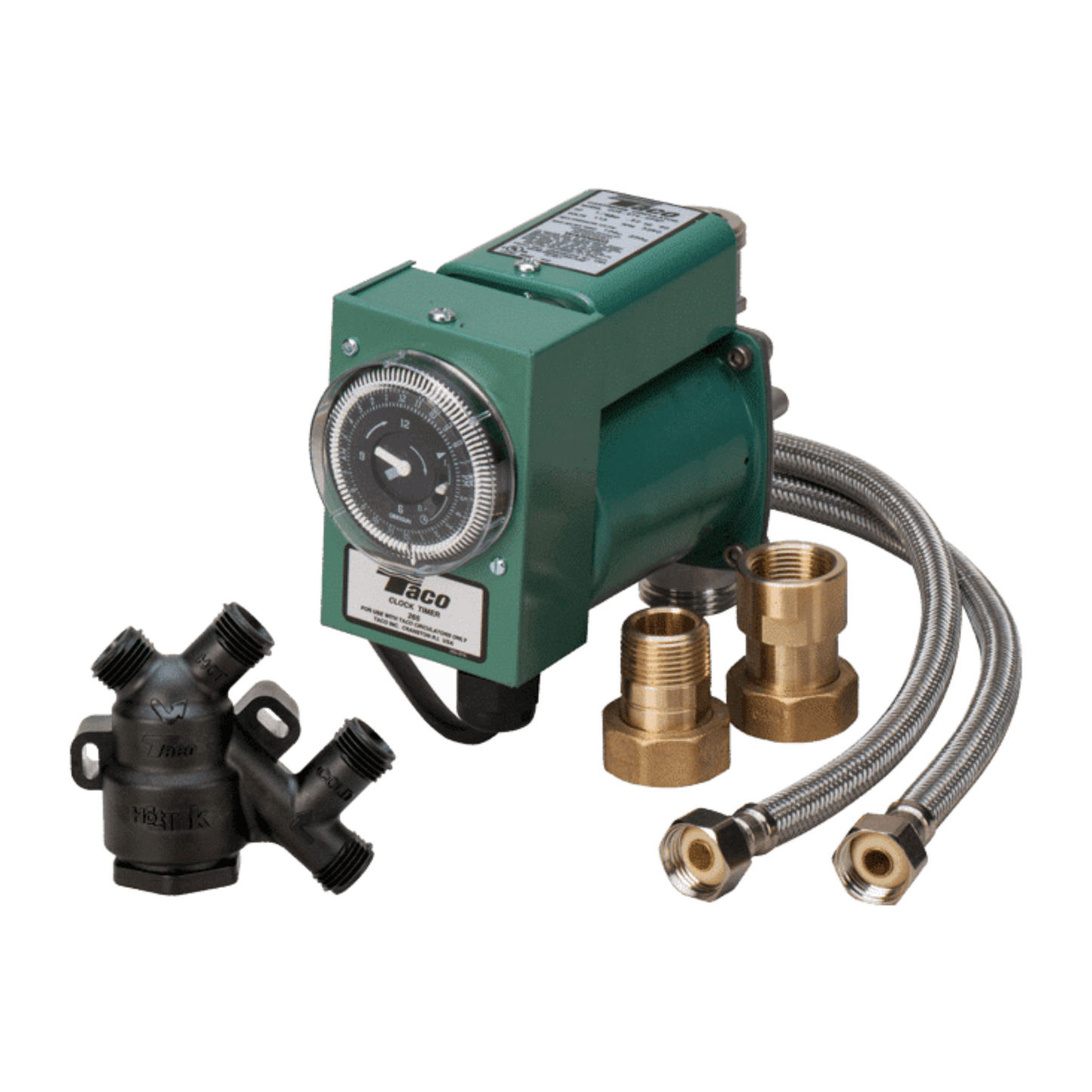

• Easy installation: kit includes circulator, bypass valve, and two braided flex hoses for straightforward setup
• Water and energy conservation: saves thousands of gallons of water each year by reducing waste at the tap
• Smart upgrade option: compatible with the Smart Plug, which offers learning, pulse, and vacation modes for advanced scheduling

Applications

• Residential domestic hot water recirculation
• Retrofit projects without a dedicated return line
• Energy- and water-saving system upgrades for existing homes
