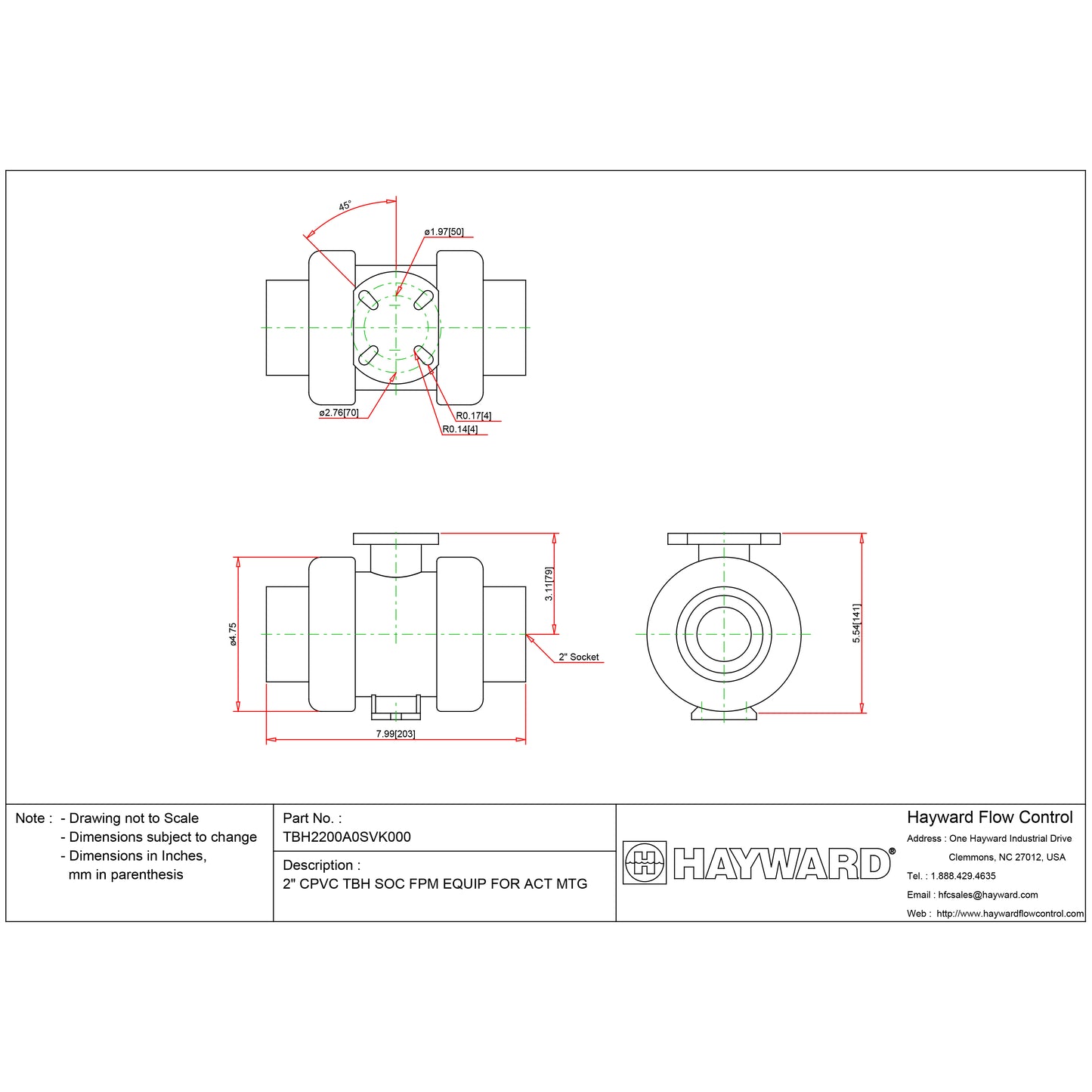

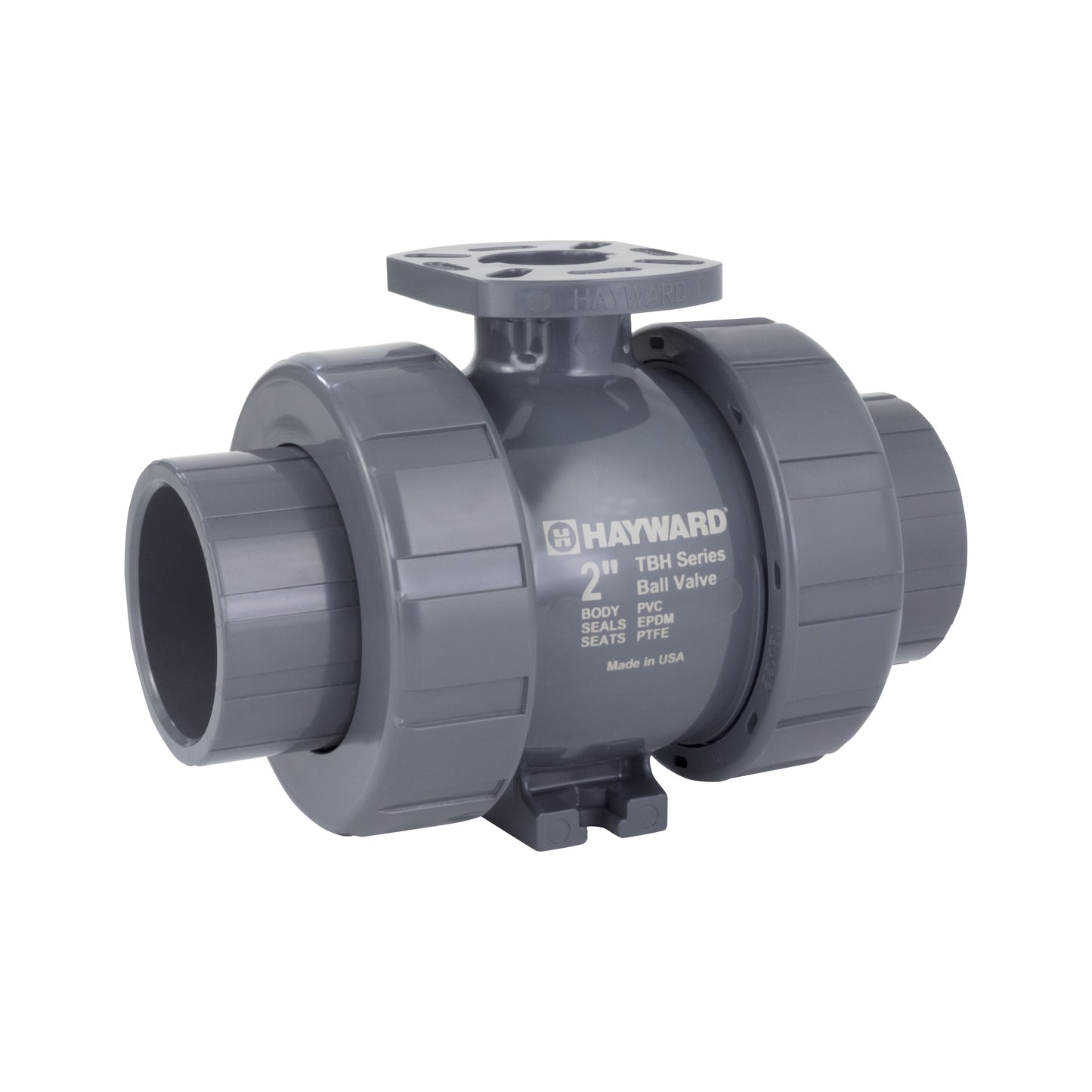

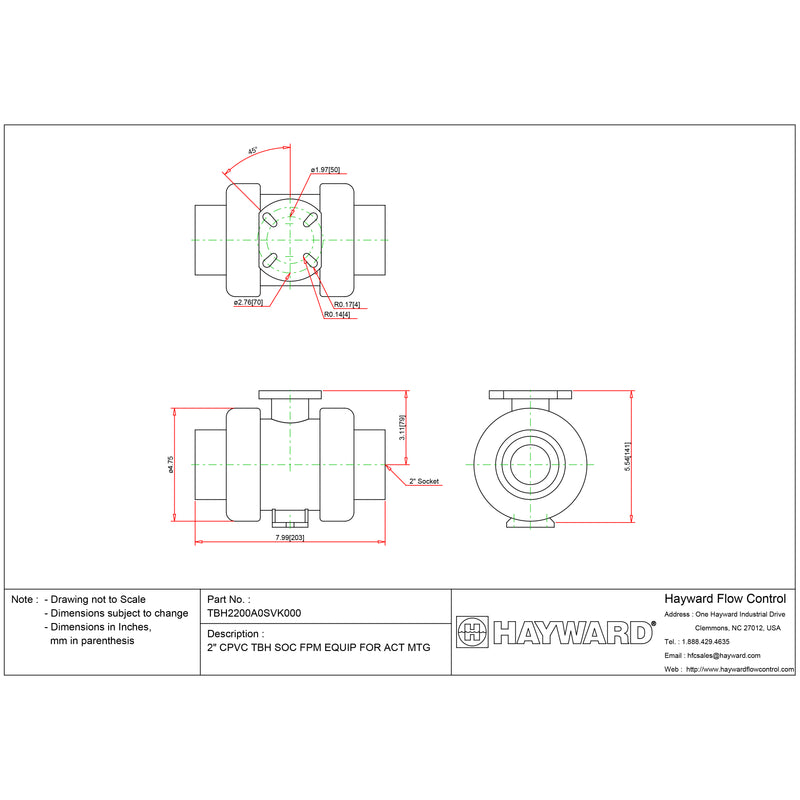

Hayward TBH2200A0SVK000 - 2" CPVC TBH Series Ball Valve Socket - Actuation Ready - FPM Seals

The TBH Series features a low maintenance design with its new patent pending System2 Sealing Technology for sizes up to 2"/DN50. Sizes 2-1/2" through 6" feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve.

Features

  • TBH Series
  • Full 250 psi / PN16 Rating up to 2"/DN50 and 235psi/PN16, Non-Shock at 70 degrees F / 23 degrees C
  • Integral ISO 5211 Mounting Pad for Easy Actuation
  • Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
  • System2 Sealing Technology Seat Carrier Design for sizes up to 2"/DN50– Patent Pending
  • Permanent Laser Markings, Eliminates Labels
  • System friendly "Molded-In" Footpad for Skid or Panel Mount
  • UV Resistant Sure Grip Ergonomic Handle
  • FPM Seals
  • Double O-Ring Stem Seals
  • Reversible PTFE Seats - Standard
  • Easy Replacement for Existing Hayward TB Series

Specifications

  • Pipe Size: 2 in
  • Material: CPVC
  • Sealing Material: FPM
  • Seat Material: PTFE
  • Valve Type: Ball
  • End Connection Type: Socket/Threaded
  • Operation Type: Manual
  • Pressure Rating: 250 PSI
  • Cv Coefficient: 150.0000
  • Chassis Description: Standard Body
