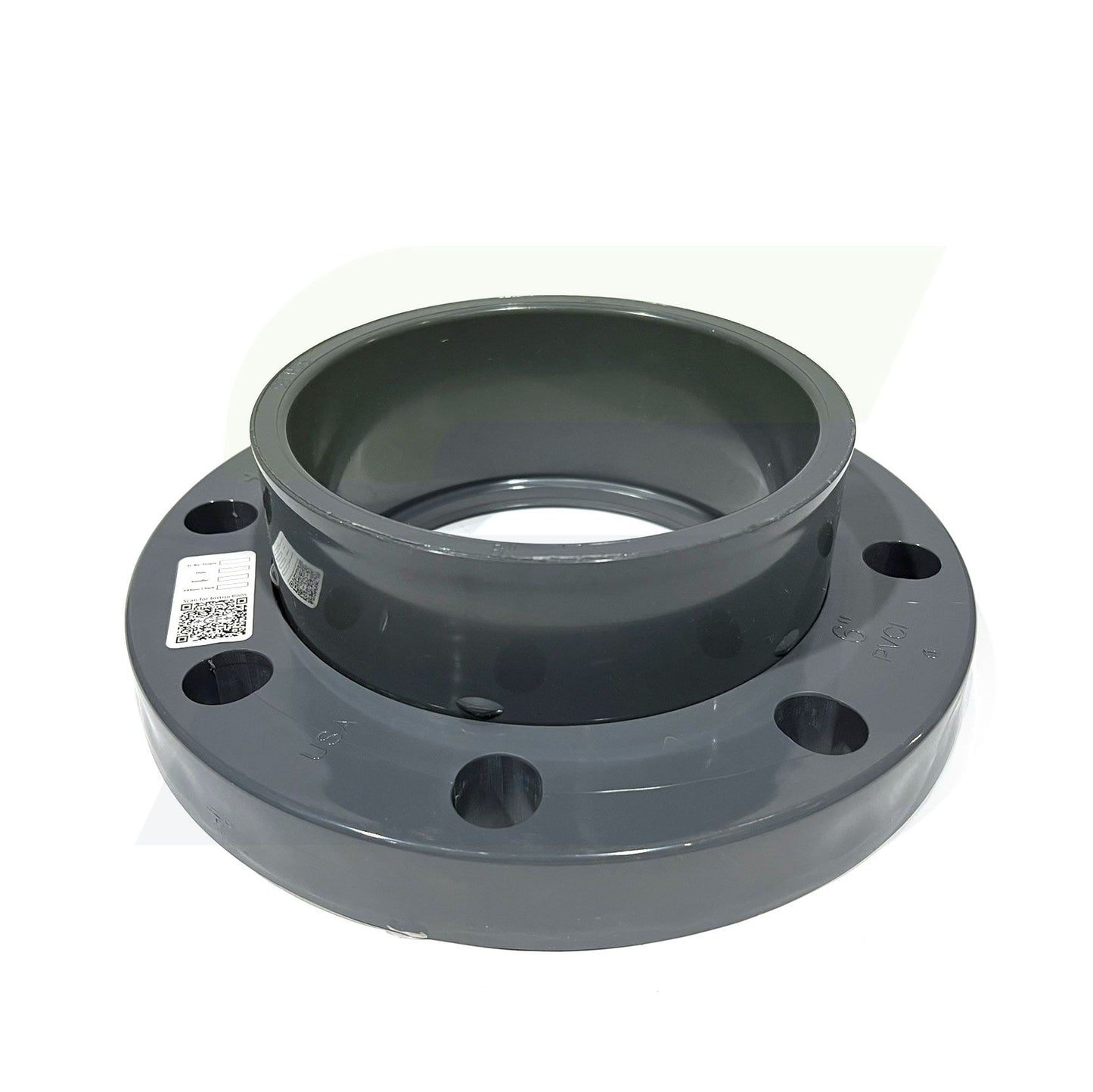

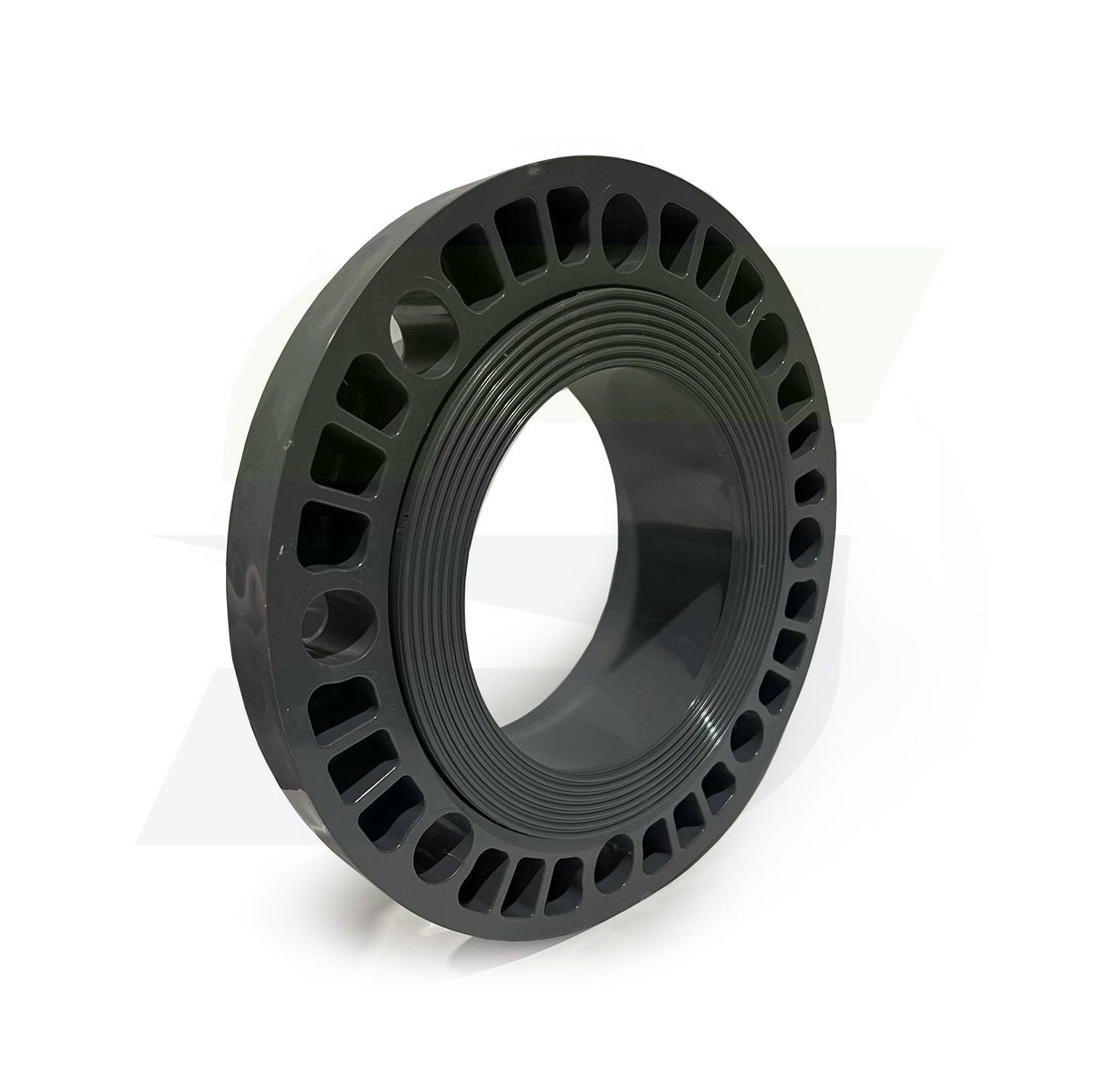

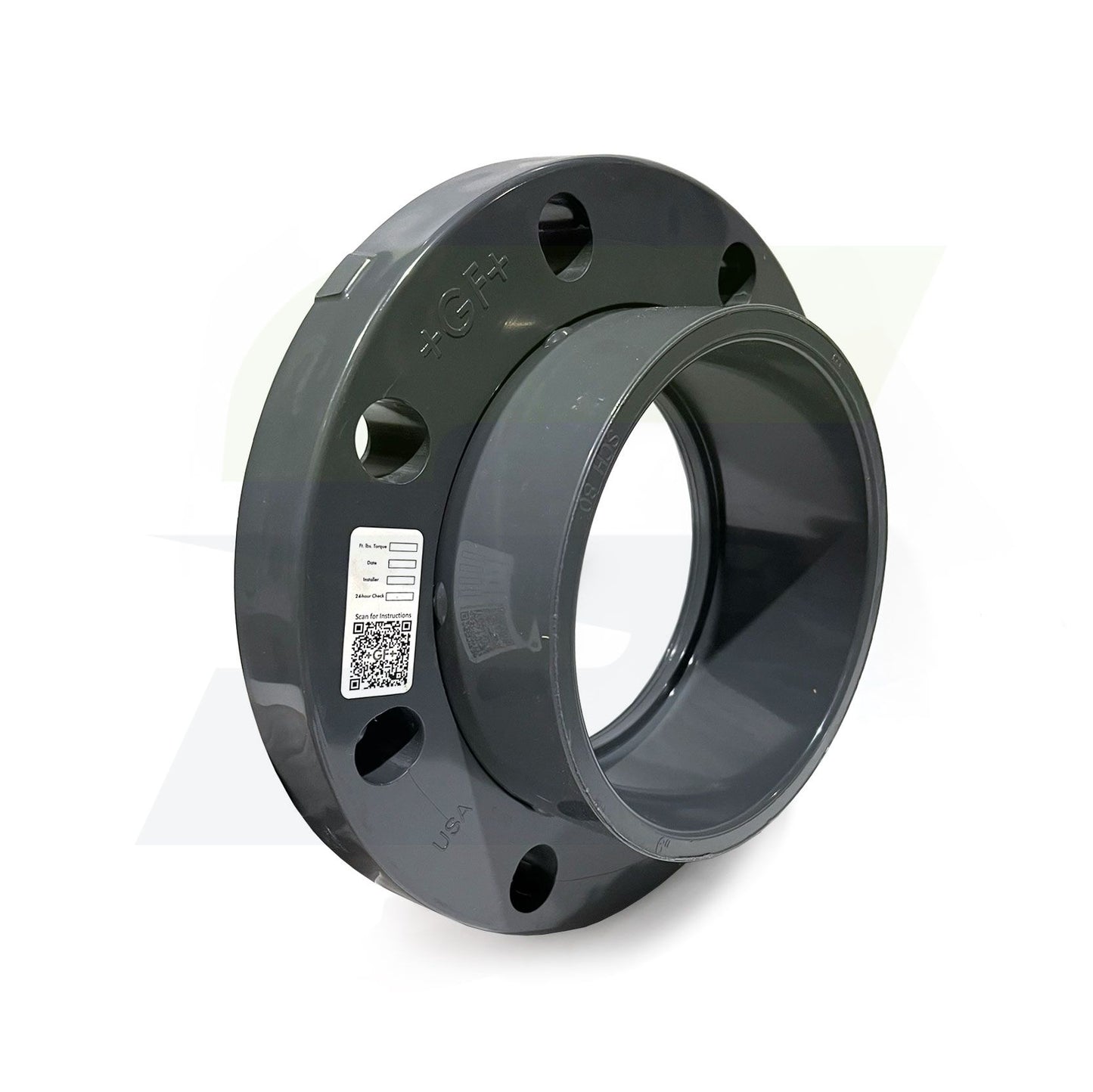

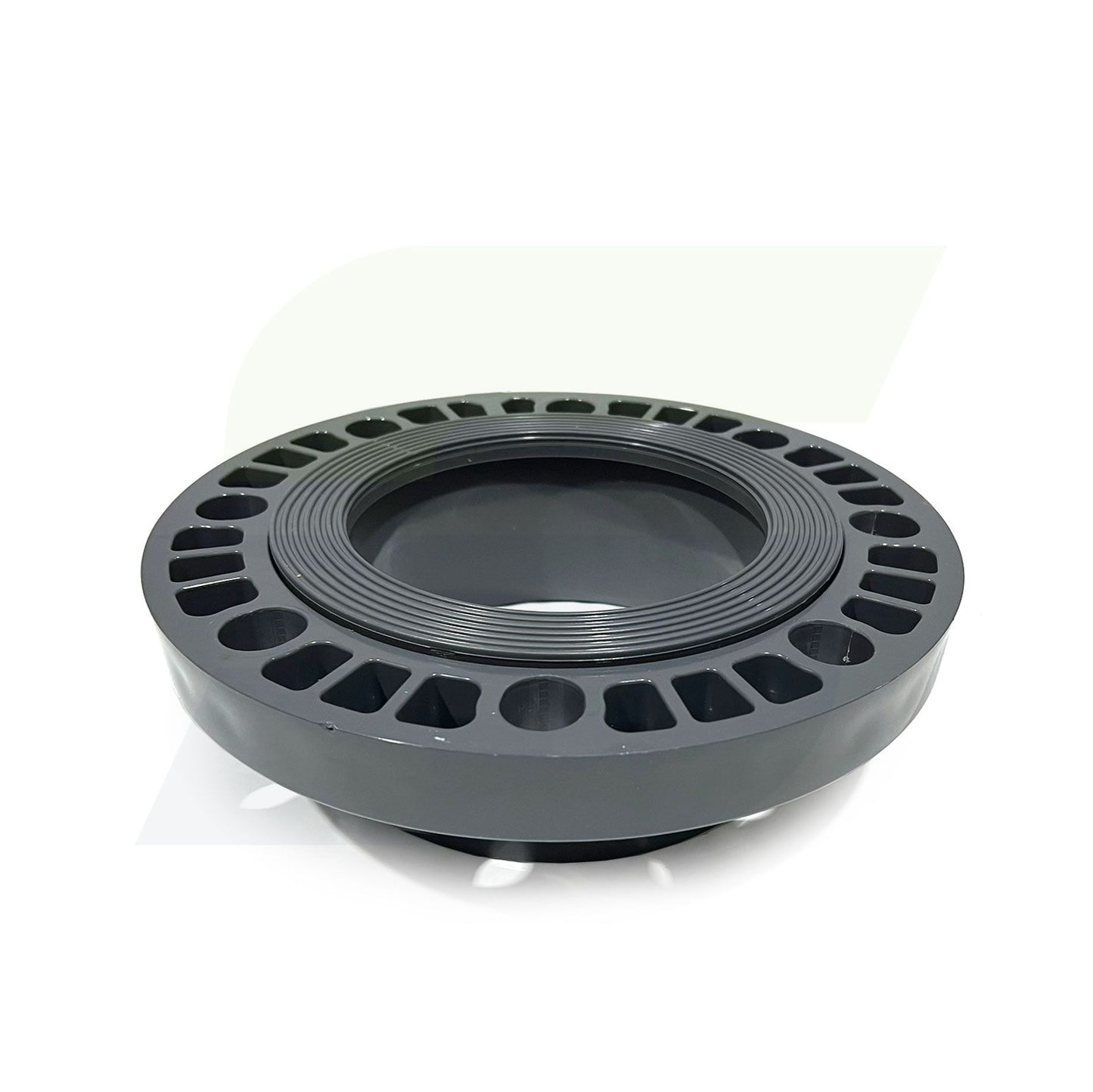

854-060 – 6" Glass-Filled Schedule 80 PVC Van Stone Flange - Class 150 - Socket

The 854-060 is a 6" Van Stone flange made from durable glass-filled PVC, offering improved mechanical strength and chemical resistance over standard PVC. Designed for use in Schedule 80 piping systems, this ANSI Class 150 flange features a socket connection and a loose ring design for easier bolt alignment and installation. Ideal for industrial, municipal, and commercial fluid handling applications where reliable performance and resistance to corrosion are required.

Features

• Strong, glass-filled PVC construction for enhanced rigidity and durability
• ANSI Class 150 rated for pressure applications up to 150 PSI at 73°F
• Schedule 80 dimensions for heavy-duty piping systems
• Van Stone (loose ring) design allows easy alignment of bolt holes
• Socket end connection for secure solvent welding
• Corrosion and chemical resistant
• Complies with ASTM D1784 and NSF 14/61 standards

Specifications

• Size: 6"
• Material: Glass-Filled PVC
• Schedule: 80
• Flange Type: Van Stone (Loose Ring)
• Connection: Socket (Solvent Weld)
• Pressure Rating: 150 PSI @ 73°F
• Temperature Range: Up to 140°F (60°C)
• Bolt Holes: 8 holes, 3/4" diameter
• Bolt Circle Diameter: Approx. 9.50"
• Flange OD: Approx. 11.00"
• Standards: ASTM D1784, ANSI B16.5, NSF 14/61
