FYF75V - 3/4" MPT Drip Irrigation Y-Filter with Ball Valve
Regular price
$17.50
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

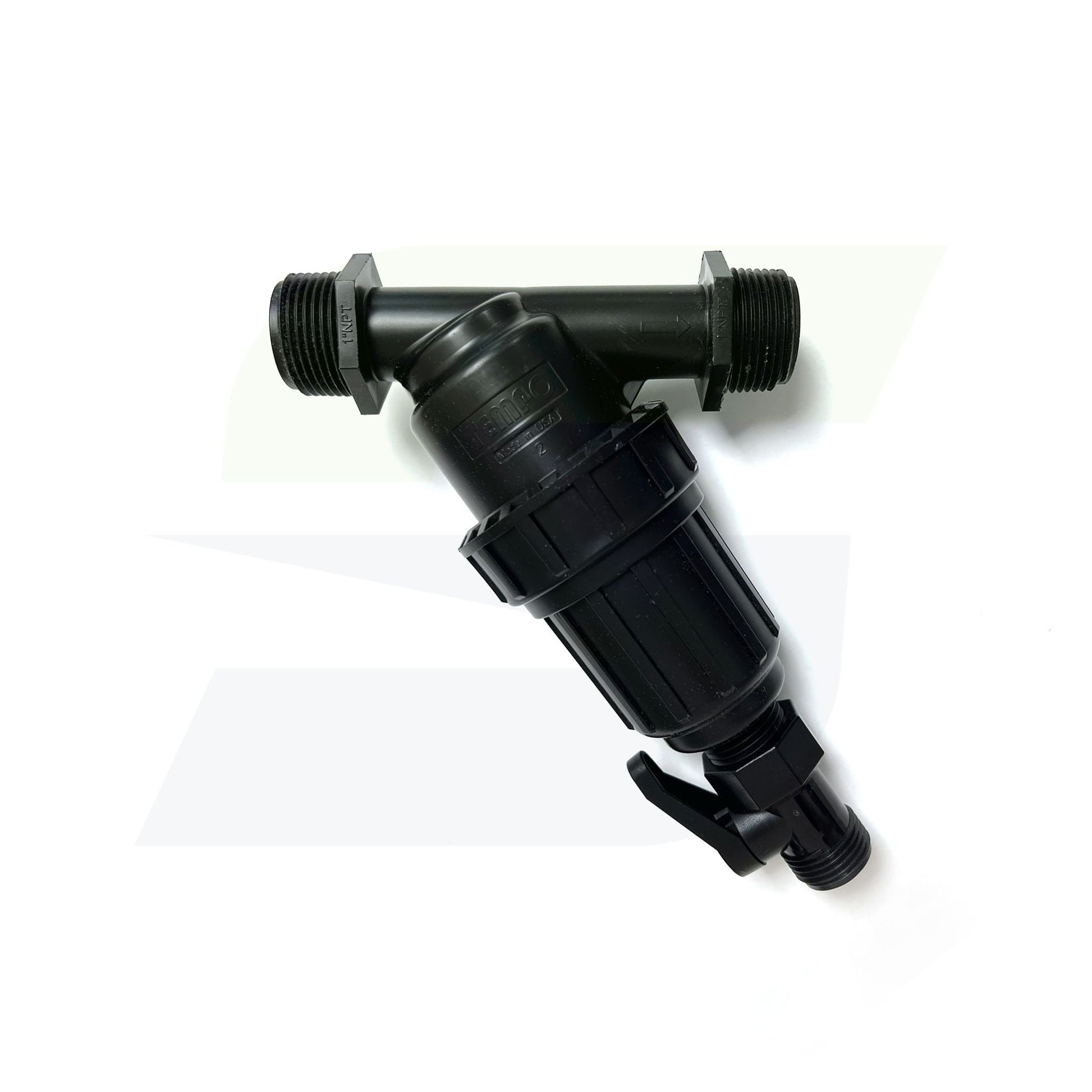

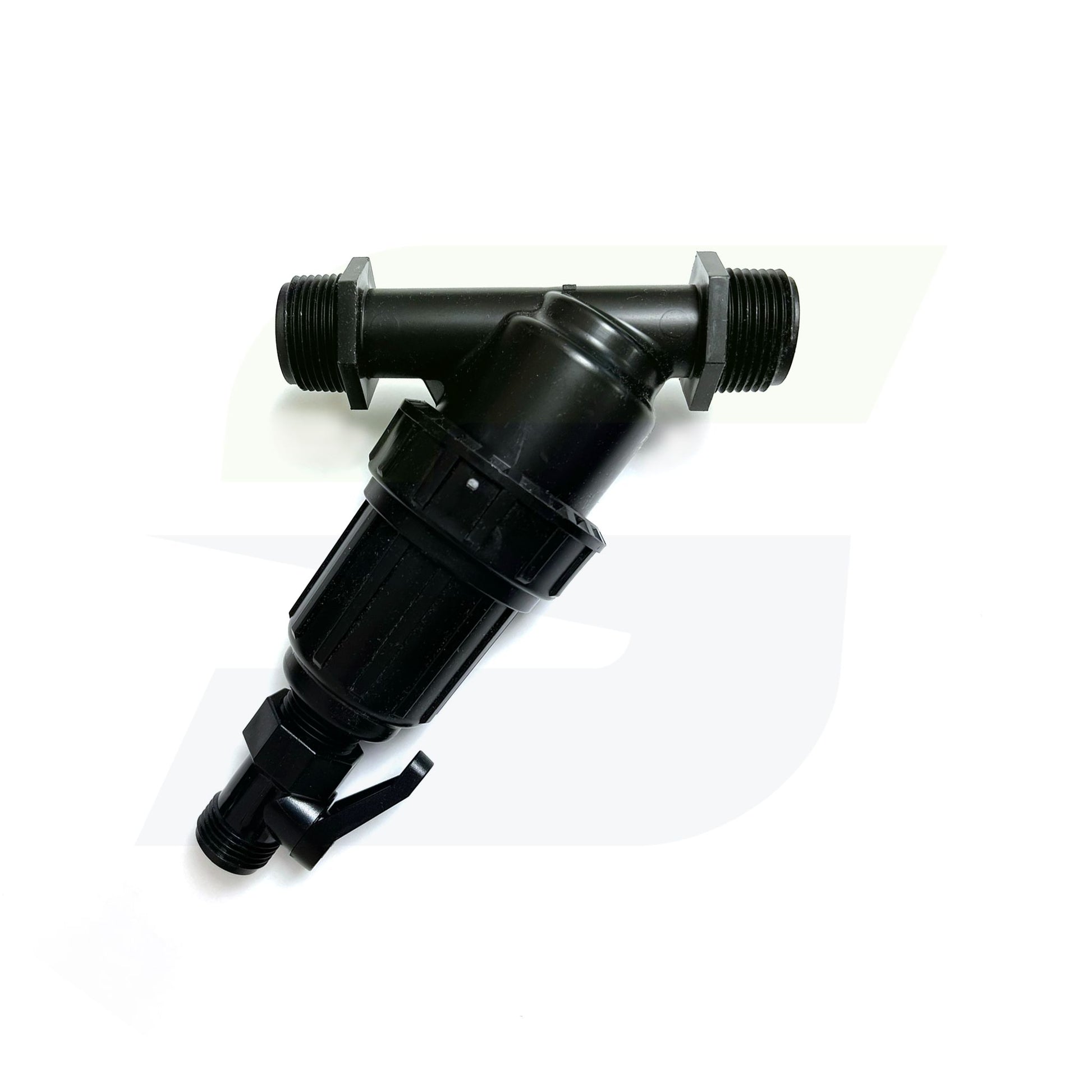

Tempo FYF75V - 3/4" MPT Drip Irrigation Y-Filter with Ball Valve
Y-Filters are used to protect drip emitters, dripline, sprayers, bubblers and misters from sand, silt and other impurities that may clog them over time. Filters are typically installed between the vacuum breaker and pressure regulator. Proper water filtration is essential for the efficient operation of drip irrigation systems.
Features
- All-purpose filter with polyester 150 mesh screen
- Screens have excellent resistance to most common irrigation chemicals
- Large filtration area and low friction loss allows long intervals between cleaning
- Recommended to be installed and used downstream of the control valve

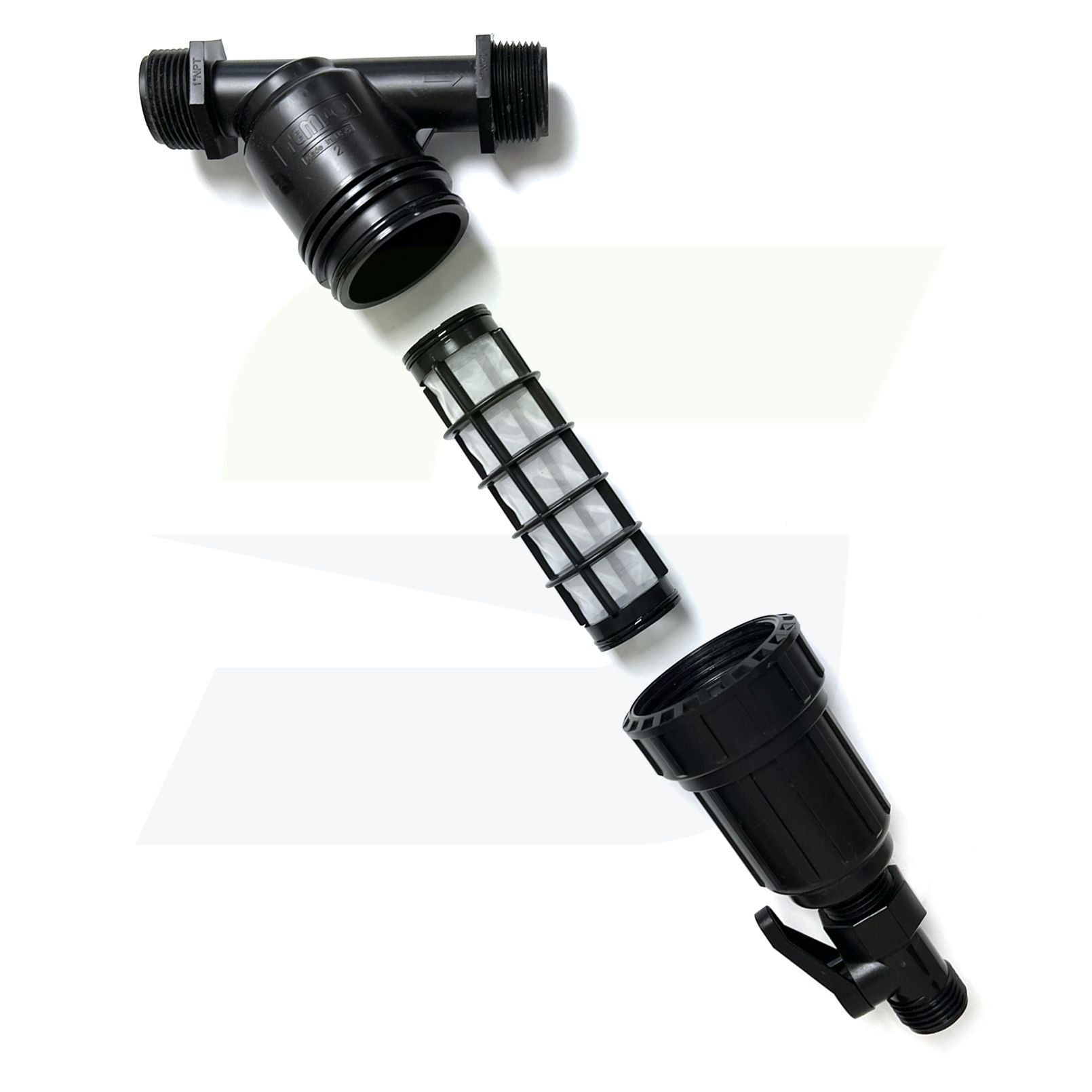

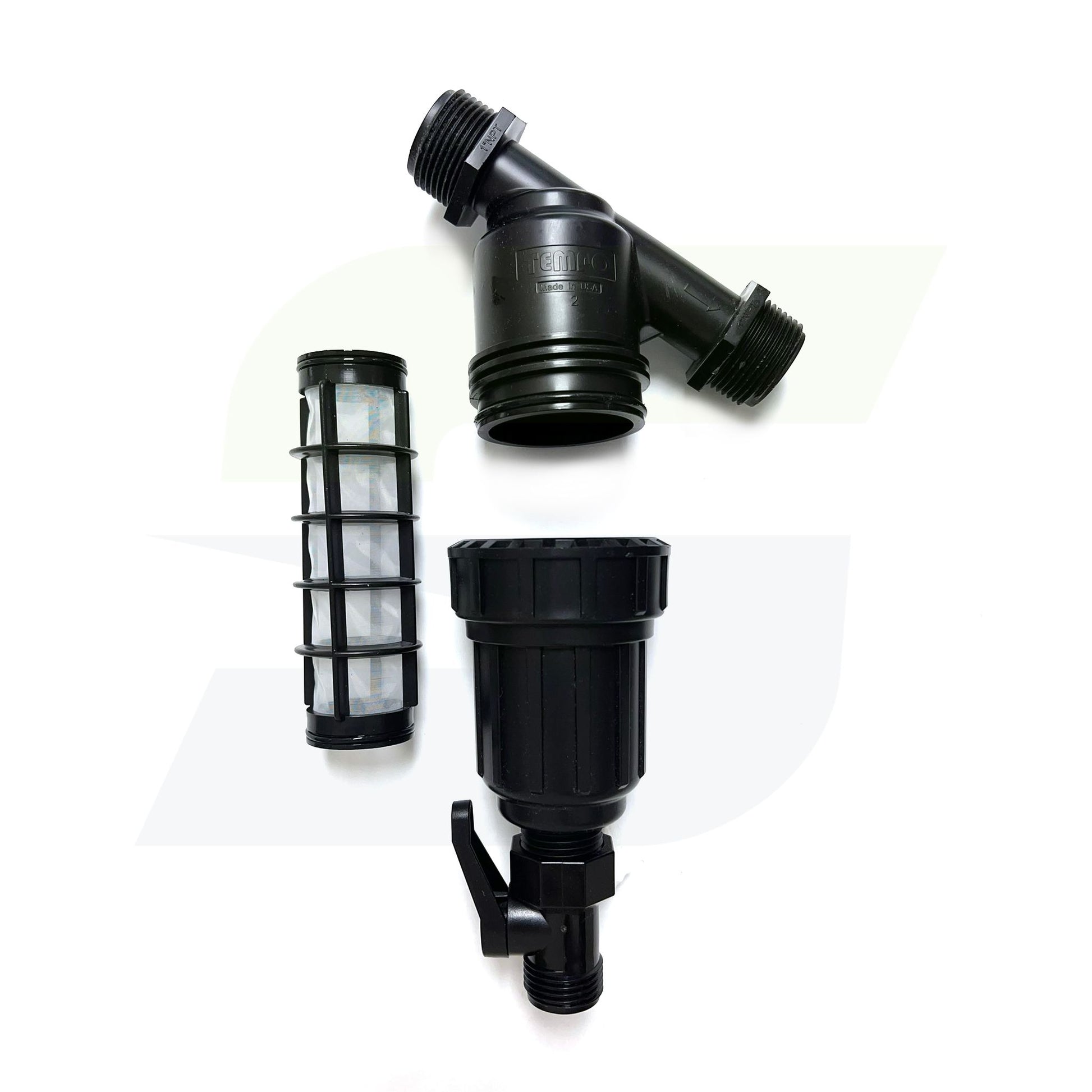

- Screen can be removed from the filter for easy cleaning
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
- Inlet Connection Size: 3/4"
- Outlet Connection Size: 3/4"
- Connection Type: MIPT (Male Iron Pipe Thread)
- Max Operating Pressure: 75 psi
- Max Flow Rate: 10 gpm
- Screen: 150 Mesh Polyester
- O-Ring Material: EPDM
- Body Material: High Impact Polypropylene
- Design: Compact
- Flush Method: Manual (via removable cap or ball valve)
- Country of Origin: USA
