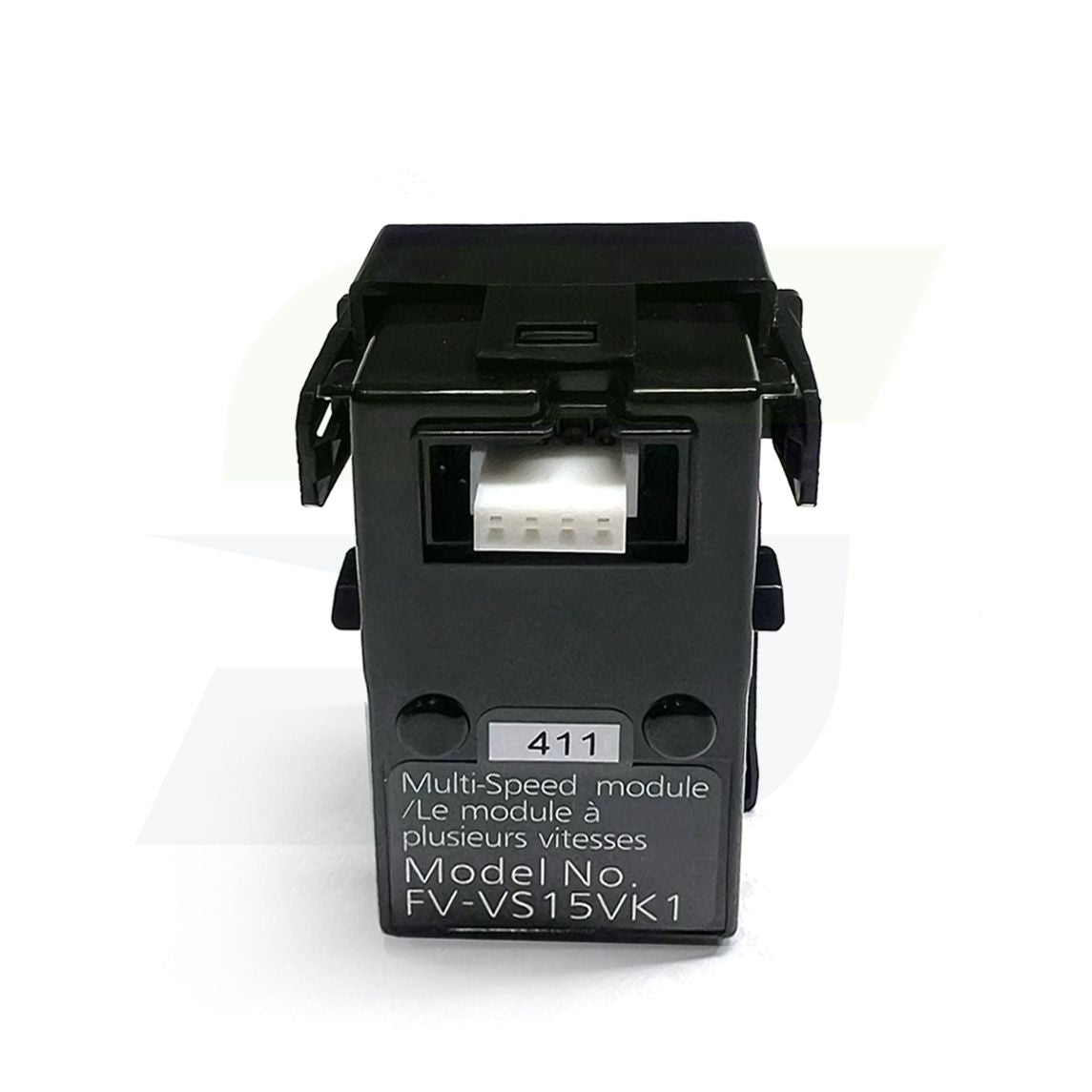

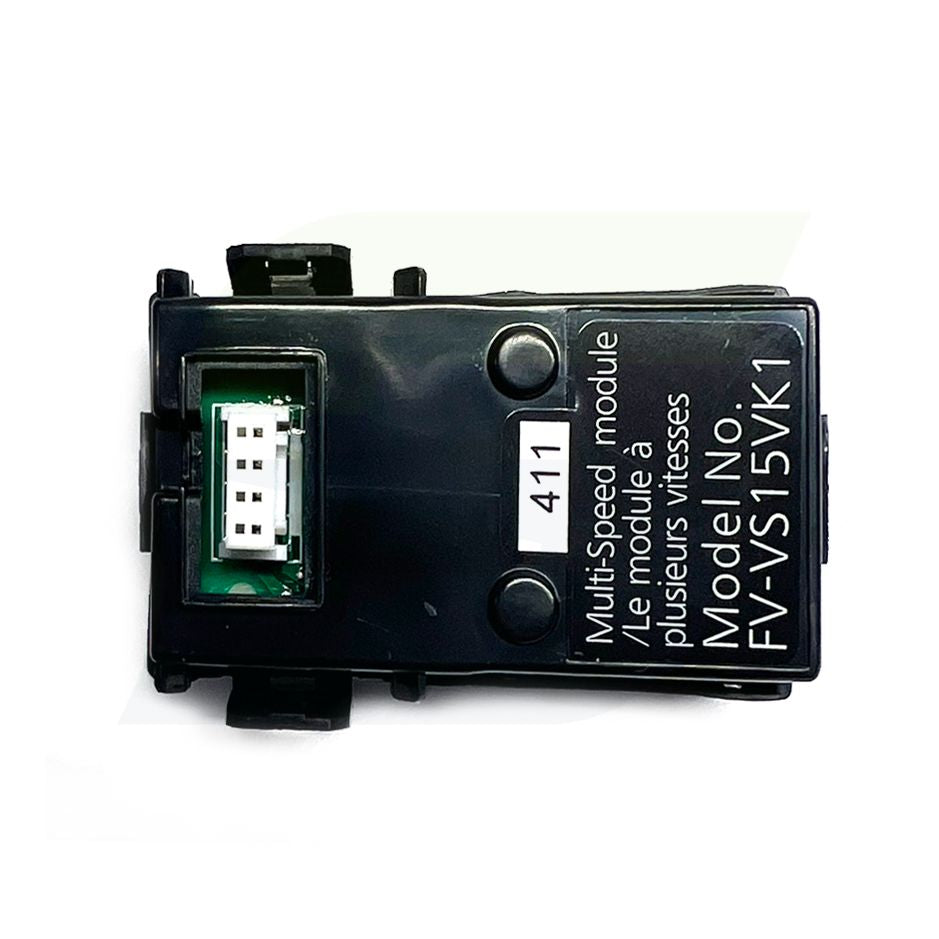

Panasonic FV-VS15VK1 - WhisperGreen Multi-Speed Time Delay Module - Plug 'N Play

The Panasonic FV-VS15VK1 is a multi-speed, time-delay module designed for WhisperGreen® Select fans. It allows continuous low-level ventilation while automatically increasing airflow when activated by a wall switch or sensor. The module helps meet ASHRAE 62.2 standards for residential ventilation and ensures energy-efficient operation with user-adjustable airflow settings.

Specifications

• Functionality: multi-speed control with built-in delay timer
• Airflow settings: 0, 50, 110 CFM or 0, 50, 150 CFM, adjustable to meet ASHRAE 62.2 requirements
• Compatibility: designed for Panasonic WhisperGreen® Select fans
• Operation: fan runs at preset low-level CFM and automatically increases to high-level CFM when activated
• Delay timer: user-set delay returns fan to low-level airflow after activation
• Dimensions: 3-3/4 in height x 1-2/3 in width x 2 in length

Features

• Plug 'N Play™ installation: module inserts directly into the designated slot in the fan base
• Continuous ventilation: maintains low-level airflow for ongoing ventilation needs
• Automatic high-speed activation: triggered by wall switch or sensor, then returns to low speed after delay

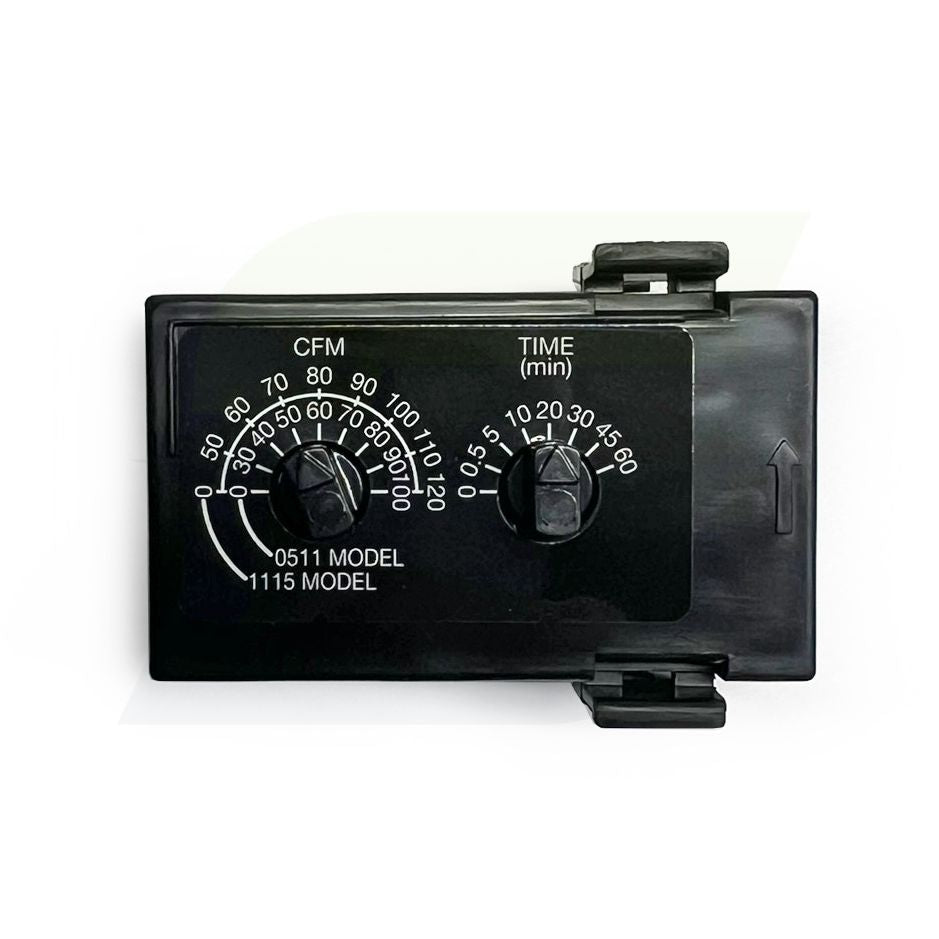

• Adjustable airflow: switch allows selection of desired low and high CFM levels

Applications

• Residential bathroom ventilation
• Continuous low-level ventilation with boost during occupancy
• Systems requiring compliance with ASHRAE 62.2 residential ventilation standards
• Integration with motion or humidity sensors for automatic fan control
