FGP-SRFG-1000 - AutoSnap Steel Flange Mount for TracPipe CounterStrike - 1" MPT

Out of stock
Regular price $38.79

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet

Submittal Sheet

OmegaFlex Catalog

Design & Installation Guide

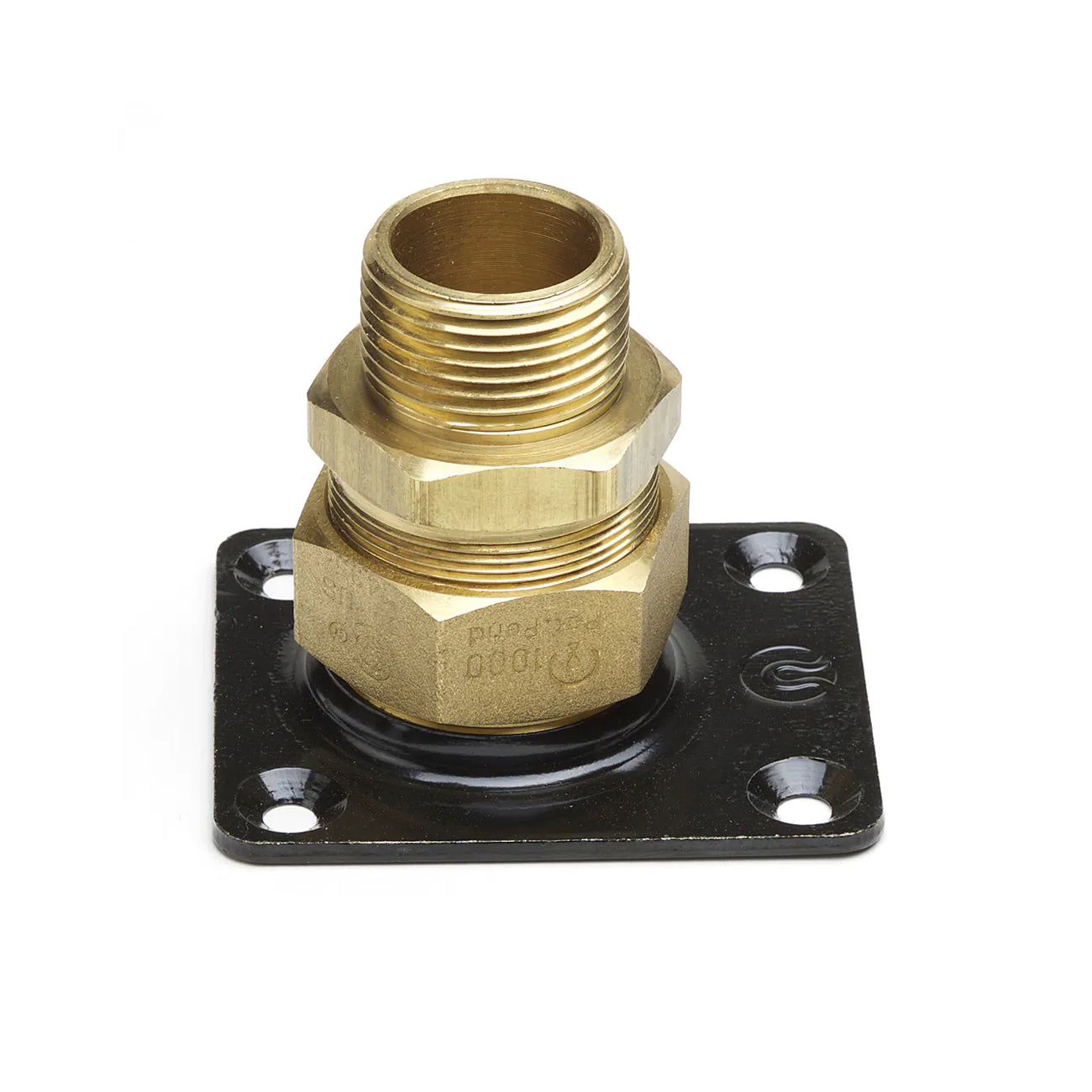

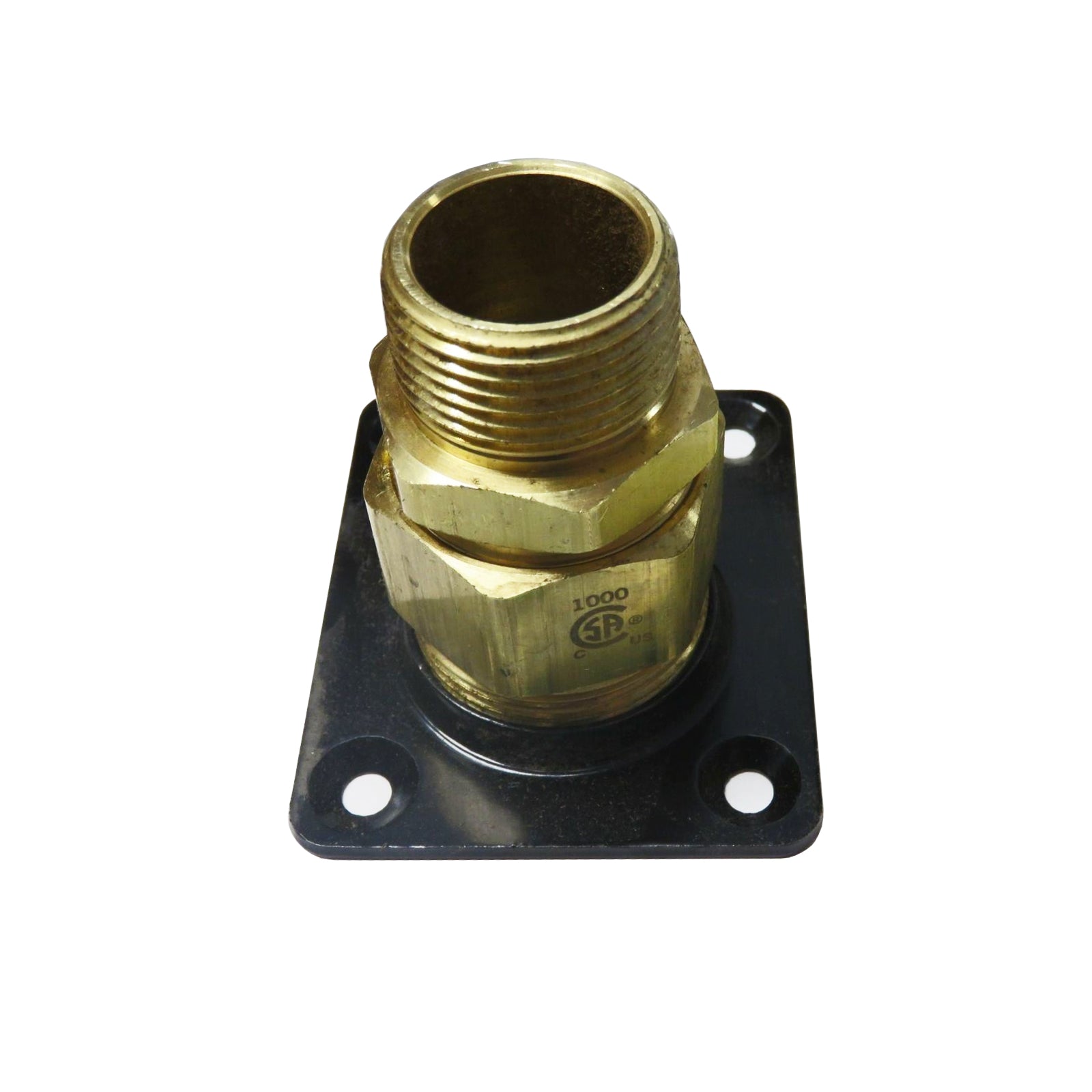

TracPipe CounterStrike FGP-SRFG-1000 - AutoSnap Steel Flange Mount for TracPipe CounterStrike - 1" MPT

In 2014, OmegaFlex introduced the AutoSnap fitting for CounterStrike that is so easy to use you can even keep your gloves on, just twist, snap, tighten and you’re done!


  • Application Information: Termination fitting between TracPipe or CounterStrike Tubing and NPT thread. Fitting thread is Male NPT. For use indoor, outdoor, and concealed location applications.
  • AutoSnap Flange Fitting 1"
  • The new patent pending AutoSnap fittings are the only CSST fittings that do not require any disassembly or reassembly of the fitting to the CounterStrike CSST.
  • This greatly reduces installation difficulty and time as there are no small loose gaskets, O-rings, or retainer rings to contend with in a dark and/or cold work place environment!
  • AutoSnap is CSA listed and features a metal to metal cup seal without any exposed stainless steel pipe behind the new fitting.
  • Reduced torque value and reusability all make for an optimum installer friendly fitting


  • Materials: Nut, Adapter and Snape Ring: Yellow Brass
  • Mounting Flange: Steel
  • Specification Operating Pressure: 25 PSIG
  • CSA International Evaluation Report - Max Operating Pressure: 3/8" through 1-1/4": 125 PSIG
  • Operating Temperature Range (used with tubing): -20 to 200 degrees F
  • Codes: ICC Codes (IFGC, IRC, IMC), NFPA 54 / ANSI Z223.1, UPC, CAN/CSA B149.1, NFPA 58
  • Standards: ANSI LC1 / CSA 6.26, ANSI Z223.1
  • Listings: CSA, ICC PMG 1046 / 1052, IAPMO(UPC) File No. 4665
