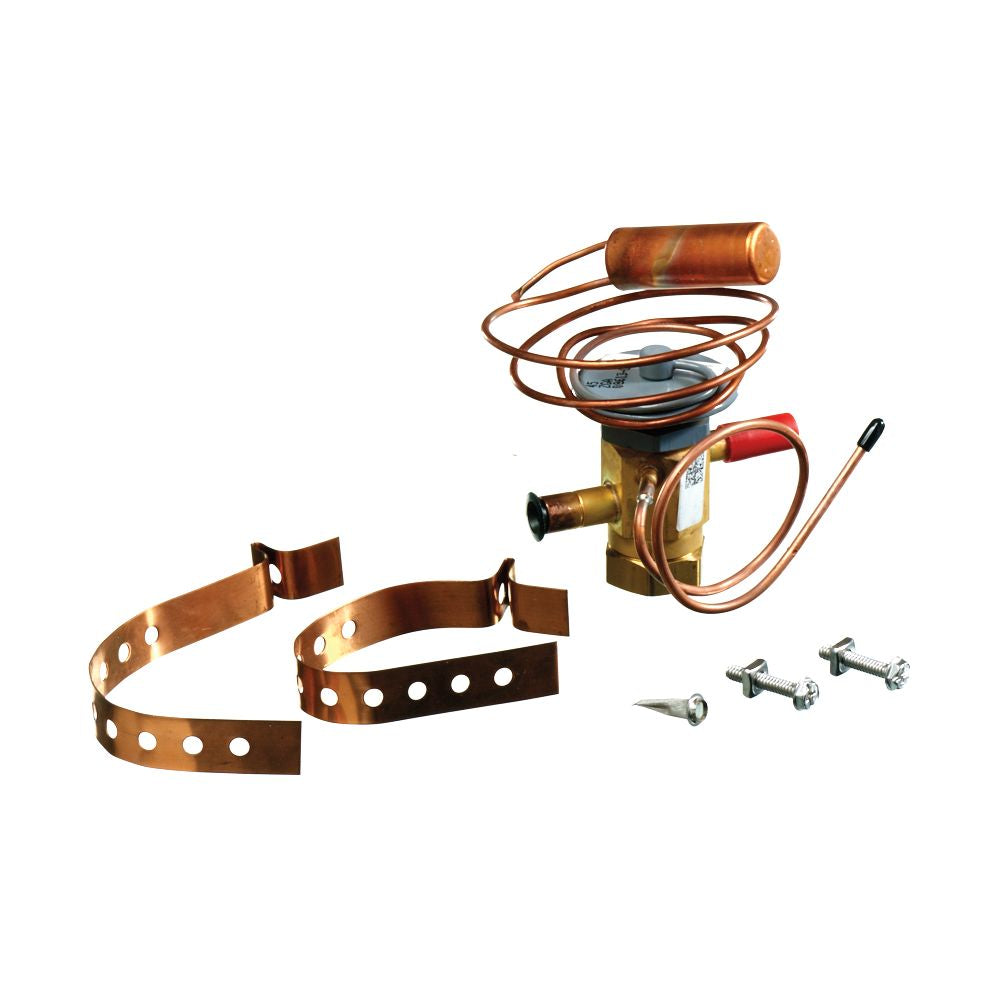

61-103652-05 - Expansion Valve Kit - TXV - 1-1/2 Ton
Regular price
$98.00
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Rheem 61-103652-05 - Expansion Valve - TXV - 1-1/2 Ton
The Type CBBI Thermal Expansion Valve is a balanced port valve with integral check valve assembly. The CBBI valve is designed for use on residential and small commercial heat pump systems which require a check valve.
Features
- Balanced port
- Internal check valve
- Straight through or angle configurations
- Mesh insert strainer
- For residential air conditioning and heat pump installations
- For light commercial air conditioning and heat pump
Technical Data
- Nominal Capacity Reference Only (Tons): 1-1/2
- Check Valve: Yes
- Refrigerant: R-410A
- Bi-Flow Metering?: No
- Bleed Capacity (%): 0
- Inlet Size (in.): 3/8
- Inlet Fitting Type: Sweat
- Outlet Size (in.): 3/8
- Outlet Fitting Type: Sweat
- Element Cap Tube Length (in.): 30
- External Equalizer Connection (in.): 1/8 Sweat O.D.
- Equalizer Tube Length (in.): 12
Where Used
- RCFM-HU2417CU
- RCFL-AU2414CC
- RCFL-HM2414CC
- RCFL-HU2414CU
- RCFL-HU2414TU
Replaces
- 61-102993-05
HUZ2012605
