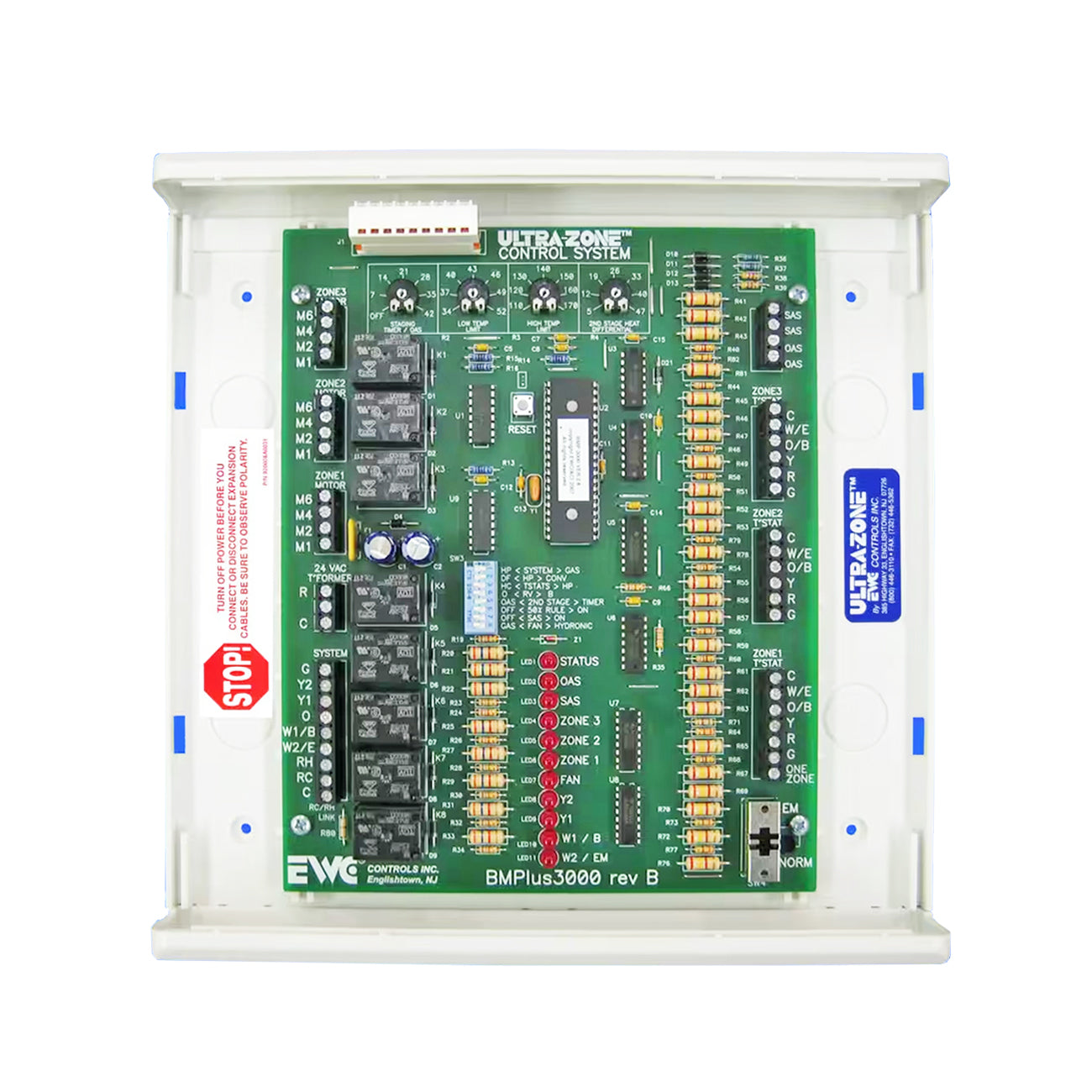

BMPLUS 3000 - 3 Zone Control Panel
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Submittal SheetEWC Controls BMPLUS 3000 - 3 Zone Control Panel
The BMPlus Zone Control System allows you to easily upgrade an inefficient single zone HVAC system, into a Multi-zone, Energy savings, Comfort producing, HVAC system. The Superior Design, Intuitive Firmware, Simple Setup Options, Easy to Understand wiring and Backwards Compatibility, makes the BMPlus Zoning system the Contractors dream. Combined with EWC Motorized Dampers and any off-the-shelf Thermostats, EWC Controls sets another high standard in the residential & light commercial Forced Air Zoning Industry.
Features
- NUMBER OF ZONES: 3 Zones, expandable to 5 or 7 zones with the addition of 1 or 2 Model XM-2 expansion modules.
- COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling. Heat Pump Conventional or Dual Fuel – Up to 3 Stages Heating and 2 Stages Cooling.
- COMPATIBLE THERMOSTATS: Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat.
- COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.
HKZ2000215
