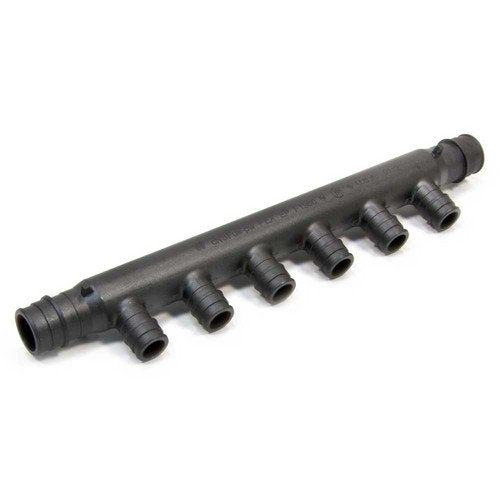

EP Flow-through Multi-port Tee features 3/4" or 1" ProPEX inlets. All EP Flow-through Multi-ports have 1/2" ProPEX branch outlets. The tee is made of EP, which is proven in demanding hot-water applications.
Note: ProPEX Tool is required. ProPEX Rings sold separately.

Engineered Polymer (EP) Flow-through Multi-port Tee features 3/4" or 1" ProPEX^® inlets with1/2" ProPEX branch outlets. The tee is made of EP, a high-performance material used in demanding, hot-water applications.

Material: UDEL GF120
Maximum Temperature (no pressure): 320°F (160°C)
Maximum Working Temperature/Pressure: 210°F (99°C) at 150 psi
Maximum Multi-port Tee Flow for ¾" Inlet: 13.2 gpm at 12 fps, 8.8 gpm at 8 fps
Maximum Multi-port Tee Flow for 1" Inlet: 21.8 gpm at 12 fps, 14.5 gpm at 8 fps

Any product designed to mount 1" copper pipe (for the 3/4" EP Flow-through Multi-port Tee) or 1 1/4" copper pipe (for the 1" EP Flow-through Multi-port Tee) can serve as a mounting bracket. For more information, refer to the Uponor Professional Plumbing Installation Guide.

Standards: CAN/CSA B137.5; ASTM F877; ASTM F1960

Codes: IPC; UPC; NSPC; NPC of Canada

Listings: ANSI/NSF -14- and 61-certified; ICC ESR 1099; IAPMO 3946; HUD MR 1269

Related applications: PEX-a Plumbing Systems
