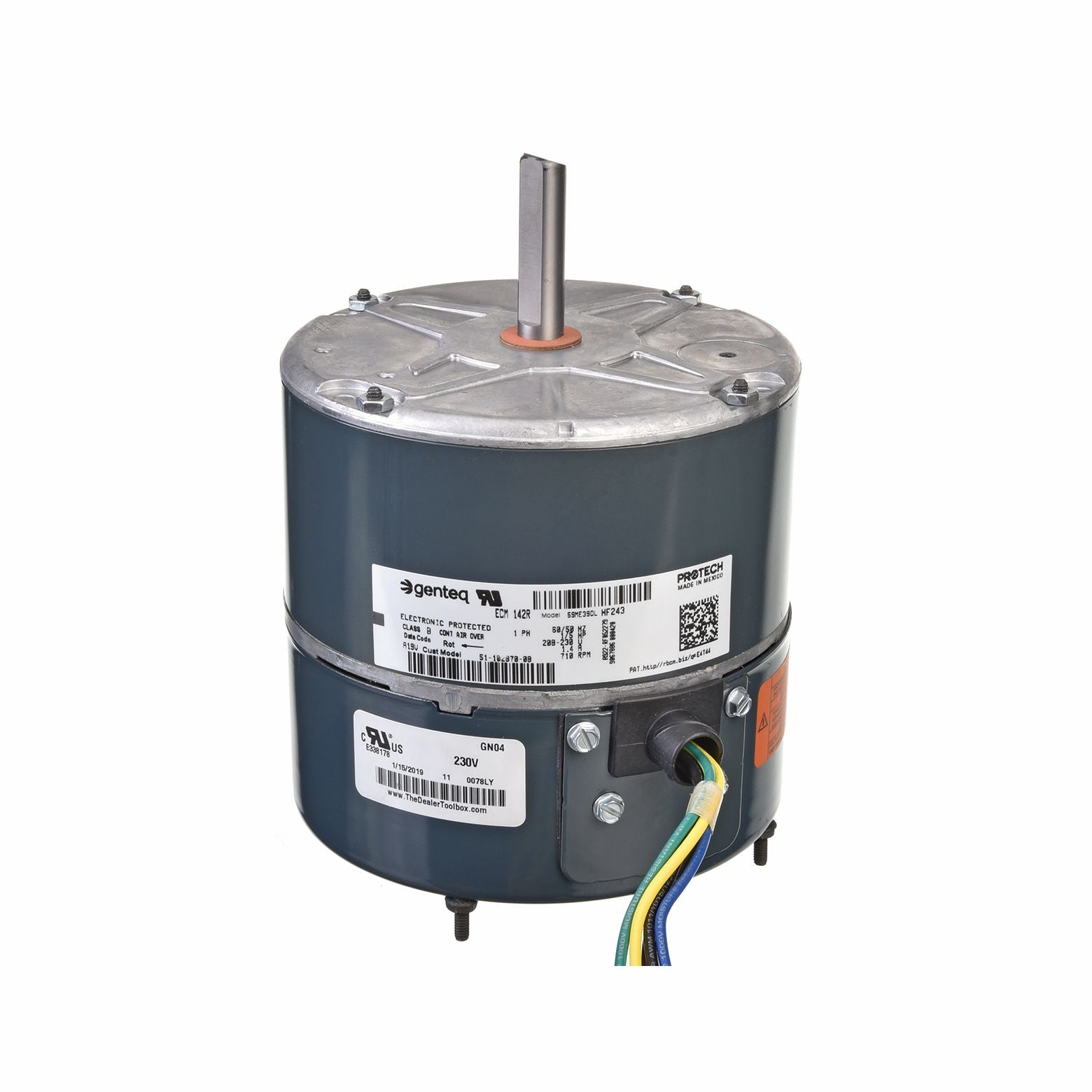

Rheem 51-102870-08 - 1/5 HP Not Programmable Condenser Motor - 1 Phase - Variable Speed - 230V

The ECM Outdoor Motor maintains its high efficiency across a range of operating speeds, which results in a significant reduction in energy use when the motor is run at reduced speeds. This makes the ECM Motor ideal for use in creating two-stage outdoor compressors and heat pump-type units. In addition to reducing electrical use, two-stage compressors feature enhanced humidity removal, less temperature swing between cycles, more even temperatures throughout the home, and quieter equipment operation.

Features

• Variable speed operation
• Brings the benefits of ECM to high voltage applications without the need of a step-down transformer partnered with a standard voltage ECM
• Ball bearings
• OEM genuine factory authorized part

Technical Data

• Motor Type: ECM - Not Programmable
• HP: 1/5
• No. of Speeds: Variable
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 1-3/4
• Overall Shaft Length (in.): 2
• Motor Body Length (in.): 5-1/2
• Overall Motor Length (in.): 8
• Mounting: End-boss
• Frame Size: 39
• Bearing Type: Ball
• Application: Condenser
• Drive Type: Direct Drive

Where Used

• RPQL
• 14AJM
• 15PJL

Replaces

•  51-102870-01

HUZ2022032
