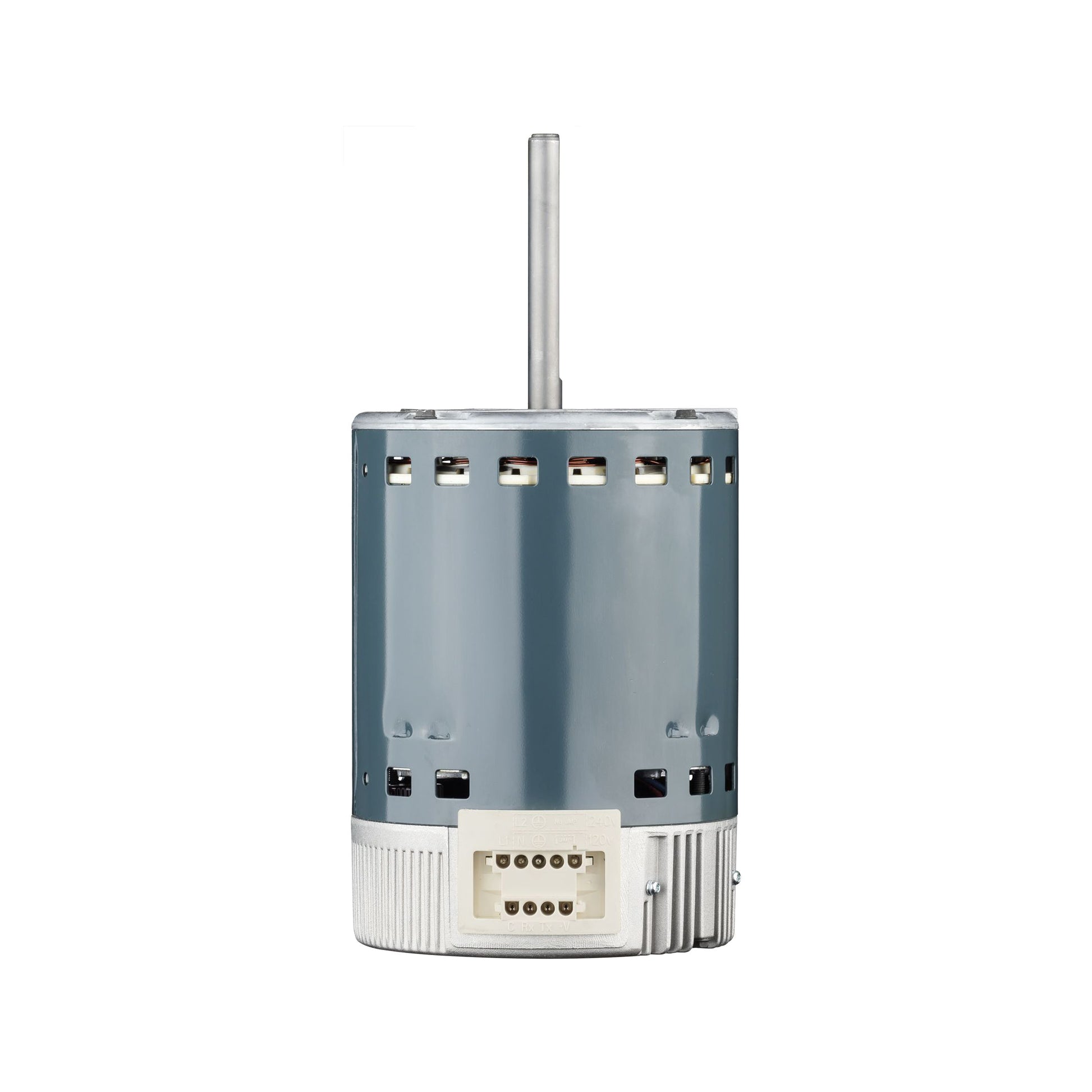

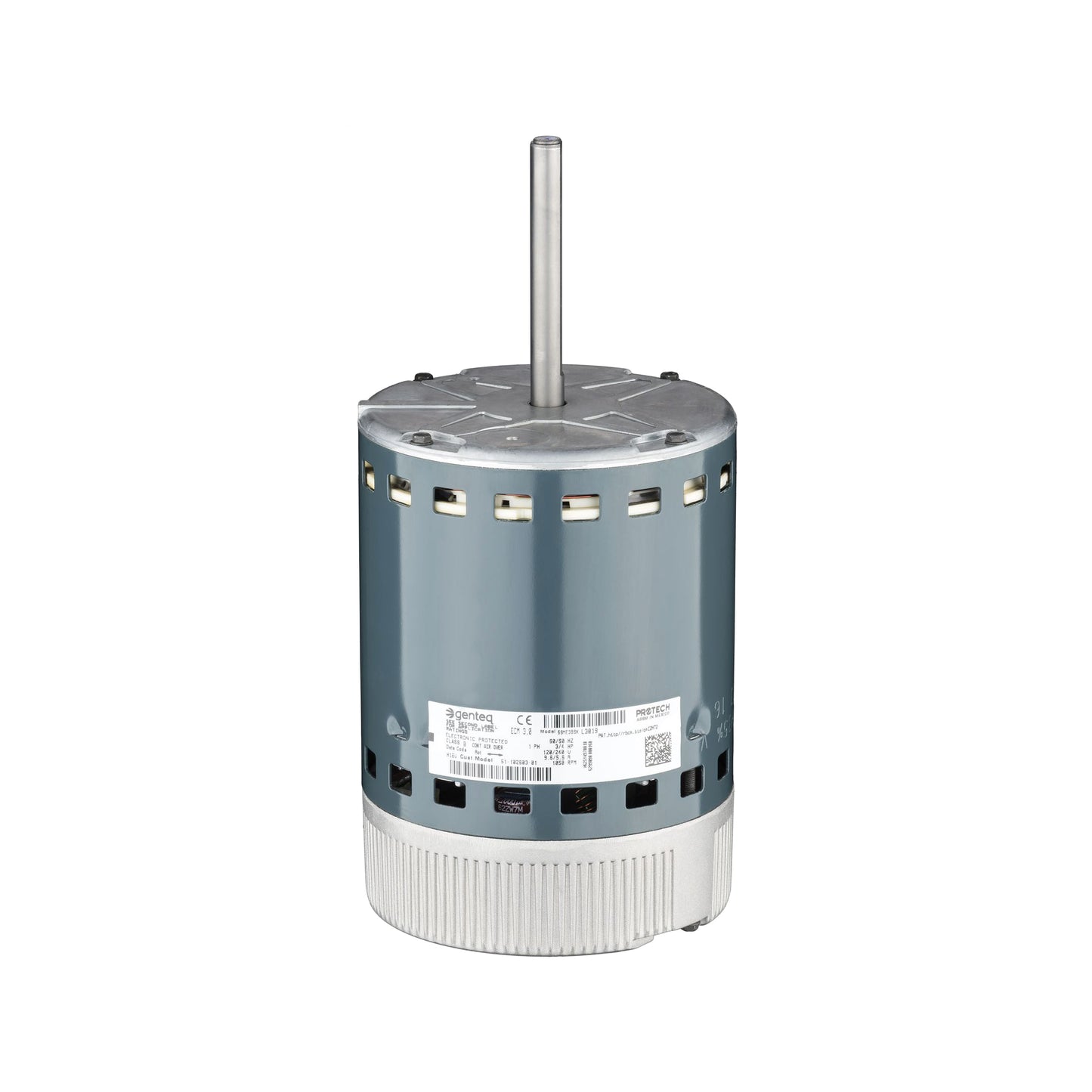

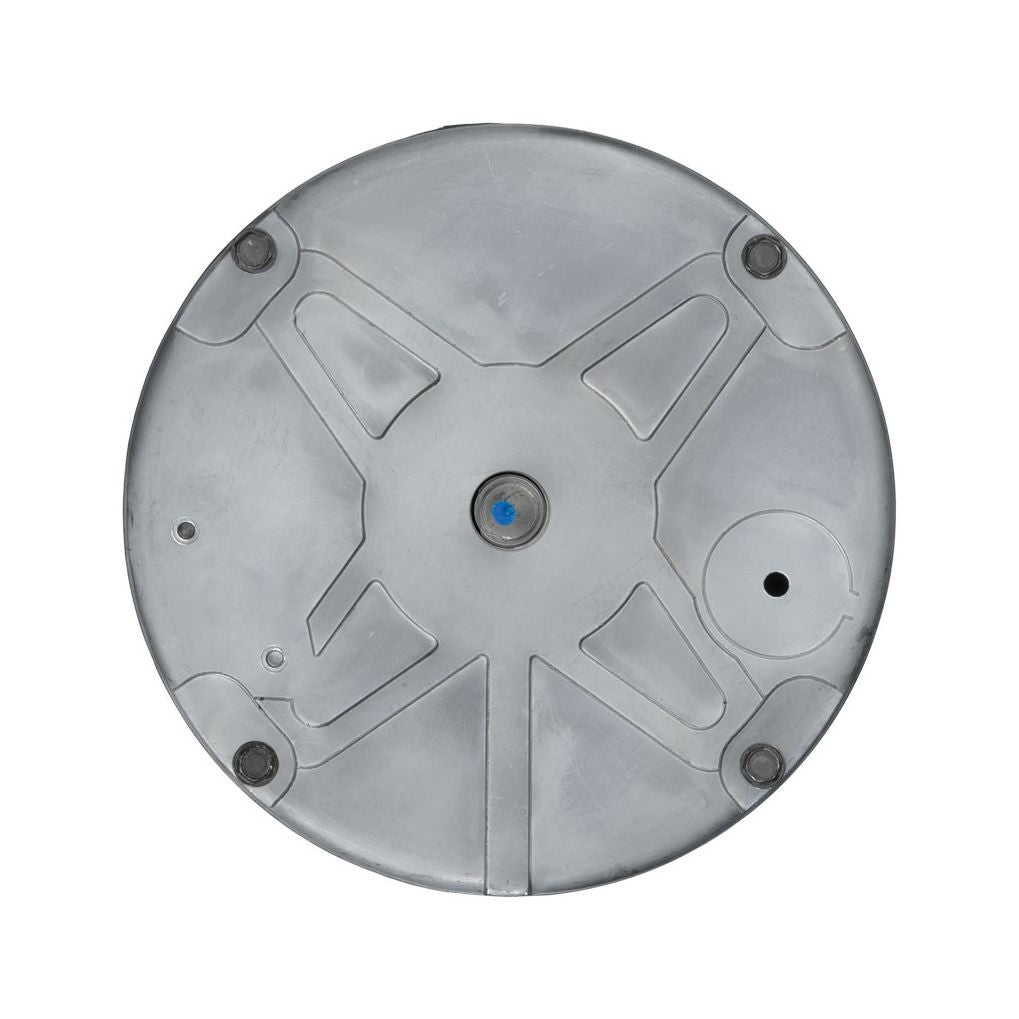

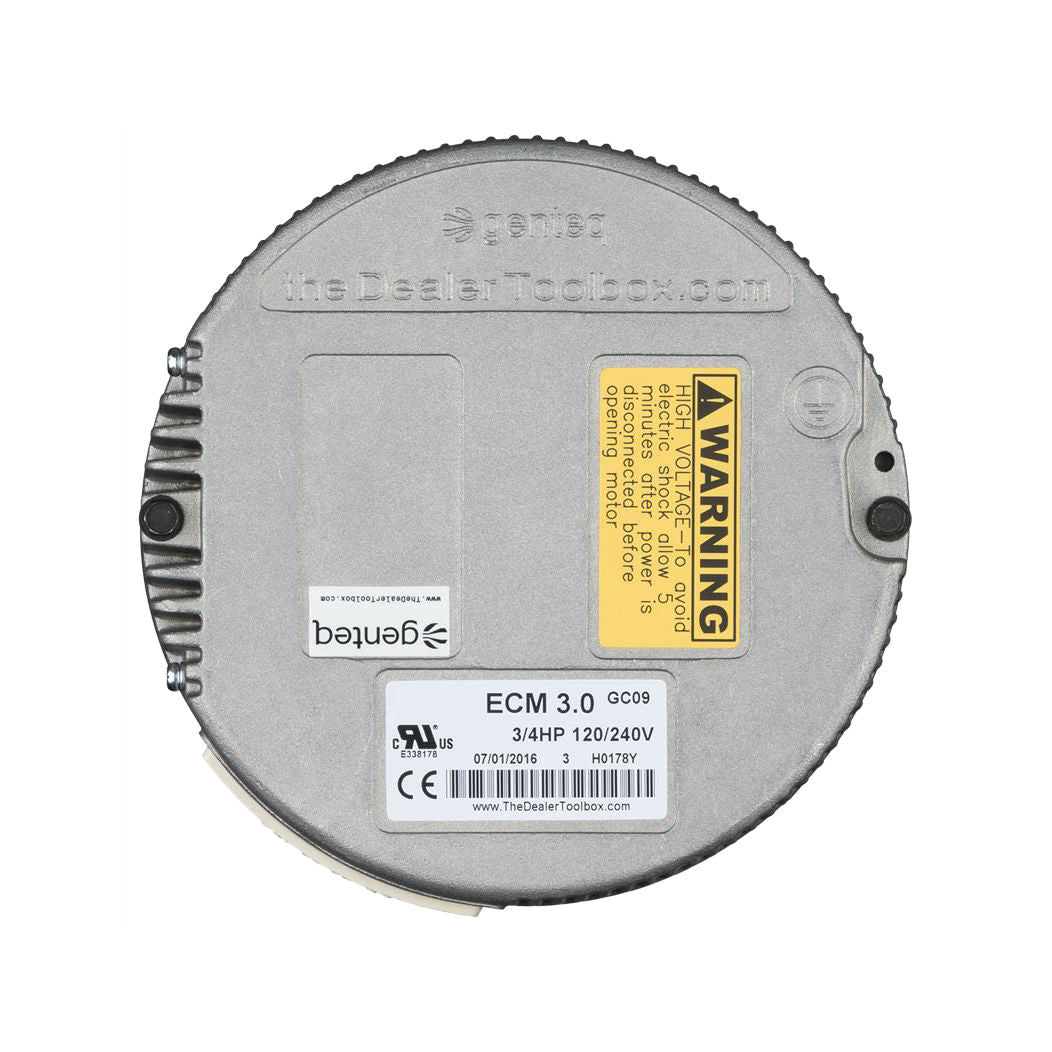

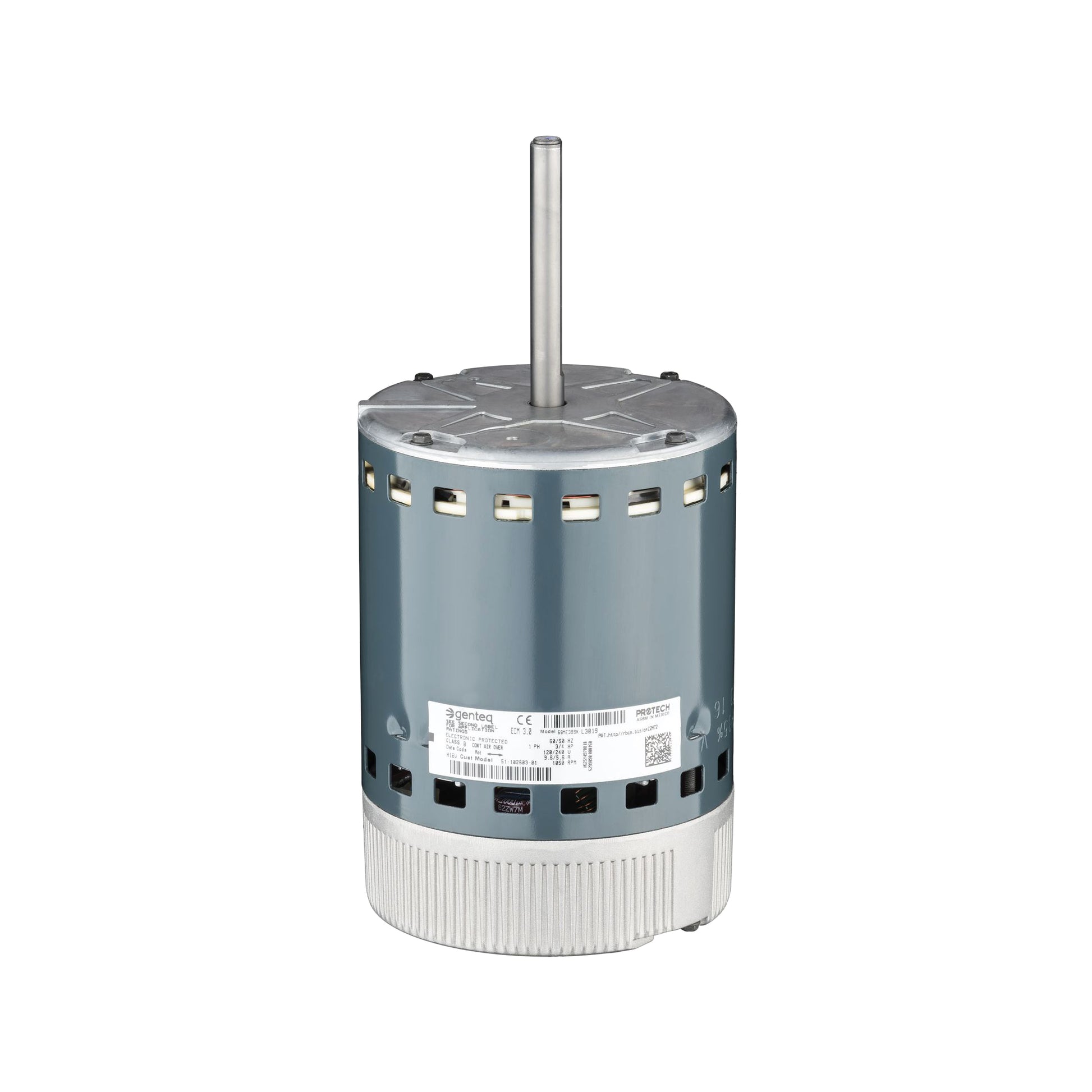

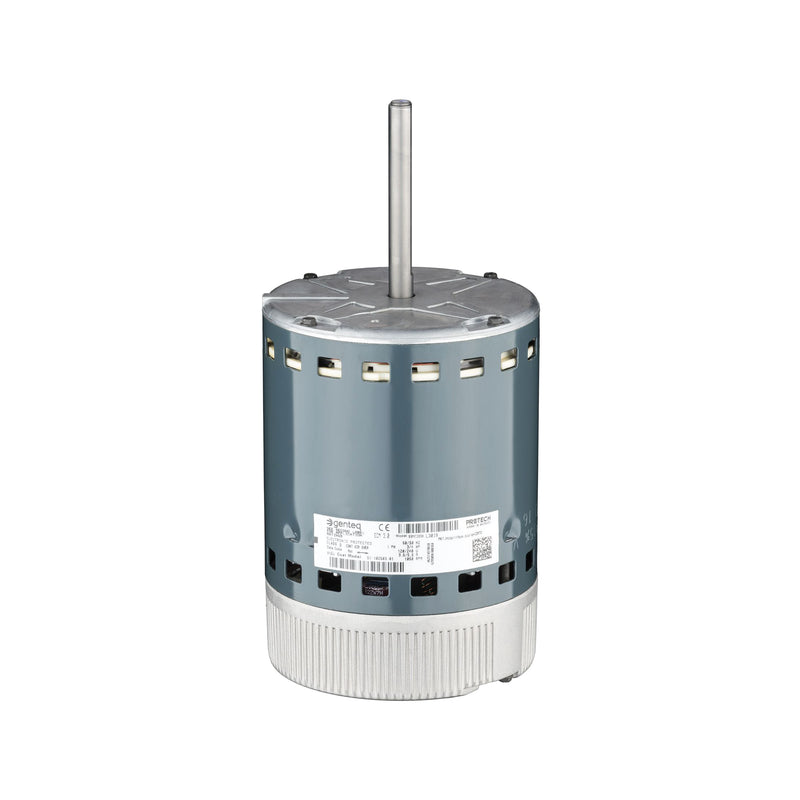

Rheem 51-102603-01 - ECM 3.0 3/4 HP Blower Motor - 1 Phase - Variable Speed - 120/230V
With premium ThinkTank features like constant-airflow, a wide speed range, and climate-specific profiles and the motor's Blak Box fault reporting, 3.0 motor allows more accurate operation for the entire HVAC system. 3.0 motor is also compatible with the TECINspect diagnostic tool. The OEM control board also requires fewer set-ups. It can automatically recognize the connected units to set the required airflow for heating and cooling, zoning and more.
Features
- Blak Box diagnostics
- Replacement control module or motor module
- Ball bearings
- Efficiency up to 80%
- Constant torque or constant airflow
- Adjustable off-delay and on-delay/wide ramping range
- Encapsulated Electronics
- Low audible noise due to patented, resilient rotor design
- OEM genuine factory authorized part
Technical Data
- Motor Type: ECM 3.0
- HP: 3/4
- Number of Speeds: Variable
- Input Voltage (V): 120
- Input Voltage (V): 230
- Number of Phases: 1
- Frequency (Hz): 60
- Shaft Diameter (in.): 1/2
- Motor Body Diameter (in.): 5-9/16
- Keyed/Flat Shaft Length (in.): 3-1/2
- Overall Shaft Length (in.): 3-15/16
- Motor Body Length (in.): 7-11/16
- Overall Motor Length (in.): 11-5/8
- Mounting: Shell-band
- Frame Size: 48
- Bearing Type: Ball
- Application: Blower
- Drive Type: Direct Drive
- Shipping Weight: 17.96 lbs
Where Used
- RHPL
- RHPN
- R802V-MSA
- R802V-ZSA
- R96VA
- R97MV
- R97V-KSA
- R97V-USA
- R98MV
- R98V-USA
- RGLE
- RGPE
- RHMVZ
- RWMV
Replaces
- 51-103928-01
- 51-102657-01
