RS34 Series - 12" x 6" Radius Spiral Double Deflection Pipe Grille 14" Diameter

In stock
SKU: RS34-12X6G-14
$118.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

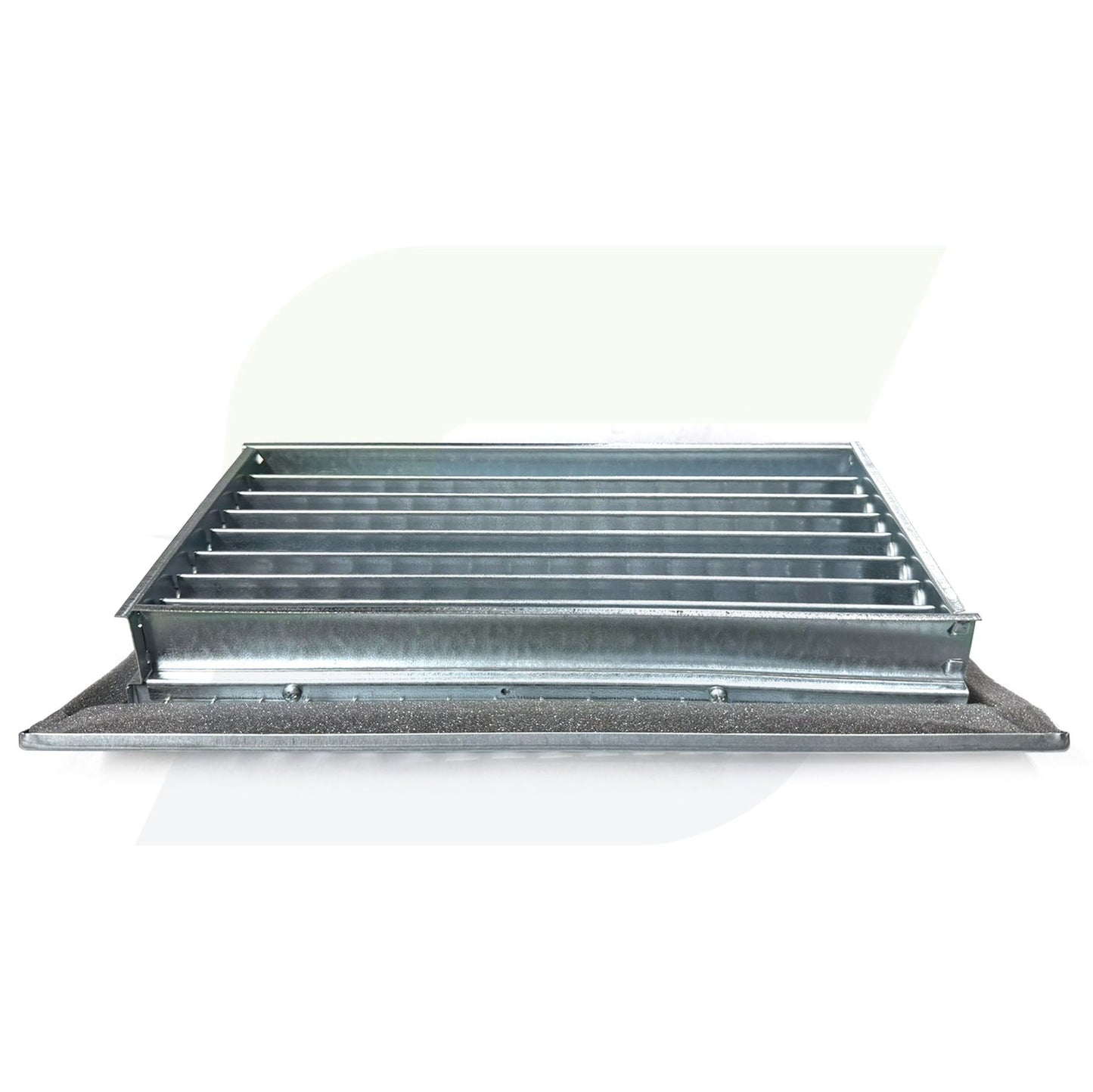

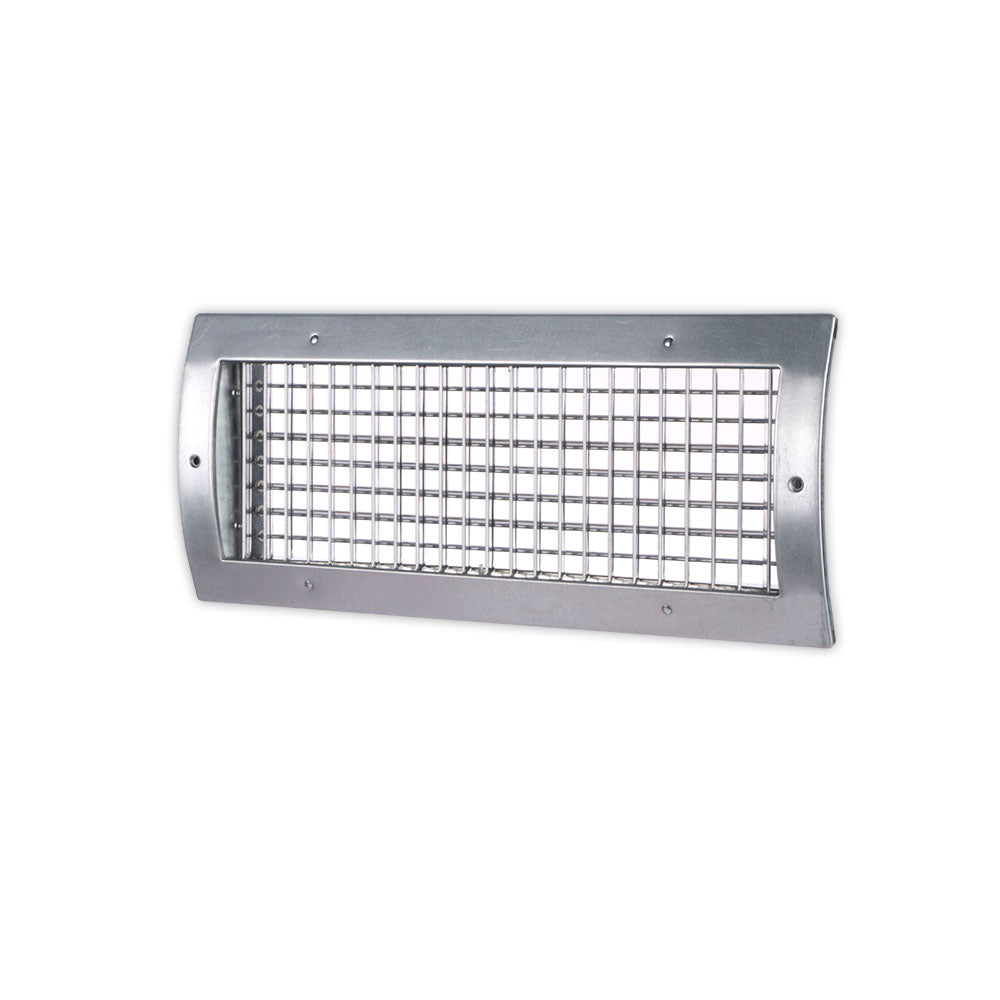

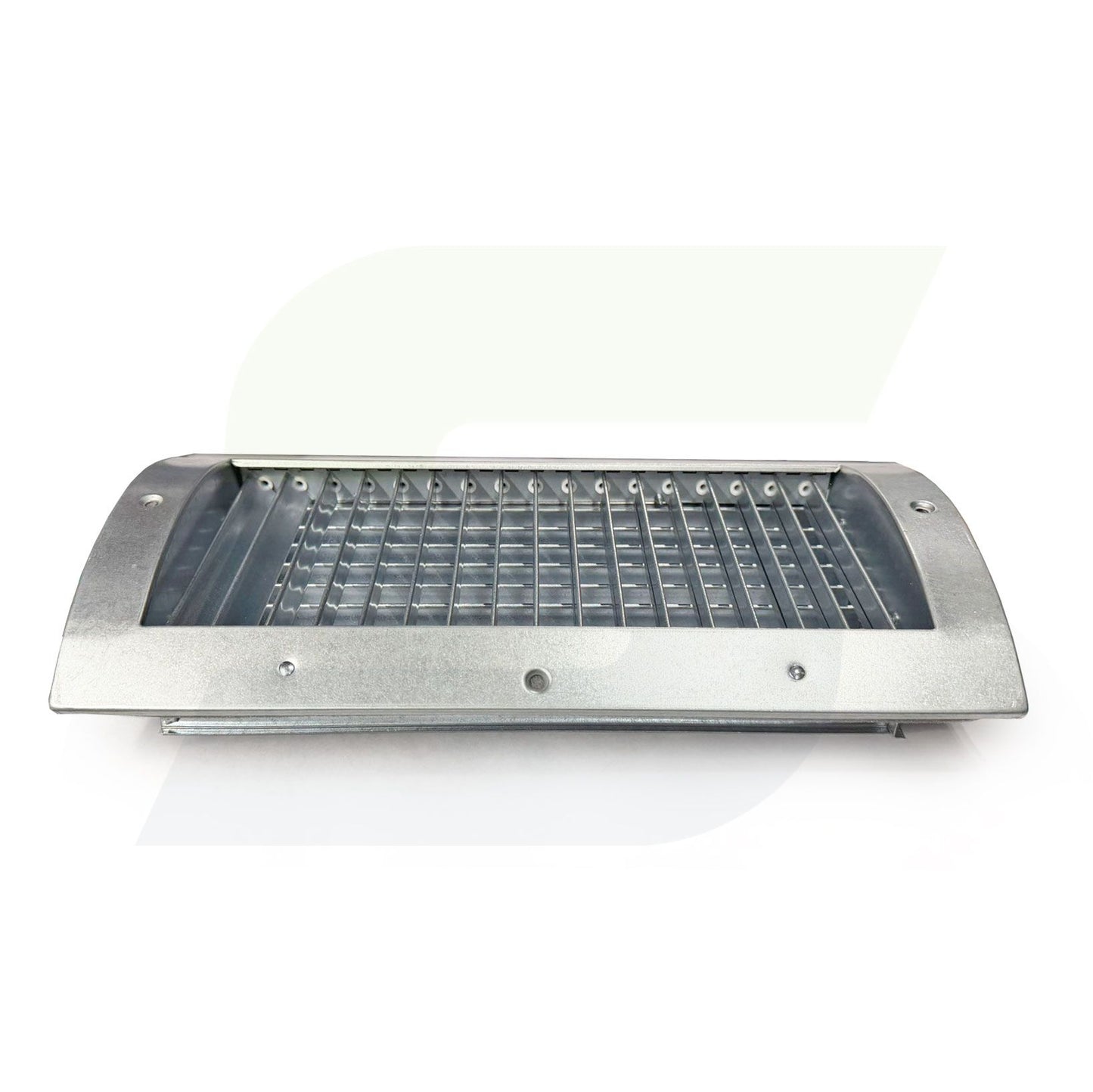

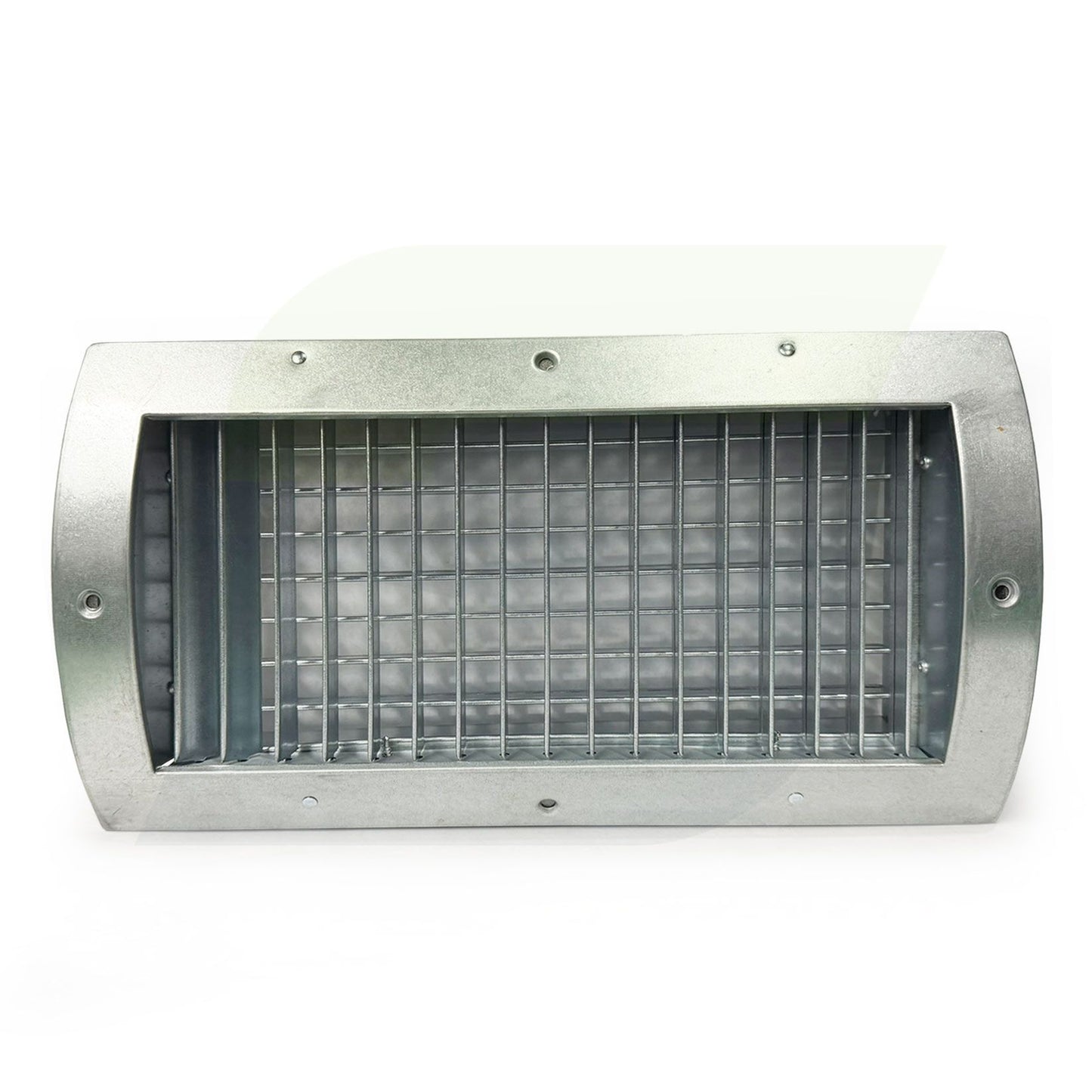

Shoemaker RS34 Series - 12" x 6" Radius Spiral Double Deflection Pipe Grille 14" Diameter - Galvanized

Features

  • Double deflection radius mount spiral pipe grille with adjustable blades
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows for 4-way airflow
  • Nylon bushings on adjustable blades allow for easy adjustment, and prevents metal on metal rattle for quiet operation

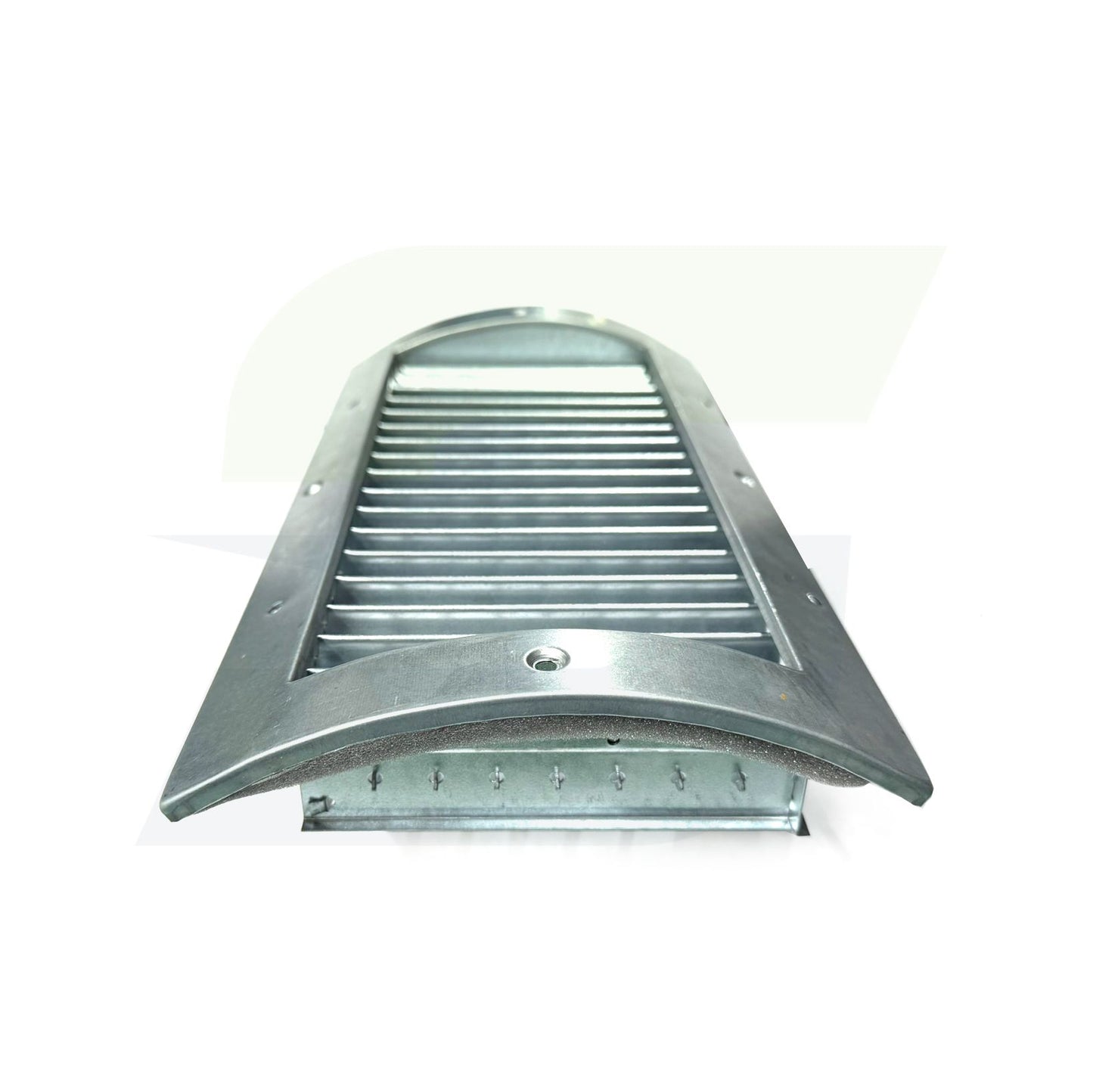

  • One piece curved frame with gasket fits flush to spiral pipe
  • Galvanized Finish

Specifications

  • Spiral Pipe Diameter: 14"
  • Grille Face Dimensions: 12" x 6"
  • Overall Dimensions: 13-7/8" x 7-1/2"
