42-22692-06 - Push Button Door Switch
No reviews
In stock
Regular price
$14.20
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

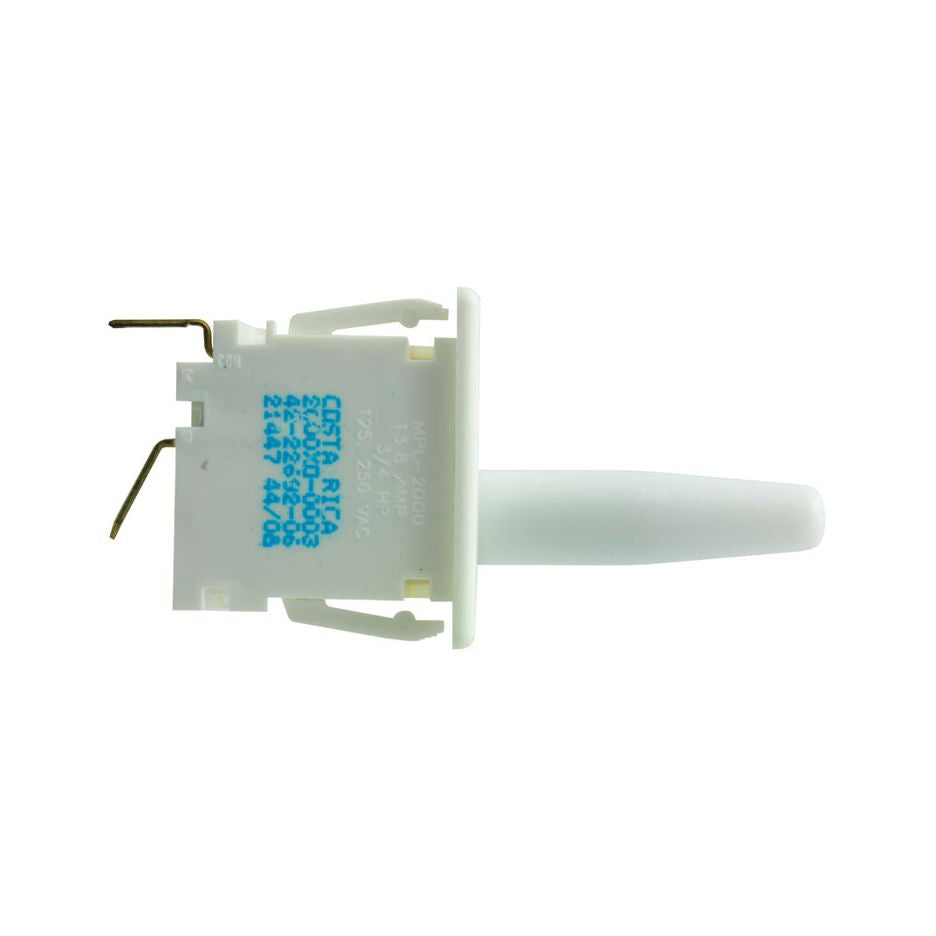

Rheem 42-22692-06 - Push Button Door Switch
Technical Data
- Actuation: Push Button
- Type: SPST - NO
- Approximate Mounting Hole Width (in.): 9/16
- Approximate Mounting Hole Height (in.): 1-1/8
- Approximate Reset Position Length (From Face) (in.): 1-1/4
- Approximate Operating Position Length (From Face) (in.): 1-5/32 - 1-1/4
- Approximate Overtravel Position Length (From Face) (in.): 17/32
- Voltage Rating (VAC): 120 / 230
- Current Rating (A): 13.8 / 13.8
- Electrical Connection Type: 1/4 in. Quick Connects
Where Used
- RGDG
- SGDG
- RGDJ
- RGLG
- RGLH
- RGLJ
- RGLK
- RGLN
- RGLQ
- RGPH
- RGPJ
- RGPK
- RGPN
- RGPP
- RGPQ
- RGVG
- RGVH
- RGVJ
- 80LJ
- 80LS
- 80PJ
- 80PS
- SGPN
- R801C-ZSA_ZXA
- R801P-ZSA
- R801P-ZSA_ZSB
- R801S-ZSA
- R801T-DZ
- R801T-W801T-ZSA
- R801V-DZ
- R802P-ZSA
- R802V-ZSA
- RGLS
- RGPS
Replaces
- 42-22692-01
HUZ2010035
