DMF150 - Pressure Pal Digital Mini System Feeder - 4.6 Gallon

In stock
Regular price $526.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
Bradley S. (Plymouth, US)
Glycol feeder

Works as described. Installed in closed loop boiler system

DMF150 Brochure

Installation, Operation & Maintenance

Specification Sheet

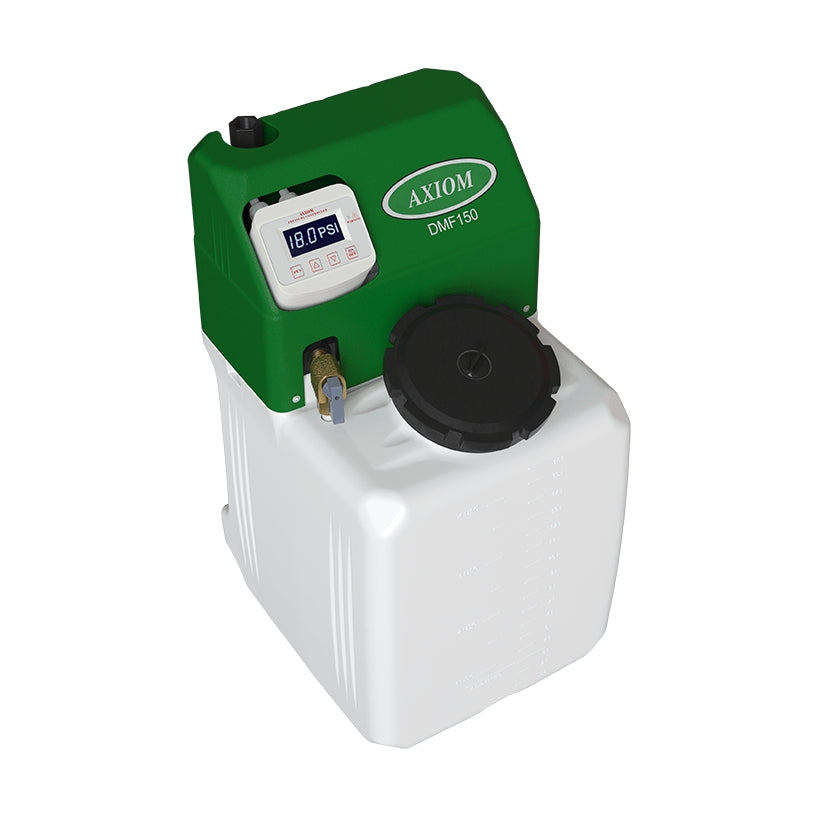

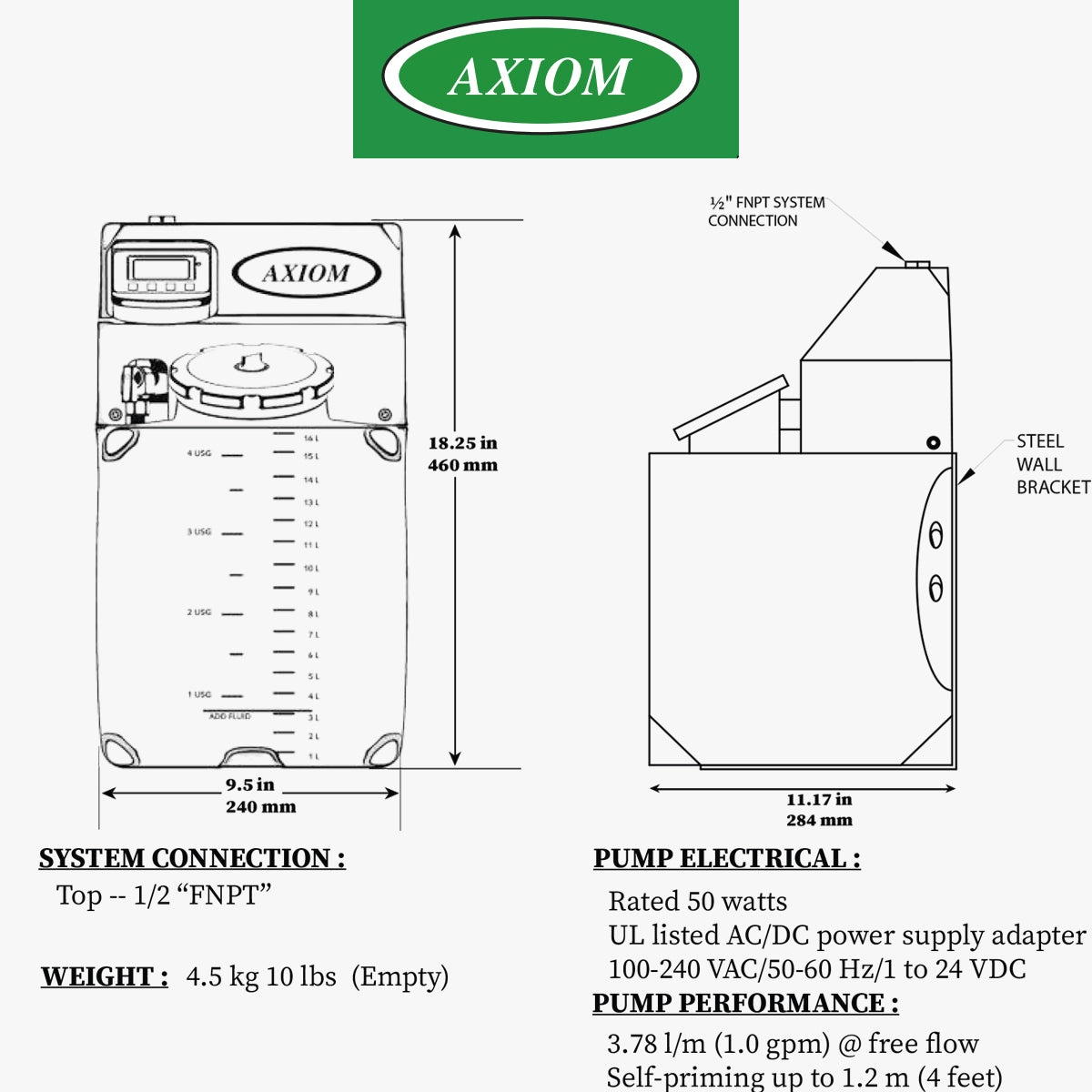

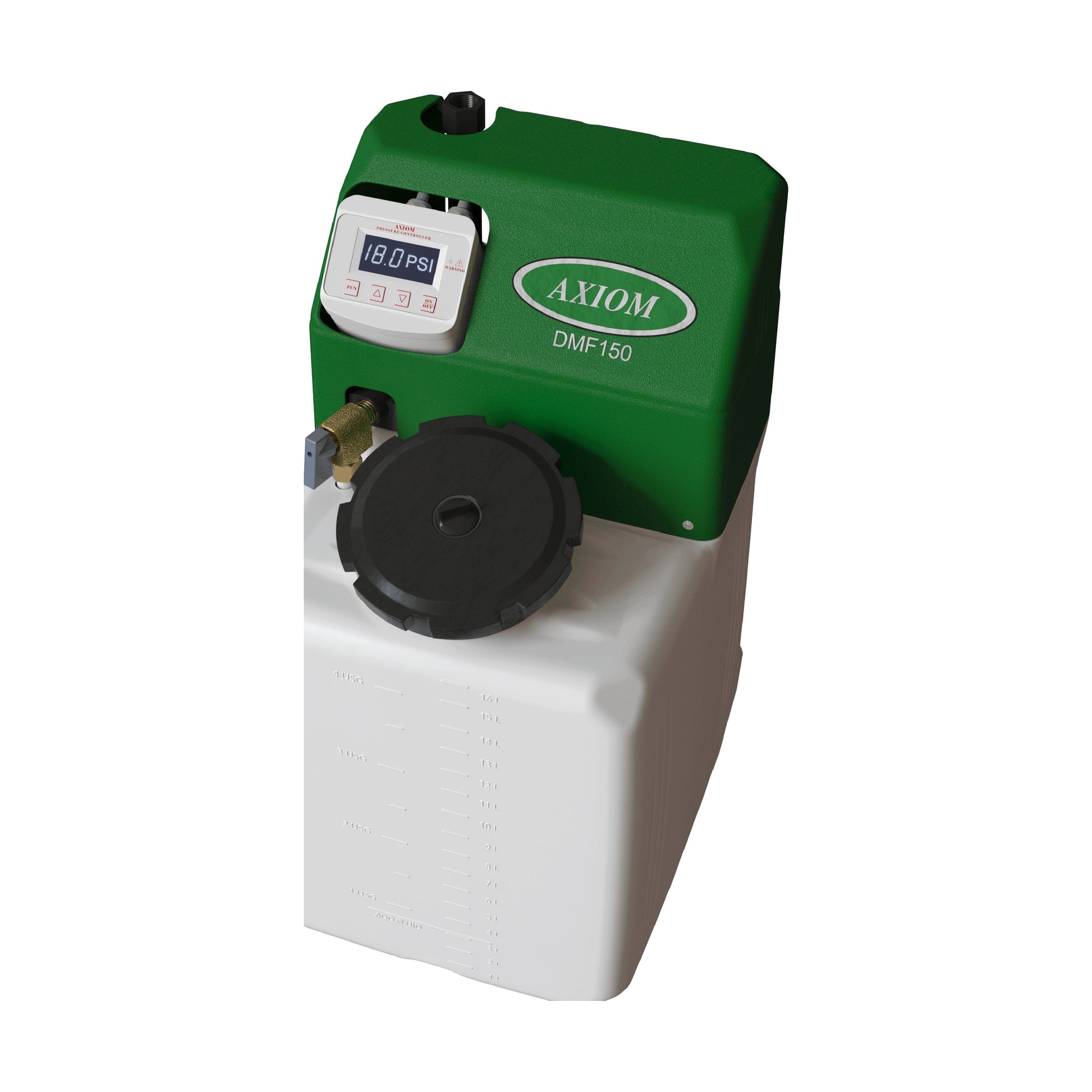

Axiom DMF150 - Pressure Pal Digital Mini System Feeder - 4.6 Gallon

The industry leader for pressurizing closed-loop hydronic systems introduces the newest "PRESSURE PAL" to the Axiom Product Family. The DMF150 utilizes a digital pressure control (0-45 psig) with electronic alert contacts. The tank design incorporates a wall bracket connection that comes standard in the box. Front fill point makes fluid handling a simple process.


  • 4.6 Gallon tank for storage and mixing (17 Liter)

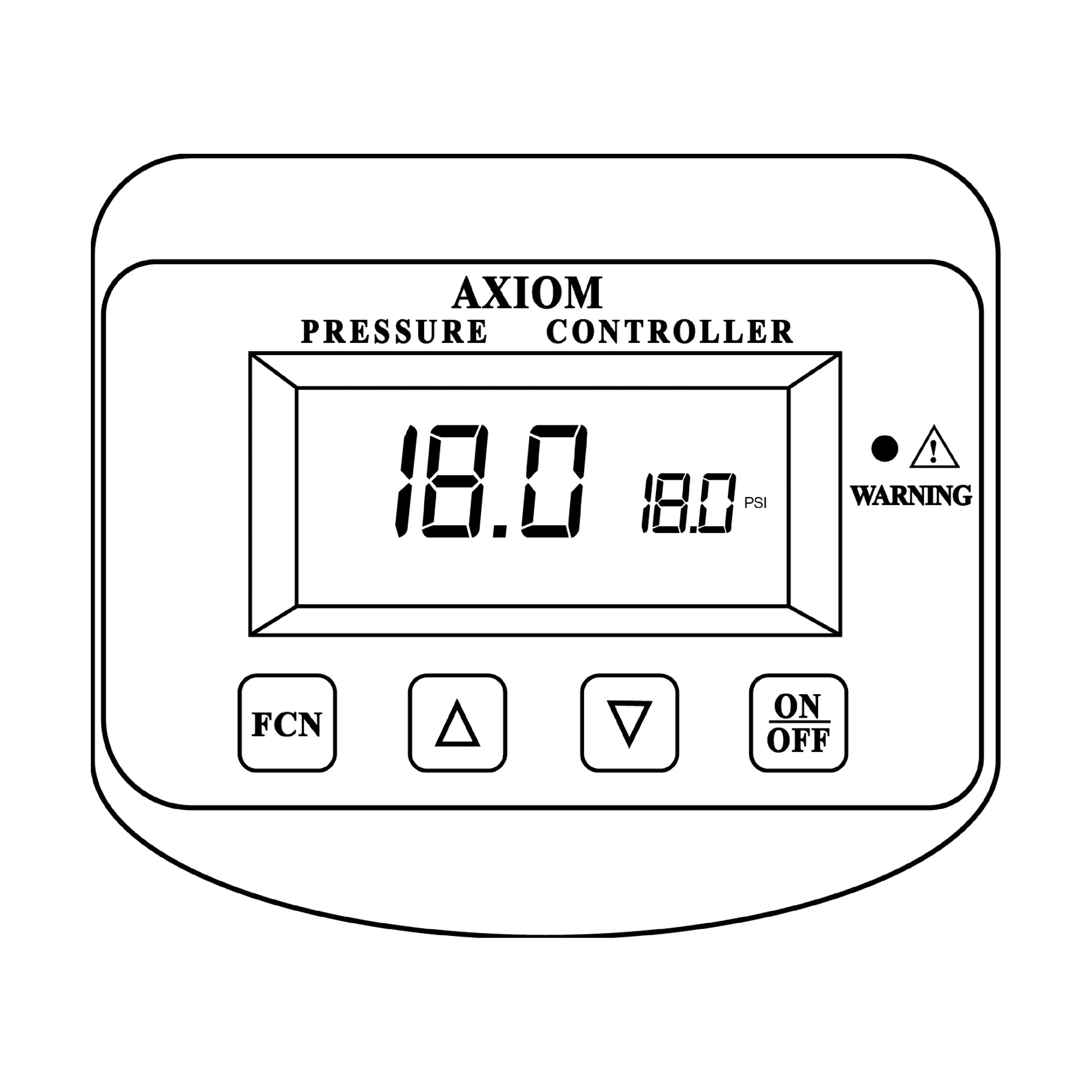

  • All features shown on user friendly digital display screen
  • 0-45 psig Pressure Setpoint with adjustable dead band
  • N.O./N.C. Alert contacts and LED light enabled when low level, low pressure, or high-pressure condition

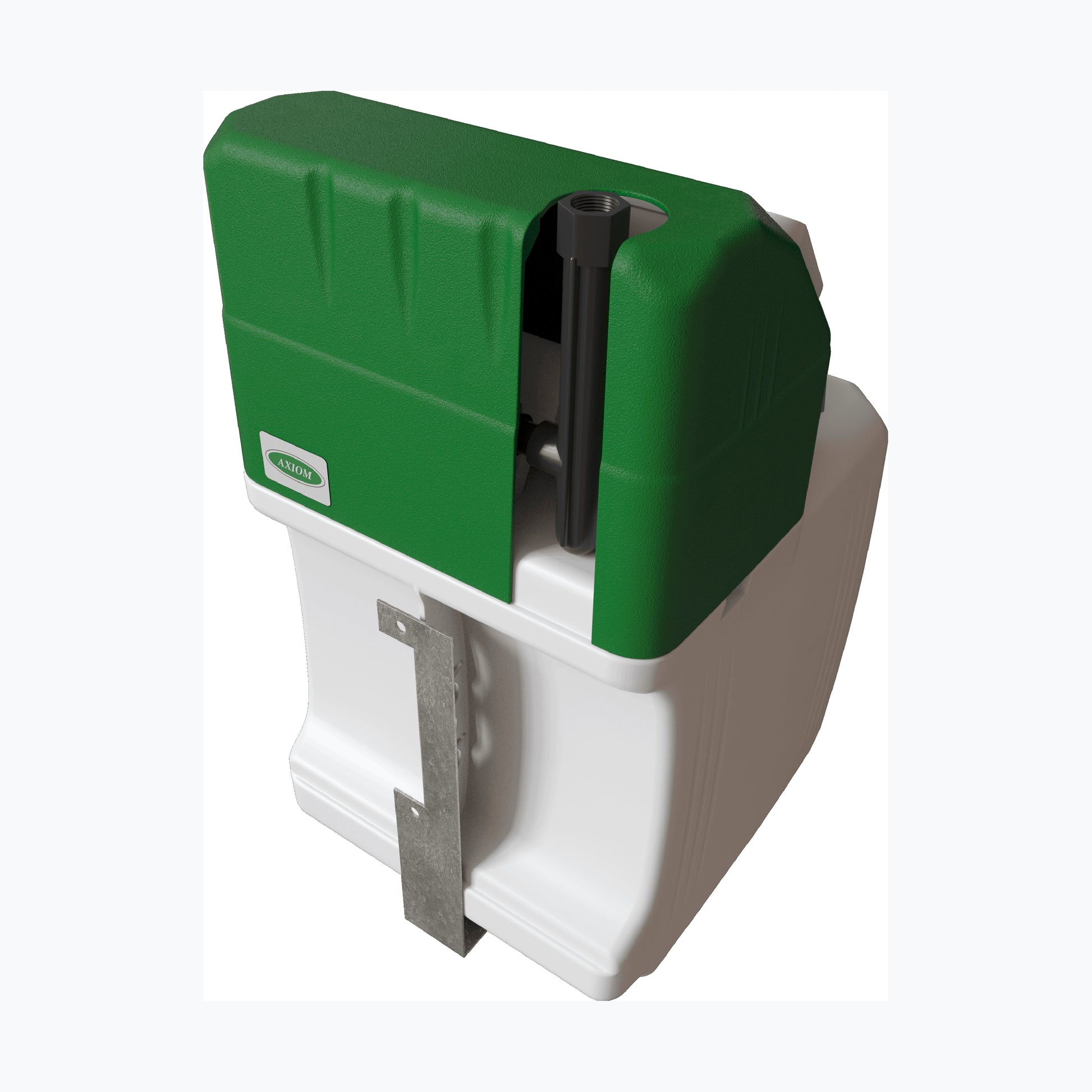

  • Integrated Easy Connect Wall Mount Bracket comes with the unit
  • Tilted 5" easy fill access on front of tank
  • UL listed Power supply plugs into any standard 115 VAC outlet
  • Diaphragm pump can run dry without damage
  • No direct connection to potable water supply eliminates need for backflow prevention
  • Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
  • Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low
  • Diverter valve allows easy purging of air on initial start-up, and manual mixing of solution
  • Fluid drained for service can easily be put back into the system
  • Prevents major floods
  • Provides leak detection
