Innovative brushless DC motor design for long life, low noise, and low power consumption.

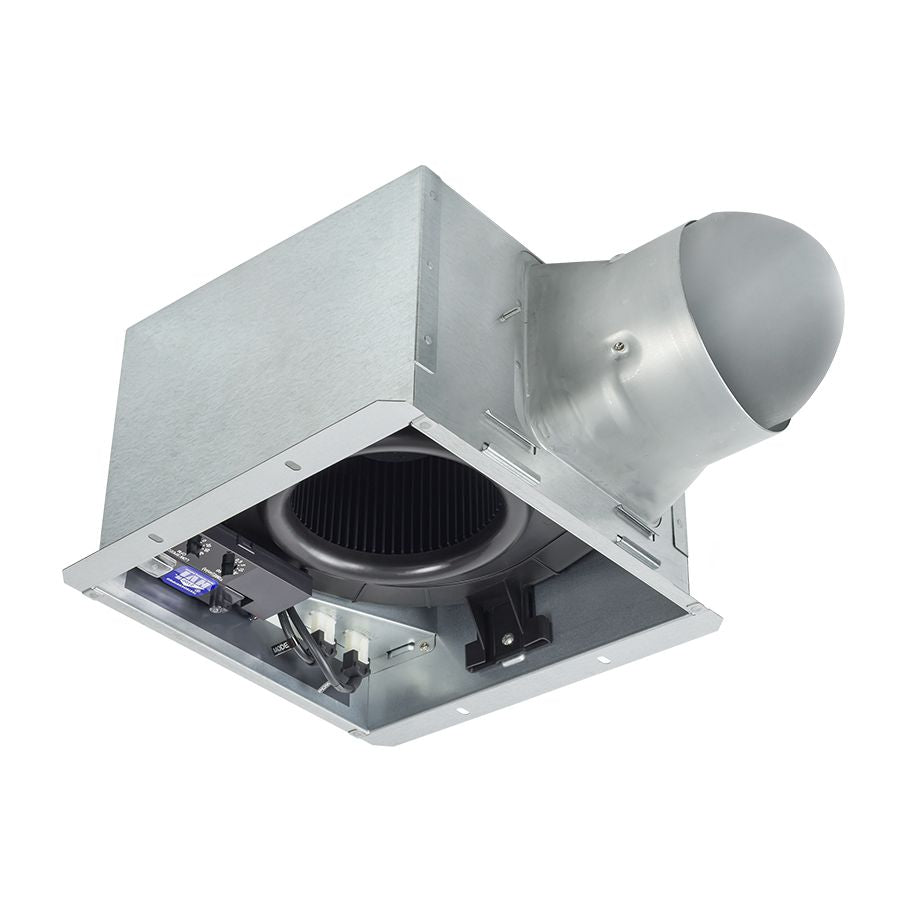

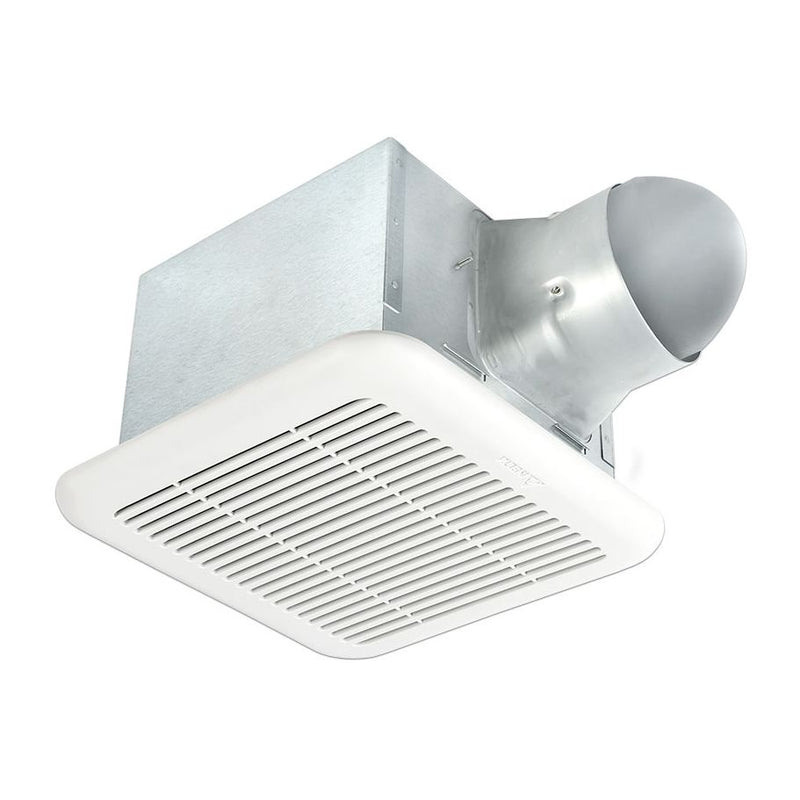

Delta Breez model SIG80-110 has been awarded ENERGY STAR® qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of less than 0.3 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.2 Watts with efficiency rating of 15.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features:

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• Perfectly quiet operation at less than 0.3 Sones
• Full speed adjustable, 80 or 110 CFM
• Allows fan to operate in full speed mode or continuous low speed mode by manual switch
• For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, 60, or 80 CFM)
• Delay time preset positions (0.5, 5, 15, 30, 45, or 60 min)
• Includes 6" to 4" duct reducer
• Energy efficiency at 15.4 CFM/Watt
• Green and amber LED indicator lights show continuous low speed and full speed modes
• Annual energy cost for 24/7 operation is approximately $6.50*
  • Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

Specifications:

• Air Flow (CFM): 80 / 110
• Sones: 0.5 / 0.8
• Power Consumption (Watts): 9.9 / 14.1
• Energy Efficiency (CFM/Watts): 9.0 / 8.7
• Current (Amps): 0.38 Max
• Power Rating (V/Hz): 120/60
