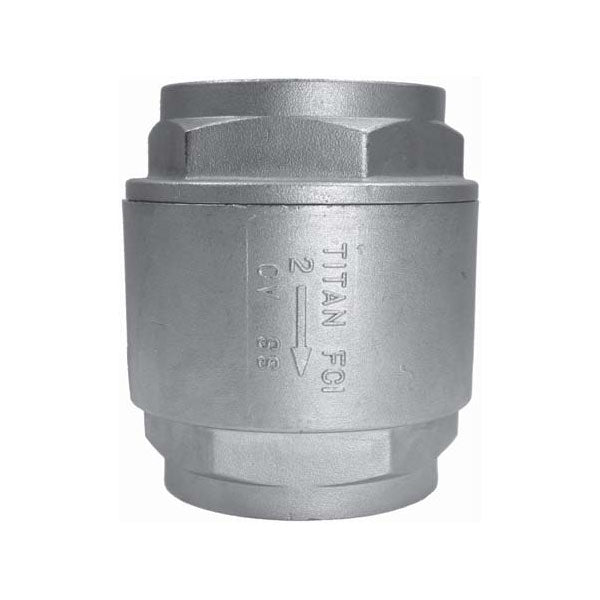

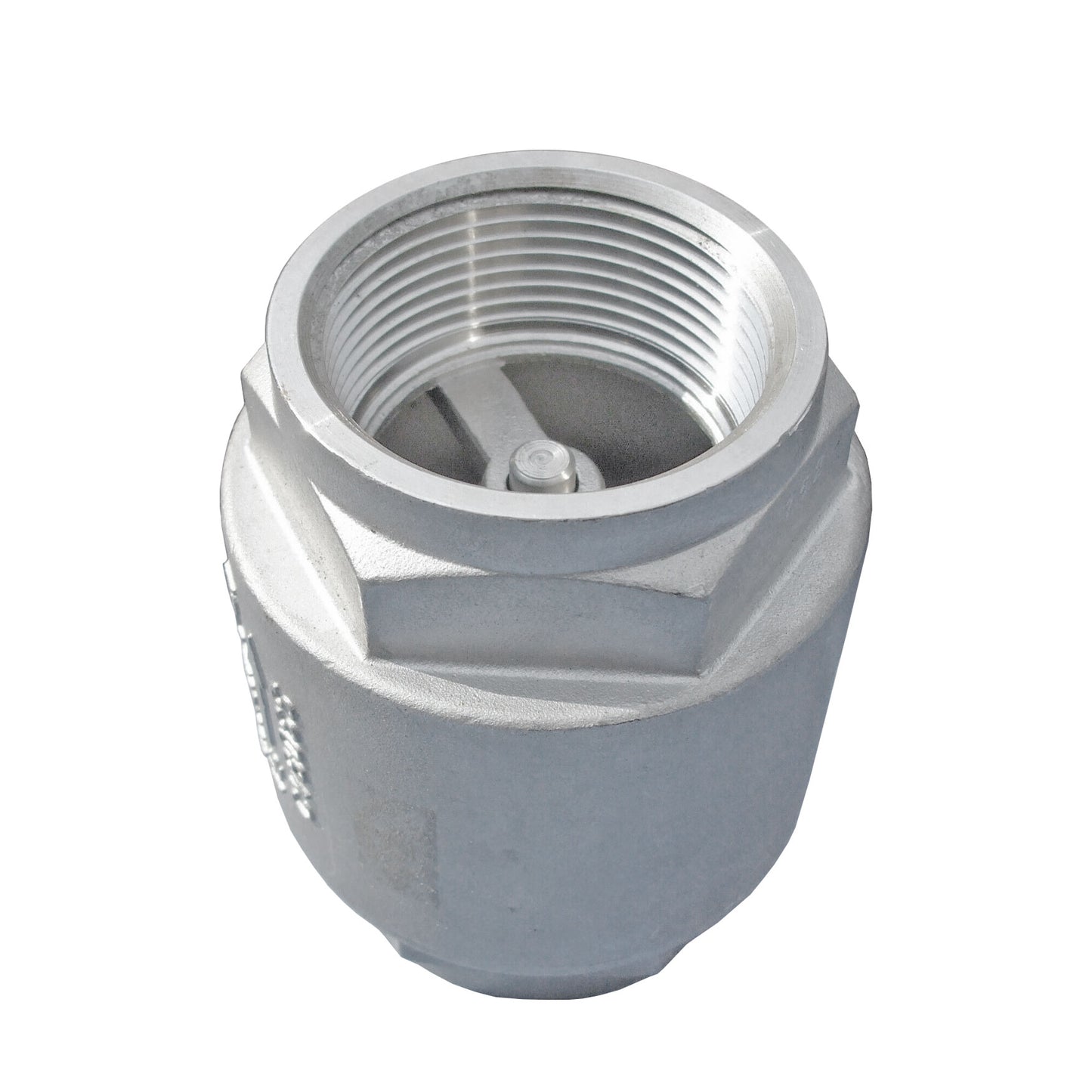

CVS80-SS - Stainless Steel Silent Check Valve - Threaded Ends
No reviews
In stock
Regular price
$102.50
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

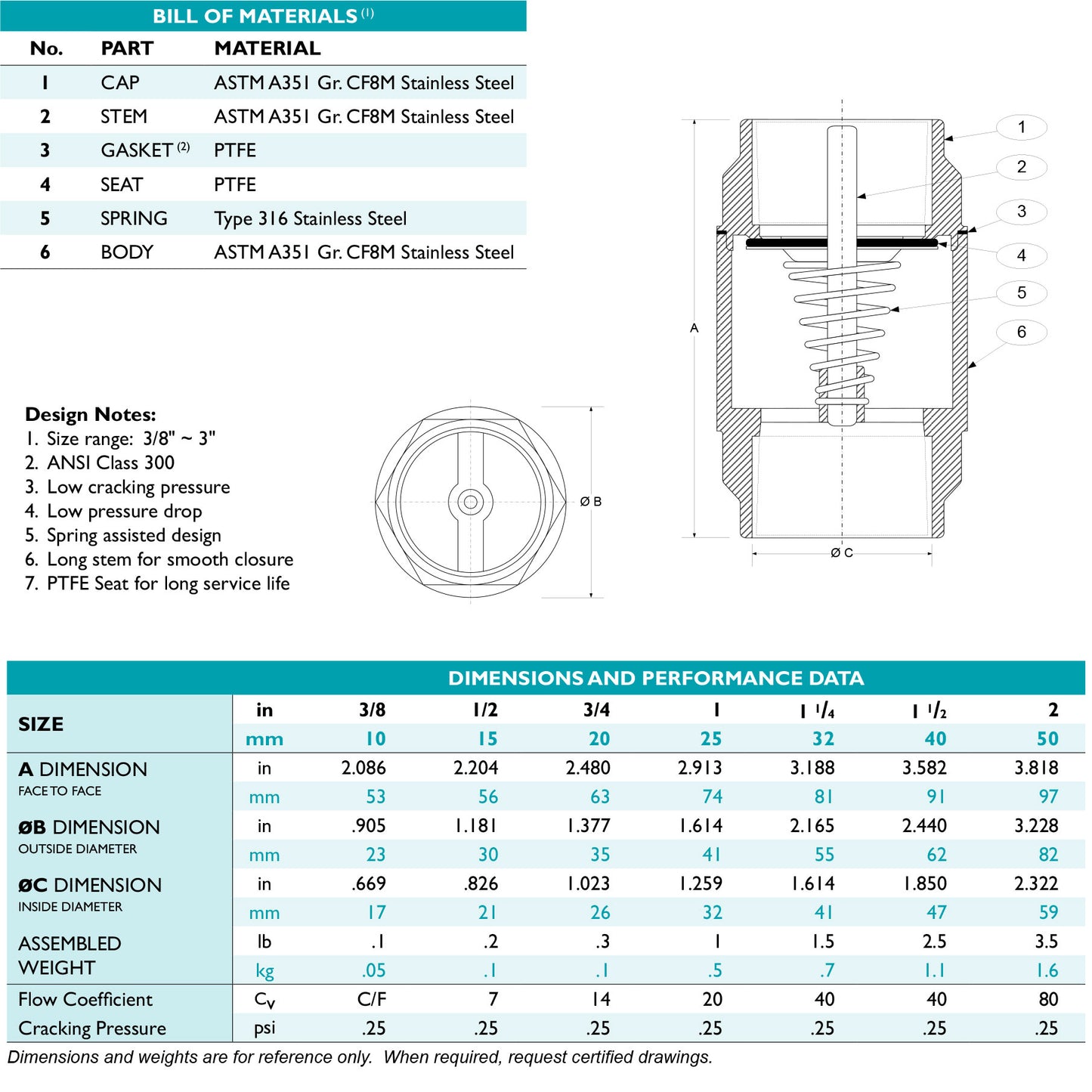

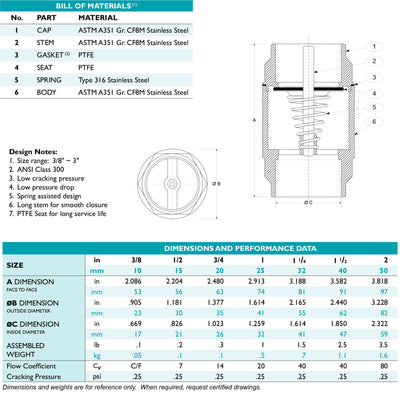

Specification SheetTitan CV80-SS - Stainless Steel Silent Check Valve - Threaded Ends
Stainless steel body with PTFE seat
Features
- In-line, spring assisted disc designed to protect the system from negative effects of water hammer
- Can be installed in any position (horizontal or vertical with upward flow) - Consult factory for vertical positioning with downward flow
- Soft seat (PTFE) ensures bubble-tight shutoff
- Low cracking pressure (0.25 psi) that is designed to fully open at 1.0 psi differential
- Hex ends permit easy and quick installation
- Meets or exceeds API 598 leakage requirements
- Long stem guide ensures excellent centering and smooth closure
- Highly economical and reliable investment casting that provides long service life for a wide variety of applications
Applications
- Markets - Oil and gas production, general industry, chemical, petrochemical, power, food and beverage
- Service: Chemical / steam / nitrogen lines, gas injection, condensate recovery, pump and compressor discharge, pump jack flow lines, chiller and boiler feed
- PTFE: Recommended for most chemical environments including acids, base, oils, steam and other process fluids. Offers excellent tear, abrasive, chemical, acid and alkali resistance. Not recommended for high pressure steam or large temperature variation applications
