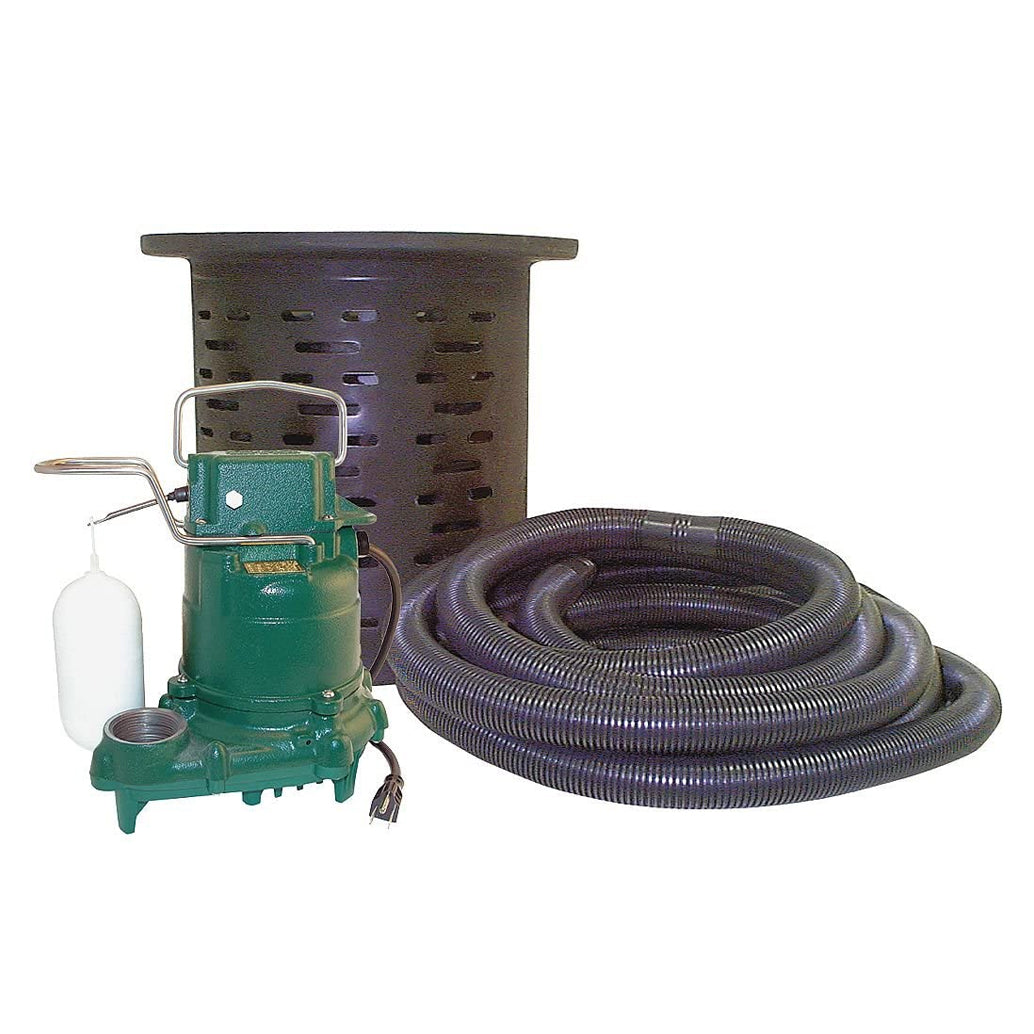

Zoeller 108-0001 - Crawl Space Pumping System w/Hose and Cord

Helps eliminate water and dampness. Add-on service for pest control operators, water-proofers, remodelers, structural repair services, and contractors.

Moisture and Mold Protection

This system is designed specifically with tight or restricted spaces in mind. Indoors or outdoors, eliminate standing water from areas
without proper drainage. Prevent the accumulation of moisture, fungus, and odors commonly found in residential crawl spaces. The perforated basin and solid lid keep large debris from entering the pit,
eliminating maintenance.

Helps Eliminate:

• Mold and fungus which cause allergies
• Moisture damage to wood floors, rugs, metal ducts, insulation
• Rodents, slugs, insects, pests
• Insecticide dilution
• Property inspection problems
• Odor
• Structural damage due to freezing water buckling concrete
• Water pooling in yard, on drive, patio and around house

System Includes:

• Automatic pump
• 24' (7 m) hose
• Tank assembly

Dimensions and Weight

• Overall Height: 14-7/8" (38 cm)
• Upper Flange Width: 15-5/8" (40 cm)
• Body Width: 12-1/4" (31 cm)
• Weight: 33 lbs (15 kg)

PEZSK20270
