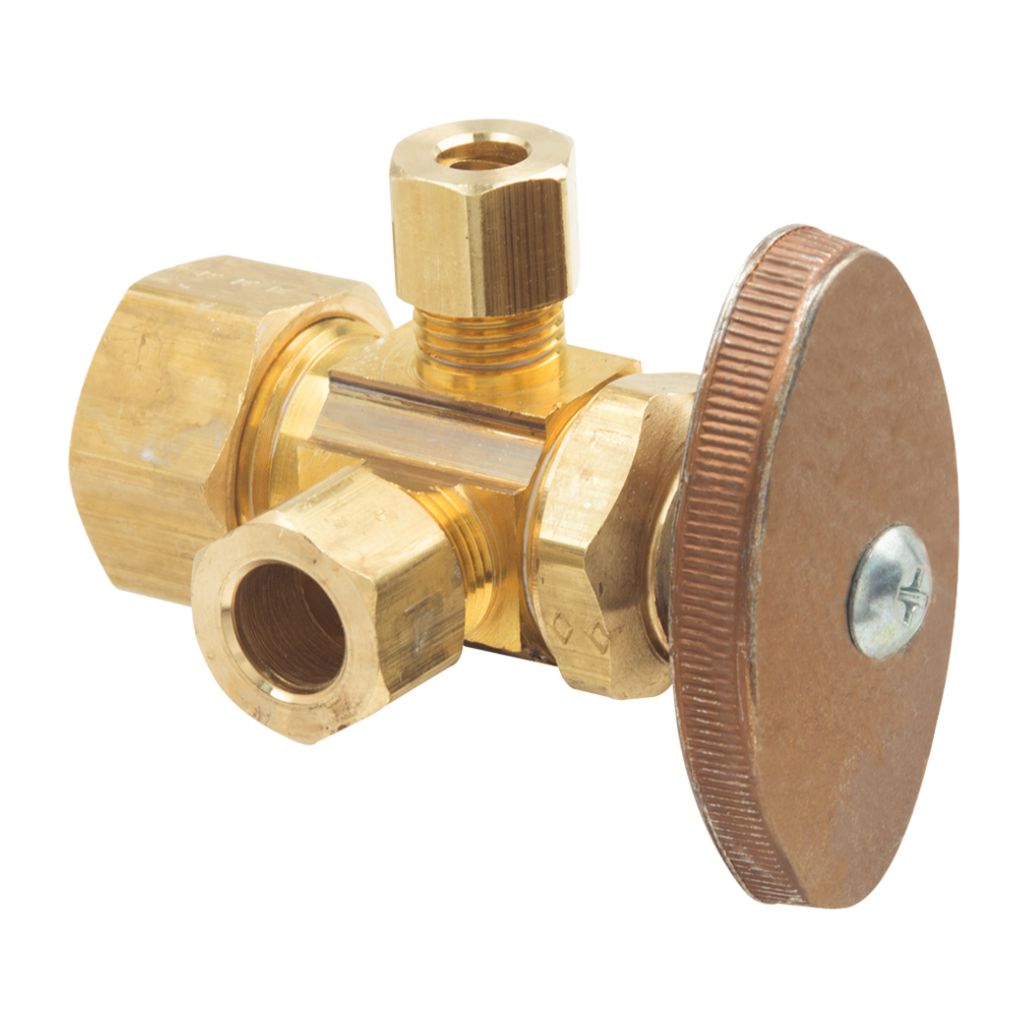

BrassCraft 1/2 in. Nom Compression Inlet x 3/8 in. OD Compression x 1/4 in. OD Compression (right side) Dual Outlet Multi-Turn Valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

Features:

• Machined one-piece brass body provides strength, durability and long-lasting performance
• 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp x 1/4 in. OD Comp
• Compatible with copper pipe
• For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
• Multi-turn operation means water flow control with only a few turns of the handle
• Easy-to-remove handle protects against accidental operation during rough-ins
• Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
• For indoor use
• Temperature rating: 40° to 160°F
• Pressure rating: 125 psi maximum
• Designed, machined and assembled in the USA

PTZCA10007
