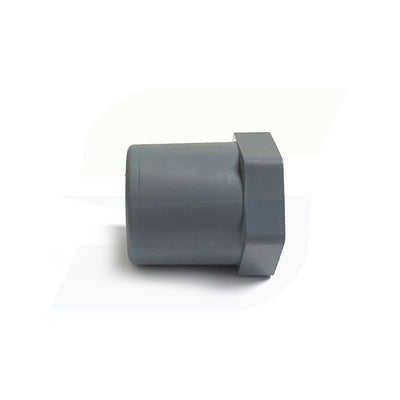

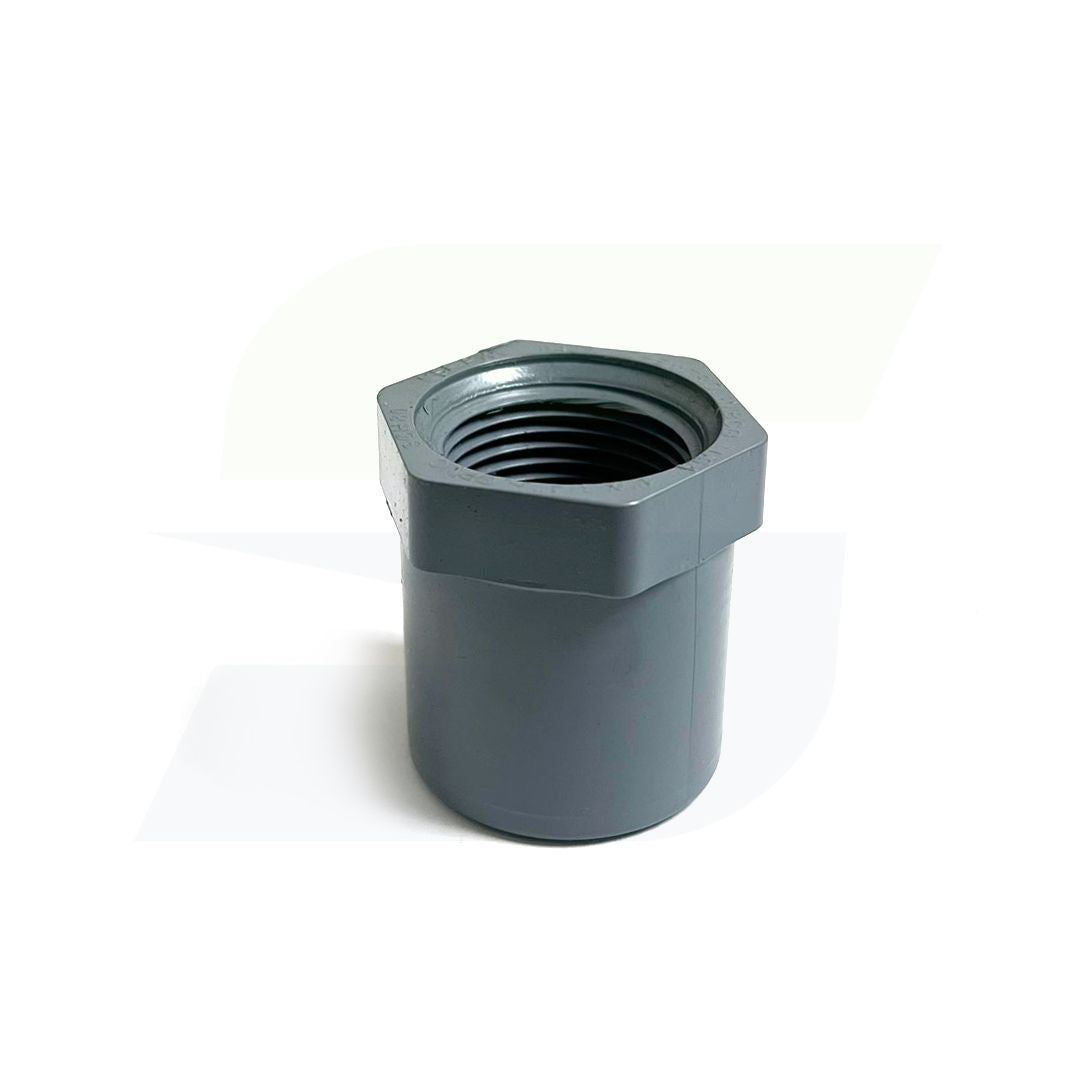

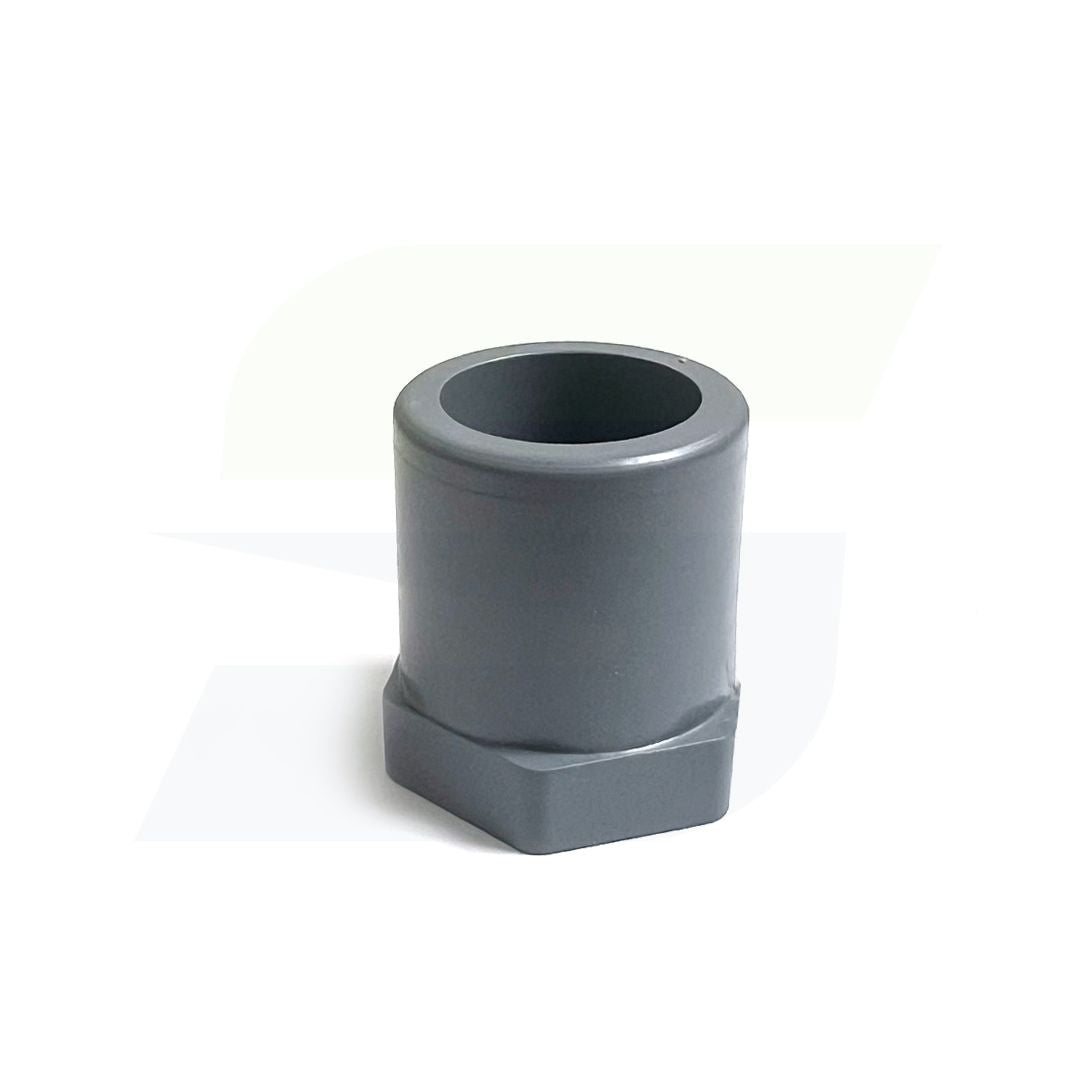

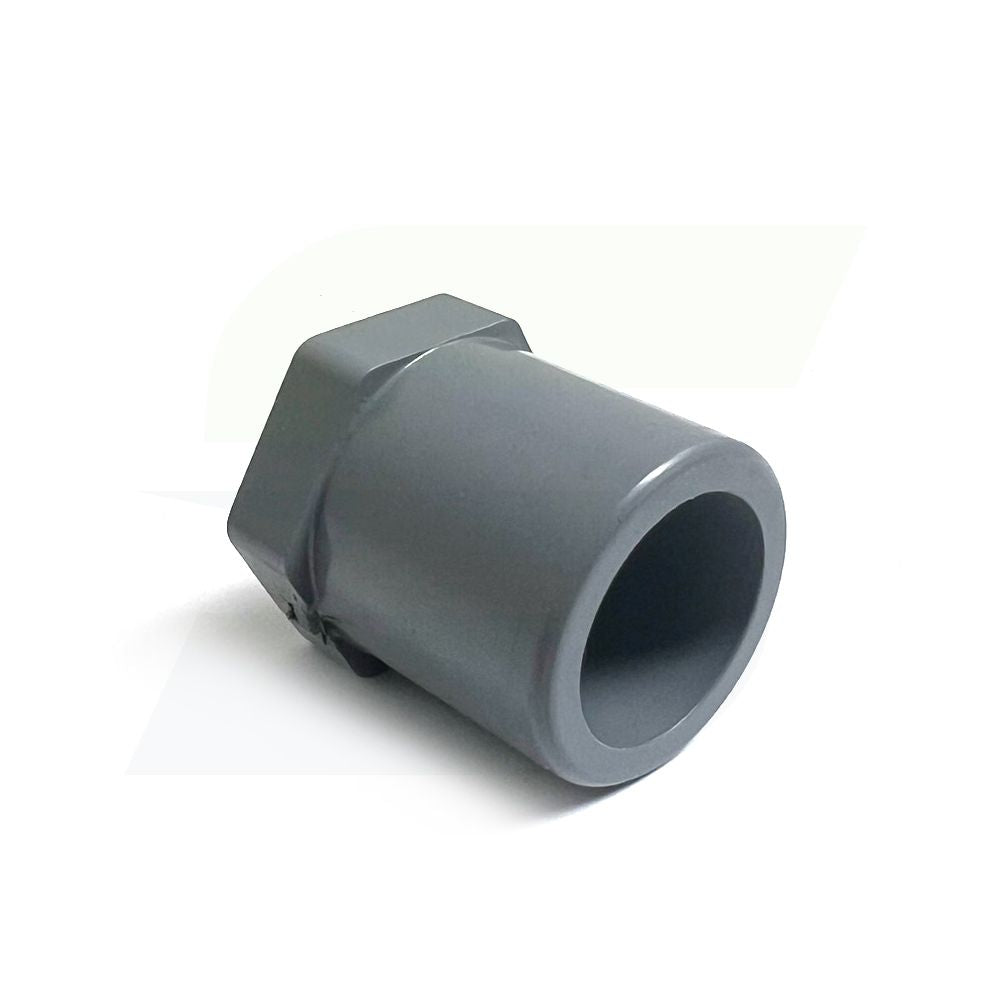

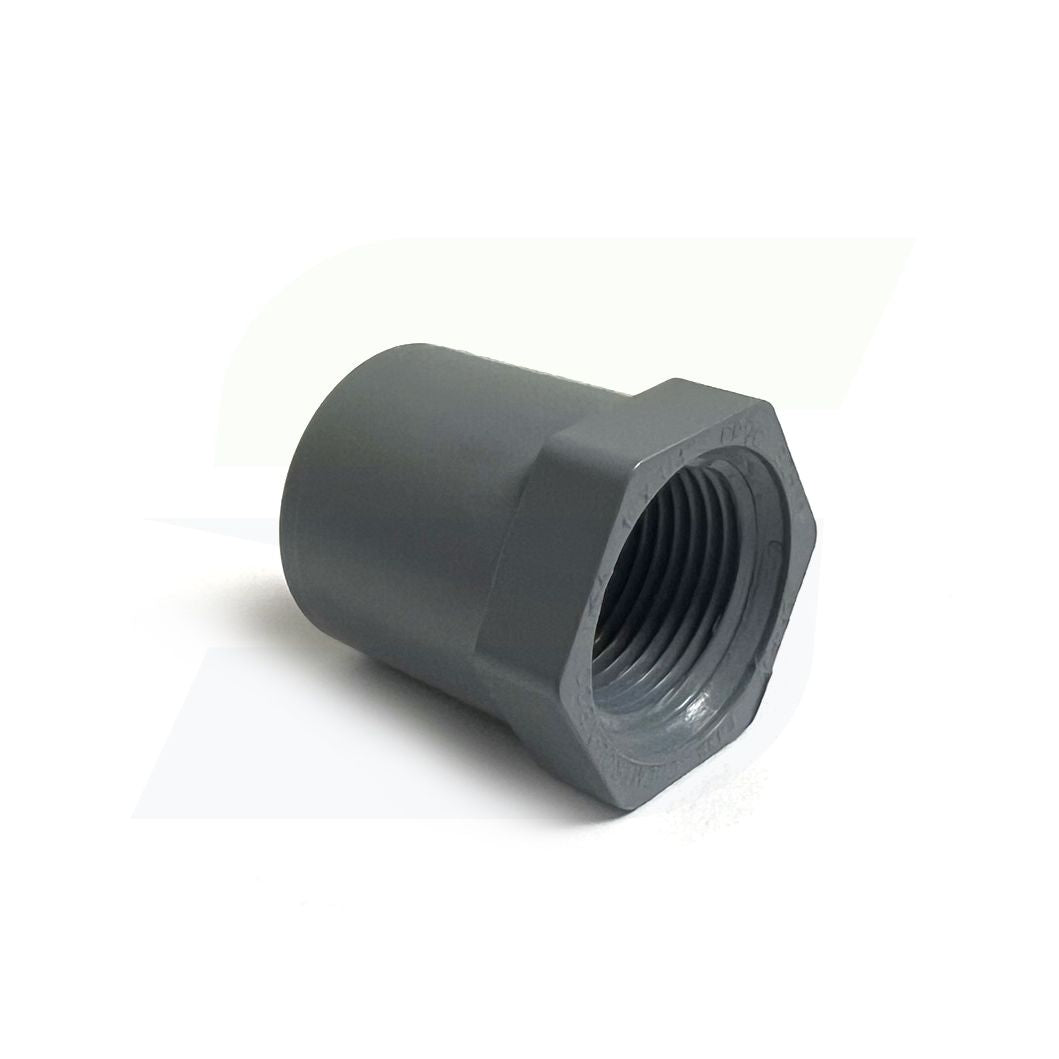

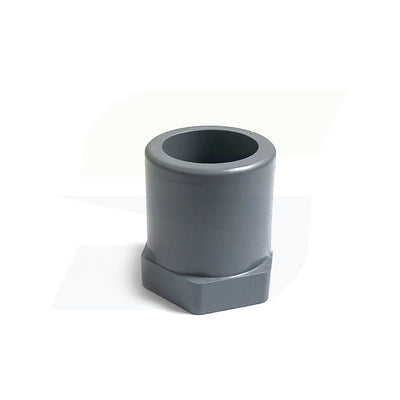

838-131C - 1" x 3/4" CPVC Reducing Bushing, Spigot x FNPT, Schedule 80

The 838-131C is a robust Schedule 80 CPVC reducing bushing designed to transition from a 1-inch spigot connection to a 3/4-inch female NPT threaded outlet. Engineered for high-pressure applications, this fitting offers excellent chemical and heat resistance, making it ideal for industrial, commercial, and residential piping systems. Its flush design ensures a compact installation, and the precision-molded threads provide a secure, leak-resistant connection.​

Features

• Part Number: 838-131C
• Material: CPVC (Chlorinated Polyvinyl Chloride)
• Connection Type: Spigot x Female NPT
• Nominal Sizes: 1" Spigot x 3/4" FNPT
• Schedule: 80
• Design: Flush Reducing Bushing
• Pressure Rating: Up to 400 psi at 73°F (decreases with temperature)
• Temperature Rating: Up to 200°F
• Length (L): 1-3/8 inches (34.93 mm)
• Thread Engagement (N): 21/32 inches (16.67 mm)
• Weight: Approximately 0.05 lbs (22 grams)
• Color: Gray
• Standards Compliance: Meets ASTM D1784 and ASTM F439
• Applications: Suitable for hot and cold water distribution, chemical processing, and industrial fluid handling systems
