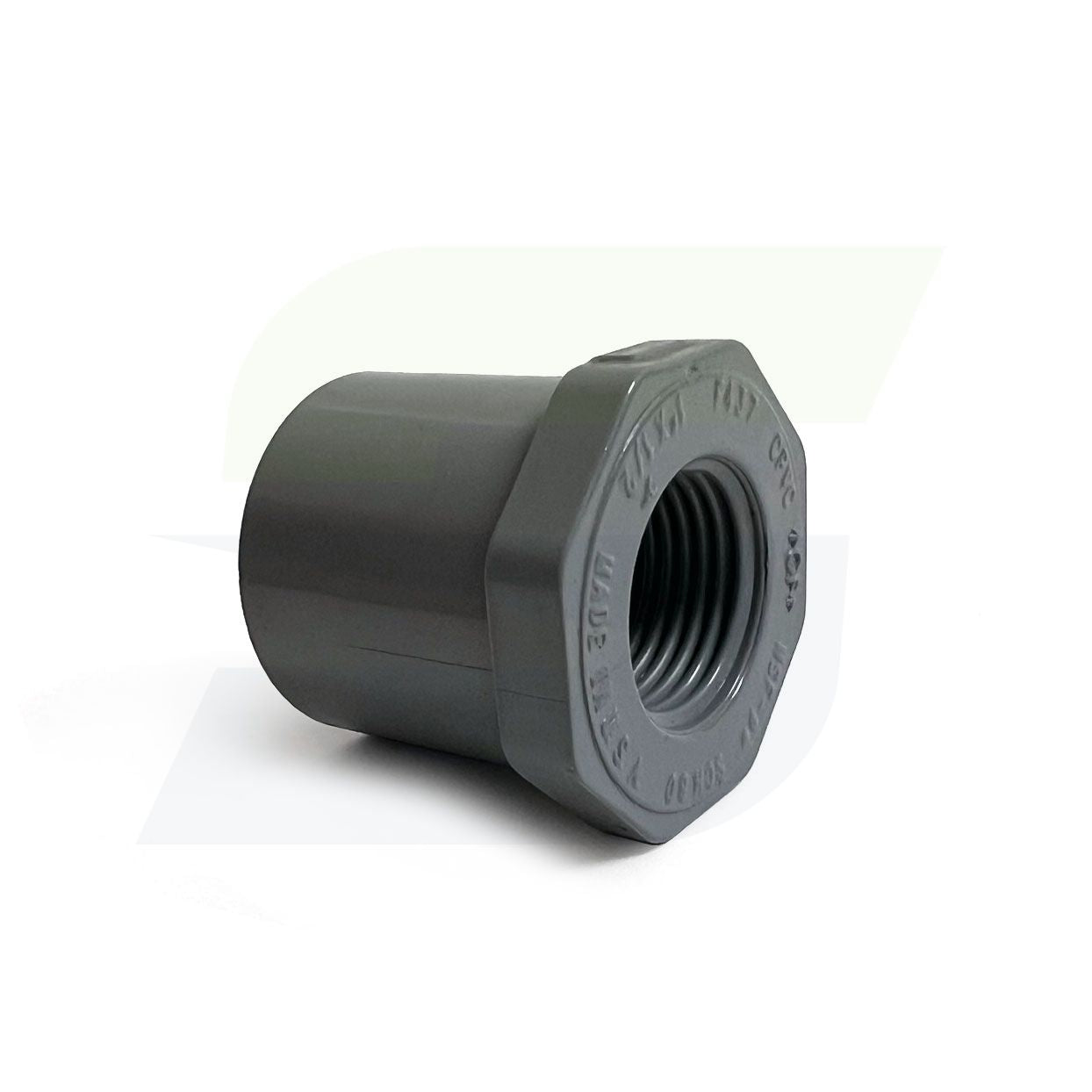

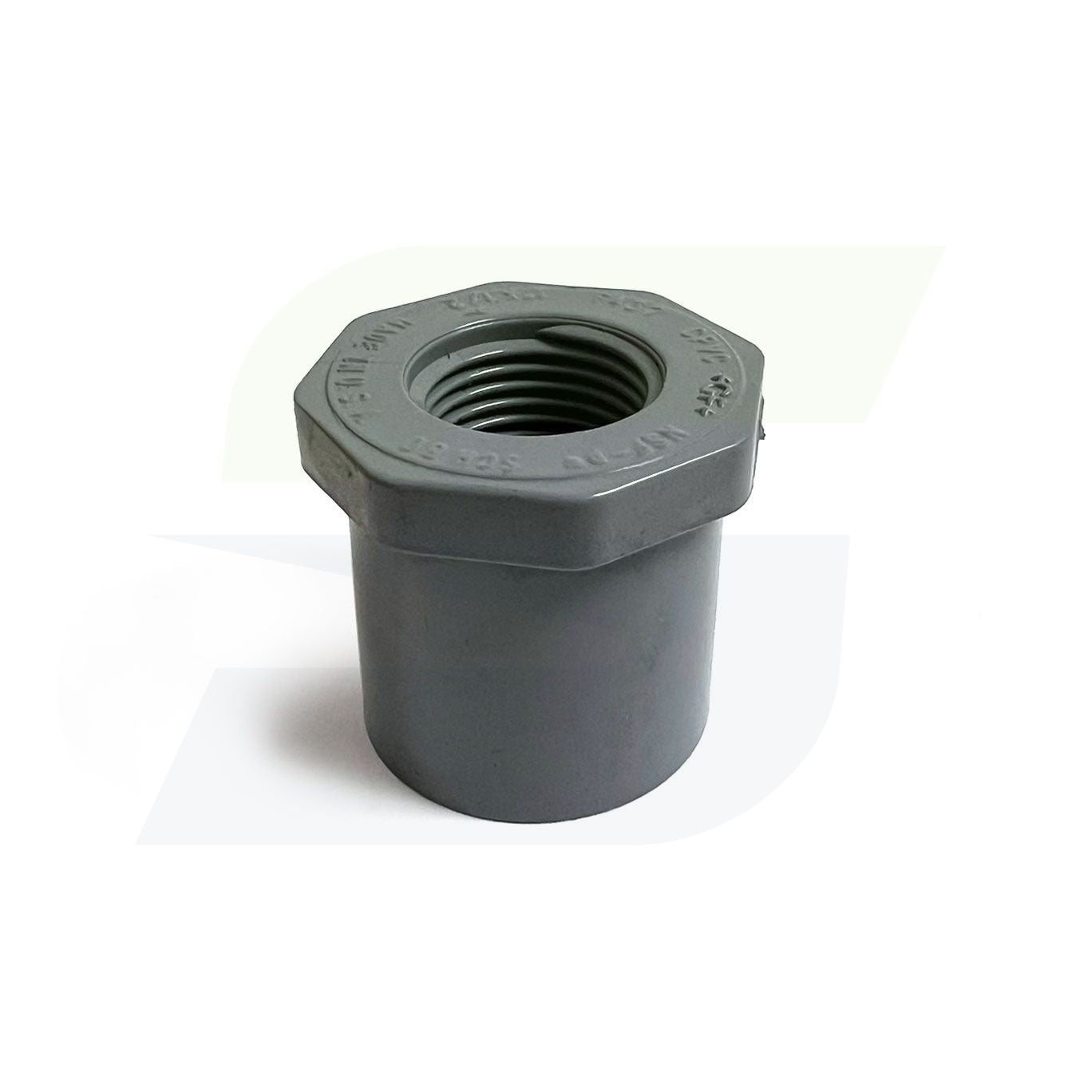

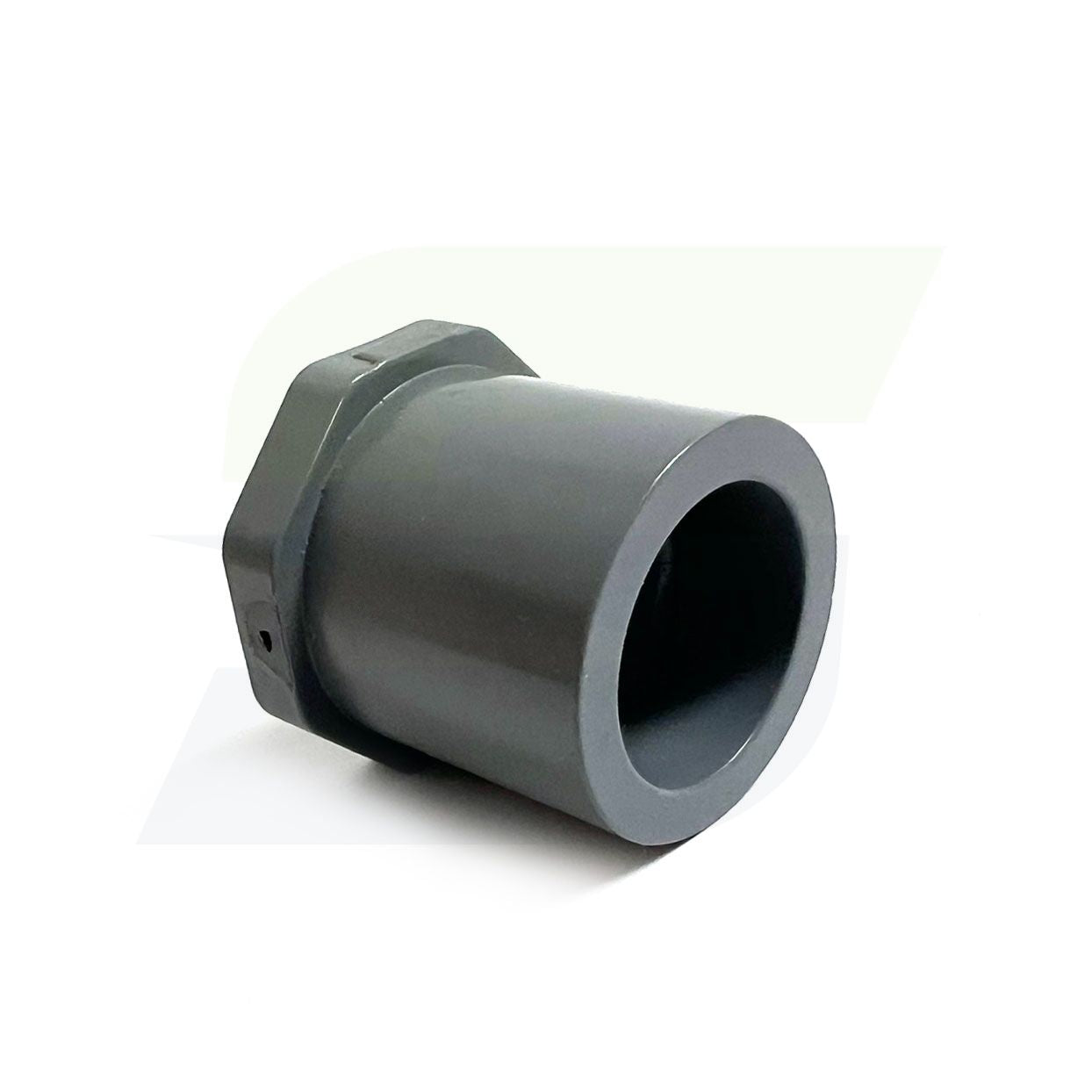

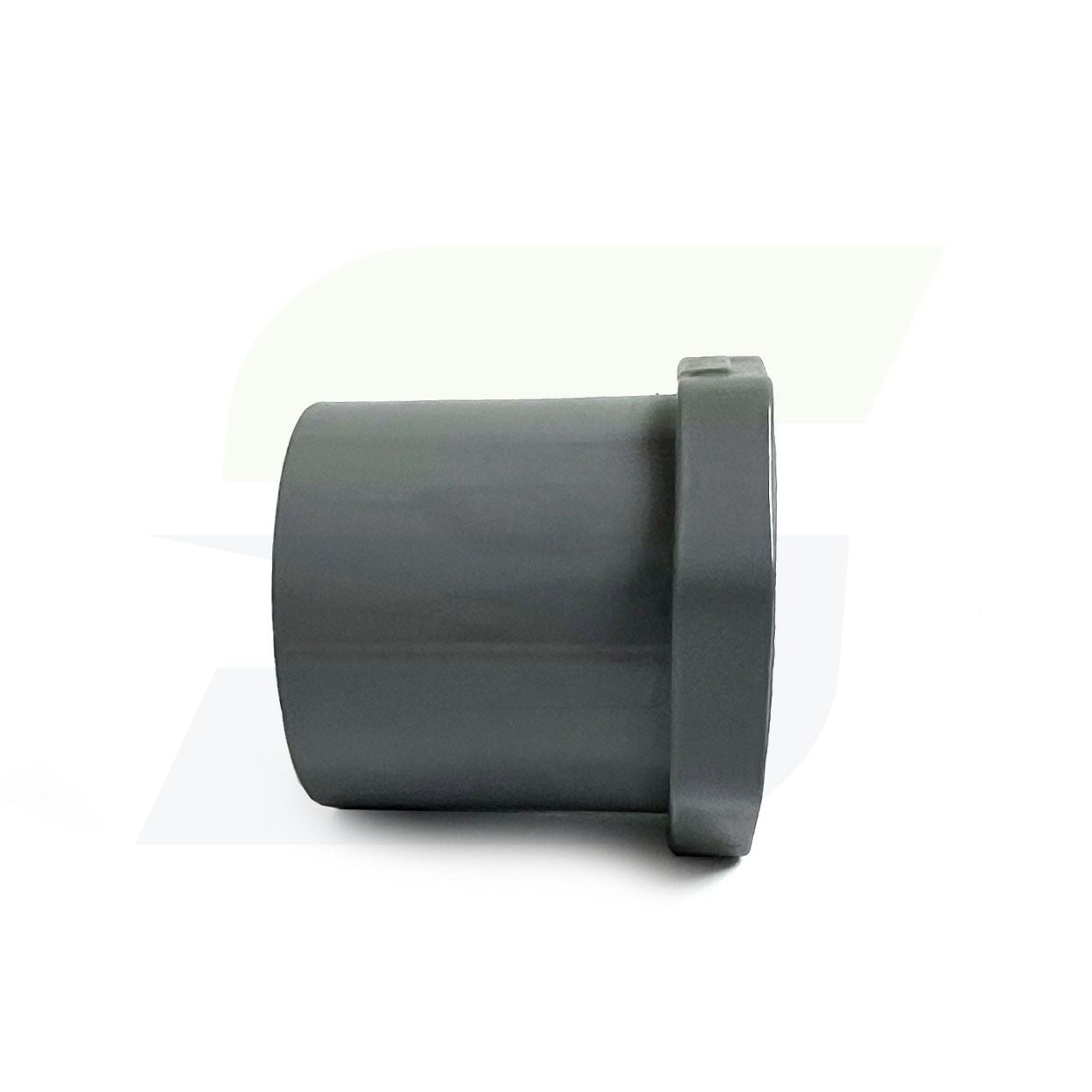

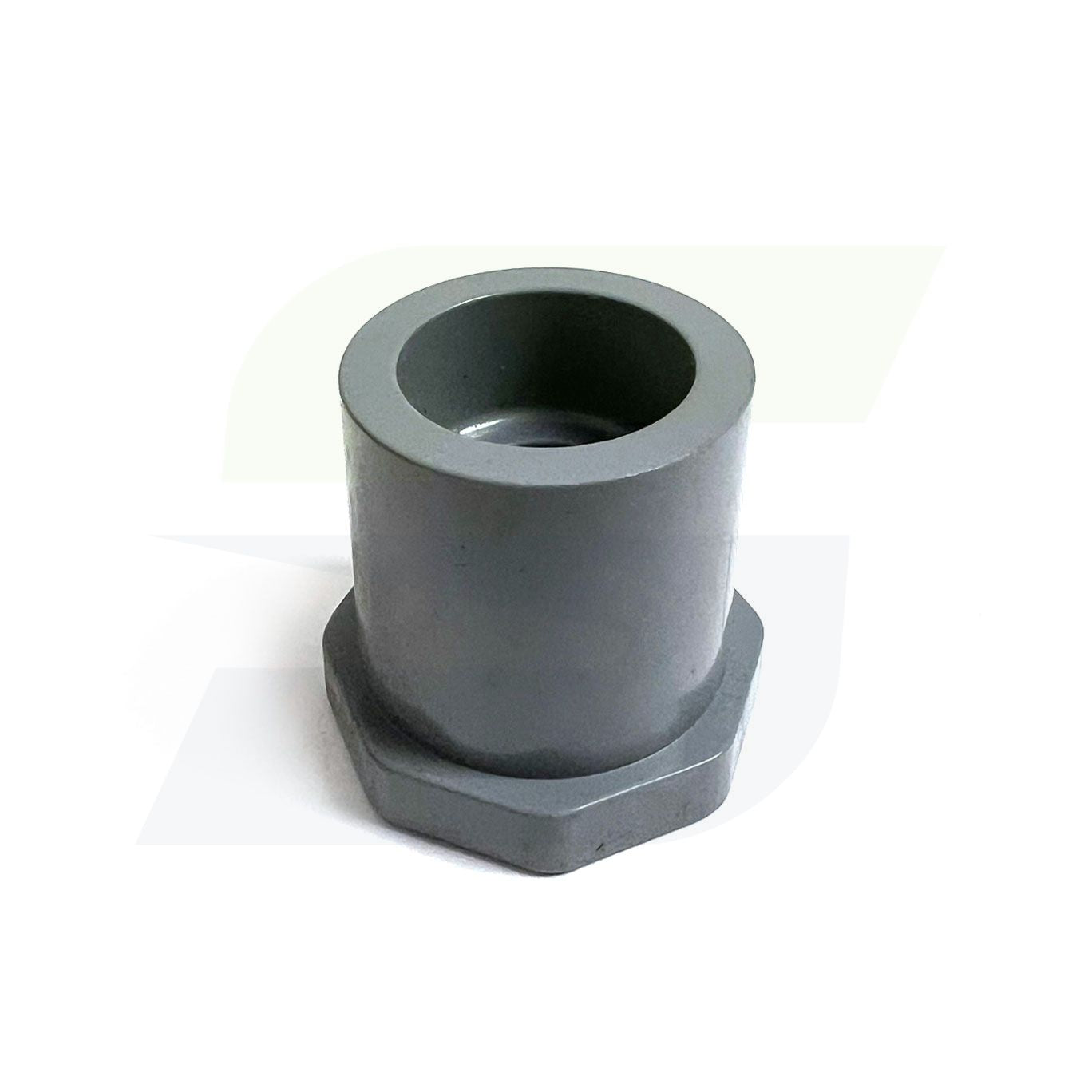

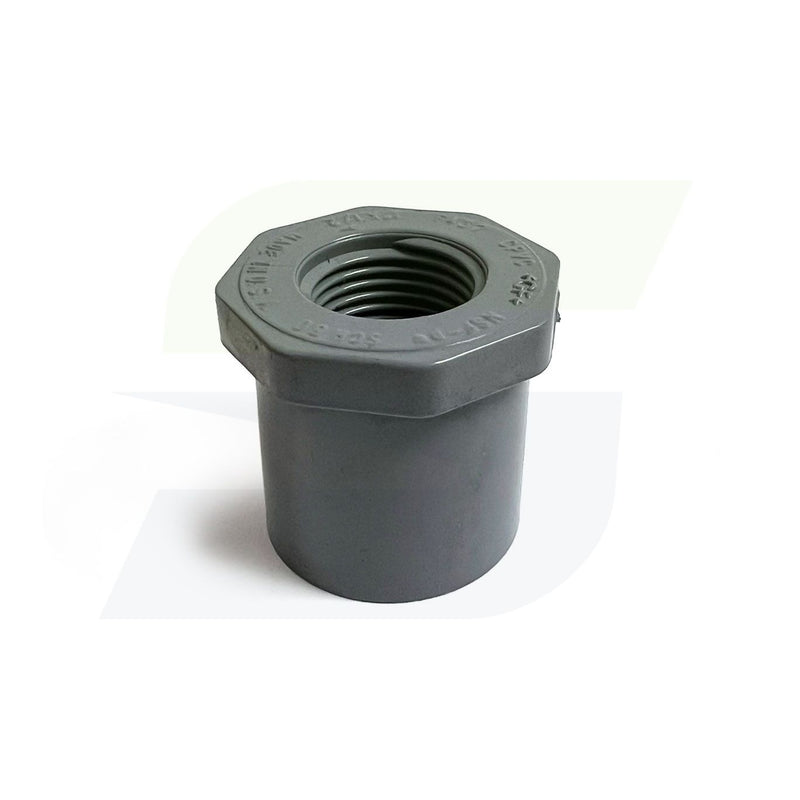

838-130C - 1" x 1/2" CPVC Reducing Bushing, Spigot x FNPT, Schedule 80​

The 838-130C is a robust Schedule 80 CPVC reducing bushing designed to transition from a 1-inch spigot connection to a 1/2-inch female NPT threaded outlet. Engineered for high-pressure applications, this fitting offers excellent chemical and heat resistance, making it ideal for industrial, commercial, and residential piping systems. Its flush design ensures a compact installation, and the precision-molded threads provide a secure, leak-resistant connection.​

Features

• Part Number: 838-130C
• Material: CPVC (Chlorinated Polyvinyl Chloride)
• Connection Type: Spigot x Female NPT
• Nominal Sizes: 1" Spigot x 1/2" FNPT
• Schedule: 80
• Design: Flush Reducing Bushing
• Pressure Rating: Up to 400 psi at 73°F (decreases with temperature)
• Temperature Rating: Up to 200°F
• Length: 1-11/32 inches
• Standards Compliance: Meets ASTM D1784 and ASTM F439
• Applications: Suitable for hot and cold water distribution, chemical processing, and industrial fluid handling systems​
