425069 - Contactor - 40A - 2-Pole - 24V
No reviews
In stock
Regular price
$9.00
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

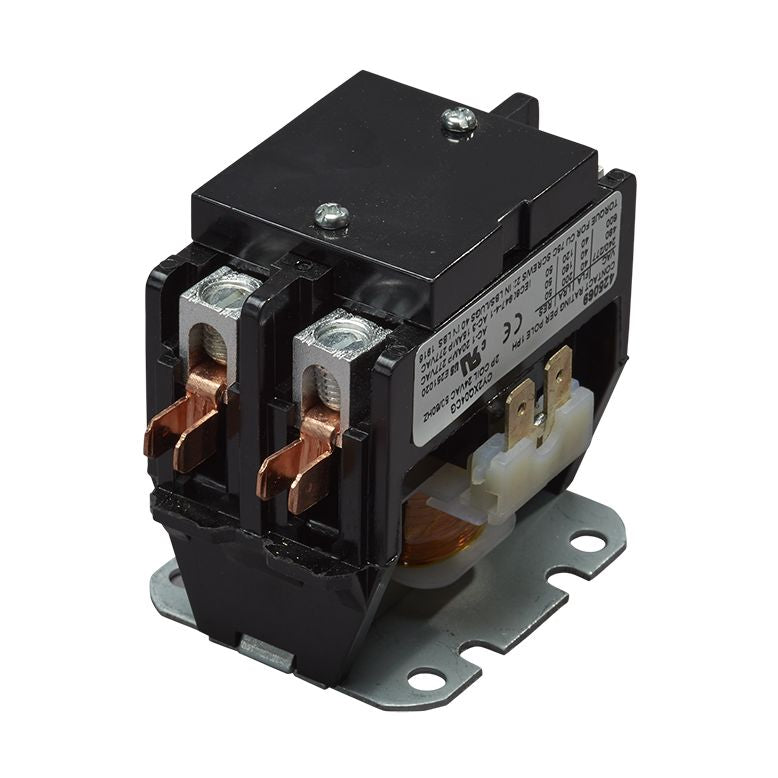

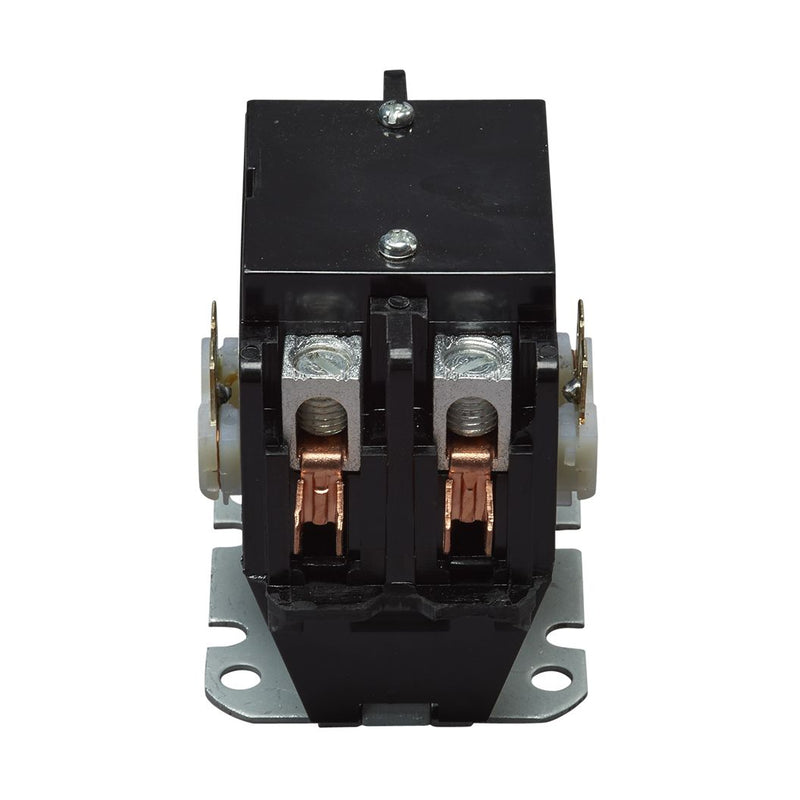

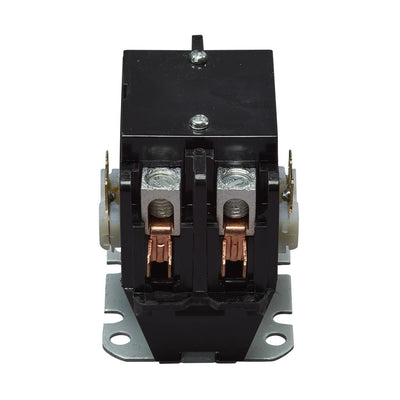

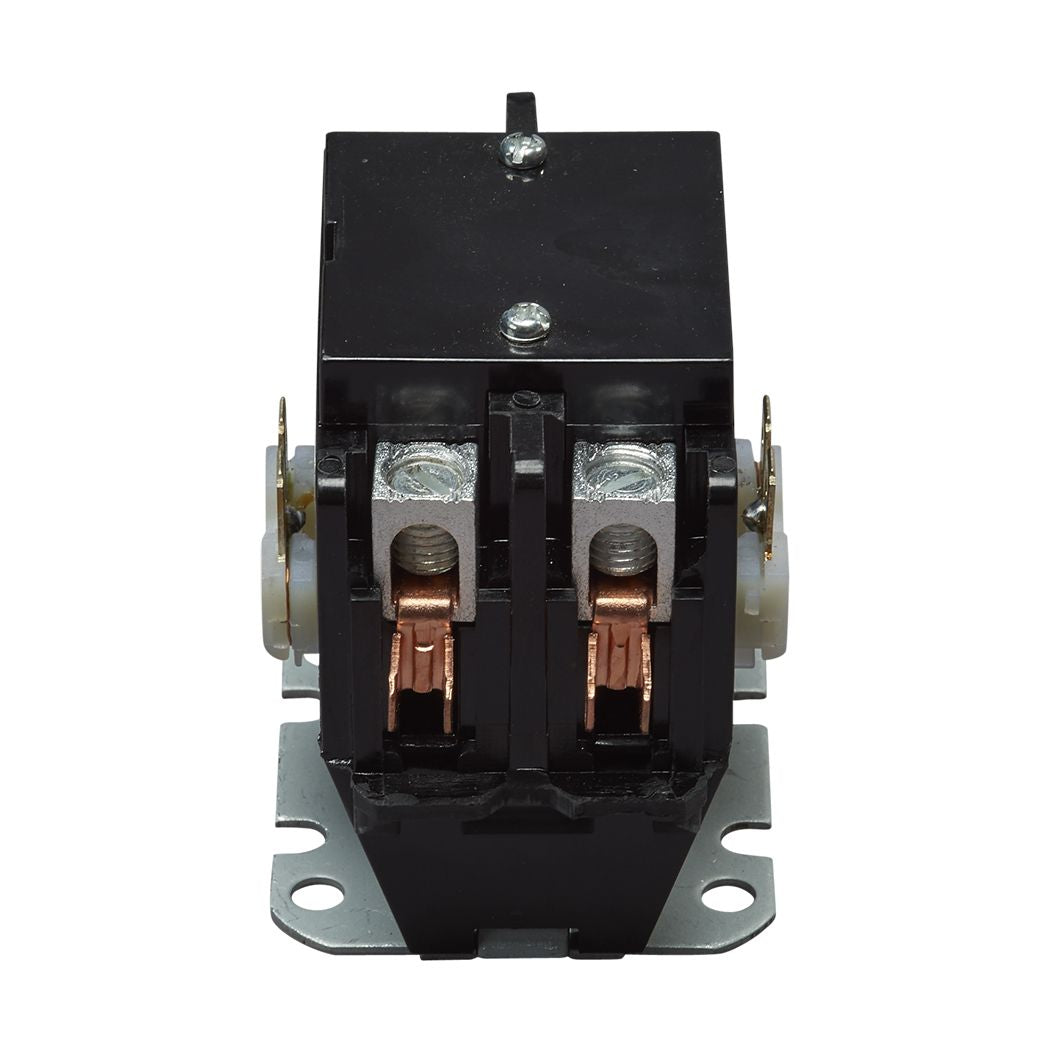

Rheem 425069 - Contactor - 40A - 2-Pole - 24V
The Contactor controls the flow of electricity to your air conditioner's components. The Contactor receives a low voltage signal from the furnace to power on.
Features
- HVAC Contactor
- Coil Voltage (VAC): 24
- Number of Poles: 2
- Motor FLA Rating 230V (A): 40
- Motor LRA Rating 230V (A): 240
- Resistive Rating 230V (A): 50
- Motor FLA Rating 460V (A): 40
- Motor LRA Rating 460V (A): 200
- Resistive Rating 460V (A): 50
- Motor FLA Rating 575V (A): 40
- Motor LRA Rating 575V (A): 120
- Rating at 575V (A): 50
Technical Data
- Coil Voltage (VAC): 24
- Number of Poles: 2
- Motor FLA Rating at 230V (A): 40
- Motor LRA Rating at 230V (A): 240
- Resistive Rating at 230V (A): 50
- Motor FLA Rating at 460V (A): 40
- Motor LRA Rating at 460V (A): 200
- Resistive Rating at 460V (A): 50
- Motor FLA Rating at 575V (A): 40
- Motor LRA Rating at 575V (A): 120
- Resistive Rating at 575V (A): 50
Where Used
- R96PA
- R96TA
- R96VA
- R97MV
- R97V-KSA
- R97V-USA
- R98MV
- R98V-USA
Replaces
- PF425069
HUZ2008055
