Home » Condenser Fan Motors » 51-102500-10 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 825 RPM - 230V





Rheem

51-102500-10 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 825 RPM - 230V

Out of stock
SKU: 51-102500-10
$183.36

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

  • 5 stars: 3 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
S
Sam (Washington, US)
Amazing customer service

I ordered my part over 4th of July weekend and due to the holiday my 2day shipping was going to be delayed. I still needed an estimated arrival so when I reached out to Sara. Sara was so kind that she decided when she had to make a stop by the office she grabbed my Package and shipped it off on a Saturday. This helped my package arrive a whole 2days early allowing my business to have AC before the beginning of the week. It is worth mentioning that my part was hard to find in the first place even from the main distributer. They went above and beyond.

D
David O. (Washington, US)
Good deal

The OEM motor was $475 and I had replaced it twice. This was a great option and was $300 cheaper. Spins a little faster than the OEM but runs within electrical limits of original equipment.

P
Pete M. (Huntsville, US)
Great Supplier

Had a problem with a motor I ordered, most likely attributed to shipping and handling. Motor once installed, had a grinding sound apparent sleeve bearing. Contacted the supplier and immediately shipped a replacement motor. Can't beat that for customer satisfaction!

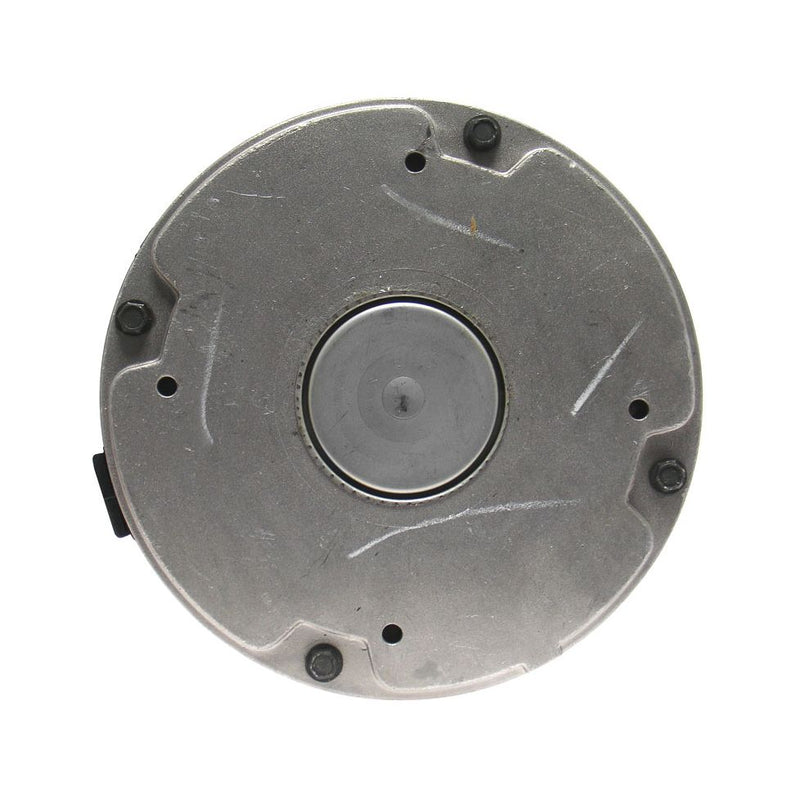

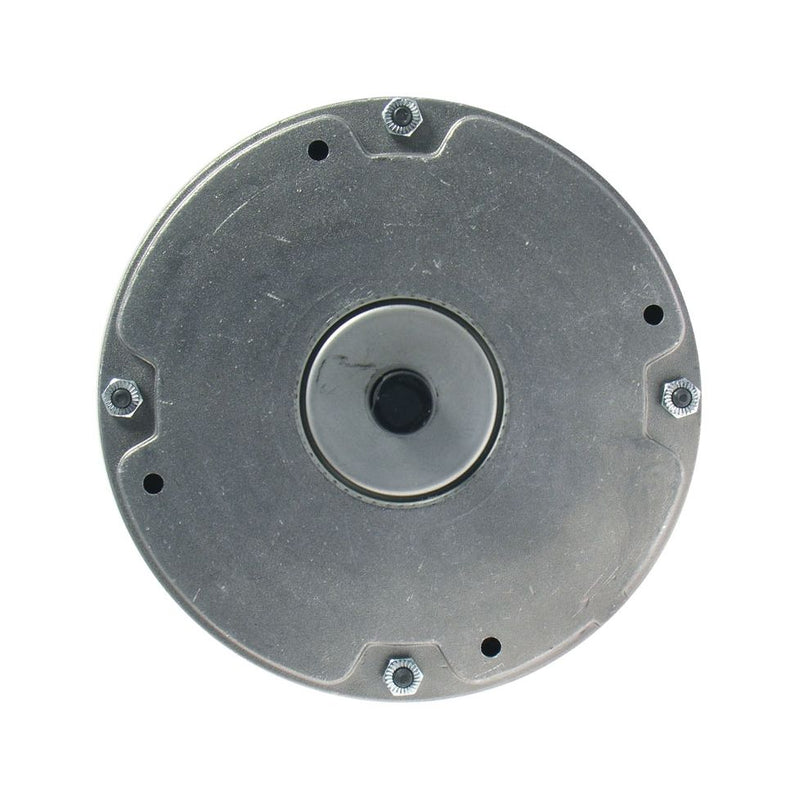

Rheem 51-102500-10 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 825 RPM - 230V

The Condenser Motor transfers heat from the refrigerant system into outdoor air, keeping your compresser from over-heating. The OEM replacement condenser motor extends equipment life by replacing old or damaged HVAC motors in ventilators, fans, and blowers. The parts match the equipment's existing motor from the original manufacturer to ensure faultless installation and consistent performance.

Features

  • Thermally protected
  • Sleeve bearing
  • OEM genuine factory authorized part

Technical Data

  • HP: 1/3
  • Number of Speeds: 1
  • High Speed (RPM): 825
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 7.45
  • Overall Shaft Length (in.): 3
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Condenser
  • Drive Type: Direct Drive
  • Shipping Weight: 13.56 lbs

Where Used

  • 13QJ
  • 13SJ
  • RACA13
  • RACA14
  • RACA15
  • RACAZ
  • RACBZ
  • RGEA13
  • RGEA14-U
  • RGEA15
  • RGEA16
  • RGEAZR
  • RGEAZ-U
  • RHPAZ
  • RHPBZR
  • RQNA-B
  • RQNJ
  • RQNL-B
  • RQNM
  • RQPL-B
  • RQPM
  • RQPW-B
  • RQRM
  • RRNA-B
  • RRNL-B
  • RRPL-B
  • RRRL-B
  • RRRL-C
  • RSKJ
  • RSNA-B
  • RSNJ
  • RSNL-B
  • RSNM
  • RSPL-B
  • RSPM
  • SSNJ
  • SSNM
  • SSPM

Replaces

  • 51-100999-10
  • 51-100999-24
  • 51-100998-24
  • 51-100999-10
  • 51-100999-24
  • 51-100999-10
  • 51-100999-24
  • 51-100998-24
  • 51-100999-10
  • 51-100999-24



HUZ2010433
