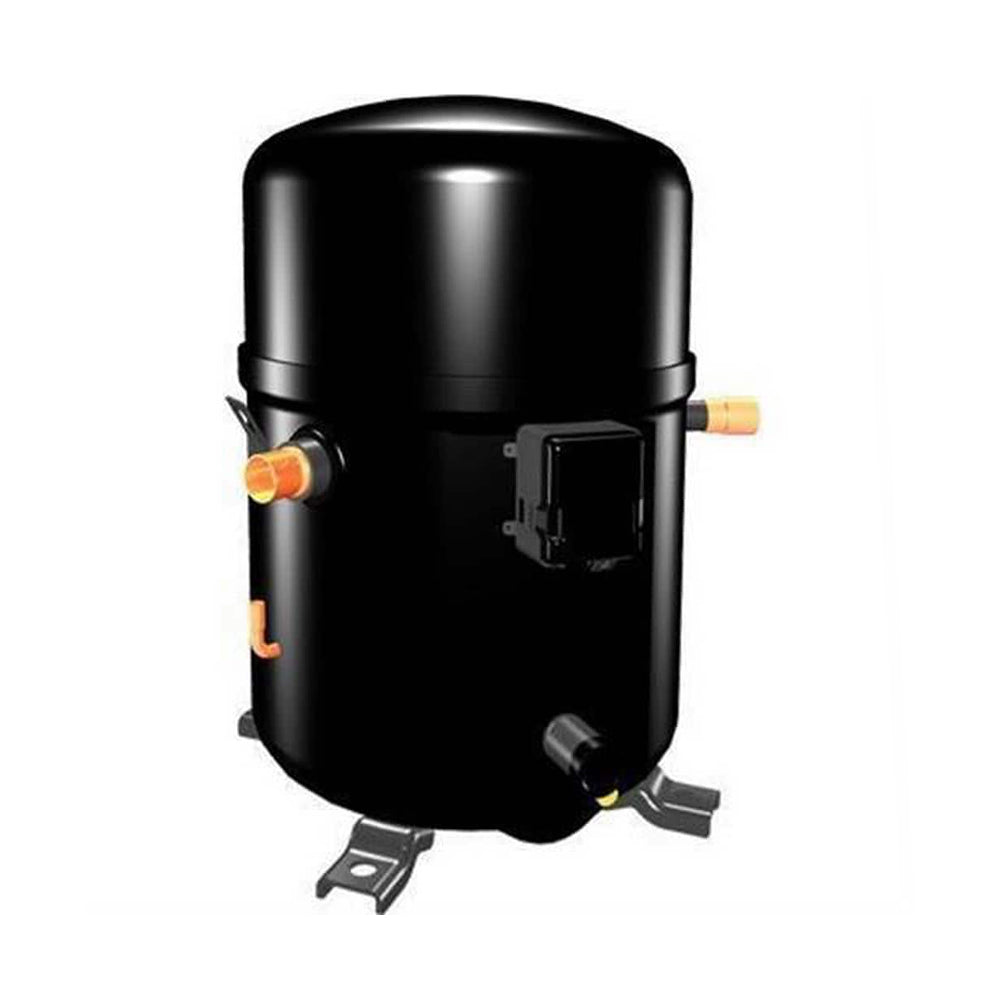

Rheem 55-101545-14S - Bristol Reciprocating Compressor - 24,350 BTU - 1 Phase - R-22 - 230V

Technical Data

• Capacity (BTU/HR): 24350
• Type: Reciprocating
• Refrigerant: R-22
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Freq. (Hz.): 60
• Run Capacitor (uF/V): 35/370
• Start Kit: SK-B8
• Kick Start: 42-TO5
• Start Relay P/N: 42-25105-02
• Start Capacitor (uF/V): 145-175/250
• Start Capacitor Part Number: 43-17075-10
• Rated Load Current (A): 9.9
• Max. Continuous Current (A): 16.5
• Locked Rotor Current (A): 61
• Crankcase Heater Included?: Yes
• Crankcase Heater Part Number: 44-17402-05
• Soundwrap (Brinmar): 68-25217-10
• Refrigerant Oil: Mineral (85-H2301)
• Suction Line Location: 2
• Suction Line Height (in.): 13-3/4
• Suction Line Configuration: Stub Out
• Suction Line Size (in.): 3/4
• Discharge Line Location: 4
• Discharge Line Height (in.): 4-1/8
• Discharge Line Configuration: Up
• Discharge Line Size (in.): 1/2
• Overall Compressor Height (in.): 15-1/4
• Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
• Shipping Weight: 79.0 lbs

Where Used

• 13PJA

Replaces

• 55-101545-14
