Specification Sheet

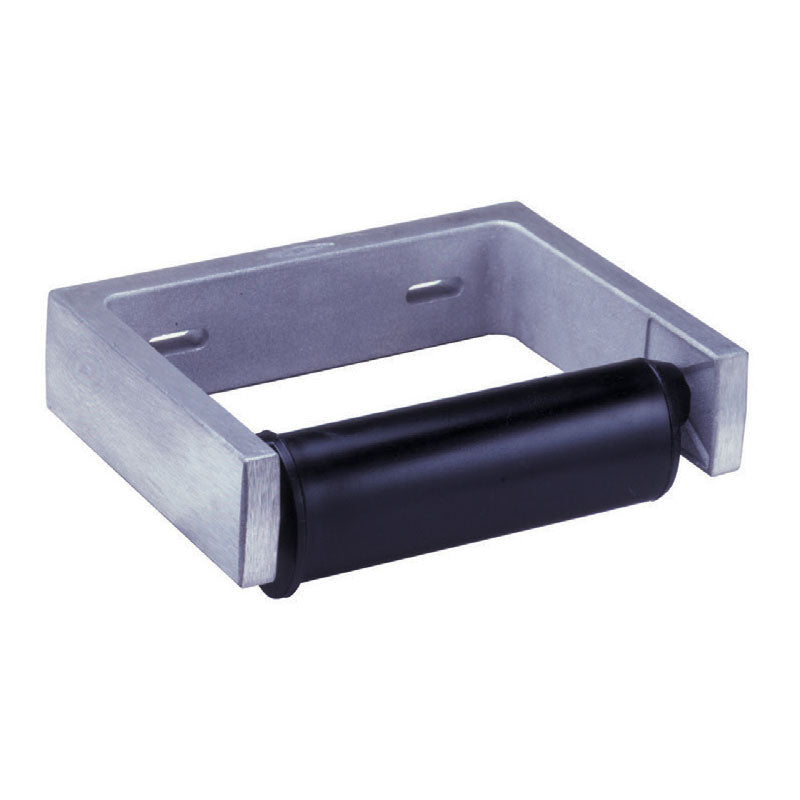

Classic Series Surface-Mounted Toilet Tissue Holder for Single Roll- Satin

Features:

• Heavy-dusty cast aluminum
• High-Impact plastic spindles have concealed locking device
• Theft-Resistant
• Holds Single Roll up to 6-Inch diameter
• No controlled delivery

 Materials:

• Bracket — Heavy-duty cast aluminum with satin finish.
• Spindle — Molded high-impact ABS. Equipped with retractable pin and concealed locking mechanism.

Operation:

• Accommodates one standard-core toilet tissue roll up to 6" (152mm) diameter (2000 sheets). Spindle can only be removed with special key furnished. Theft-resistant.

Installation:

• For partitions with particle-board or other solid core, provide sheet-metal screws or through-bolts, nuts, and washers.
• For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws.
• For other wall surfaces, provide sheet-metal screws and fiber plugs or expansion shields, or provide 1/8" (3mm) toggle bolts or expansion bolts.
