Specification Sheet

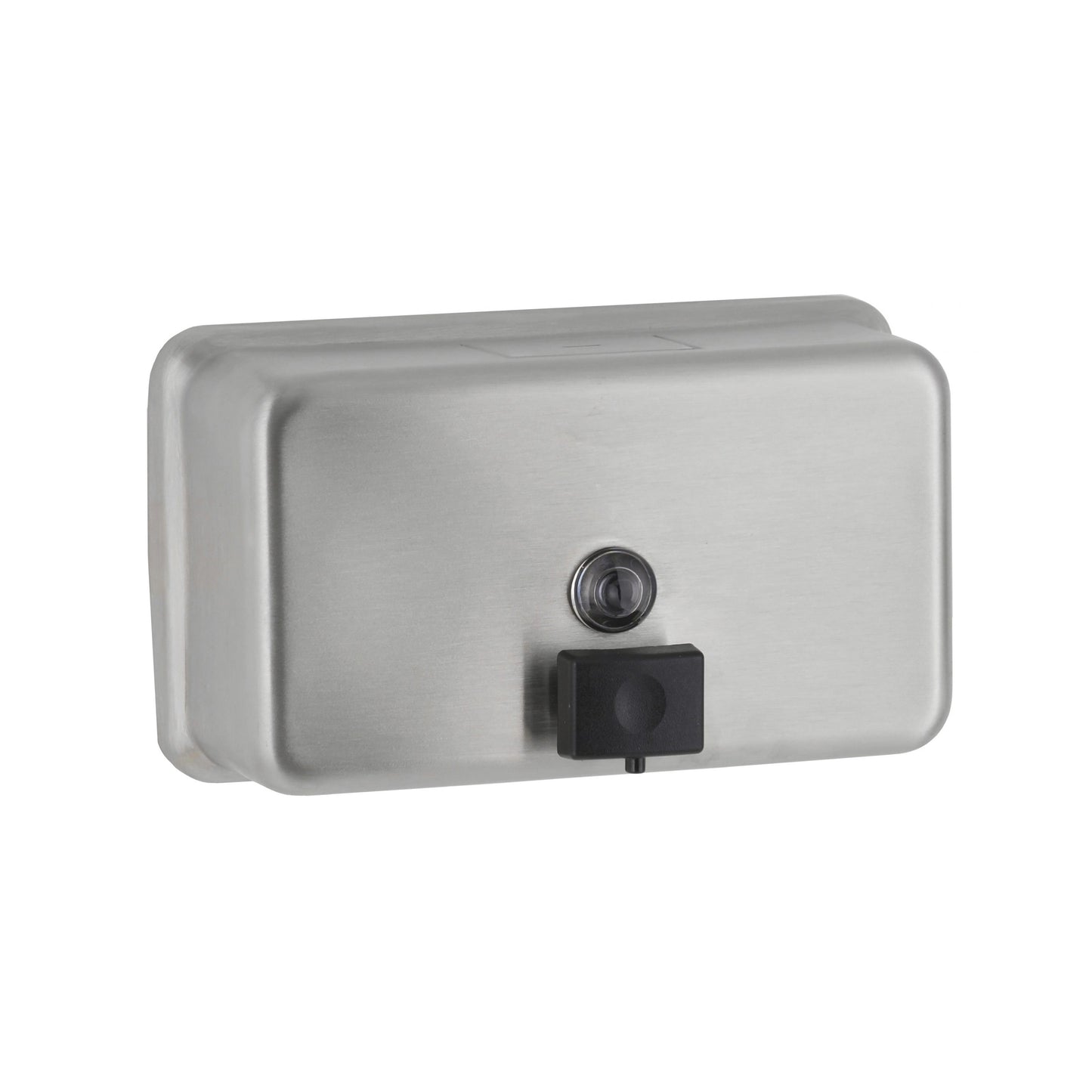

Classic Series Surface-Mounted Soap Dispenser Horizontal

• Horizontal tank is satin-finish stainless steel.
• Valve dispenses all-purpose hand soaps.
• Capacity: 40-fl oz (1/2-L). Soap refill window.
• Concealed wall fastening.
• Hinged filler-top requires special key to open.
• Vandal resistant.
• Unit 8 1/8" W, 4 3/4" H (205 x 120mm); wall to push-button, 3 1/2" (90mm).

MATERIALS:

• Container — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Body is drawn, one-piece, seamless
  construction. Back plate has mounting bracket attached. Furnished with concealed wall plate. Equipped with a clear acrylic
  soap refill-indicator window and a locked, hinged stainless steel lid for top filling. Capacity: 40-fl oz (1.2-L).
• Valve — Black molded plastic push button and spout. Soap head-holding mushroom valve. Stainless steel spring. U-packing
  seal and duckbill. Antibacterial-soap-resistant plastic cylinder.
