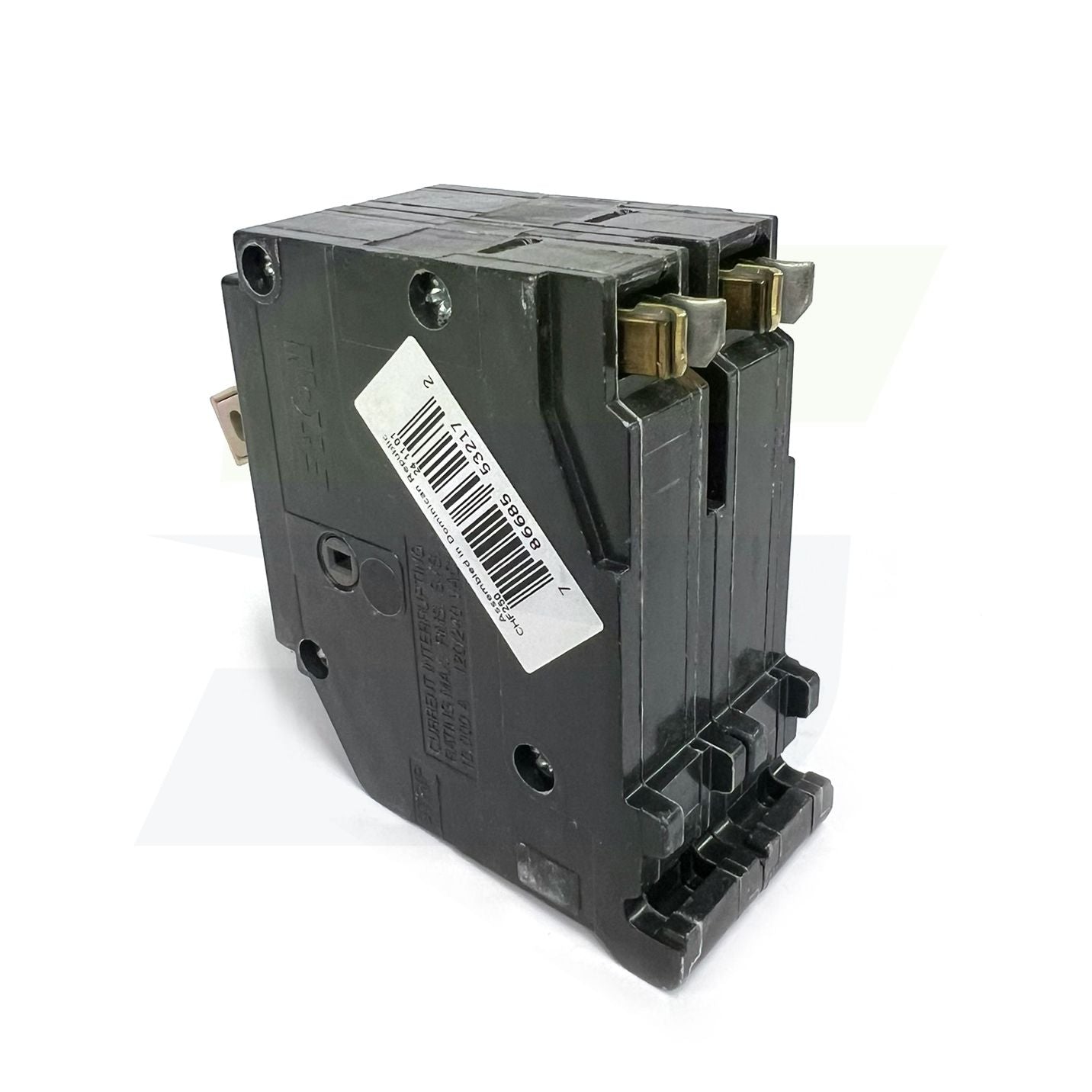

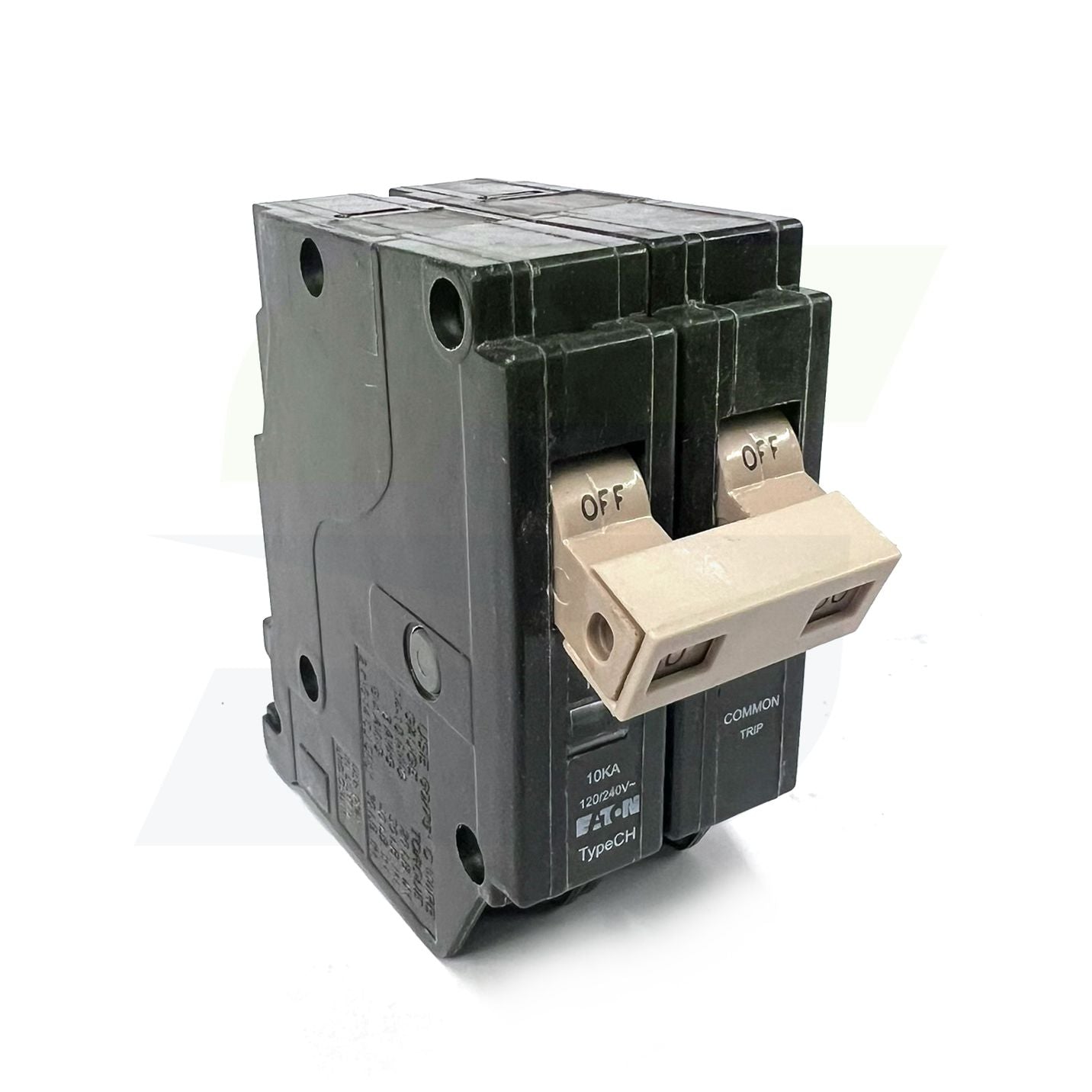

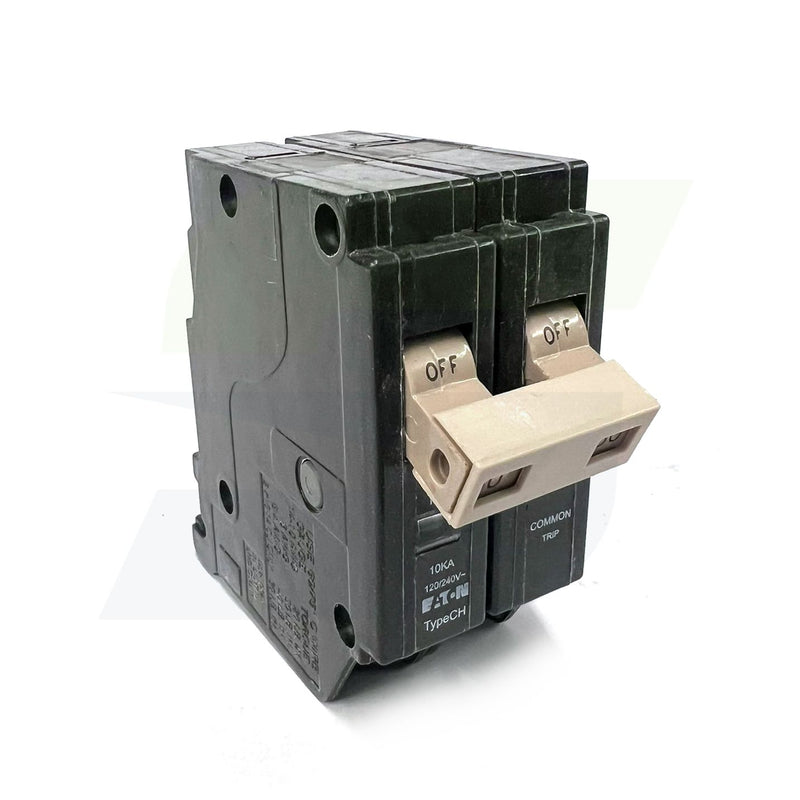

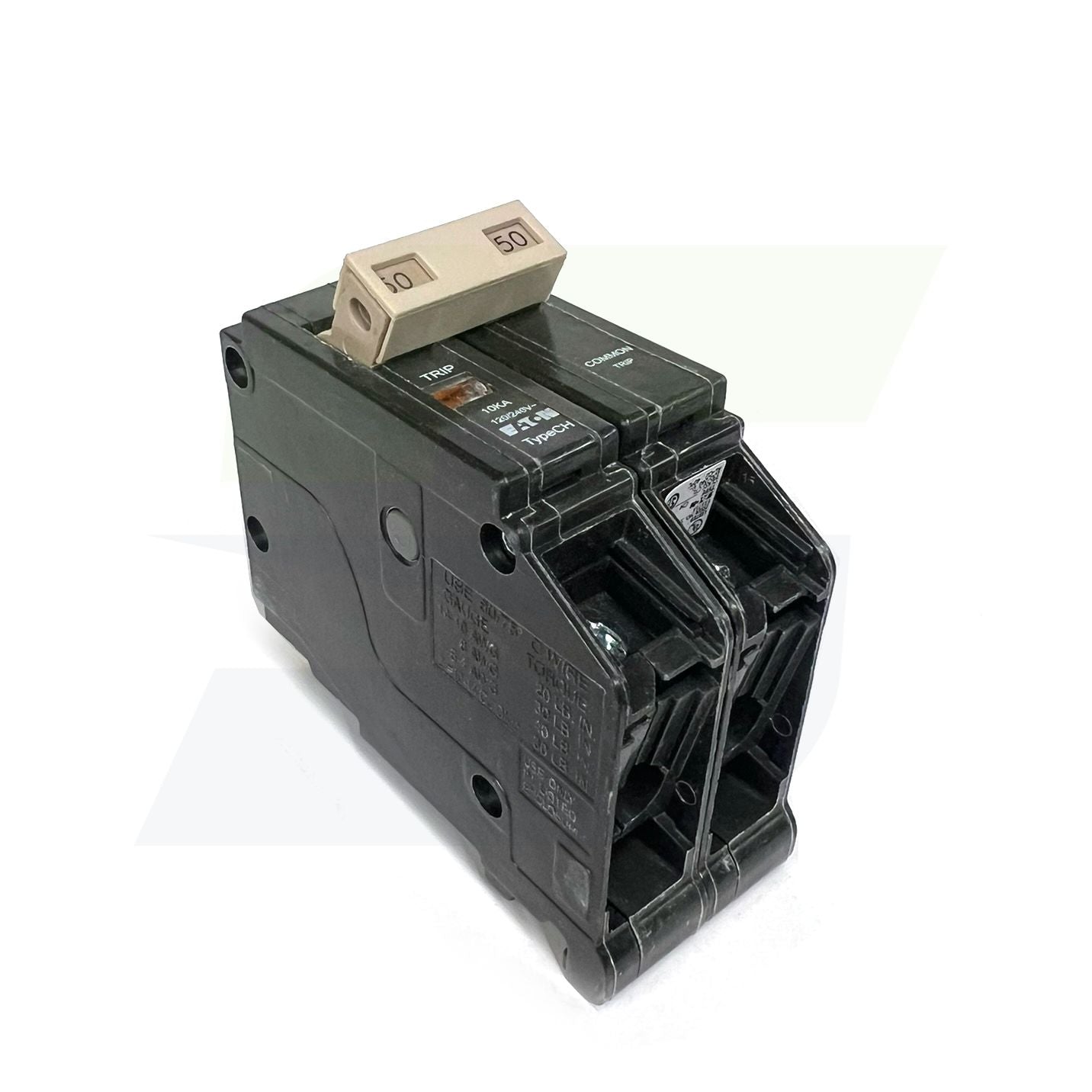

Eaton CHF250 – Type CH 50A 2-Pole Plug-On Circuit Breaker with Trip Flag, 120/240V, 10kAIC, UL Listed

​The Eaton CHF250 is a 50-amp, two-pole thermal magnetic circuit breaker from the Type CH series, engineered for residential and light commercial applications. Designed to fit Eaton Type CH load centers, it features a plug-on mounting style and a compact 3/4 -inch width per pole. The CHF250 includes a mechanical trip flag for clear indication of tripped status and employs a common trip mechanism to ensure both poles disconnect simultaneously during fault conditions. With a 10 kAIC interrupting capacity at 120/240V AC, this breaker offers reliable protection against overloads and short circuits. It accommodates #10–1/0 AWG copper or aluminum conductors and is UL 489 listed and HACR rated, making it suitable for HVAC applications. ​

Features

• 50A two-pole thermal magnetic circuit breaker
• Plug-on mounting for Type CH load centers
• 120/240V AC voltage rating
• 10 kAIC interrupting capacity
• Mechanical trip flag for easy status identification
• Common trip mechanism ensures simultaneous pole disconnection
• Accepts #10–1/0 AWG copper or aluminum conductors
• UL 489 listed and HACR rated
