Taco CA140-125P - Full-Acceptance Expansion Tank - 37 Gallon

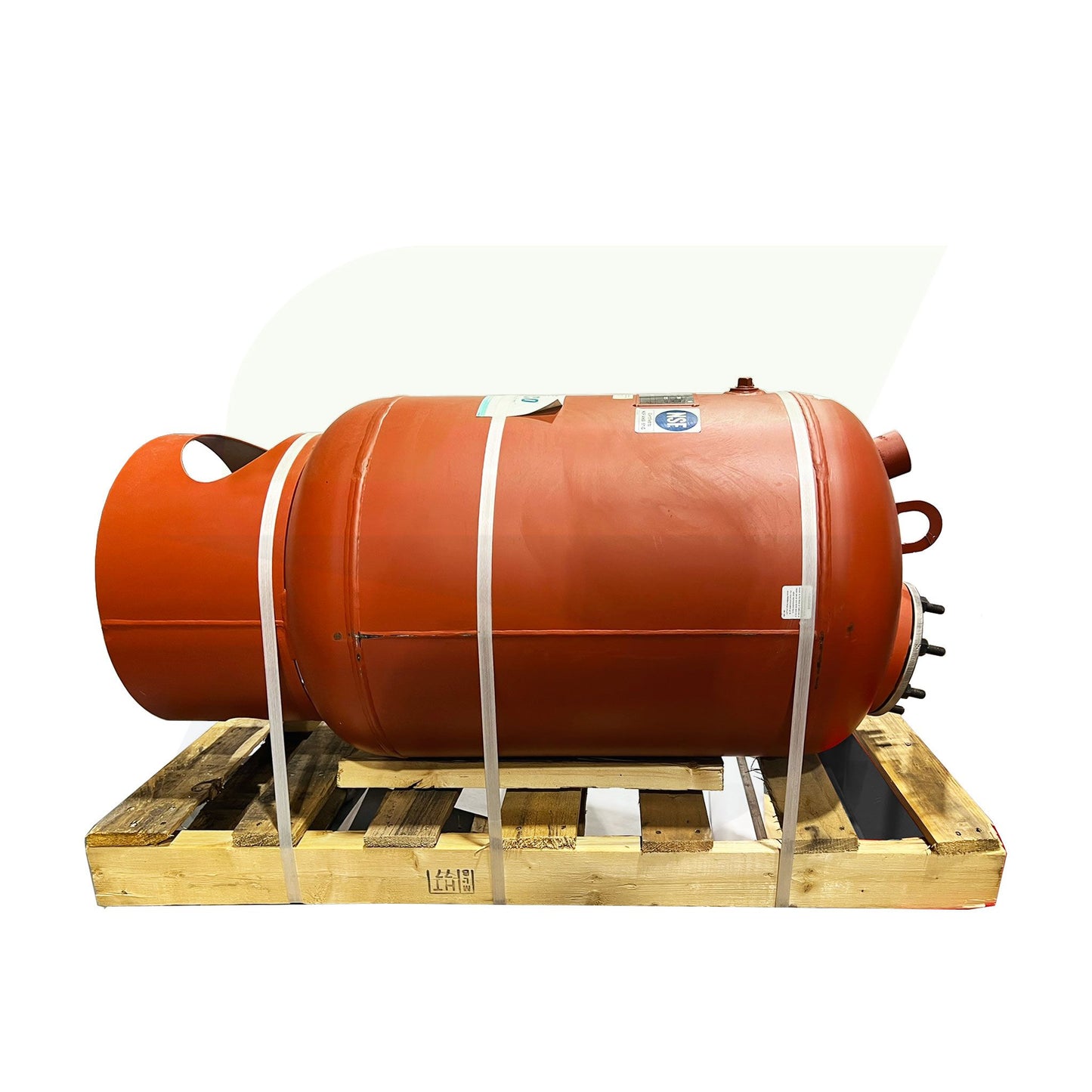

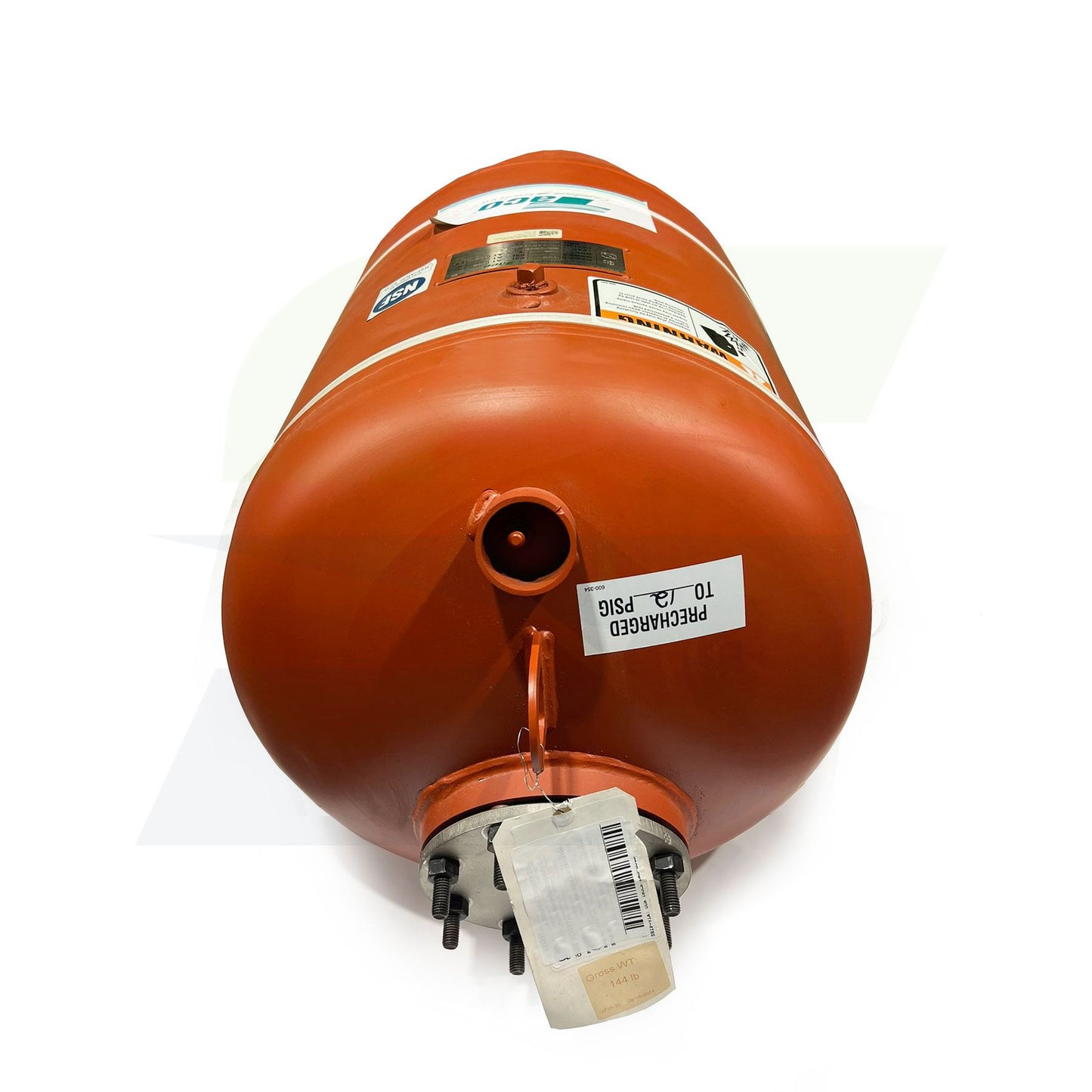

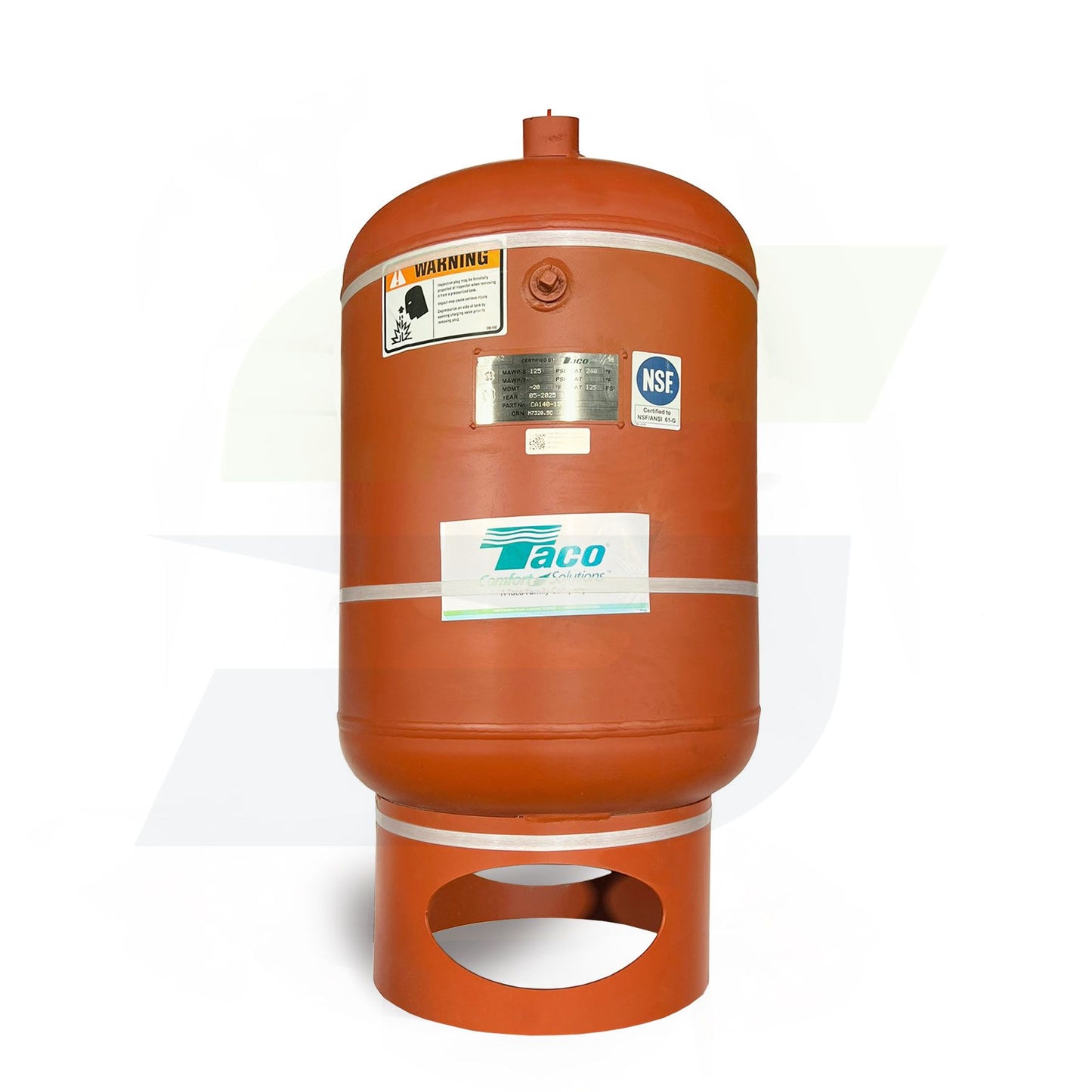

The Taco CA140-125P is a 37-gallon, ASME-certified bladder expansion tank engineered for hydronic heating, cooling, and pressure booster systems. Built with a carbon steel shell and a heavy-duty butyl bladder, it ensures permanent separation between air and water to manage thermal expansion reliably and efficiently.
Unlike basic compression tanks, the CA140-125P uses a replaceable bladder to contain the expanding water, while a pre-charged air cushion on the shell side absorbs pressure changes. This design minimizes air absorption into the water and reduces the need for frequent maintenance or recharging.
Features
- 37-gallon bladder-style expansion tank for closed water systems
- ASME Code Section VIII, Div. 1 construction
- 125 PSI @ 240°F standard design pressure and temperature
- Removable butyl bladder for permanent air/water separation and easy inspection
- Carbon steel shell with red oxide primer exterior finish
- Factory precharged to 40 PSI (field adjustable)
- NSF/ANSI 61-G certified for potable water use
- U-1A Data Report and National Board registered
Applications
- Closed hydronic heating and chilled water systems
- Pressure booster and potable water systems
- Commercial and institutional HVAC installations
- Systems requiring ASME and NSF-compliant thermal expansion control
