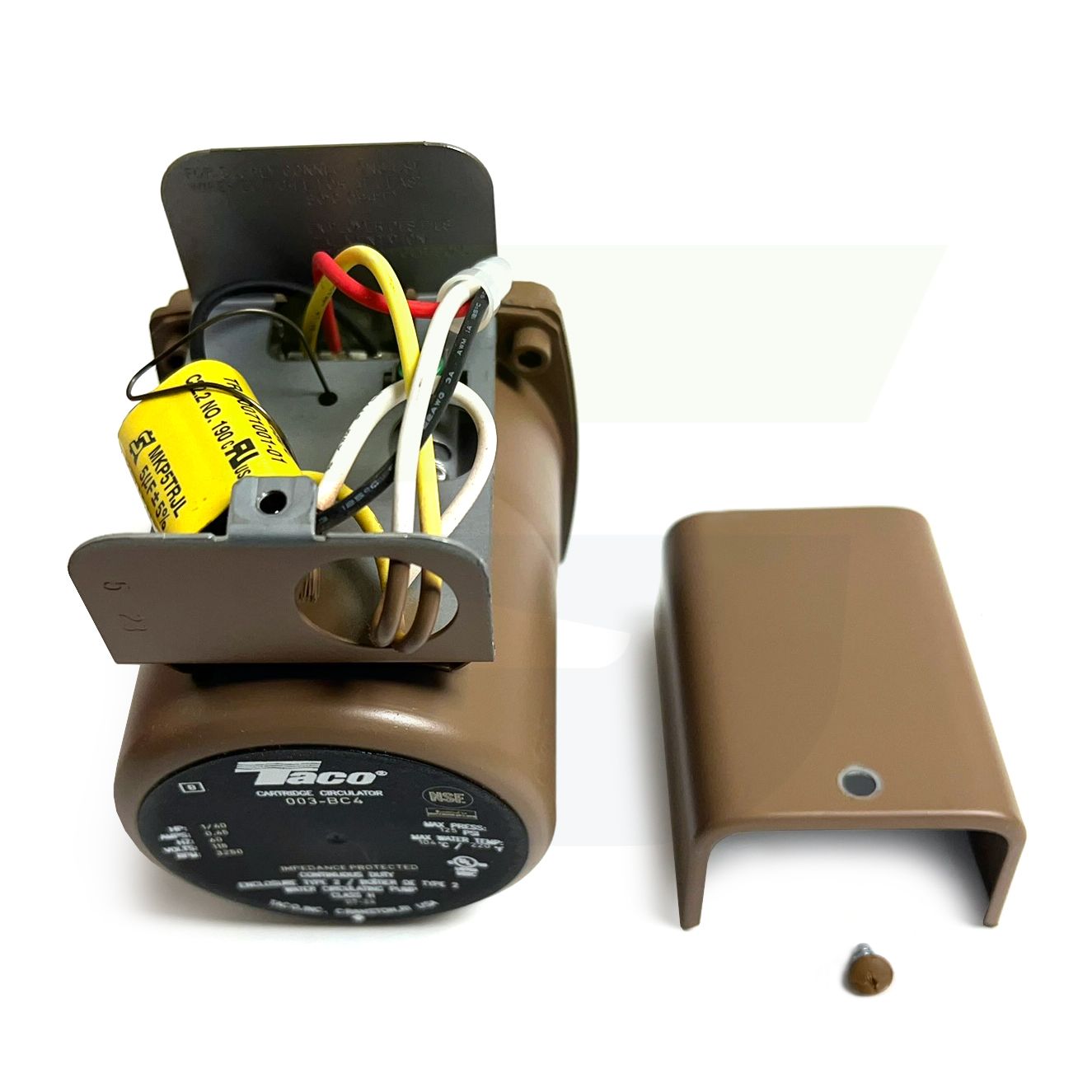

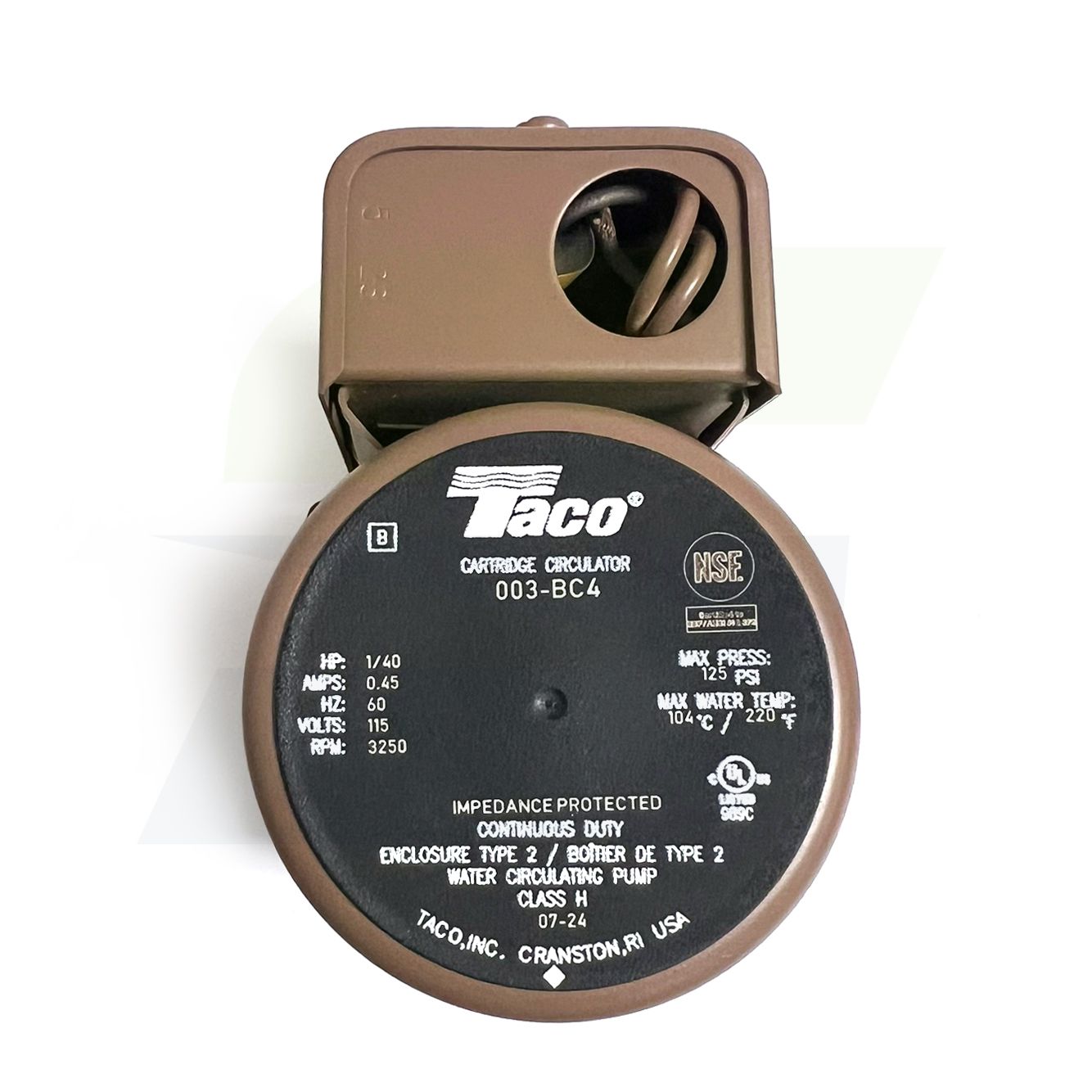

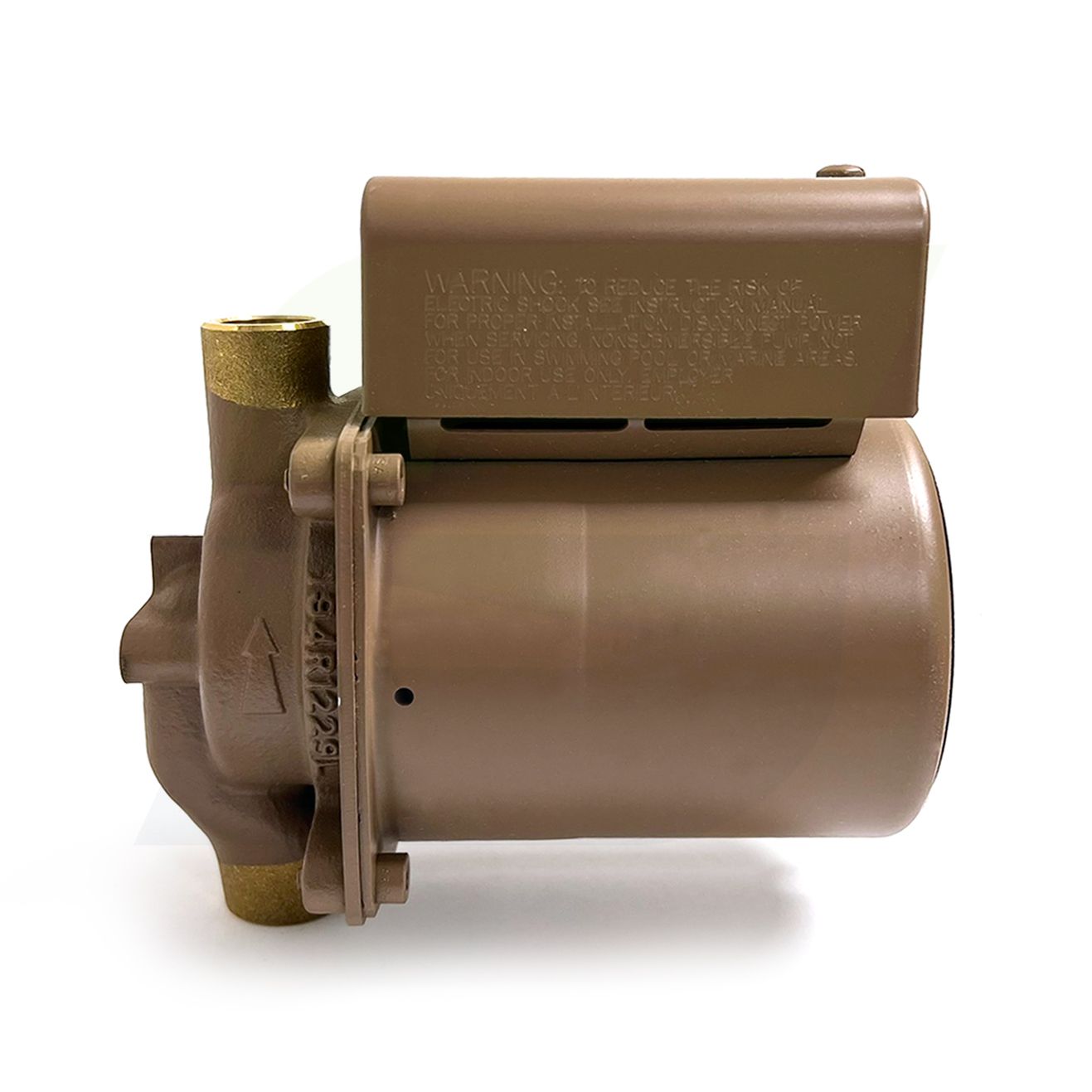

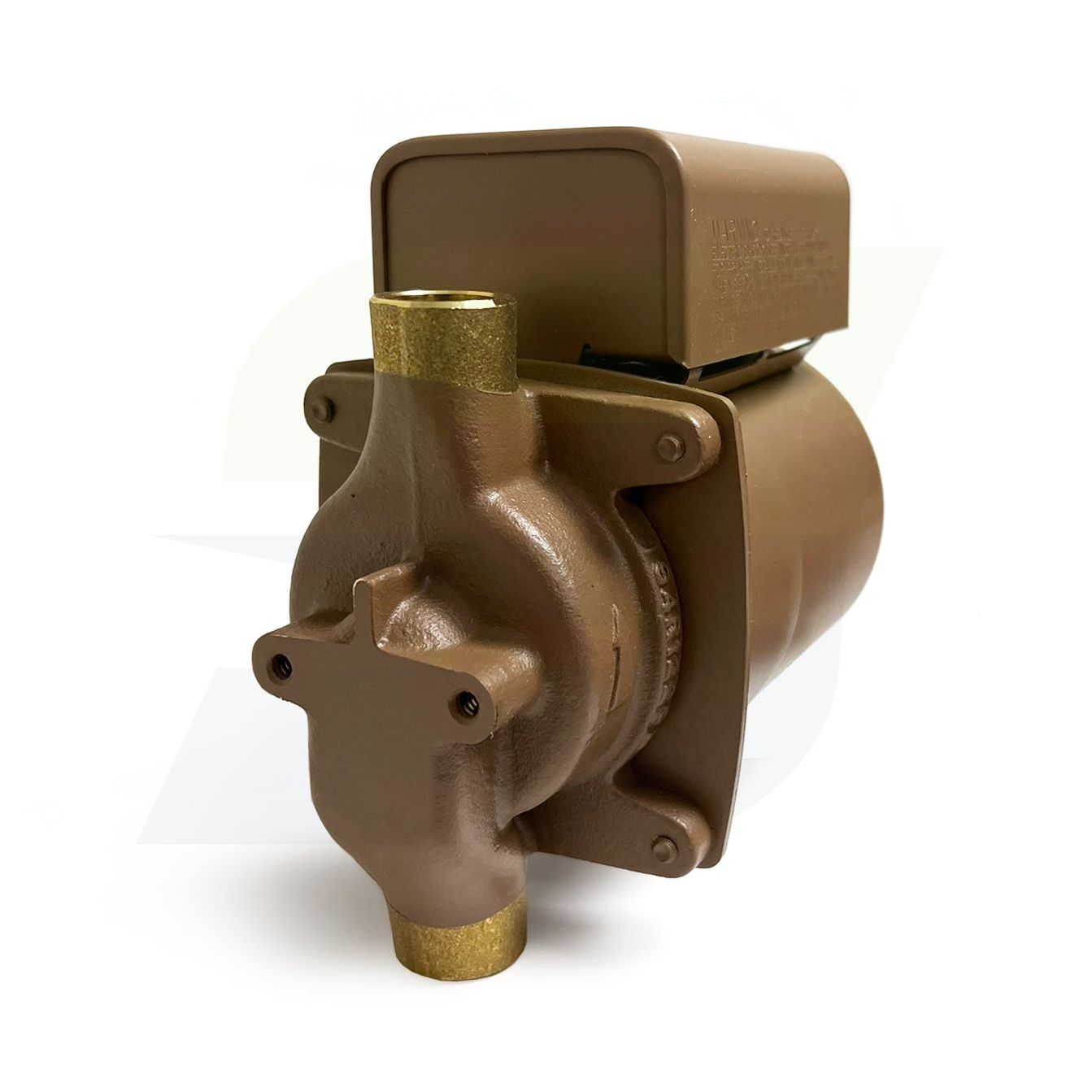

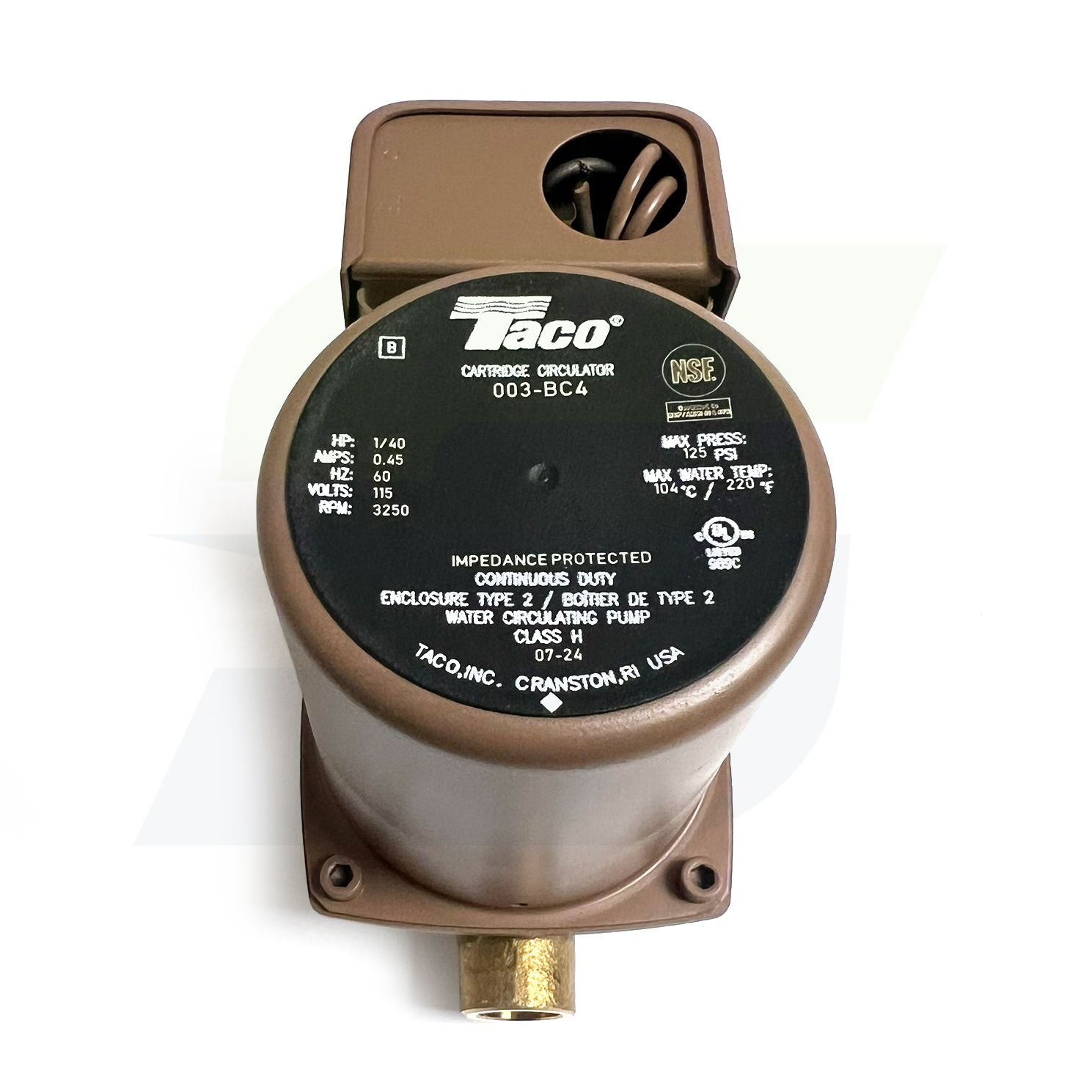

Taco 003-BC4 - Cartridge Circulator - Bronze - 1/40 HP - 1/2" Sweat

The Taco 003 is designed for circulating hot or chilled fresh water in open or closed loop, lower flow applications. Flow characteristics are ideal for domestic hot water recirculation, heat recovery units, water source heat pumps and potable water systems. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.

Features

• Reduces erosion corrosion and flow noise in shorter pipe run applications
• Standard high capacity output - Compact design
• Quiet, efficient operation
• Direct drive - Low power consumption
• Unique replaceable cartridge design - Field serviceable
• Self lubricating
• No mechanical seal
• Unmatched reliability - Maintenance free
• Low-lead Bronze sweat or Stainless Steel with threaded or union connections

Specifications

• Connection: 1/2" Sweat
• Volts: 115
• Hertz: 60
• Phases: 1
• Amps: 0.52
• RPM: 3,250
• HP: 1/40
• Casing (Volute): Low-lead Bronze
• Stator Housing: Steel
• Cartridge: Stainless Steel
• Impeller: Non-metallic
• Shaft: Ceramic
• Bearing: Carbon
• O-Ring & Gaskets: EPDM (chlorine resistant)
