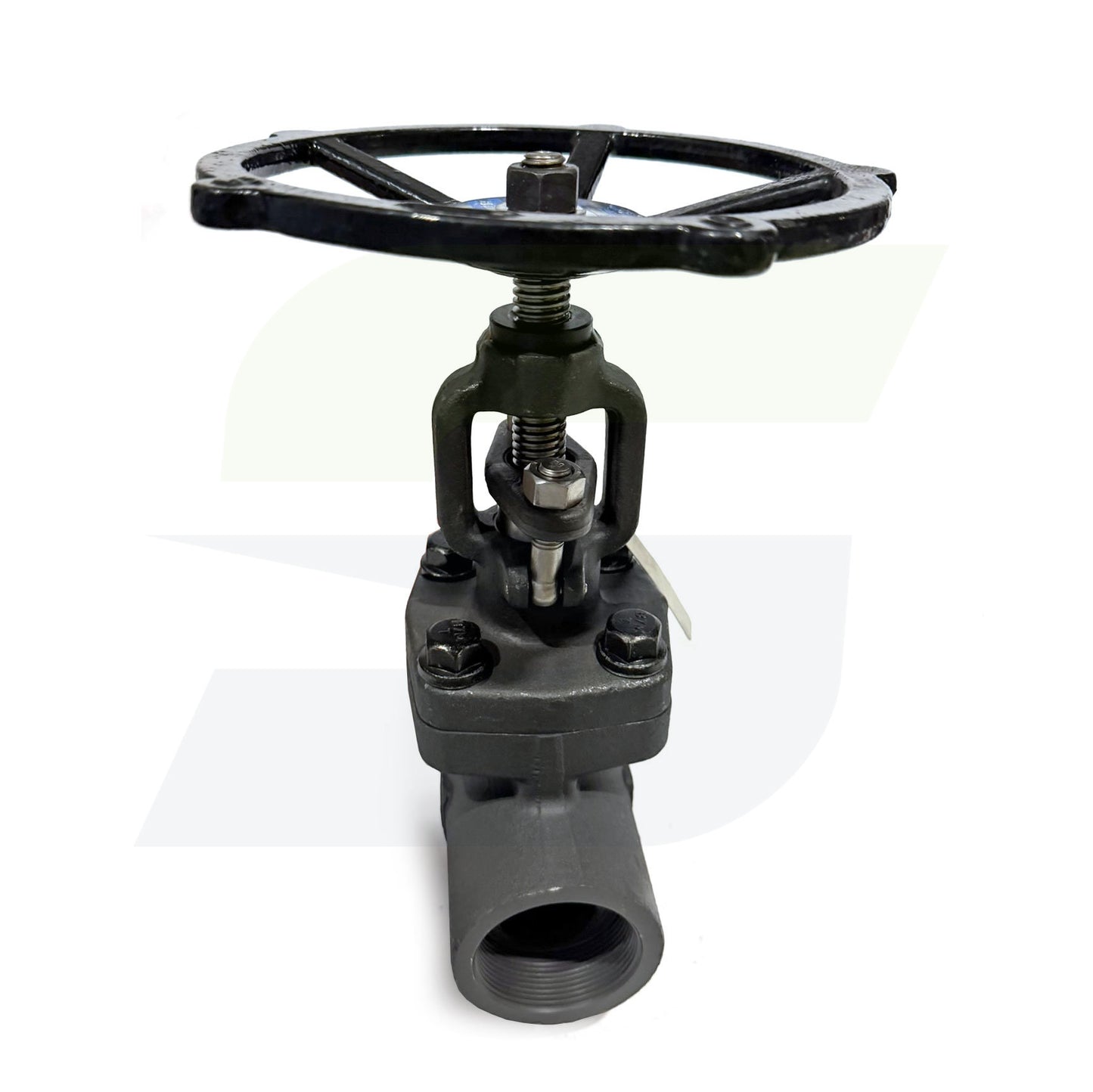

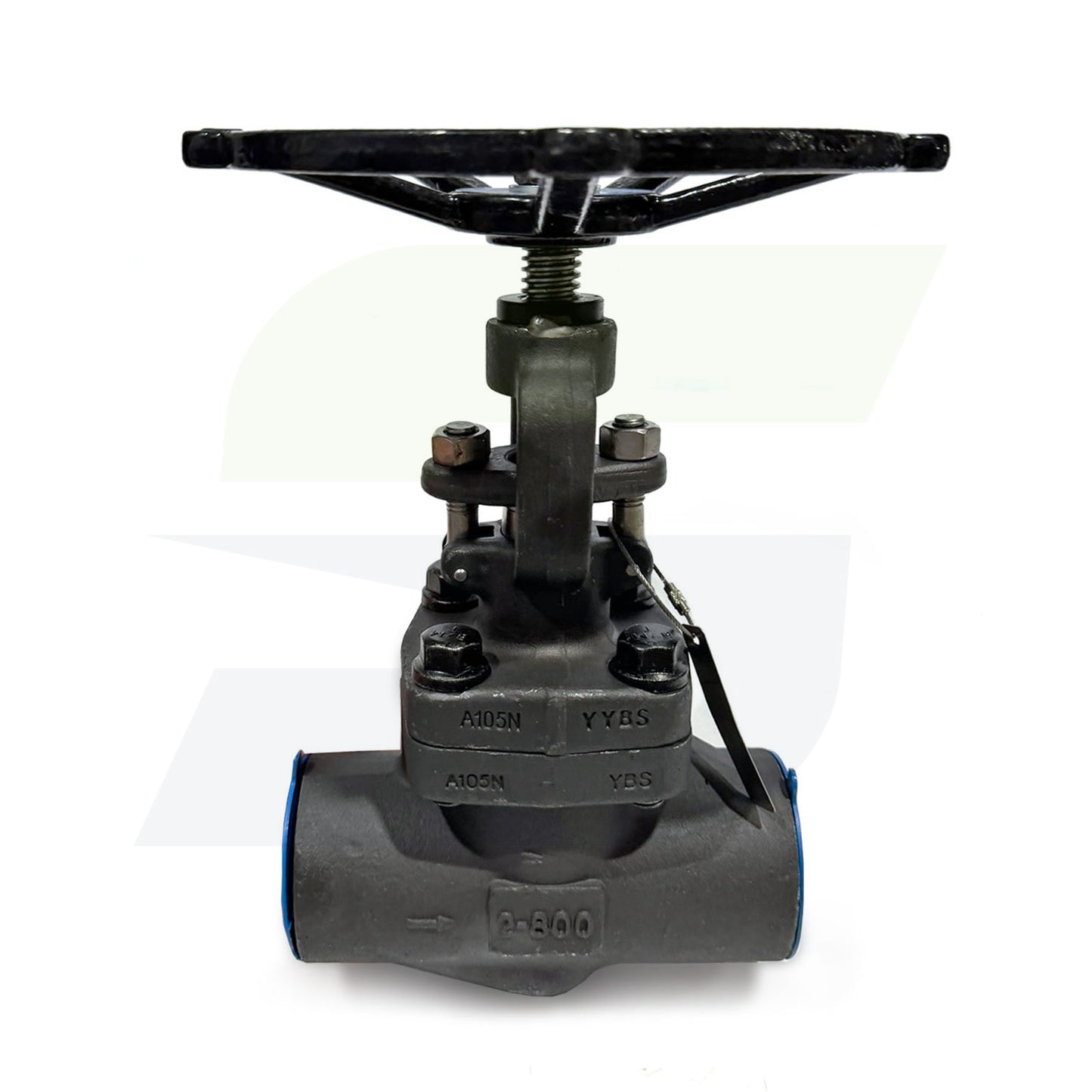

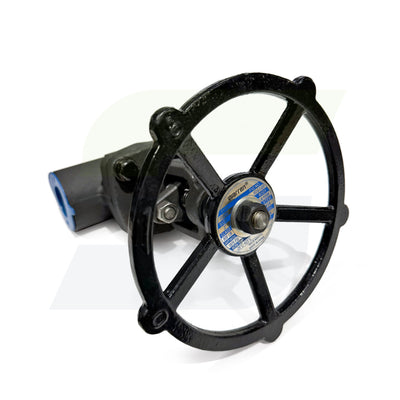

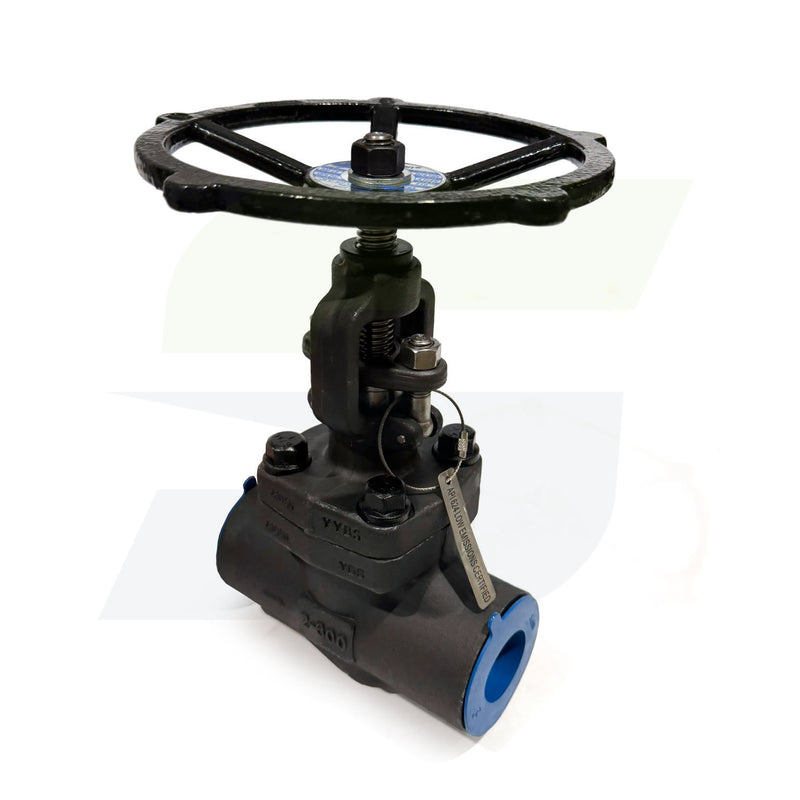

Warren Valve 2V852B-8THG - 2" Class 800 Forged Steel Globe Valve
The Warren Valve 2V852B-8THG 2" Class 800 Globe Valve is a heavy-duty forged steel flow control valve designed for demanding industrial piping systems. Built with a bolted bonnet construction and outside screw and yoke (OS&Y) design, this valve delivers reliable shutoff and precise throttling performance in high-pressure applications. The threaded NPT ends allow straightforward installation into compatible piping systems, while NACE compliance and graphite sealing components support use in corrosive or emissions-sensitive environments. Commonly used across oil & gas, industrial process, and mechanical systems, this valve is engineered for long service life under severe operating conditions.
Features
- Manufacturer: Warren Valve
- Part Number: 2V852B-8THG
- Valve Type: Forged Steel Globe Valve
- Series: 852 Series
- Size: 2" nominal
- Pressure Rating: Class 800
- Body Material: Carbon steel (commonly A105N forged steel)
- Trim Material: Typically 410 stainless steel trim
- Connection Type: Threaded NPT ends
- Bonnet Design: Bolted bonnet for serviceability and sealing reliability
- Stem Design: OS&Y (Outside Screw & Yoke) for visible stem position and durability
- Actuation: Gear / handwheel operation
- Sealing / Soft Goods: Graphite packing and gasket for low fugitive emissions
- Compliance: Often specified with NACE compatibility for corrosive service
- Applications: Industrial process piping, oil & gas, water service, and high-pressure mechanical systems
