Home » Rheem » Blower Motors » 51-25023-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V
Rheem

51-25023-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

In stock
SKU: 51-25023-01
$223.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

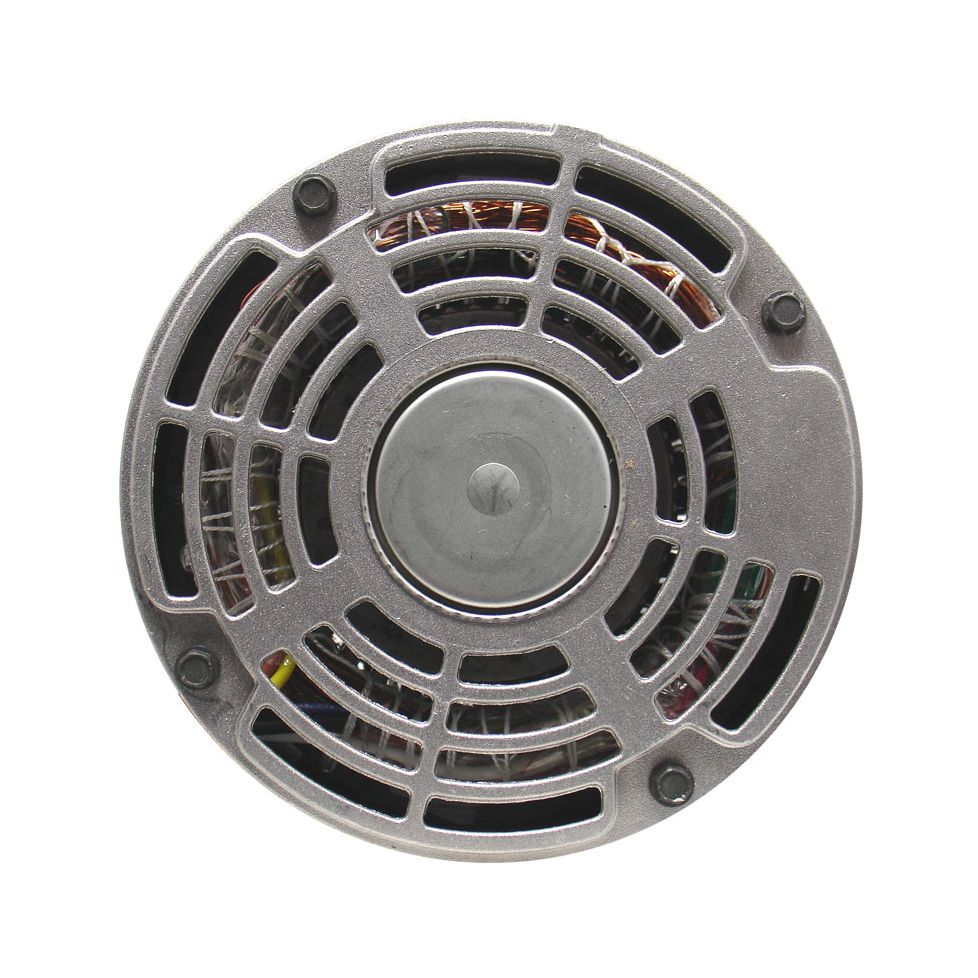

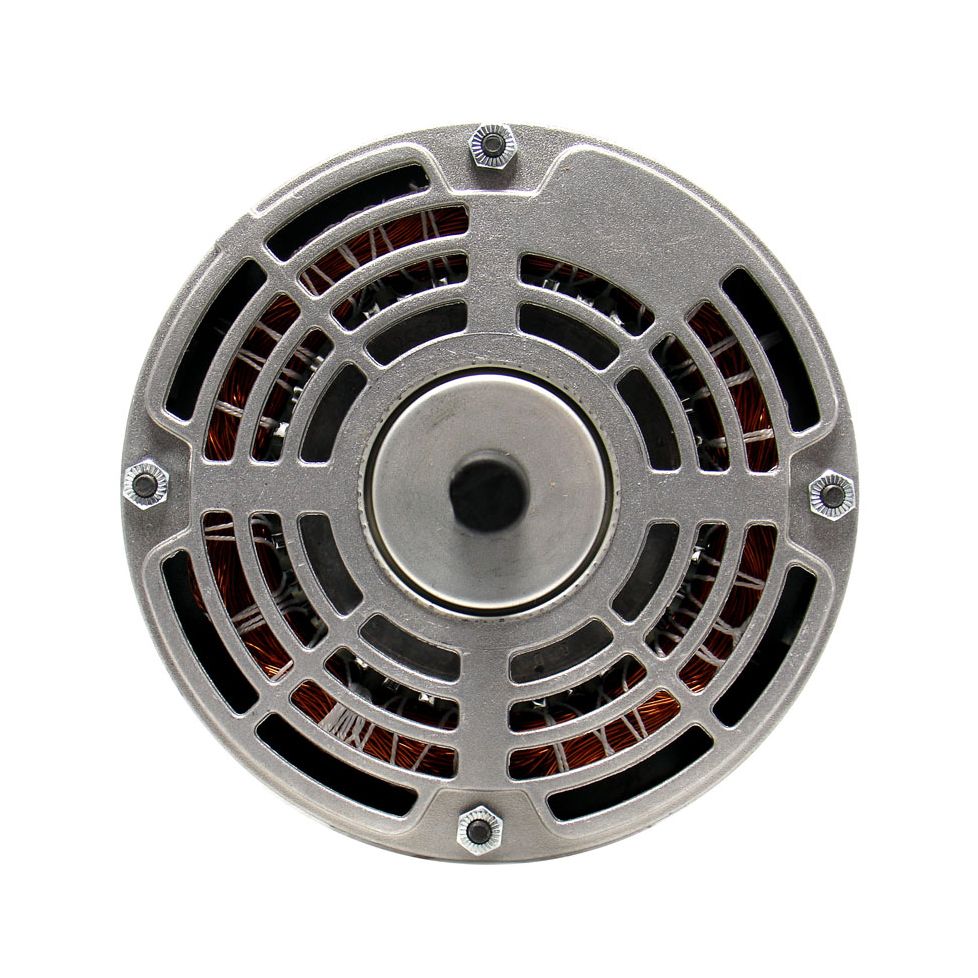

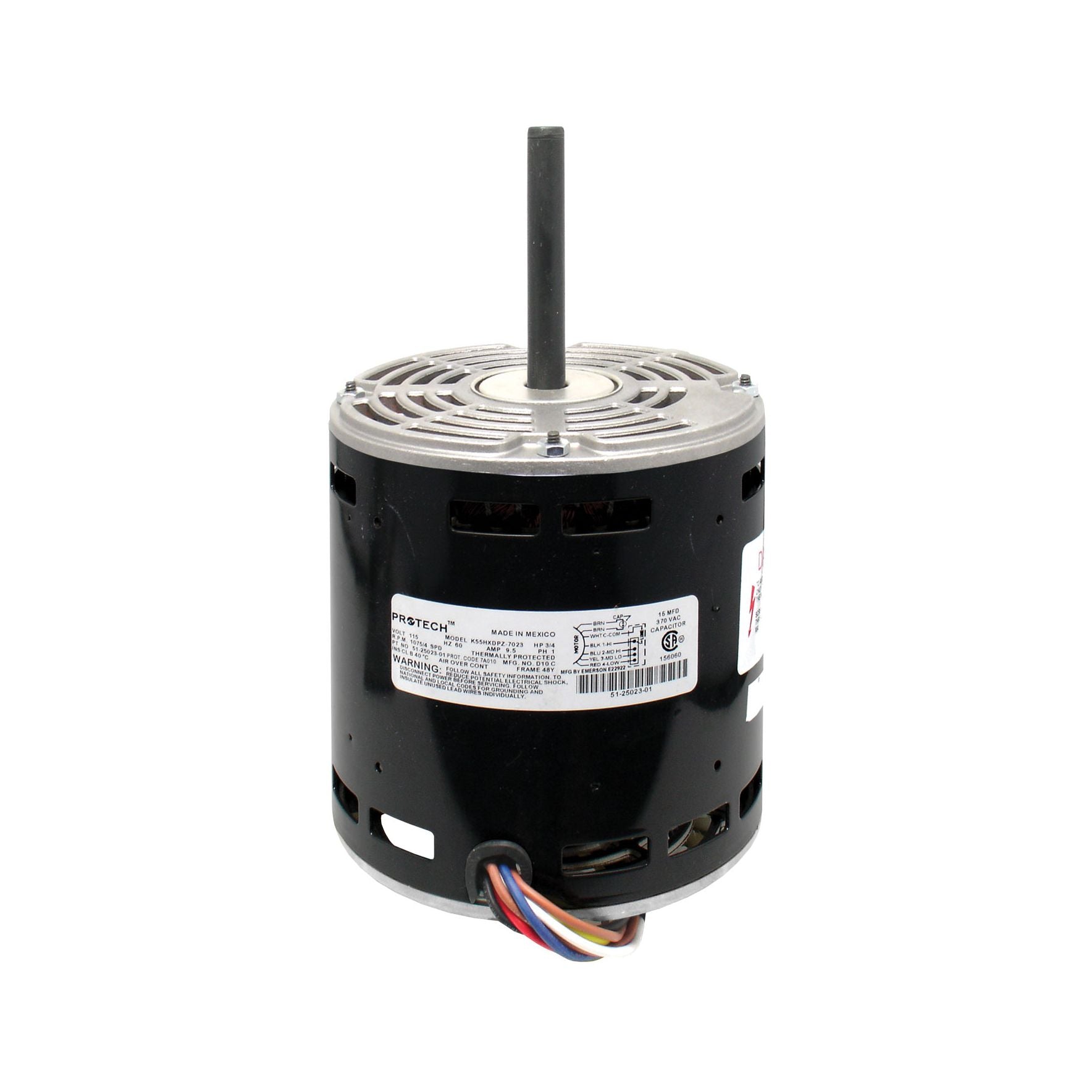

Rheem 51-25023-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

OEM replacements that may also be suitable for aftermarket retrofit in many other applications.

Features

  • HP: 3/4
  • No. of Speeds: 4
  • High Speed (RPM): 1075
  • Input Voltage (V): 120
  • No. of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 15/370
  • FLA at 120V (A): 9.50
  • LRA at 120V (A): 23.00
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 3-1/16
  • Overall Shaft Length (in.): 3-3/4
  • Motor Body Length (in.): 5-13/16
  • Overall Motor Length (in.): 9-9/16
  • Mounting: Shell-band
  • Mounting: Shell-screw
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 19.83 lbs

Where Used

  • RGDJ
  • RGVJ
  • RGLS
  • RGPS
  • R801P-ZSA
  • R801P-ZSA_ZSB
  • R802P-ZSA
  • RGLG
  • RGLH
  • RGLK
  • RGVG
  • RGDG
  • SGDG
  • RGLN
  • RGLQ
  • RGPH
  • RGPK
  • RGPN
  • RGPQ
  • RGVH
  • RGLJ
  • RGPJ
  • RGPP
  • 80LJ
  • 80LS
  • 80PJ
  • 80PS
  • R801S-ZSA

Replaces

  • 51-102426-01
  • 51-25327-01
  • 51-103220-01
  • 51-103220-01
  • 51-22859-01
