Home » Rheem » Blower Motors » 51-104342-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V
Rheem

51-104342-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

In stock
SKU: 51-104342-01
$244.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

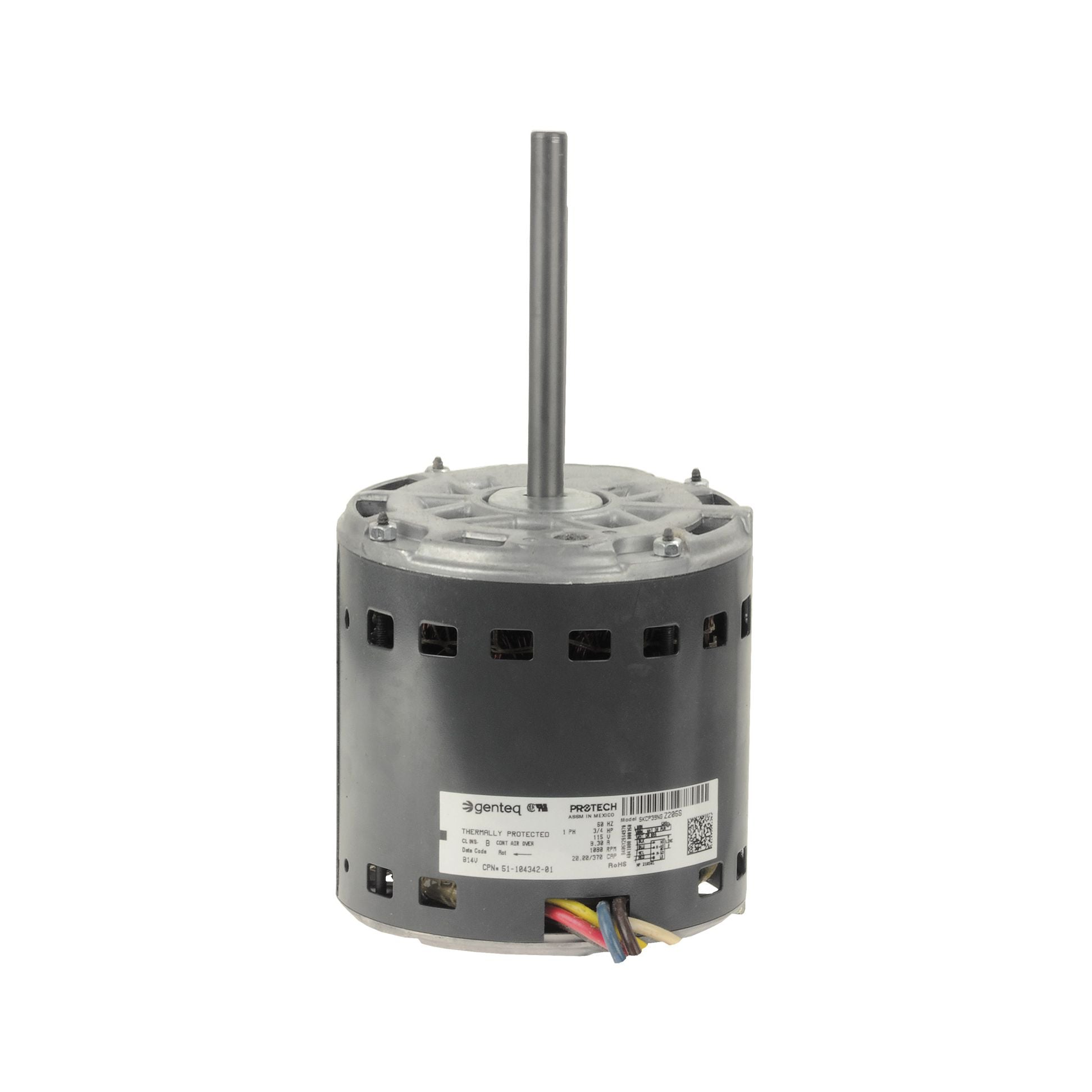

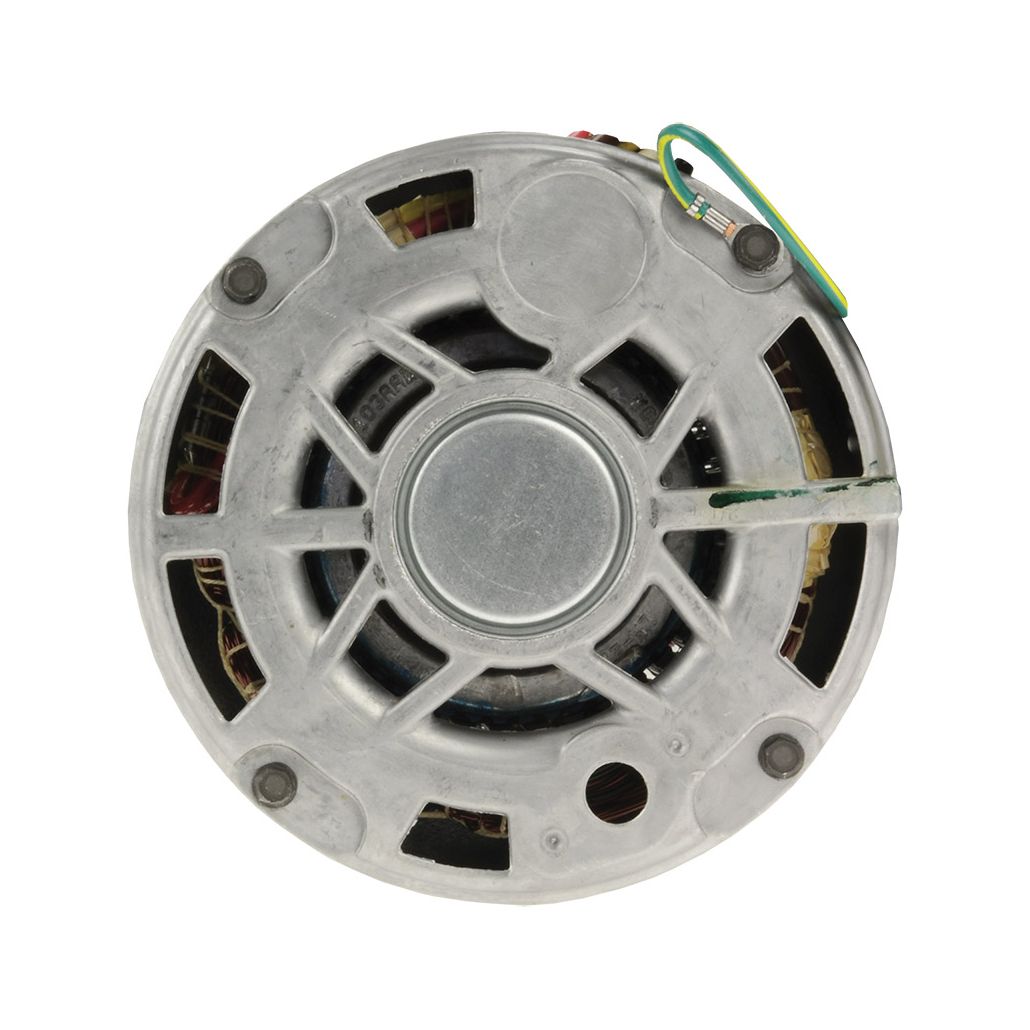

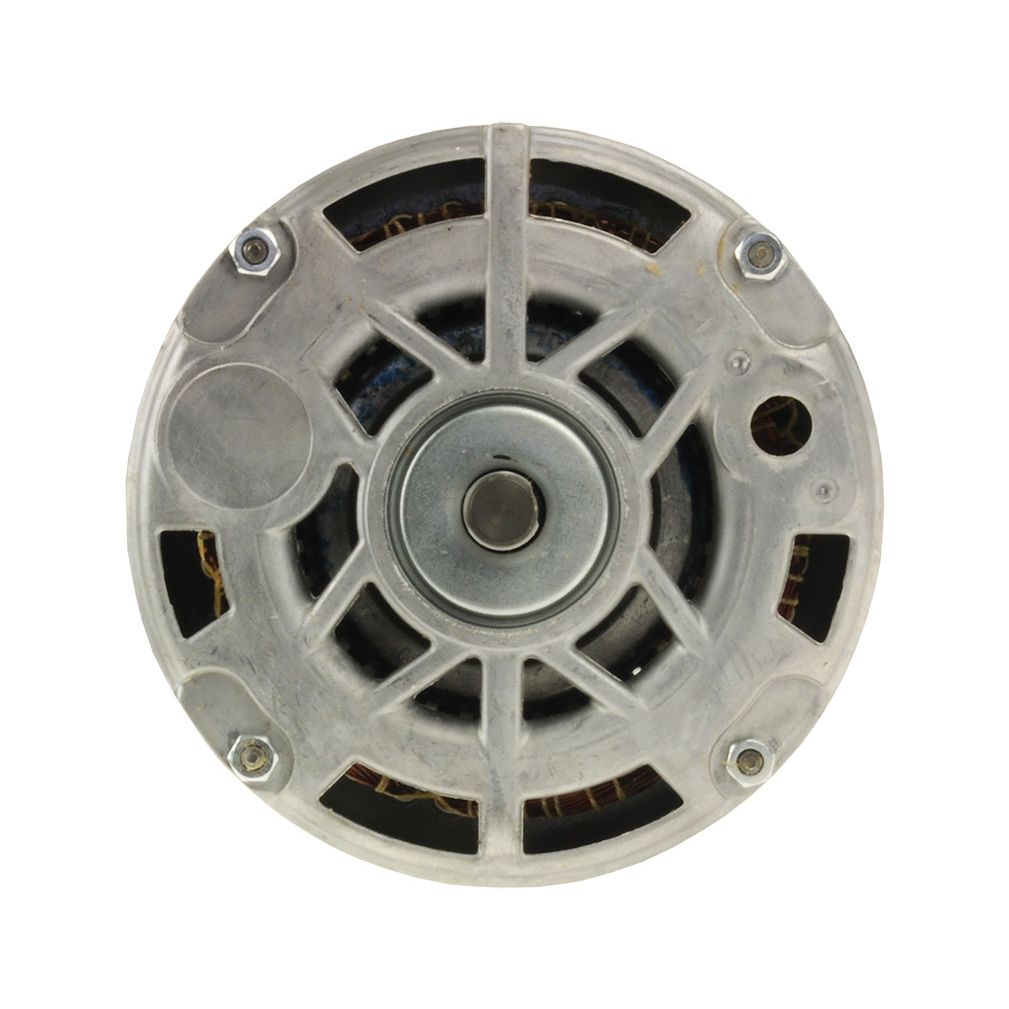

Rheem 51-104342-01 - 3/4 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

OEM replacements that may also be suitable for aftermarket retrofit in many other applications.

Features

  • HP: 3/4
  • Number of Speeds: 4
  • High Speed (RPM): 1075
  • Input Voltage (V): 120
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 20/370
  • FLA at 120V (A): 8.3
  • LRA at 120V (A): 16.1
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 4
  • Overall Shaft Length (in.): 4-3/4
  • Motor Body Length (in.): 5-3/16
  • Overall Motor Length (in.): 10-3/32
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive

Where Used

  • R92PA
  • R95PA
  • R96PA
