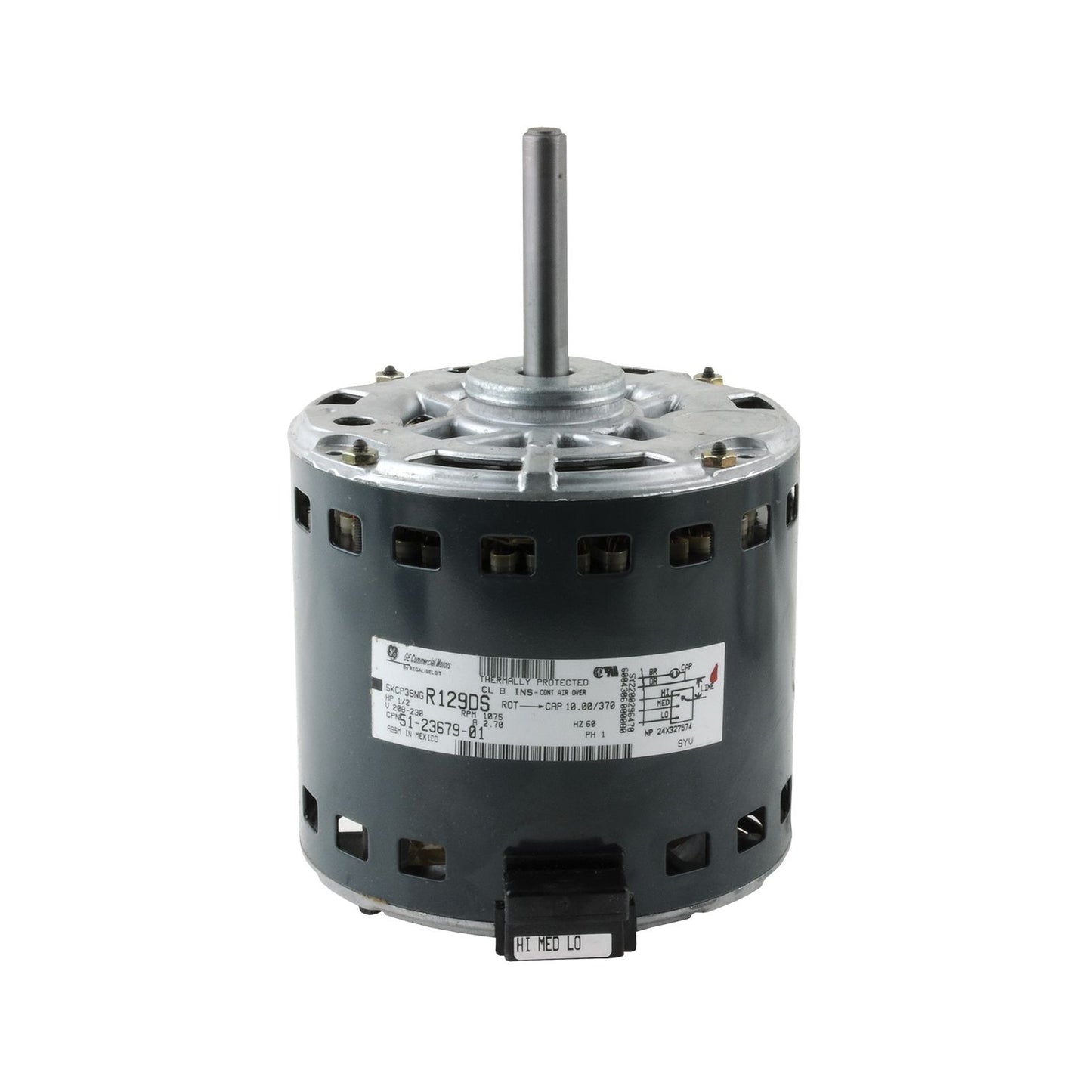

Rheem 51-23679-01 - 1/2 HP Blower Motor - 1 Phase - 3 Speed - 230V

The Blower Motor is the component that sends conditioned air from the furnace, heat pump, orair conditioner into the home. When the system cools or heats the air, the blower motor forces it through the duct system and out the vents in rooms throughout the home.

Features

• Thermally protected
• Sleeve bearing
• OEM genuine factory authorized part
• HP: 1/2
• No. of Speeds: 3
• High Speed (RPM): 1075
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): CW
• Run Capacitor (uF/V): 10/370
• FLA at 230V (A): 2.70
• LRA at 230V (A): 6.50
• Shaft Diameter (in.): 1/2Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 2-1/2
• Overall Shaft Length (in.): 2-1/2
• Motor Body Length (in.): 5-1/4
• Overall Motor Length (in.): 8-5/8
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Blower
• Drive Type: Direct Drive

Where Used

• RKKA
• SLKA
• RJKA
• RJMA
• RJNA
• RJNL-A
• RKMA
• RKNA
• RKNL-A
• RKNN-A
• RKPN-A
• RLKA
• RLMA
• RLNA
• RLNL-A
• RLNN-A
• RLPN-A
