Home » Rheem » Blower Motors » 51-23609-04 - 1/2 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 208/230V
Rheem

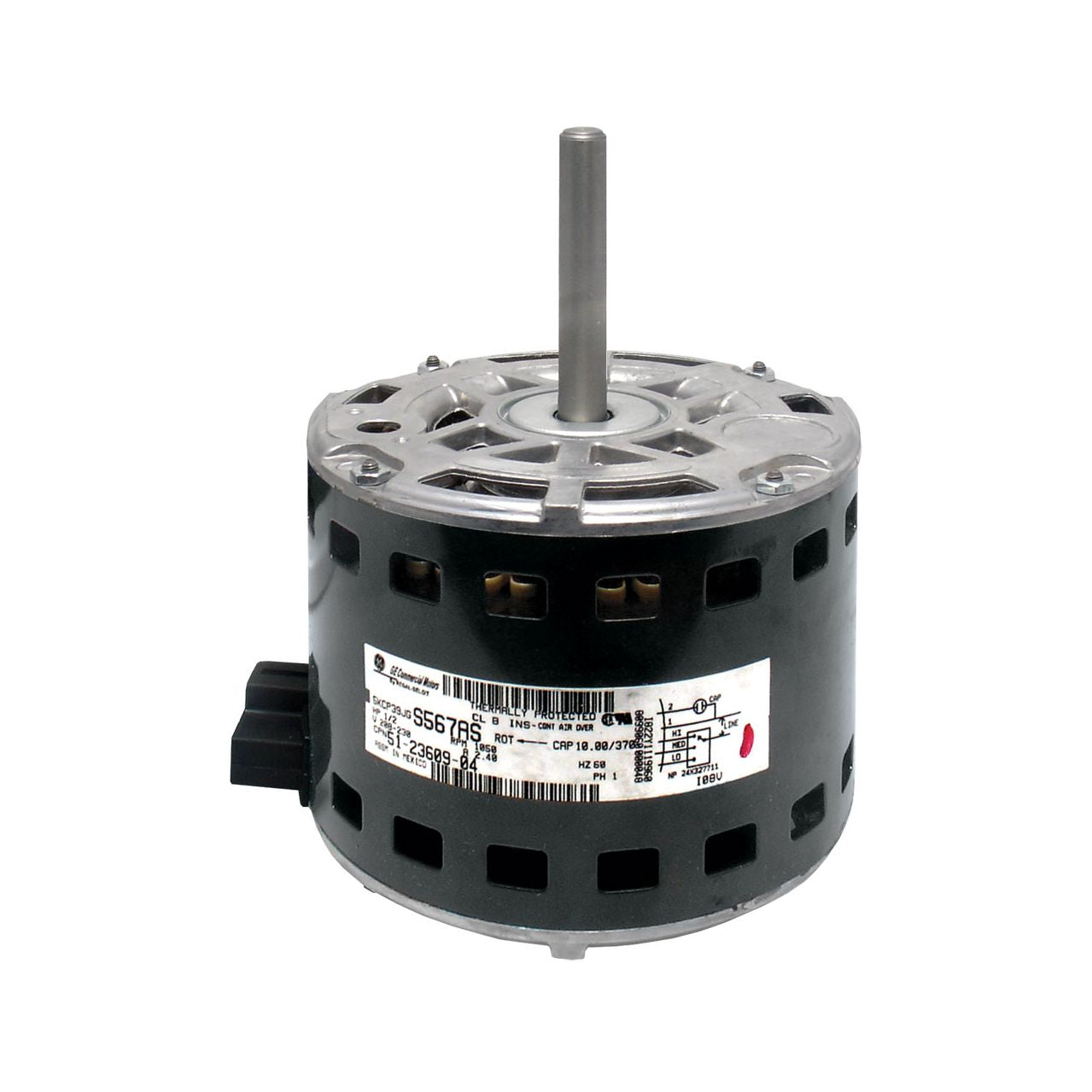

51-23609-04 - 1/2 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 208/230V

In stock
SKU: 51-23609-04
$213.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jose f. (El Paso, US)

Rheem [****] - Blower Motor - 1/2 HP, 1 Phase, 3 Speed, 208/230V, 1075 RPM

Rheem 51-23609-04 - 1/2 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 208/230V

This motor is for use in 60 Hz applications and is not to be used where a 50 Hz motor is required. No alternate is available for 50 Hz applications.

Features

  • HP: 1/2
  • Number of Speeds: 3
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 10/370
  • FLA at 230V (A): 2.40
  • LRA at 230V (A): 5.10
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 2-1/2
  • Overall Shaft Length (in.): 3
  • Motor Body Length (in.): 4-1/2
  • Overall Motor Length (in.): 7-9/16
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 12.53 lbs

Where Used

  • RQMA
  • RQKA
  • RRKA-A
  • RRMA-A
  • RQLA
  • RACA13
  • RACA14
  • RGEA13
  • RQNA-B
  • RQNL-B
  • RRNA-A
  • RRNA-B
  • RRNL-B
  • RSNA-A
  • RSNA-B
  • RSNL-B


Replaces

  • 51-23609-02



HUZ2010452
