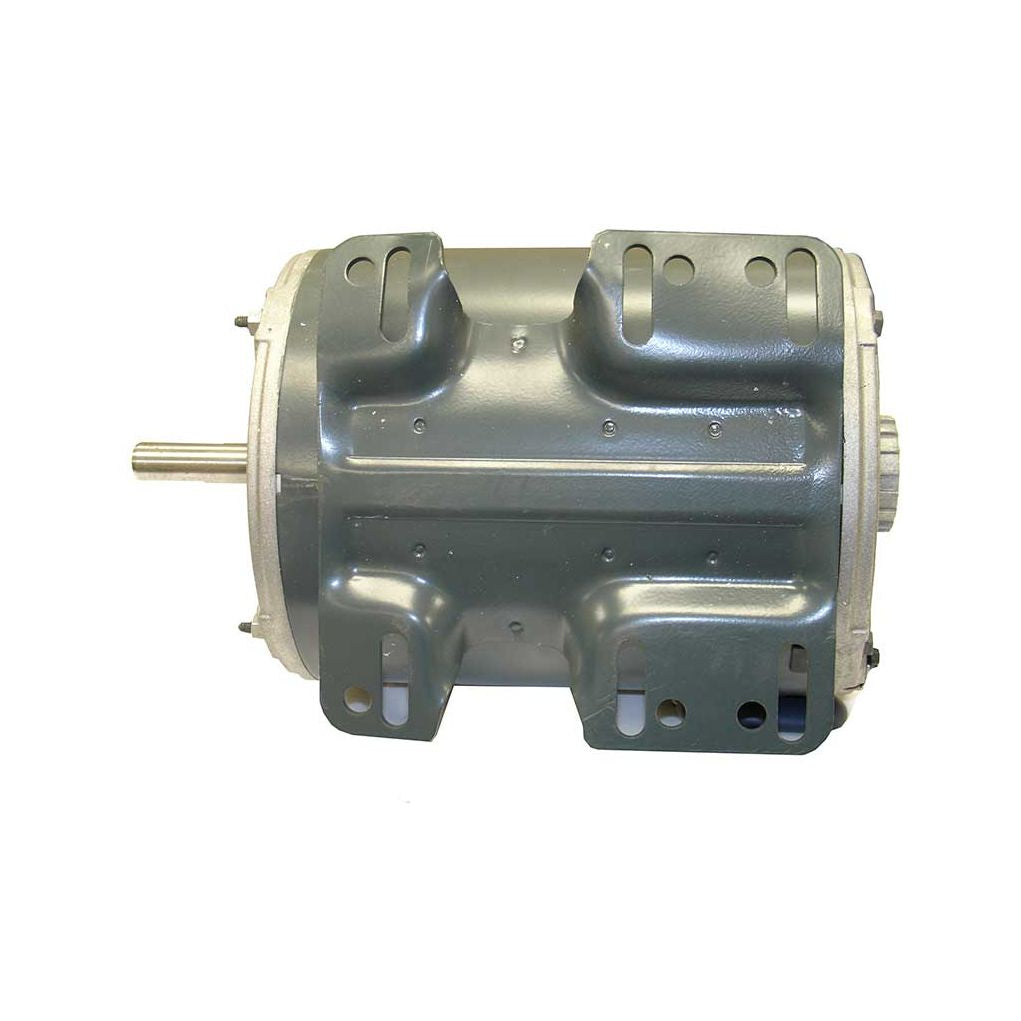

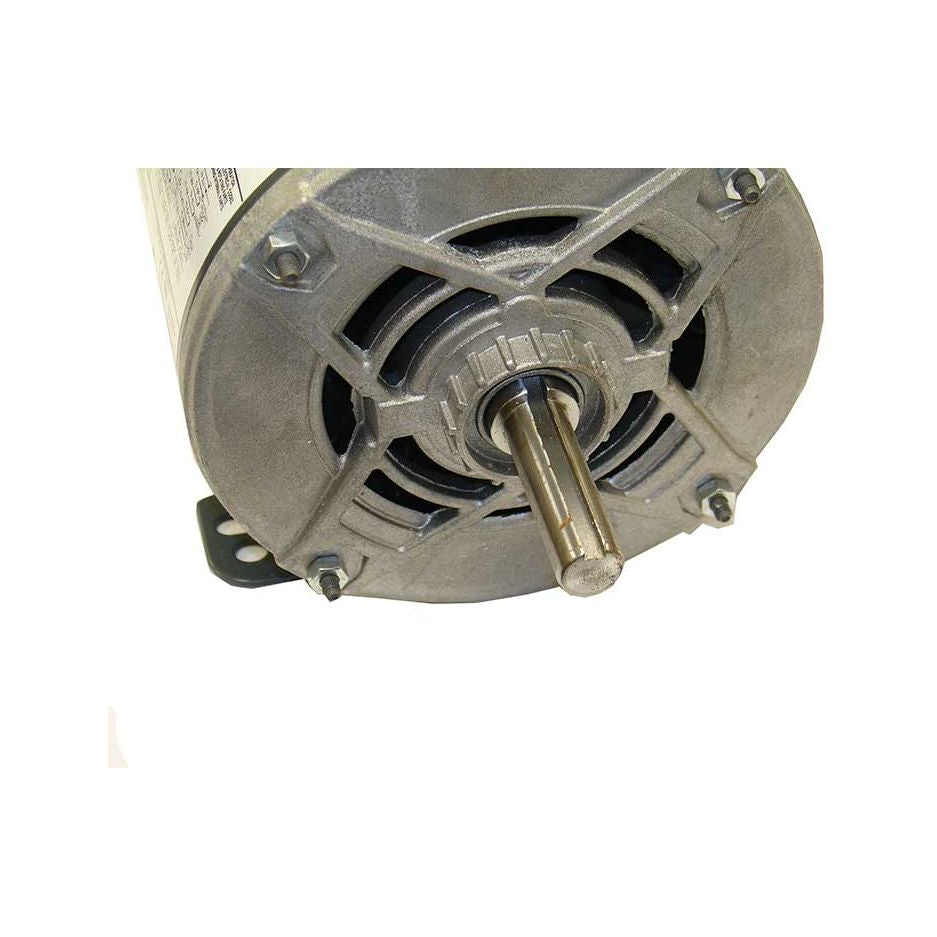

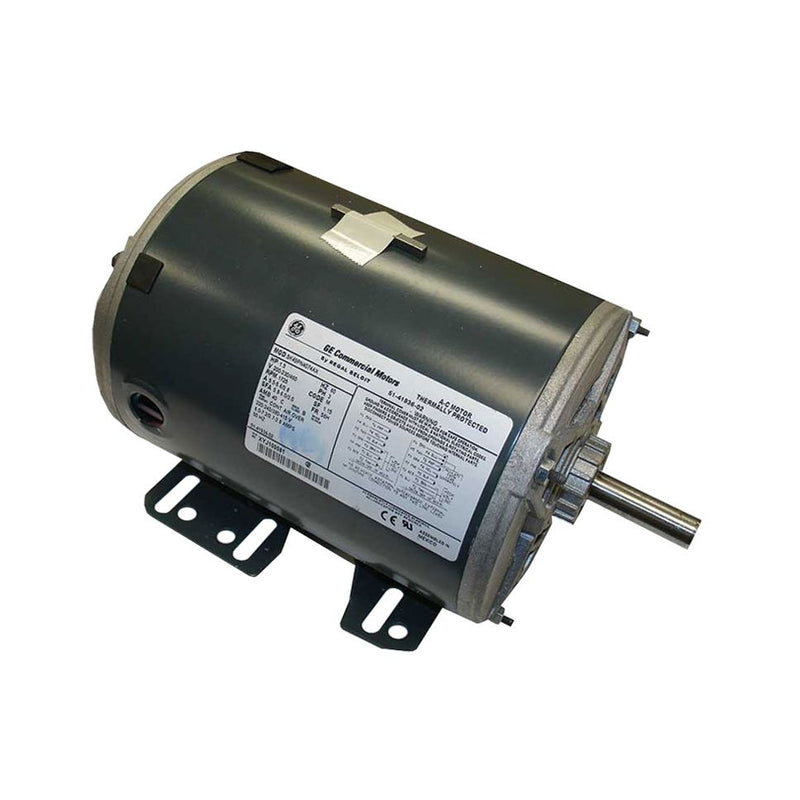

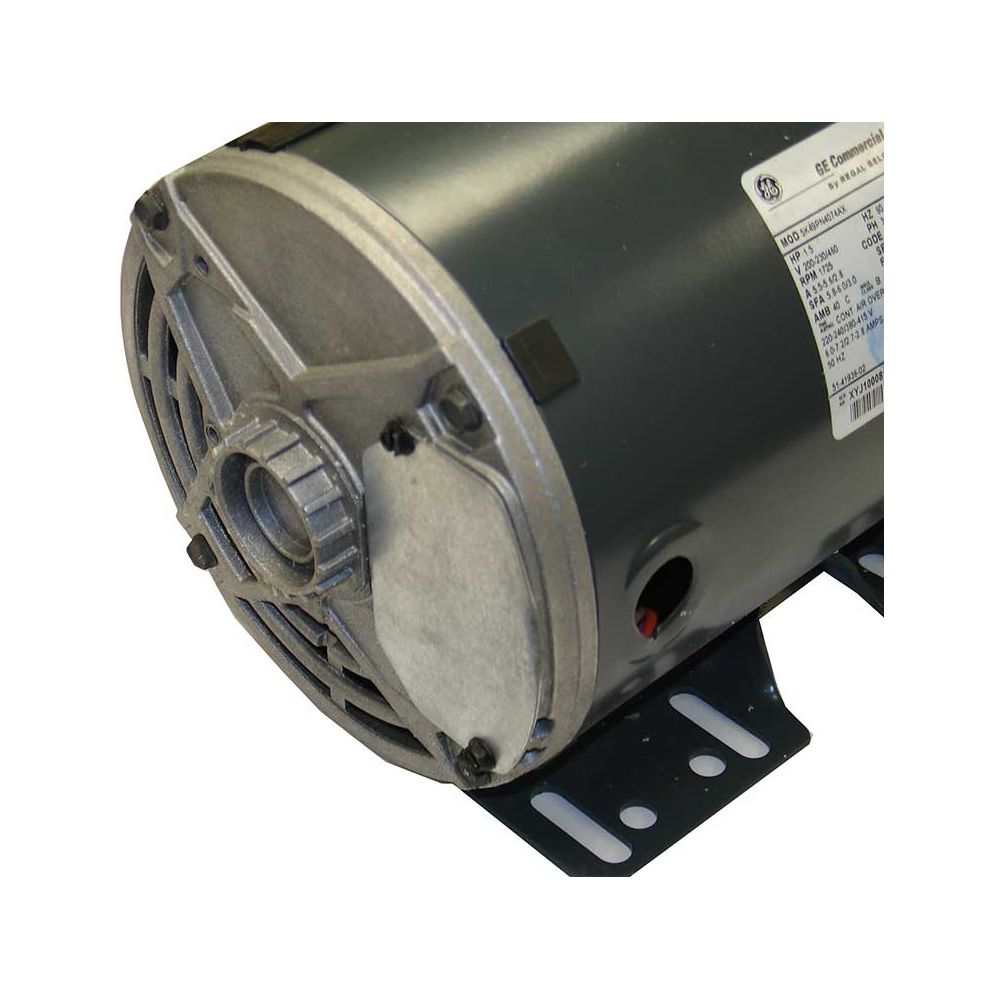

51-41936-02 - 1-1/2 HP Blower Motor - 3 Phase - 1 Speed - 1725 RPM - 208/230/460V

Only 1 left
SKU: 51-41936-02
Regular price $684.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 51-41936-02 - 1-1/2 HP Blower Motor - 3 Phase - 1 Speed - 1725 RPM - 208/230/460V

OEM Replacements that may also be suitable for aftermarket retrofit in many other applications.

Features

  • HP: 1-1/2
  • Number of Speeds: 1
  • High Speed (RPM): 1725
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Input Voltage (V): 460
  • Number of Phases: 3
  • Frequency (Hz): 60
  • Rotation Direction (OSE): Reversible
  • FLA at 208V (A): 5.80
  • FLA at 230V (A): 4.60
  • FLA at 460V (A): 2.80
  • LRA at 460V (A): 14.40
  • Shaft Diameter (in.): 5/8
  • Motor Body Diameter (in.): 6-1/2
  • Keyed/Flat Shaft Length (in.): 3/16 x 3/16 x 1-5/8
  • Overall Shaft Length (in.): 1-7/8
  • Motor Body Length (in.): 9-1/2
  • Overall Motor Length (in.): 11-3/8
  • Mounting: Platform
  • Frame Size: 56H
  • Bearing Type: Ball
  • Application: Blower
  • Drive Type: Belt Drive
  • Shipping Weight: 28.89 lbs

Where Used

  • RKKA
  • RKKA
  • SLKA
  • RJNL-A
  • RJNL-C
  • RKKL-B
  • RKKN-B
  • RKMA
  • RLKA
  • RLKL-B
  • RLKN-B
  • RLMA
  • SKKL-B
  • SLKL-B
  • RHGF
  • RHGE
  • RPDC
  • SHGE

Replaces

  • 51-42369-01
  • 8101-5685
  • 51-21913-02
  • 8101-5671
  • 51-42178-02
  • 51-42177-02
  • 51-21910-02




HUZ2013175
